Chapter 2: Installation

ST80Active

Speed and

Depth

Transducers

Installation Manual

ST80ActiveSpeed&DepthTransducerInstallation 1

Package Contents

1. Transducer assembly

2. SeaTalk power cable

3. Screws (2)

4. Screws (2)

5. 3-way SeaTalk connector block

6. Installation manual

7. Warranty card

ST80ActiveSpeed&DepthTransducerInstallation

Contents

Chapter 1: Installation ............................................................... 3

1.1 Installing the Speed Sensor ............................................3

General Points to Remember ....................................... 3

1.2 Installing the Depth Sensor ...........................................4

General Points to remember ......................................... 4

1.3 Installation of the Data Processing Unit .........................5

1.4 Connection to SeaTalk ..................................................5

1.5 Triducer Installation .....................................................7

Connecting the Triducer to SeaTalk ............................. 8

Data Processing Unit PCB Connections ....................... 8

Chapter 2: EMC and Servicing Guidelines ................................ 9

2.1 Important information ...................................................9

2.2Installation...................................................................9

2.3 Check Before Going to Sea .........................................10

2.4 Servicing and Safety ...................................................10

Chapter 3: Specification .......................................................... 11

3.1 Active Speed Transducer ............................................11

3.2 Active Depth Transducer ............................................11

ST80ActiveSpeed&DepthTransducerInstallation 3

Chapter1:Installation

1.1 Installing the Speed Sensor

Please refer to the instructions provided in speed sensor package for

complete installation details and recommendations.

These instructions should be read thoroughly before any attempt is

made to install the speed sensor.

General Points to Remember

The speed sensor should be installed so that it is:

•Ahead of the propellers.

• At least 150mm (6in) from the keel and ideally forward of the keel.

D587

• Near the centre line of the vessel.

• Clear of all through hull fittings and projections.

There should also be sufficient space above the sensor to allow the

paddle wheel assembly to be removed.

Alternative active transducers are available from your Autohelm

dealer. The range includes: bronze through hull speed and a transom

mount triducer.

ST80ActiveSpeed&DepthTransducerInstallation

1.2 Installing the Depth Sensor

Procedures for fitting the sensor to the hull of your vessel are

supplied in the sensor package. Please read these instructions

thoroughly before attempting to install the unit.

General Points to remember

A warning label covers the face of the depth sensor. This label

should be removed before use and the face of the sensor “wetted”

with a household detergent.

The sensor should be installed so that it is:

• near the centreline of the vessel (within 10° of the vertical)

10 Max

D630

• ahead of the propellers and forward of the keel

• clear of all other through hull fittings or projections

ST80ActiveSpeed&DepthTransducerInstallation 5

1.3 Installation of the Data Processing Unit

The cables from the data processor are 2m (6ft) in length. Therefore,

a 3-way SeaTalk connector block must be sited within 4m (12ft) of

the transducer.

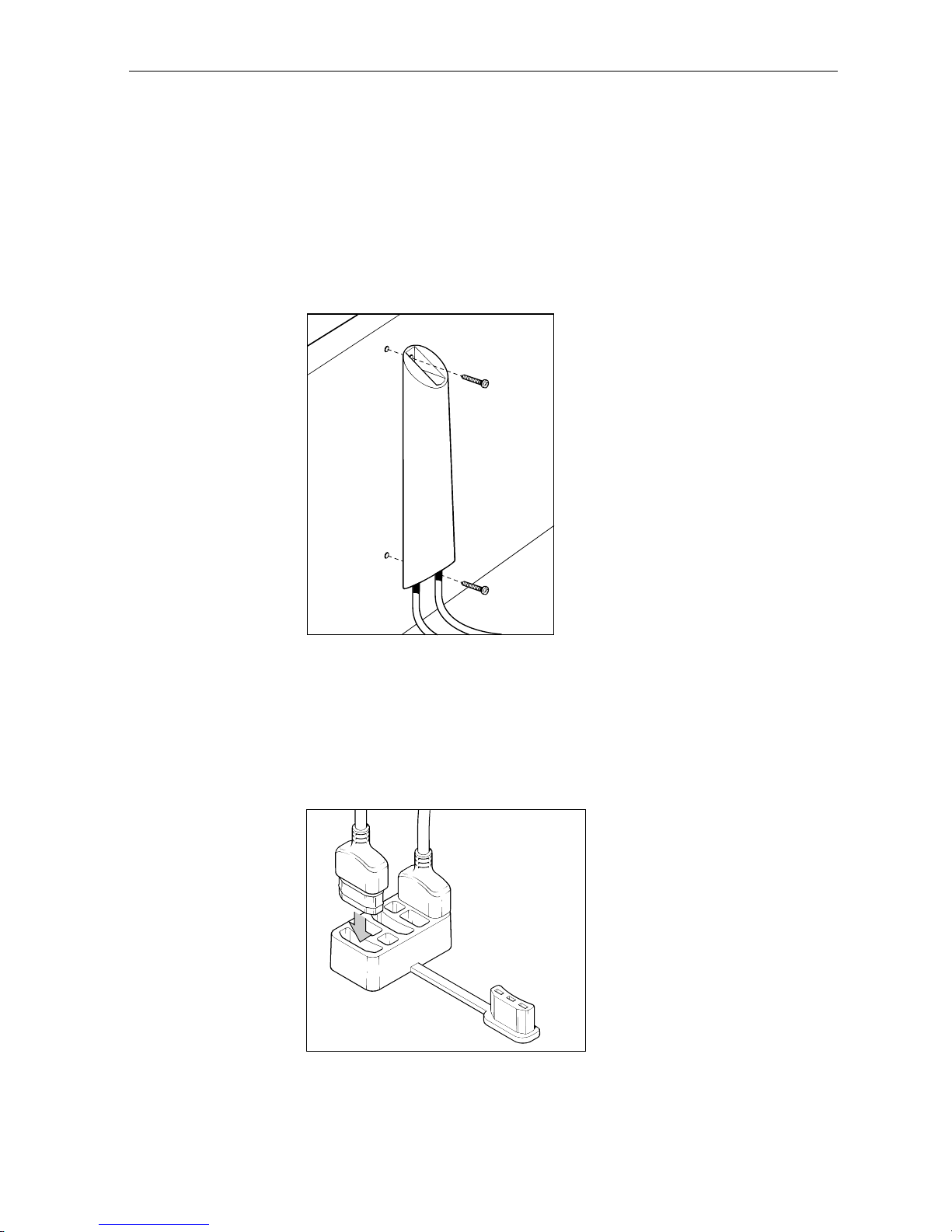

Use the 19mm (3/4in) self-tapping screws to mount the processor

vertically or horizontally to a springer or beam.

D2345-1

Note: Position both the data processor and the SeaTalk connector block

clear of any bilge water.

1.4 Connection to SeaTalk

Plug the free end of the data processor cable into any 3-way

connector block.

D2344-1

ST80ActiveSpeed&DepthTransducerInstallation

The following illustration shows a typical SeaTalk system and the

method of inter-unit connection.

D2343-1a

(1) Depth sensor

(2) Data processing unit

(3) SeaTalk 3-way

junction box

(4) Power cable

(5) ST80 Masterview

display head

masterview

ST80ActiveSpeed&DepthTransducerInstallation 7

D2753-1

(1) Speed sensor

(2) Data processing unit

(3) SeaTalk 3-Way

connector block

(4) ST80 Display head

1.5 Triducer Installation

There are two triducers available, one for transom mounting and a

second, bronze unit, for through hull mounting. Triducers provide

speed, depth and temperature information and comprise of two data

processors and a triducer housing.

Please refer to the instructions provided in the triducer package for

details on how to install the triducer housing.
