Raven Cruizer Manuel

Cruizer

Operator’s Guide

Installation

1. Mount the DGPS antenna to the tallest point of the vehicle (usually the vehicle’s

cab) using the standard magnet mount. To achieve the best possible signal, make

sure that the DGPS antenna has a clear 360° view of the sky. The simplest setup

is achieved by mounting the antenna on the center-line of the vehicle.

2. Route the antenna cable to the back of the Cruizer console and connect to the

antenna port.

3. Connect the power cable to the power port on your Cruizer and plug the

Accessory Power Adaptor Plug into your vehicle’s accessory port or cigarette

lighter.

4. Mount Cruizer inside the vehicle’s cab using the supplied RAM mount arm and

suction cup. Note: Make sure the mounting surface is clean and provides an

adequate bond for the suction mount.

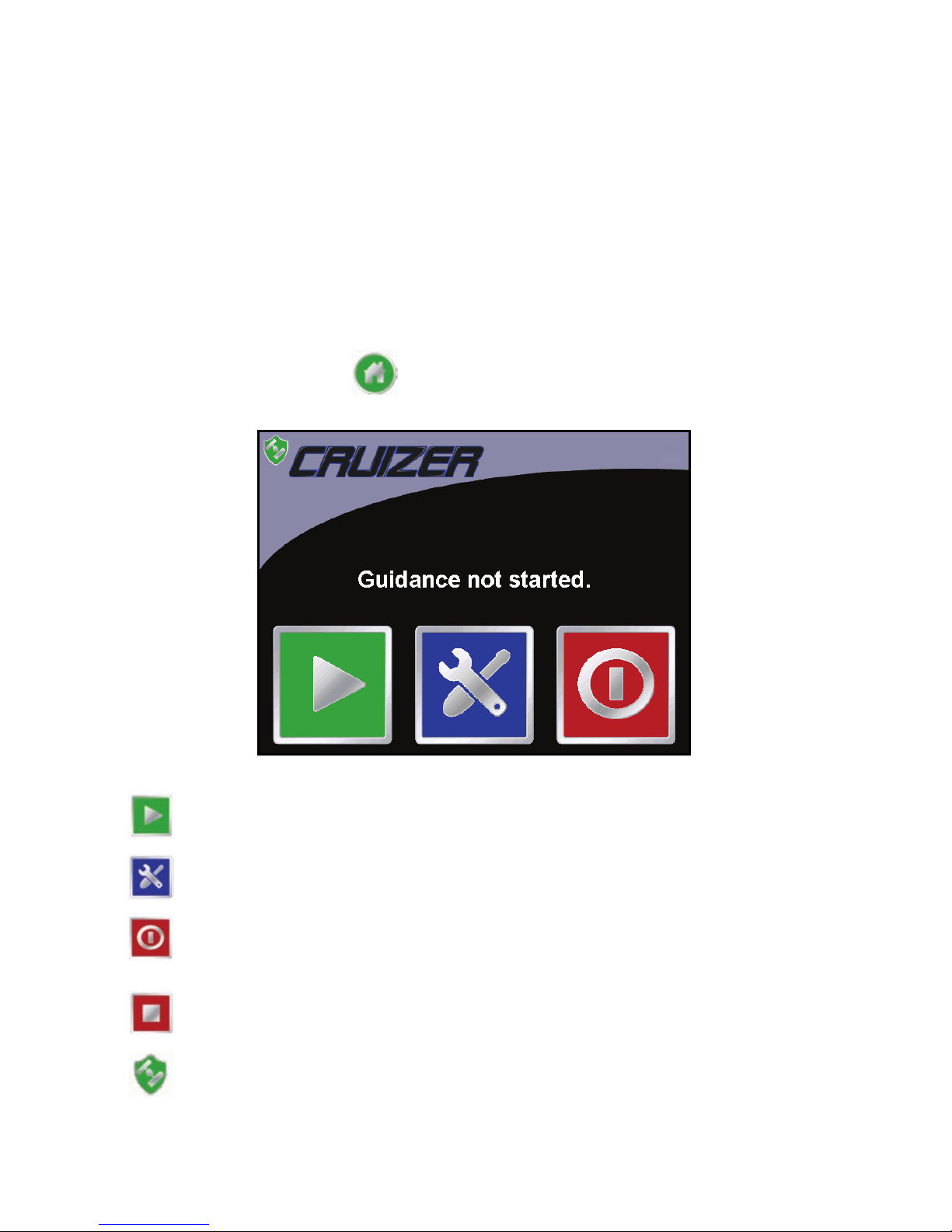

Home Screen

Touch the Start Guidance icon to begin a new Guidance session or continue a

session that is already in progress.

Touch this icon to access the Configuration Menu. The Configuration Menu is

only available from the Home screen.

When you turn the console on or when Guidance is not active, the Shutdown

icon will appear. Raven recommends that you shutdown the console before

turning the power off.

If Guidance is running, the End Guidance icon will appear on the Home

screen. Touch this icon to end the open Guidance session.

The GPS Status screen is available by touching this icon in the upper left

corner of the Home and Guidance screen. This icon displays:

• Green if the GPS status is okay

• Yellow if an error condition has been encountered.

• Red if GPS is non-functional. Make sure the DGPS antenna connections are secure

and that the antenna has a clear, 360° view of the sky.

Initial Startup

The first time you power on your new console, Cruizer will need to be configured for

your preferences, the desired units of measurement (inches or meters), and your

specific machine. A Configuration Wizard will automatically start when the console

is powered up and should only take a few minutes to complete. Once completed, these

settings and any changes will be saved by internal memory.

1. On the first screen displayed in the Configuration Wizard, select the language

and display units for your Cruizer. Touch the green arrow to accept your selection

and advance to the Boom Width Setup screen.

2. Use the displayed keypad to enter the overall implement, equipment, or boom

width in inches (English) or meters (Metric). Touch the green arrow to advance

to the Left/Right Offset screen.

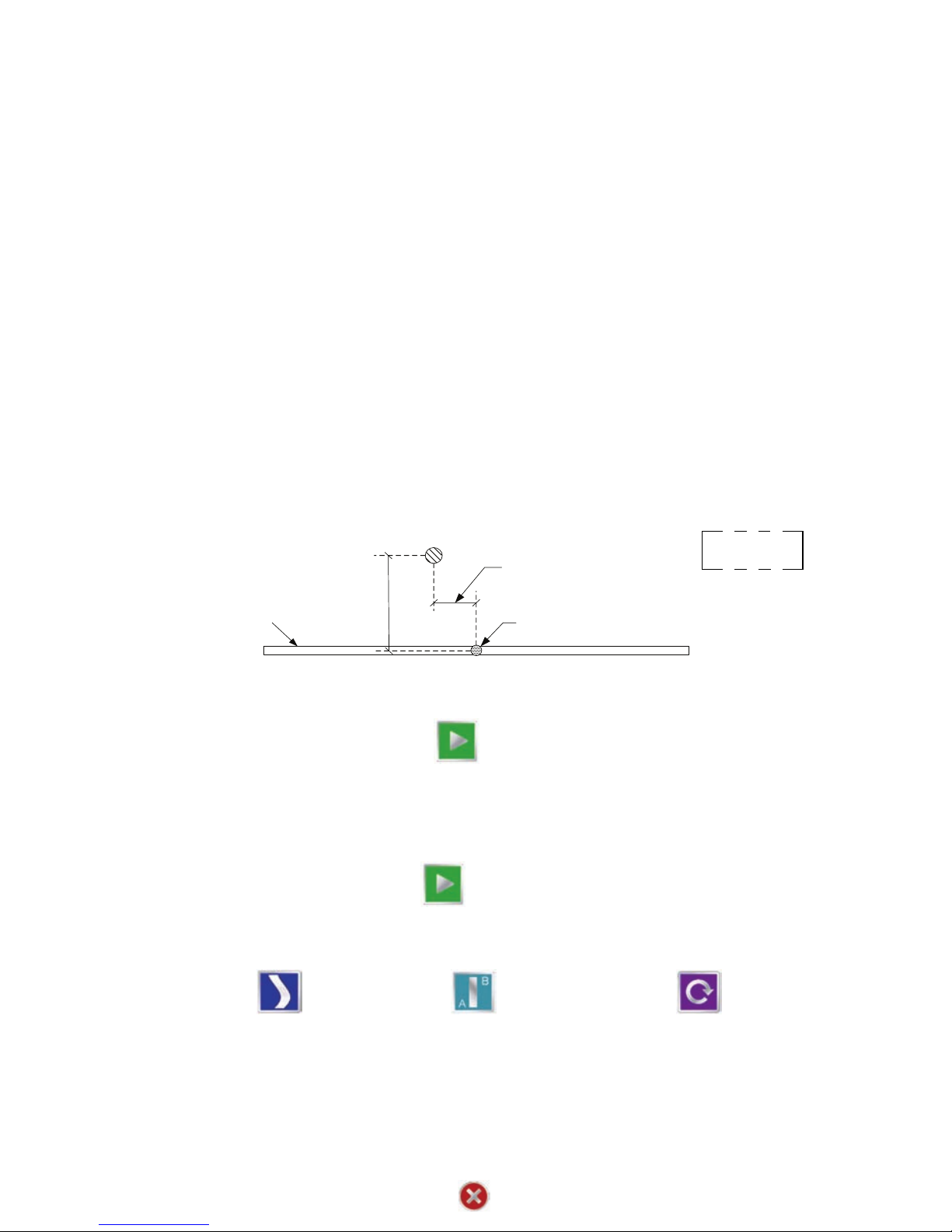

3. Enter your GPS antenna’s left or right offset from the center of the implement or

boom. Enter a left offset by double tapping the decimal place button before

entering an offset value. Touch the green arrow when finished to advance to the

Fore/Aft Offset screen.

4. Use the keypad to enter your GPS antenna’s fore or aft position with respect to

the center of the implement or boom. If your GPS antenna is behind your

implement or boom, double tap the decimal button to enter a negative value for

the fore/aft offset. Touch the green arrow key to save any changes to this setting

and advance to the final Setup screen, Antenna Height.

5. Use the keypad to enter the GPS antenna height above ground. Touch the green

Home icon to complete the Configuration Wizard and go to the Home screen.

Starting Guidance

Once the initial setup has been completed, Cruizer is ready to start Guidance. Note

that you may need to visit the configuration menu to verify additional system settings

before proceeding with an actual guidance application. See the Configuration Menu

section for more information on the settings contained within the Configuration

Menu.

1. On the Home screen, touch the icon to start a new Guidance session.

2. The next screen displays the available Guidance Patterns (See the Guidance

section for more information regarding these Guidance Patterns).

3. At this point, you may either touch the desired Guidance Pattern to begin

Guidance or cancel by touching the in the lower right corner of the screen.

Last Pass Straight

Line

(A-B)

Pivot

Choose the Last Pass

Guidance pattern to allow

Cruizer to base following

guidance paths off of the

last applied area.

Choose the

Straight Line

pattern to create

parallel line

paths.

Choose Pivot to create concentric

guidance paths starting from the

outside of the pattern and moving

toward the center in increments of

your boom width.

Boom or

Implement Fore/Aft

Offset

Left/Right

Offset

CenterofBoom

or Implement

View from

Above

DGPS Antenna

Guidance Screen

Once you have selected the desired Guidance Pattern, Cruizer will display the

Guidance Screen which will look similar to the following:

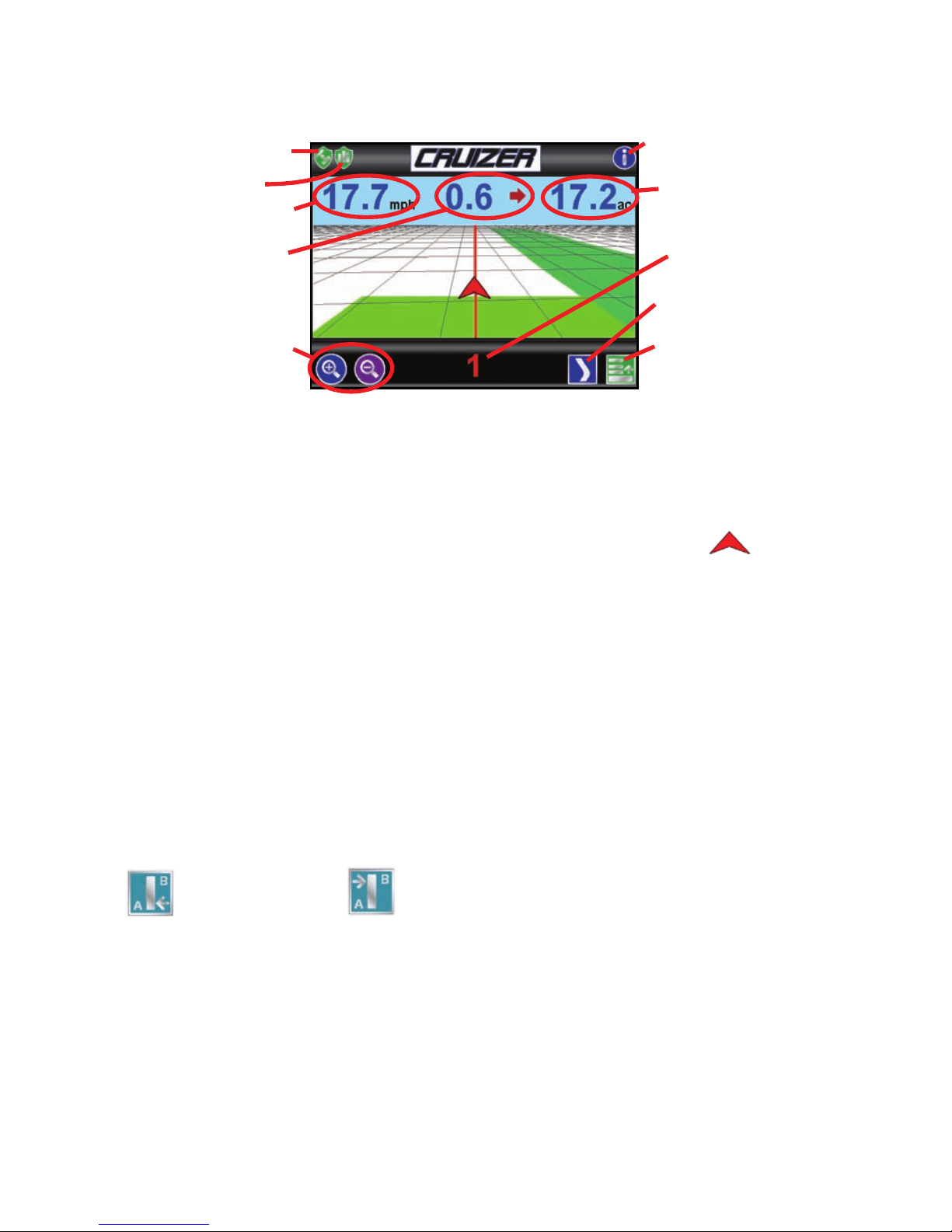

Touching icons or areas of the screen will access different information available

through Cruizer’s interface. Touch the:

1. GPS Status icon to display the GPS Status screen. Use this screen to view DGPS

receiver settings or help diagnose GPS problems.

2. History icon to toggle History recording On or Off. Touching the icon on

the Guidance screen will also toggle this feature.

3. Speed or CoG (Course over Ground) area to toggle the information displayed

between these two options.

4. The Distance to Line Display shows the distance and direction from the vehicle

to the current guidance path.

5. Zoom In or Out icons to either zoom in or zoom out on any of Cruizer’s

Guidance screens.

6. Information icon to display a help page containing a brief explanation of Cruizer

icons.

7. The Area Covered tally displays the total field area covered by active boom

sections (painted area on the Cruizer display).

8. The Swath Number or Set A-B icons are displayed in this area.

9. Alternate Guidance Pattern icon to switch to the Guidance Pattern displayed in

this area. The available Guidance Patterns will depend upon the pattern selected

when starting Guidance.

10. Menu icon to open the Menu. See the Menu section for more information on

features and options available through the Menu.

Touch the Set A

icon to set a point

at the vehicle’s

current location.

Touch the Set B icon to set a second point at the

vehicle’s current location and start A-B Guidance.

Cruizer will draw a line using either a Straight or

Pivot pattern to create a guidance path.

Built-In Lightbar

The built-in lightbar displays the distance and direction to the guidance path. The

System submenu, found within the Configuration Menu, contains the Lightbar

Setup screen to select between Fine, Medium, and Course lightbar displays (units and

increments displayed on the Lightbar Setup screen).

The lower center green LED illuminates when DGPS is being received. The upper

center green LED illuminates when the system is on the guidance path.

If an optional SmarTrax system is installed and engaged, the outside red LEDs will

illuminate.

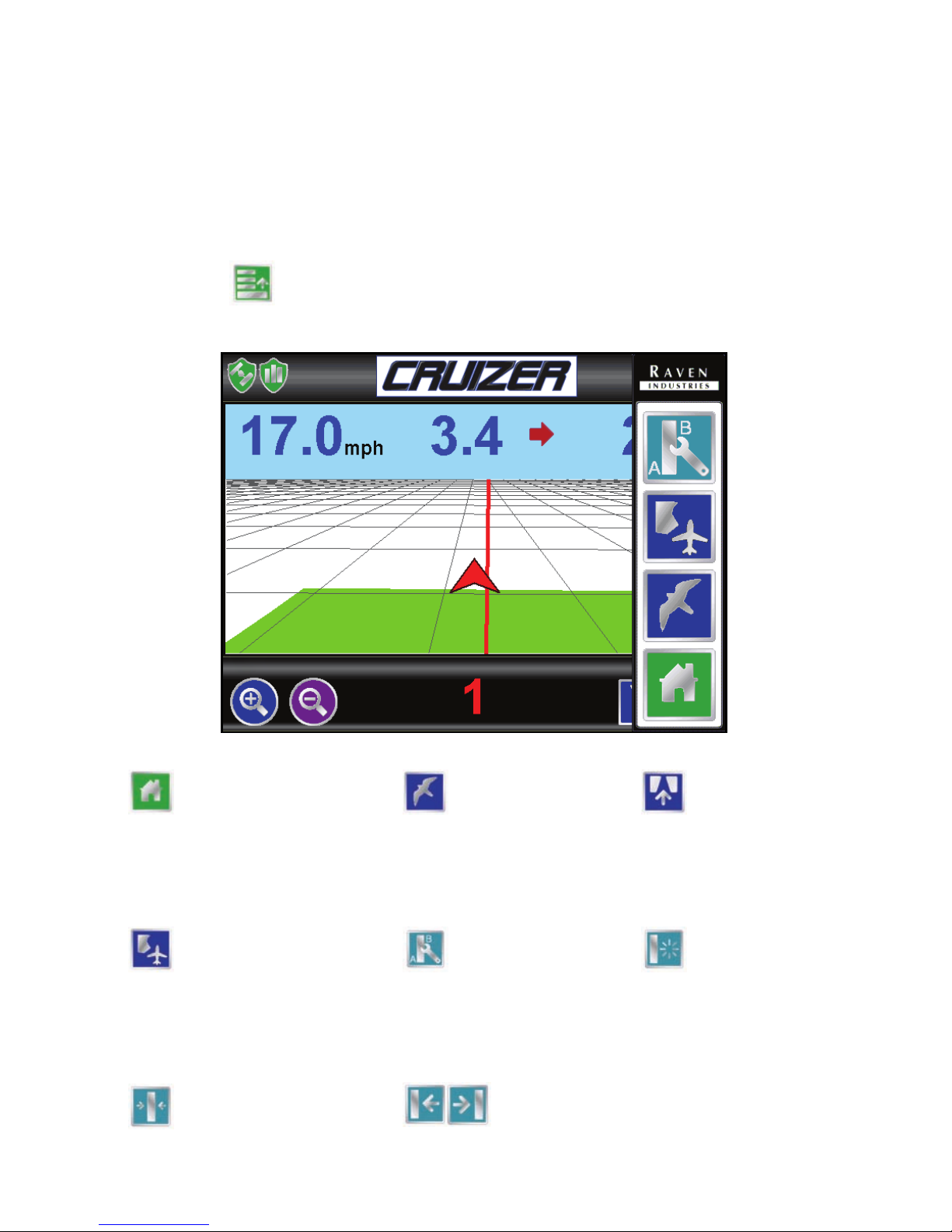

Touch the Menu icon to display the available options for the current Guidance screen.

The Home icon will take

you to the Home screen.

You will need to go to the

Home screen to end Guidance

or view the Configuration

Menu while Guidance is

running.

Touch this icon to

switch to the Bird’s

Eye View for the

Guidance display.

This icon

switchestothe

Down Field

View (see screen

image above) on the

Guidance screen.

This icon switches the

Guidance display to

Field Review mode.

Touch this icon to access the

Field Boundary features of the

Cruizer console.

If you set an A-B

Line during a

Guidance session,

this icon will appear in the

Menu. Touch this icon to

access A-B Line options

and features.

Touch this

icon to reset

your A-BLine

if you want to create a

new Guidance path.

Touch this icon to

re-calibrate your A-B

Line to the vehicle’s

current location.

The Nudge Left and Right icons will

shift the A-B Line in 1 inch (2 cm)

increments. Use these icons to adjust

the guidance path.

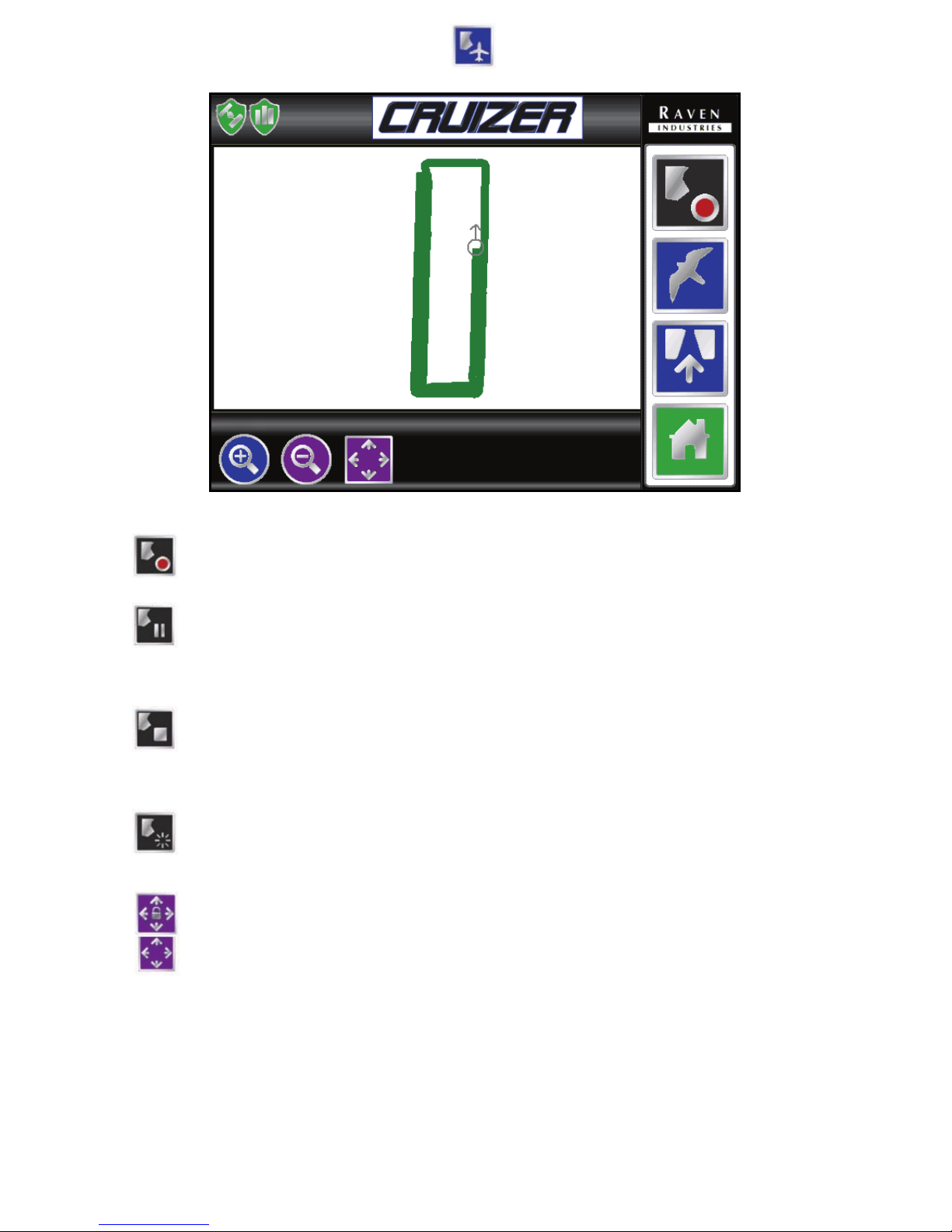

Field Review Mode

While in Field Review mode, touch this icon to begin recording a field

boundary.

While recording a Field Boundary, touch this icon to pause recording of

the field boundary. This feature is useful when refilling tanks or when the

vehicle’s path does not affect the field boundary being recorded. The

Pause Field Boundary icon appears on the Field Review screen.

While recording a Field Boundary, touch this icon to end the field

boundary. This will connect your current location with the starting point of

the field boundary with a straight line. The End Field Boundary icon

appears on the Field Review screen.

After a field boundary has been recorded, touch this icon to reset the

boundary so a new one can be recorded. This icon appears in the Menu

when in Field Review Mode.

When the Pan/Vehicle Lock is on, the vehicle position will always be

displayed on screen. In Field Review Mode, if the lock symbol does not

appear in this icon, Pan Lock is enabled and Cruizer will automatically

pan the screen when the vehicle icon moves off of the current display area.

Touch is icon to toggle the Pan/Vehicle Lock feature.

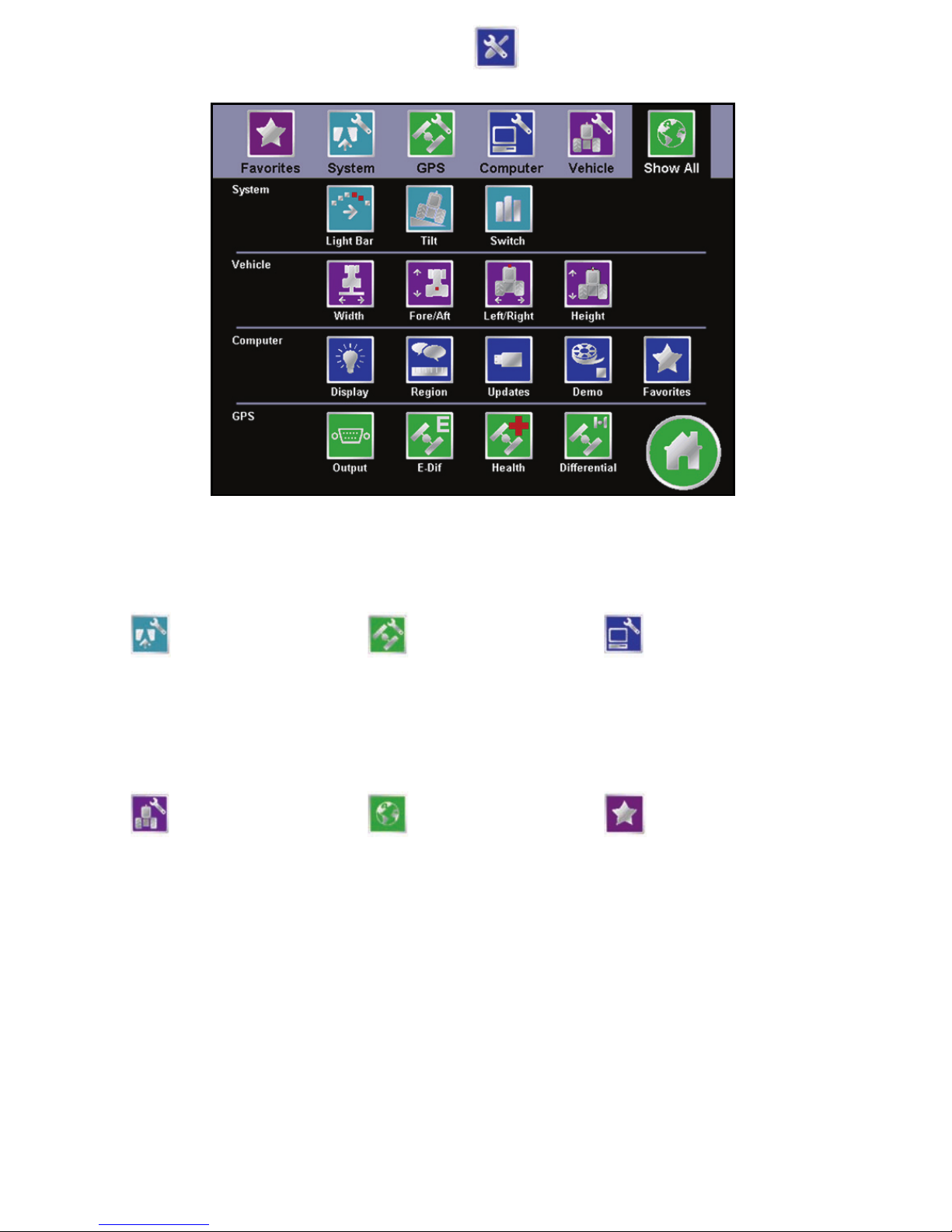

Configuration Menu

Sub-Menus

System submenu -

Touch this icon to display

the Light Bar, Tilt, and

Switch calibration screen

icons.

GPS submenu -

Touch this icon to display

the Output,

E-Dif, GPS Health, and

Differential calibration

screen icons.

Computer

submenu - Touch this

icon to access the

Display,Region,Updates,

Demo, and Favorites

setup screen icons.

Vehicle submenu -

Touch this icon to display

the Implement Width,

Fore/Aft, Left/Right, and

Height calibration screen

icons.

Show All - Touch

the Show All icon to

display all of the

submenu’s and each of

the configuration screen

icons.

Favorites - Touch

this icon to display your

favorite configuration

screen icons. Use the

Favorites setup screen

within the Computer

submenu to setup the

screen icons displayed on

this page.

Troubleshooting

Updates

Updates for your Cruizer console will be made available periodically on the Raven

web site http://www.ravenprecision.com/us/Support/Software/ to download the latest

version of Cruizer software. Unzip or extract the download to your flash drive.

Note: Cruizer will not be able to locate the update files if you put them in a folder on

the flash drive. The files must be extracted to the flash drive’s root directory (X:\

where X is the letter of your flash drive.

Insert your flash drive into the USB port on the back of your Cruizer console and then

power on the console. Access the Updates screen in the Computer menu within the

Configuration Menu. Select the update to apply. After Cruizer has applied the

update, you will need to restart the console to finish the update procedure.

The touchscreen

is not responding

to your touch.

Turn the Cruizer console power off, wait a few seconds and

turn the power back on. When the Cruizer start-up screen

displays, touch below the Cruizer logo to re-calibrate the

touchscreen. Follow the instructions on the screen and touch

the calibration mark everywhere it appears. When the system

is finished with the re-calibration, the Home screen displays

and the system is ready for operation.

Cruizer does not

start when

powered on.

Ensure that you have +12V DC to the Cruizer console. If the

Cruizer turns on, but does not start-up properly and has a

partially blank screen, you will need to ensure that voltage to

the Cruizer system is at least +9.5V DC and no greater than

+15V DC

The LED on the Accessory Power Adaptor Plug should be lit

green when inserted properly. If the LED is not lit, check that

the plug is fully inserted in the machine’s accessory port or

cigarette lighter. Check the fuse in the Adaptor Plug and

replace if necessary.

No GPS Check the DGPS antenna cable connection on the Cruizer and

antenna. Tighten any loose connections.

Ensure that the DGPS antenna has a clear 360° view of the sky.

The machine should not be inside or near buildings, trees, and

other objects that may interfere with DGPS reception.

Raven Industries

Flow Controls Division

P.O. Box 5107

Sioux Falls, SD 57117-5107

Toll Free 800-243-5435

or Outside the U.S.: +1 605-575-0722

Fax 605-331-0426

www.ravenprecision.com

[email protected]

Notice: This document and the information provided are the property of Raven Industries, Inc. and

Cruizer Operator’s Guide (P/N 016-0171-128 Rev A 11/07)

Autres manuels pour Cruizer

Table des matières

Autres manuels Raven Système de navigation automobile

Raven

Raven ENVIZIO PLUS Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Pioneer

Pioneer MZ360500EX Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Pioneer

Pioneer AVIC-Z920DAB Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur
