Training manual
SelfCooking Center
SCC Line
V03 EN, SelfCooking Center - 2 -
List of content
Operator panel SCC and displays
Scheme basic principle
Survey SCC components
Cooking modes
CleanJet
Service level
Diagnostic
Running Times
Operator panel SCC 4
Differences in indication 5
Survey Pictogram 6
SCC Care Control Electric (Index G): Basic principle 10
SCC Electric (Index E): Basic principle 11
Location of parts 12
SCC main pcb 16
Measuring spots I/O board SCC (42.00.064P) 17
ClimaPlus: Humidity control SCC 18
Control ball valve 20
Mode Steam 22
Mode Vario-Steam 23
Mode Forced Steam 24
Mode Combi steam 25
Mode Finishing 26
Mode Hot Air 27
CalcDiagnose System®(CDS) 28
CareControl Index „G“ units (10-2008) 29
Component identification of SCC Care Control (Index „G“ units) 31
Sequence CleanJet+Care 1.Step 32
Sequence CleanJet+Care 2.Step 33
Functions at CleanJet+Care 34
CleanJet Index E unit as of Software Version SCC 02-01-01 35
Starting Service level SCC 37
Overview Diagnostic SCC 38
Diagnostic step 1 - 5 39
Diagnostic step 6 - 15 40
Diagnostic step 16 - 19 41
Diagnostic step 20 - 23 42
Diagnostic step 24 - 25 43
Overview - Running Times 44
Running times step 1 - 5 45
Running times step 5.1 - 8.1 46
Running times step 9 - 12 47
Running times step 13 - 17 48
Running times step 18 - 19 49
- 3 - V03 EN, SelfCooking Center
List of content
Basic Setting
Function test
Error codes
Download of unit data
Calibration
Wiring diagram
Overview Basic Setting 50
Basic settings step 1.1 - 4 51
Basic settings step 5 - 9 52
Basic settings step 10 - 14 53
Basic settings step 15 - 17 54
Basic settings step 18 - 22 55
Basic settings step 23 - 26 56
Basic settings step 27 - 31 57
Overview Function Test 58
Function test Step 1 - 5 59
Function test step 6 - 10 60
Function test step 10.1 - 15 61
Function test step 15 - 19 62
Function test step 20 - 21 63
Overview error codes 64
Error code Service 10 - 19 65
Error code Service 20 - 27 66
Error code Service 28 - 34 67
Error code Service 40 - 120 68
SCC Software update 69
SCC pcb change - EEPROM change 71
Download of HACCP data 76
Indication format of HACCP data 77
Calibration SCC 78
Calibration step 1 - 30 79
Calibration step 40 - 70 80
Calibration step 75 - 110 81
Selftest 82
Wiring diagram power circuit 3NAC 400-415V 83
Wiring diagram power circuit 3AC 200-240V 84
Wiring diagram power circuit 3AC 400-415V 85
Wiring diagram steam / hot air heating 3NAC 400V 86
Wiring diagram fan motor 87
Wiring diagram sensors 88
Wiring diagram water 89
Wiring diagram miscellaneous 90
Wiring diagram options 91
Wiring diagram parts list 92
V03 EN, SelfCooking Center - 4 -

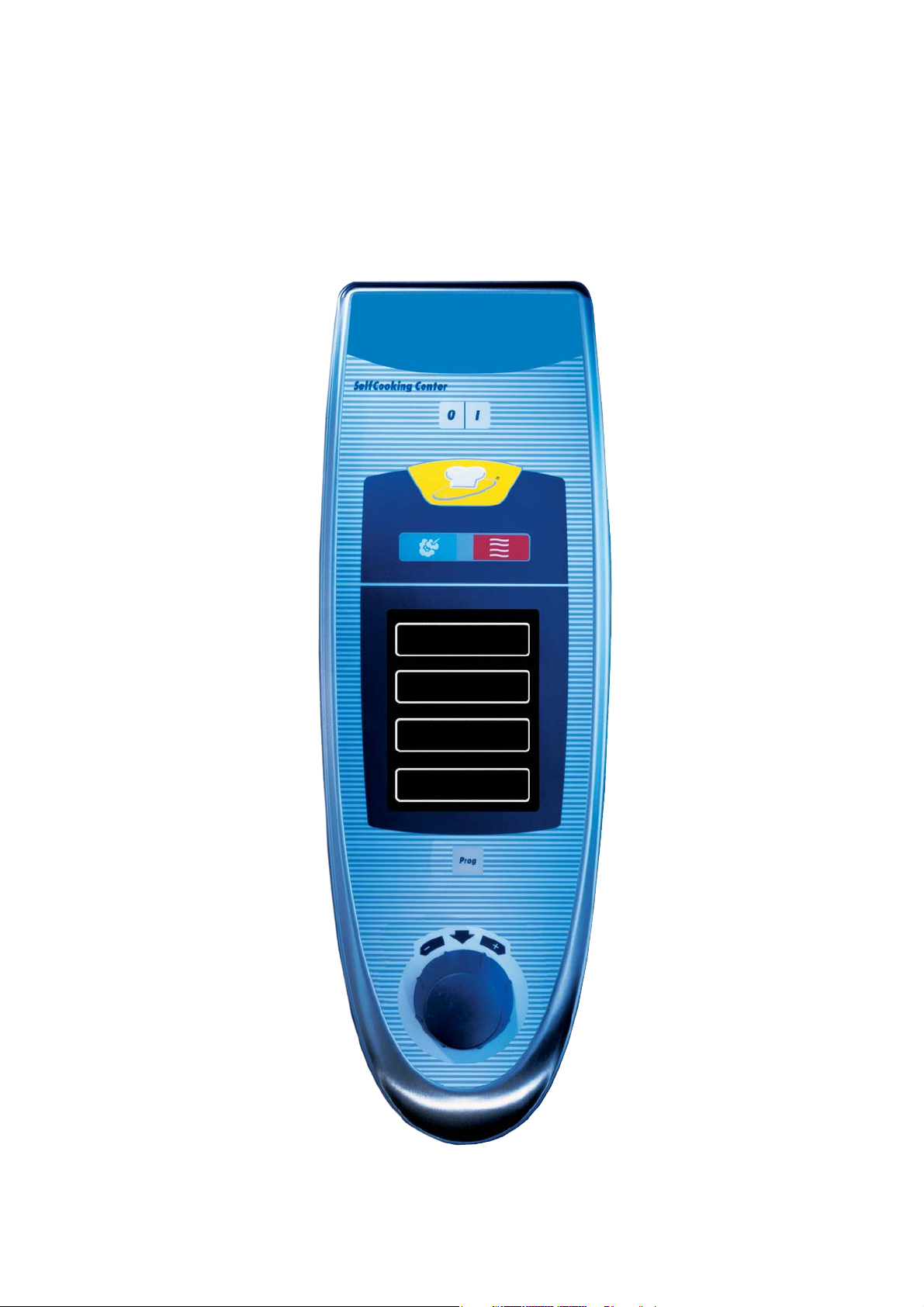

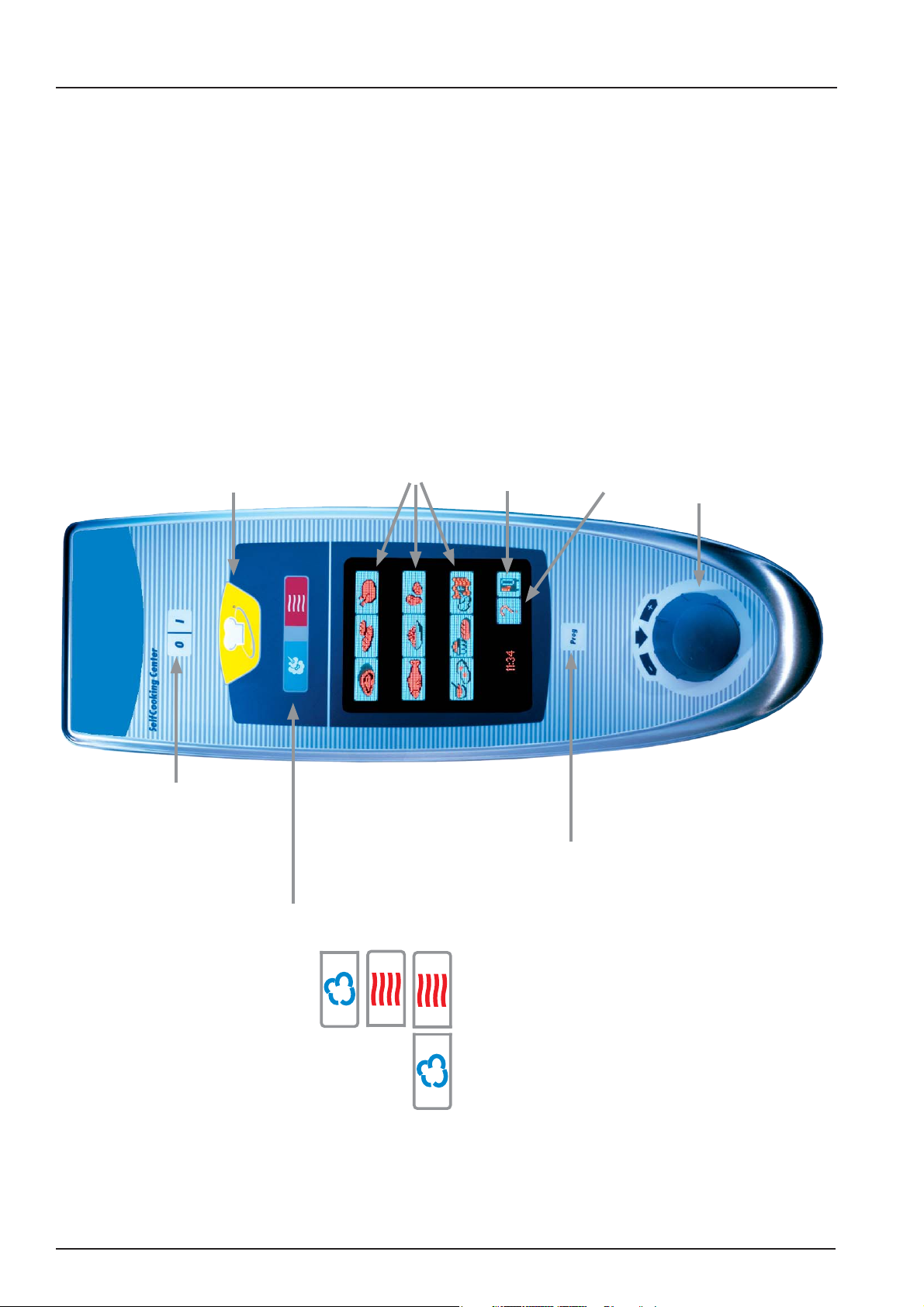

Operator panel SCC
Function key
touching the key
activates the function level
1
2
3
4
SCC-Processes
SCC-key
Touching the key for 4 seconds, steps the
active SCC process
Manual cooking mode
Wet heat
Dry heat
Combination of
Wet heat +
Dry heat
ON / OFF switch
Prog-key
for activation of
programming level
Central dial
Help key
- 5 - V03 EN, SelfCooking Center

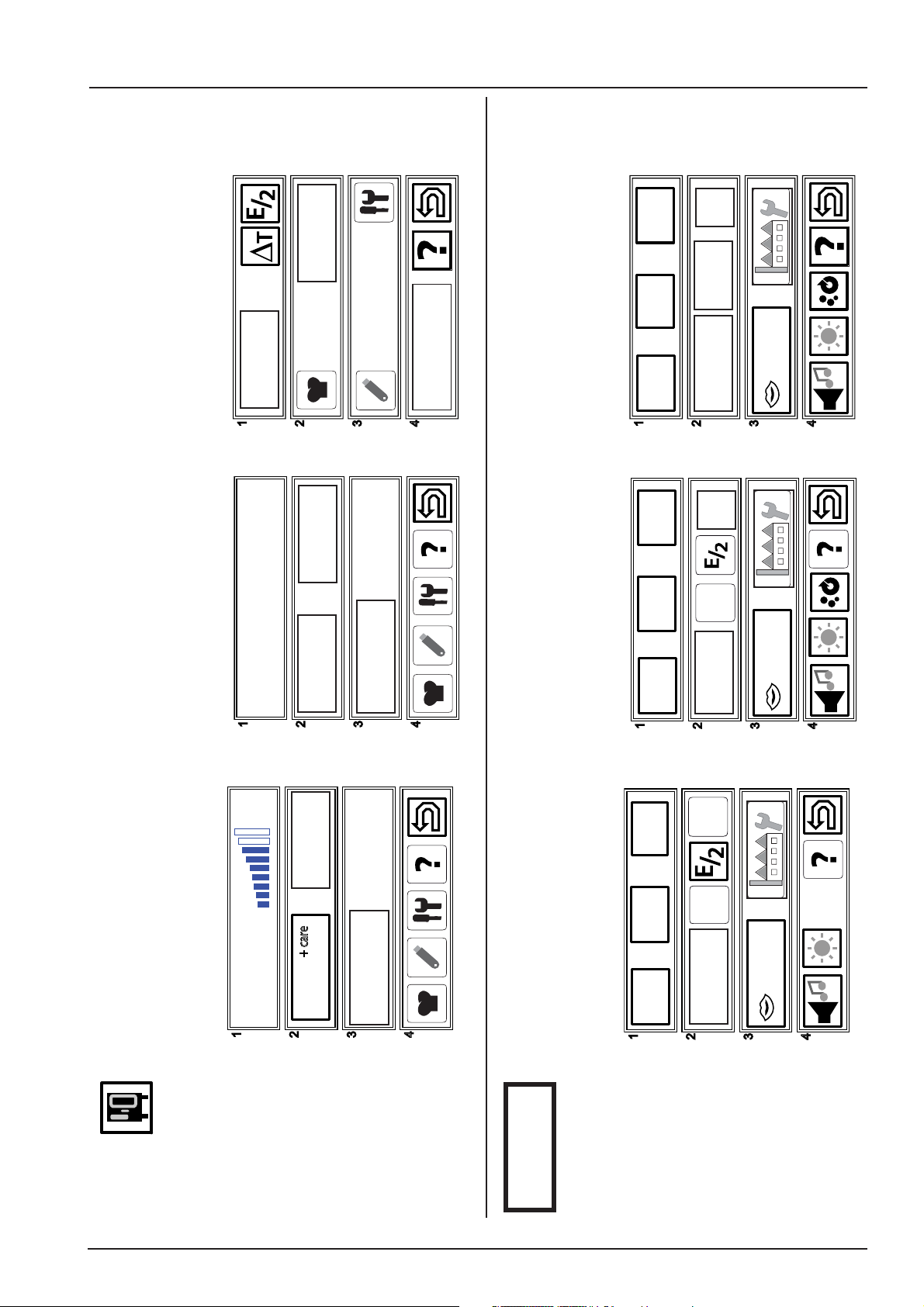

Differences in indication
settings
Software version
SCC 02-01-01 up to 03-01-05
Index E
settings
start time
CleanJet
10:24
english
am/pm
24 h
h:m
m:s
IP
10/22/06
22.10.06 °C / °F
Software version
SCC 02-01-01 up to 03-01-05
Index E
settings
start time
CleanJet
software version
SCC 04-01-01 Index E
10:24
english
am/pm
24 h h:m
m:s
IP
10/22/06
22.10.06
°C
°F
as of software version
SCC 04-01-01 Index E
software version
SCC 04-01-01 Index G
settings
start time
CleanJet
+ care
CareControl
10:24
english
am/pm
24 h h:m
m:s
10/22/06
22.10.06
°C
°F
IP
as of software version
SCC 04-01-01 Index G

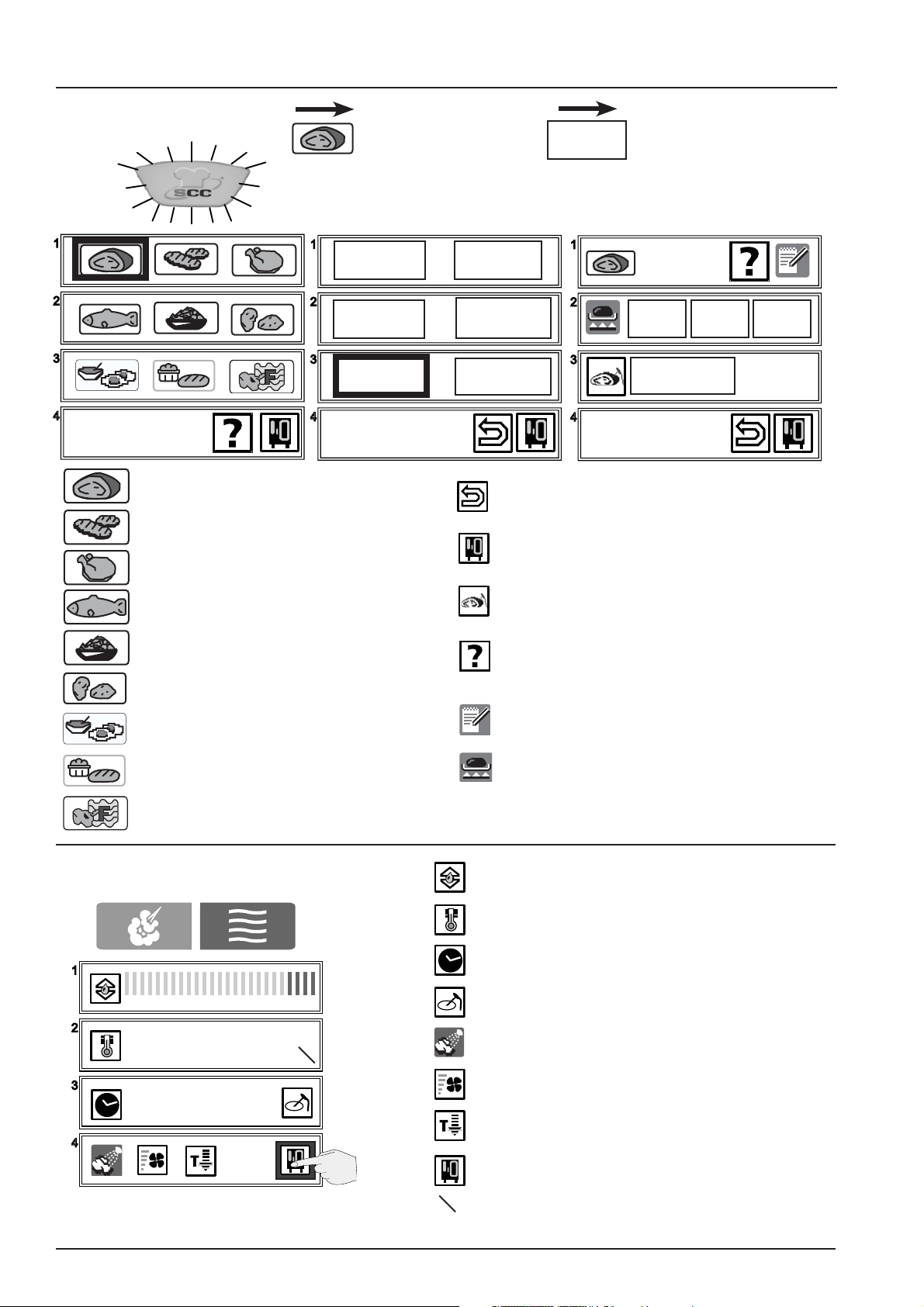

V03 EN, SelfCooking Center - 6 -
Large roast
Pan fries
Poultry
Fish
Side dishes
Potato product
Egg dishes/Desserts
Bakery products
Finishing
Back to previous level
CleanJet, HACCP, Delta T, E1/2
Start time, CDS, Descaling, Settings
Selection of core temperature
Help: guide line for selected setting;
practical hints for product to be used in the
respective SCC cooking process
Store selected setting
Searing
SelfCooking Control
Level 1
Level 2 Level 3
roast braise
roast with
crackling
soft
roasting
soft
cooking
low high
medium 62°C
close
door
overnight
roasting
13:45
overnight
roasting
13:45
Setting of humidity
Setting of cabinet temperature
Setting of time
Setting of core temperature
Moistening
Setting of fan speed (lowest level=intermittent)
Cool Down
Function level
Energy management (Sicotronic)
no link on I/O X20 or no 230V on I/O X21
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
200°C
continuous
Manual cooking modes
E
Survey Pictogram
E
Overnight
roasting

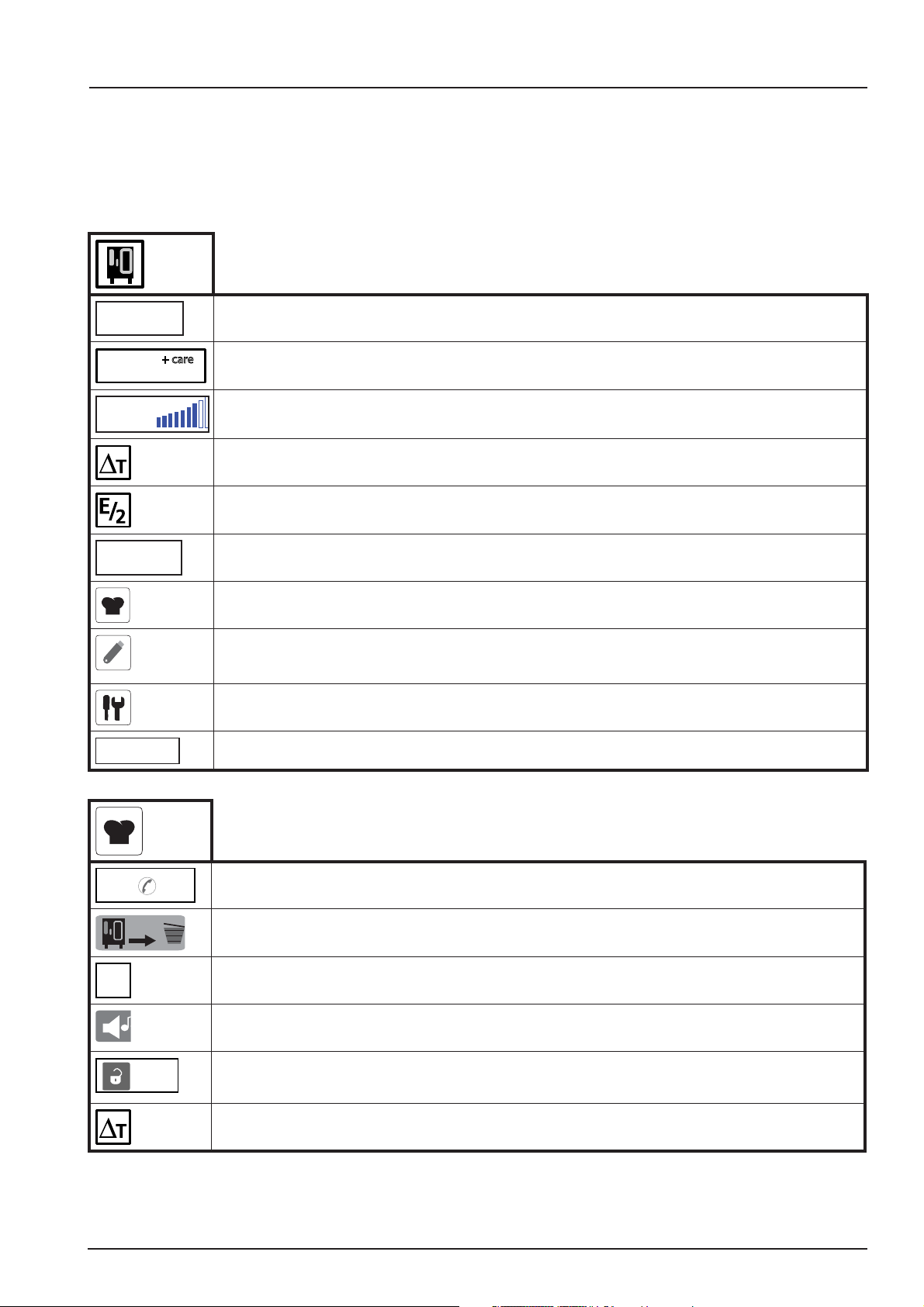

- 7 - V03 EN, SelfCooking Center
CleanJet Selection of CleanJet program (Index E units produce up to inclusive 09/2008)
CleanJet + care Selection of Cleanjet +Care program (Index G units produced as of 10/2008)
CareControl
Indication Care Control (Index G units produced as of 10/2008)
Delta -T Cooking (as of SW Version 04-01-01 under function chef hat)
1/2 Energy (as of SW Version 04-01-01 under Function settings)
start time Setting of Start time
Chef hat: Telephone Chef-Line; deleting programs; setting time mode; buzzer;
Program locking
Stick symbol: Saving and uploading of unit data;
customer program; HACCP; Service data
Service level
settings Settings
Chef Line Indication of Chef-hotline telephone number
Prog
Deleting of all customer programs
h:m
m:s
Setting of time mode hour/minute or minute/second
Setting of buzzer functions
Prog Symbol „Activation of program locking“
Pass word: 12345; TTREU
Delta-T-cooking: Can only be selected in manual cooking modes
(up to SW version 03-01-05 under function key)
Survey Pictogram
Hint:
For a more detailed description of the pictogram’s please refer to operator manual
V03 EN, SelfCooking Center - 8 -
Mod.
Service Info Indication of recognised service codes
descale Descaling program
(as of SW version 04-01-02 only shows when CDS shows at least 7 red bars)
Manual flushing of steam generator (Cabinet door must be open!)
C
DS
Indication degree of scale inside the steam generator
Mod.
Indication of software version
Mod.
No: E11SE0707200....
20090523
Serial number
As of SW version 04-01-05 the evaluated start up time is shown (also see
Start up date and time in service download) indication e. g. 23.05.2009
SW: SCC - 04 - 01 - 05 Software version
Typ: SCC_101 E Unit and energy type
Typ: SCC_101 E Humidity emergency controller at the moment active
Typ: SCC_101 E Humidity emergency controller was active since unit was switched on.
(
Humidity emergency controller
does not show in „dry heat“)
English selected language

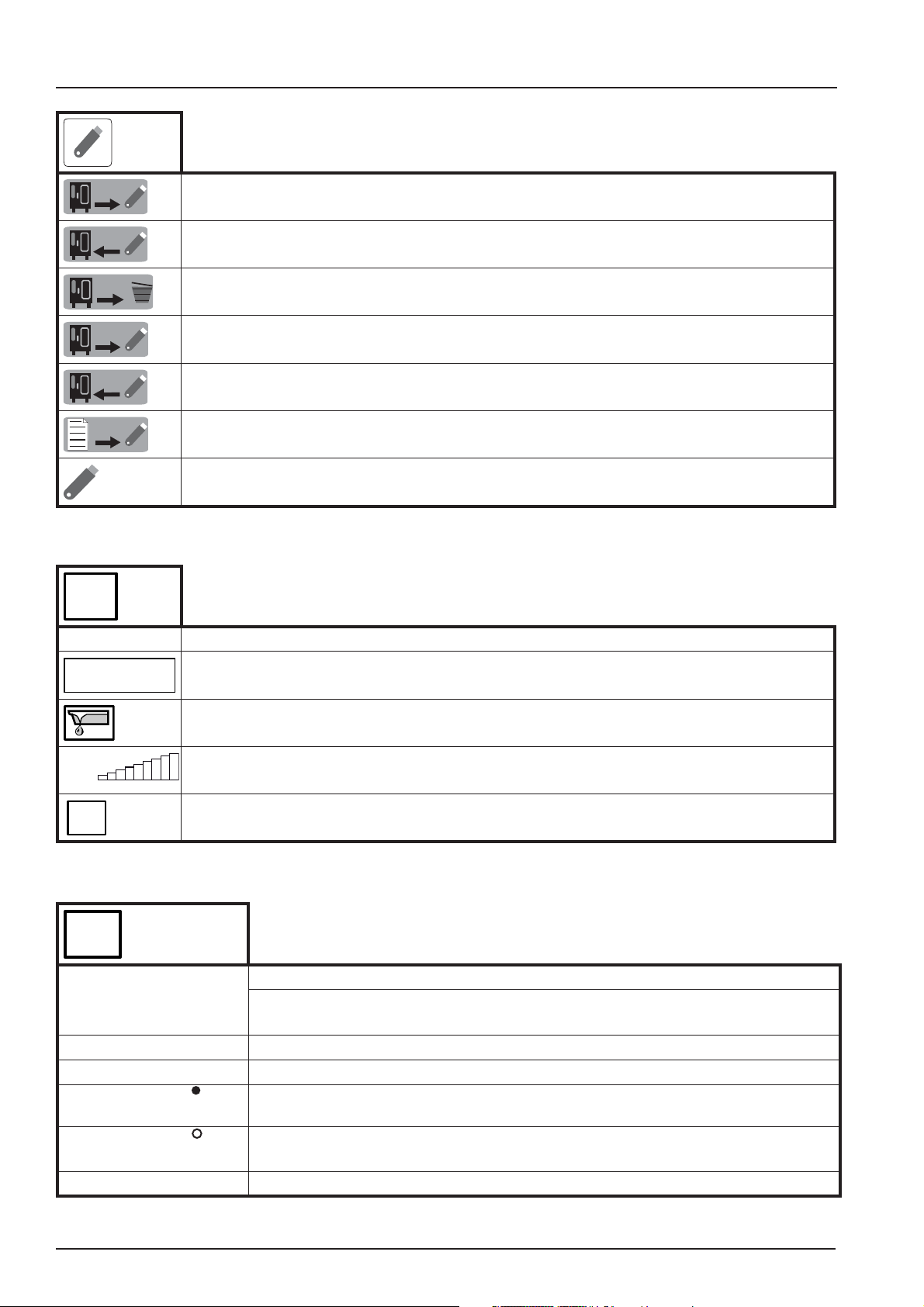

Survey Pictogram
Prog
Copy customer program from unit onto USB stick
Prog
Copy customer program from USB stick to unit
Prog
Deleting all customer program
HACCP
Download of HACCP-Data
update Carry out of a Software update (does only appear if a valid software is on the USB
stick)
Info Download of the unit service data
Does only appear if a USB stick was recognised
- 9 - V03 EN, SelfCooking Center
Settings
10:24 Setting of actual time
am/pm
24 h
Setting of time format
h:m
m:s
Setting of time mode
08/22/03
22.08.03
Setting of date format
°C
°F
Setting of temperature format
Setting of half energy
(up to SW version 03-01-05 to be found under function key)
IP
Setting of IP address
english Setting of user language
Reset to factory settings
English (others), °C, buzzer, h:min
Setting of buzzer function
Setting of display intensity
Setting of CleanJet request
This function is only available at CleanJet+Care units from SW 04-01-06 ==> double
time until CleanJet request shows
Prog
Select customer programs with central dial
new Enter program name
(The blank can be found between the signs “_“ and „@“)
copy SCC processes and programs can be copied and receive an index e. g. 1;
The name can be changed
change Cooking parameters and / or cooking modes can be changed in a not active program
delete Selected program name flashes; deleting the program by touching
„delete“ key once again
level
control
1. Enter program name
2. Touch „store“ button
3. Select cooking mode, temperature, running time (preset to minutes and seconds)
or core temperature
4. Further programs with identic cooking mode and temperature, but different running
times can be stored and alternatively selected in Level Control after pre heating
was finished
Store changes in existing programs
Survey Pictogram
V03 EN, SelfCooking Center - 10 -

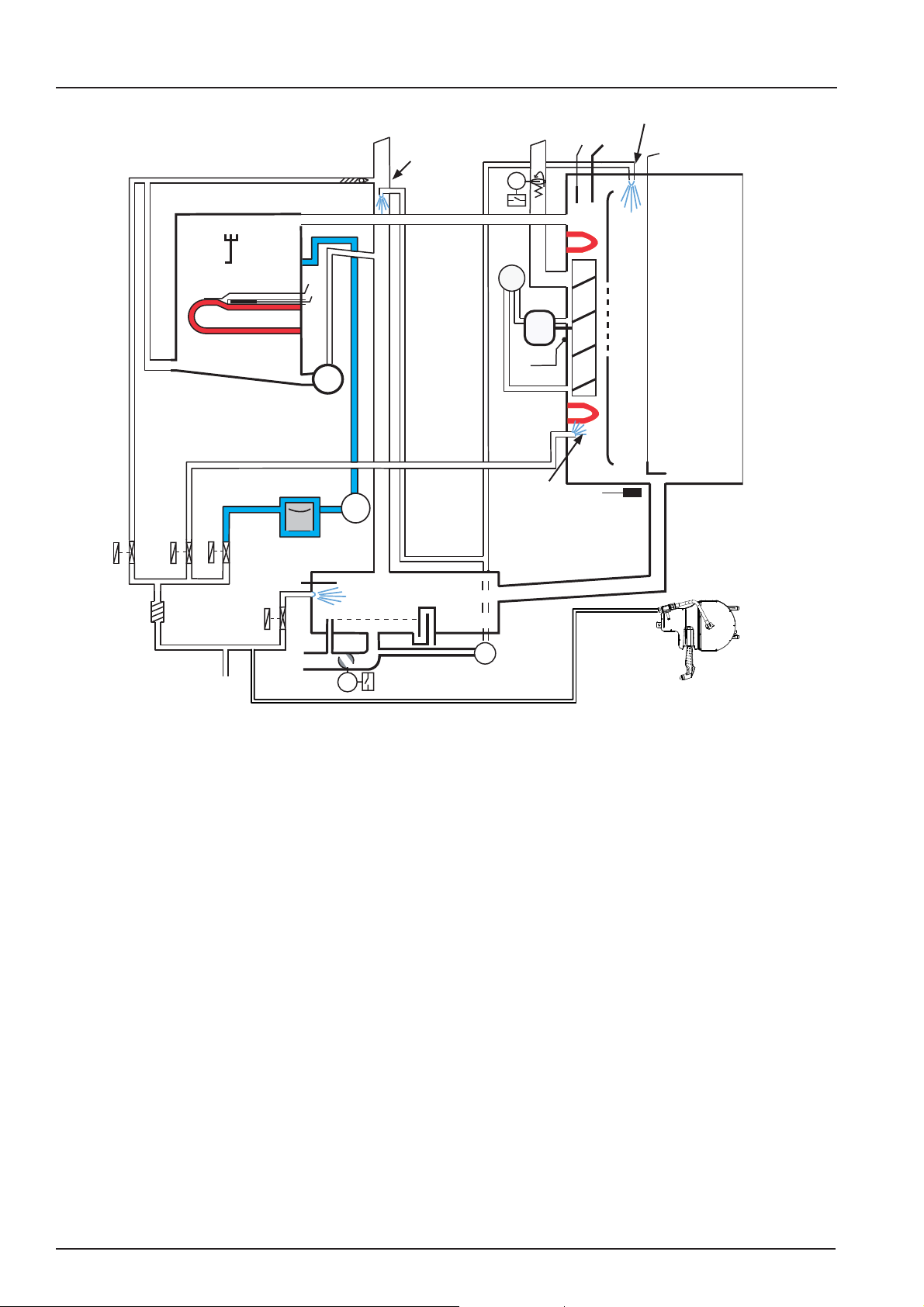

SCC Care Control Electric (Index G): Basic principle
B1 Thermocouple interior cabinet
B2 Thermocouple quenching
B4 Thermocouple humidity
B5 Thermocouple steam generator (preheat, 180°C (356°F) max)
B6-B11 Thermocouples core temperature
F3 Safety thermostat steam generator 160°C (320°F)
F4 Safety thermostat interior cabinet 360°C (680°F)
Y1 Solenoid valve filling
Y2 Solenoid valve quenching
Y3 Solenoid valve moistening
Y4 Solenoid valve care
M1 Fan motor bottom
M3 Humidity flap motor
M4 SC-pump
M6 CleanJet pump
M7 Motor drain valve / ball valve
M12 Care pump
S2 Level electrode
S3 Door reed switch
S4 Micro switch humidity motor
S11 CDS sensor
S12 Micro switch drain valve
P1 Pressure sensor humidity
SCC 201/202 only:
M2 Fan motor top with jumper ( floor units only)
B1
B6 - B11
F4
P1
M3
S4
M4
M6
Y
1
Y2
Y3
B2
M1
S2
M7 S12
B4
B5
F3
S3
Y4
S11
M12
Care
Foam-
reduction
CleanJet-nozzle
Moistening
nozzle
Roll guide with
hand shower
