Raritan 2500RFK Manuel utilisateur

Converting PHII, PH, PHC, CPII and CP model toilets to

FRESH HEAD model toilet (2500RFK)

Tools you will need:

• 3/8" nut driver

• Channel lock pliers

Read through the entire

instruction sheet before

beginning. If you do not

fully understand the repair

procedure, or doubt your

ability to complete it, call a

qualied service technician.

Flush 4 to 5 clean ushes

through toilet before

beginning to work on unit.

WARNING:

Shut-off:

• Thru-hull ttings

• Line valves

Before beginning.

• Flush toilet until clean, Shut off seacok and ush to remove any remaining water.

• Disconnect inlet hose and discharge hoses from pump.

Note:

1. Seawater inlet line will not be used. Close and secure intake seacock.

2. If discharge hose goes downward through deck, the hole in the decking may need to be modied.

(see g 1). Fitting can be rotated to allow sideways discharge.

2 [114] 61

8 [156]

PH series ToiletFRESH HEAD

FIG 1

PREPARATION

Part# Description

25200 Pump Assy

1228CW Flapper Valve Assy.

1236W Spud Assy.

168006 Atmospheric breaker cover

221300 Atmospheric Breaker

221331 Breaker O-ring

25214 Pump Cover

Part# Description

25221 Handle assy.

FT001 Handle screw key

PLH-50P Hose inlet 1/2"

F099 1/4" x20 x1" screw

1226C Flapper valve washer

1226B Nut 1/-20 Hex 18-8 SS

25309 Nylon nut

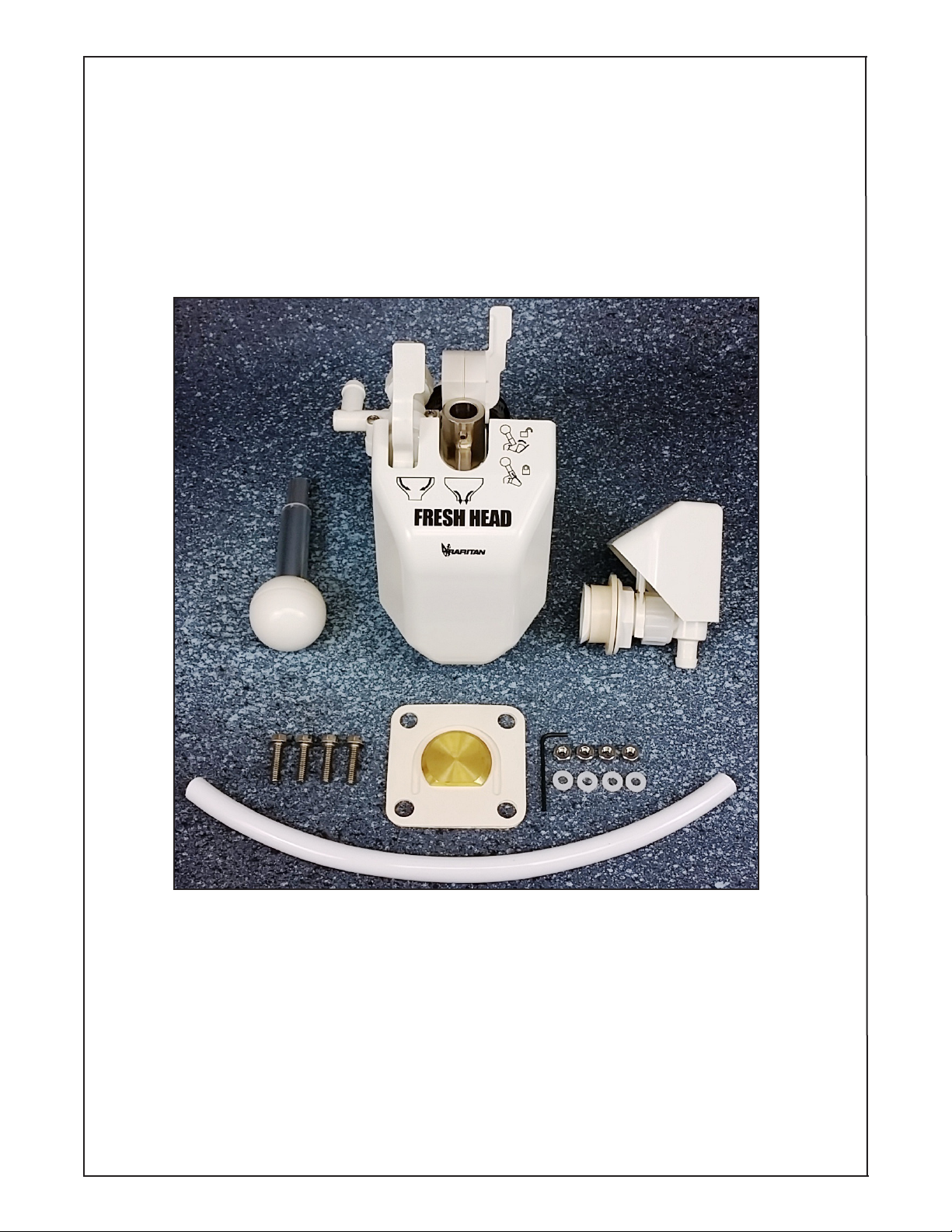

Parts included in 2500RFK:

Step 2:

• Remove the spud from the bowl

• Install new spud on the bowl

• Install vacuum breaker

Step 3:

• Install pump and the apper

valve to the base

• Use 1228C plastic washer if

needed. NOTE: Bases that

have the washer already

molded into the base do not

require the 1228C

• Install apper with correct

orientation

Step 4:

• Install new ½” hose from inlet

valve outlet to vacuum breaker.

NOTE: Length of hose can be

shortened if needed

Step 1

• Remove pump (PHII or others) from the base.

L557 0914VKM Specications Subject to Change Without Notice Printed in U.S.A.

530 Orange Street, Millville, NJ 08332 USA

Telephone: 856 825-4900 FAX: 856-825-4409

www.raritaneng.com

Southern Ofce and Plant:

3101 SW Second Avenue, Fort Lauderdale, FL 33315 USA

Telephone: 954-525-0378 FAX: 954-764-4370

For installation plumbing, operation, specic warnings as well as Limited

Warranty Terms and Conditions - Please refer to Toilet Manual

Step 5:

• Install pump handle using hex wrench provided

Step 6:

• Connect intake water supply line and discharge hose (Refer to Fresh Head Manual)

Step 7:

• Turn on water supply, operate toilet (Refer to Fresh Head Manual) and check for leaks.

Step 8:

• Installpumpcoverandvacuumbreakercover
