SERVICE INSTRUCTION
SERVICE INSTRUCTION
SI–13– 01
January 2013
CE Compliance Kit
The DynaFlow fluid flow controller (Models A12233 and 77376) and RansFlow fluid flow con-
troller (Model A12410) have been revised to comply with the latest CE directives and stand-
ards. This compliance kit has been assembled to allow minor field modification of these con-
trollers to add the required hardware and documentation.
1. An input line filter is required (p/n A13226) to be wired between the input power conductors
and the internal power supply. Mounting instructions and wiring diagrams can be found below
and in the kit with the filter.
2
DynaFlow A12233 wiring diagram for filter installation.:
3
DynaFlow A77376 wiring sketch for filter installation:
4
2. The protective conductor ground label (p/n TRM-35-038) must be placed adjacent to
the protective ground terminal block.
Note: The RansFlow may already have this label properly placed.
RansFlow wiring diagram for filter installation:
5
3. There are two electrical hazard labels (p/n A13205-00) included in the kit.
One must be placed on the front of the cabinet above the lower door latch.
For DynaFlow only -The other must be placed on the inside of the cabinet on the back of the
touch screen computer near the line power conductors.
4. The CE label (A13251-00) must be placed on the outside of the cabinet next to the specifica-
tion label.
6
5. All open conduit holes in the cabinet must be plugged with holes seals (2 provided, p/n
A13224).
6. The updated Declaration of Conformity has been provided in the kit. Additional copies are
available upon request by calling our Technical Support on the back page.
•
DynaFlow A12233 and 77376 Declaration of Conformity IL-285-E
•
RansFlow A12410 Declaration of Conformity IL-327
7. For DynaFlow only - Add two ferrite filters (p/n A13267) to each end of the communications
cables (if used) when connected into the top of the control panel.
7

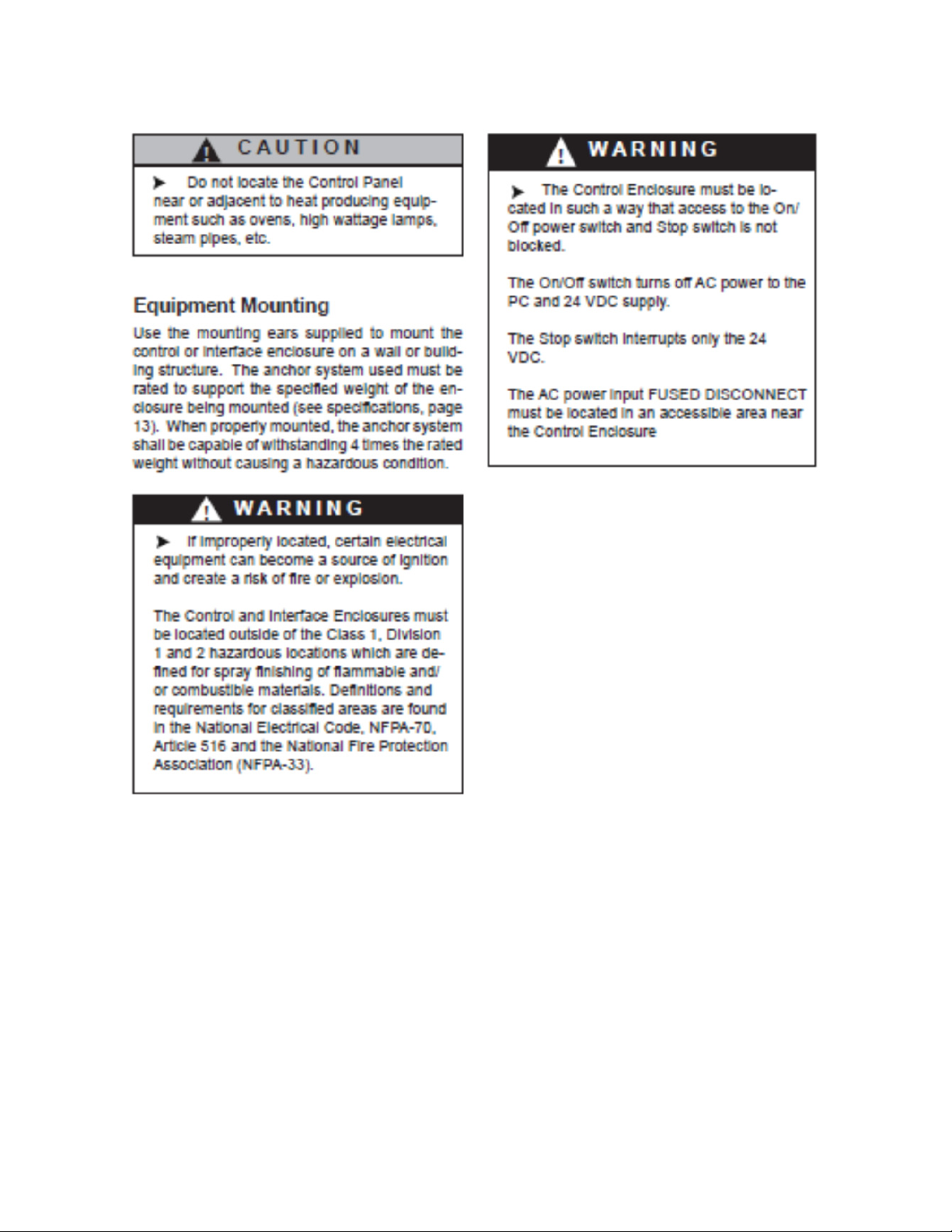

8. The complete updated service manuals can be downloaded from the Ransburg website or is
available upon request by calling our Technical Support number on the back page. Particular
service manual additions / updates relate to installation instructions, wiring, grounding and
mounting the control panels as detailed below.
8
9
10
Manufacturing
1910 North Wayne Street
Angola, Indiana 46703-9100
Telephone: 260-665-8800
Fax: 260-665-8516
www.ransburg.com
Technical Service - Assistance
320 Phillips Ave.
Toledo, Ohio 43612-1493
Telephone (toll free): 800-233-3366
Fax: 419-470-2233
Technical Support Representative will direct you to the appropriate telephone number for ordering
Spare Parts.
© 2013 Ransburg. All rights reserved.
Models and specifications subject to change without notice.
Form No. SI-13-01
Litho in U.S.A.
1/13
