Rangevision SPECTRUM Manuel
RANGEVISION
Setup and calibration
SPECTRUM
Contents
Introduction 3
Technical specifications 4
System requirements 4
Preparing for work
Package contents 5
Installing software and drivers 7
Setting up your computer for work with the scanner
Connecting projector 8
Configuring computer parameters 9
Scanner Assembly
Scanner setup
ScanCenter NG launch 11
Select scanning zone 12
Calibration field parameters 13
Placing the calibration plate 13
Initial setup of cameras and lenses 14
Checking camera arrangement 15
Finding a working distance 15
Adjustment of the projector focus 16
Bringing the cameras together 16
Final calibration of the cameras 17
Calibrating the scanner
Calibration plate 21
Full calibration 23
Fast calibration (orientation) 25
Focus assessment during calibration 27
2
Introduction
ThankyouforchoosingRаngeVisiоnSpectrum!
PleasereadthismanualbeforeusingRangeVision3Dscanner.Herearedescribed the
procedures for preparing the scanner, installing the required drivers, calibration
procedure, scanning procedure,andtipsforacquiringhigh-quality three-dimensional
object model.
Informationmaybeamendedfromtimetotime.Thesechangeswillbeinserted into the
new versionsofthemanual,orintheadditionaldocumentsandpublications.
3
Technicalspecifications
3Dresolution
Systemrequirements
●operatingsystem-Windows7/8/1064bit,
●processor-IntelCorei3/i51.8GHzandbetter,
●graphicscardwithHDMIoutput,
●RAM-Notlessthan8GB,
●3 USB-ports.
4
Scanningzone
L
M
S
Scanning Area (WxHxD) (mm)
520*400*400
320*250*220
120*90*100
3Dpointaccuracy
0.12mm
0.06mm
0.04mm
Model
Spectrum
Resolutionofcameras
3Mpix
Diagonalofthematrix
1/2”
Texturescanning
Yes
Scanningzone
L
M
S
3Dresolution
0.25mm
0.15mm
0.06mm
Operationdistance
1.05m
0.6m
0.3m
Preparingforwork
Packagecontents
RаngeVisiоn3Dscannerissuppliedinaprotectedroadhardcase.Cameratripodis
placedinaseparatebag.
Thescannerisequippedwiththreescanningareas.Scanningareaisacalibrationplate
andstandforthecalibrationplate.
5
6
№
Name
qty.
1
Scanning module:
Installation construction with projector
1
Cable kit for connection to a PC (2 USB + HDMI)
1
2
Machine vision camera
2
3
Tripod
1
4
Calibration plate
3
5
Kit of optics
1
6
Stand for the calibration plate
2
7
USB disk with the software
1
8
License dongle
1
9
Power Cord 5 m
1
10
USB hub
1
11
Hex key
1
12
Rotary table + cables
1
Installingsoftwareanddrivers
Get the RаngeVisiоn software (equipped with the scanner) and run the installer -
RаngeVisiоn SсаnCenter setup.
Followingtheprompts,selectthedesiredlanguage,typeandpathforinstallation.
Afterthefileshavebeencopiedinstalldriversandgraphicslibraries,necessaryfor
thecorrectoperationofRangeVision3Dscanner.
If you have access to the Internet RangeVision ScanCenter NG will automatically notify
you when updates are available. You can check for updates manually by clicking
About → Check for Updates.
7
Settingupyourcomputerforworkwiththe scanner
ForthecorrectoperationofRаngevisiоn3Dscanneryouwillneedtosetupyour
computer. Thisprocedureisperformedoncebeforethefirstuseofthescanner.
Connectingprojector
TurnontheprojectorandconnectittotheHDMI-portofyourvideocard.After
connecting the projector,itshouldbedisplayedinthesystem.Ifthecomputer has
several videooutputs,definetheonetobeused.
1. Right click on the desktop, select Screen resolution,

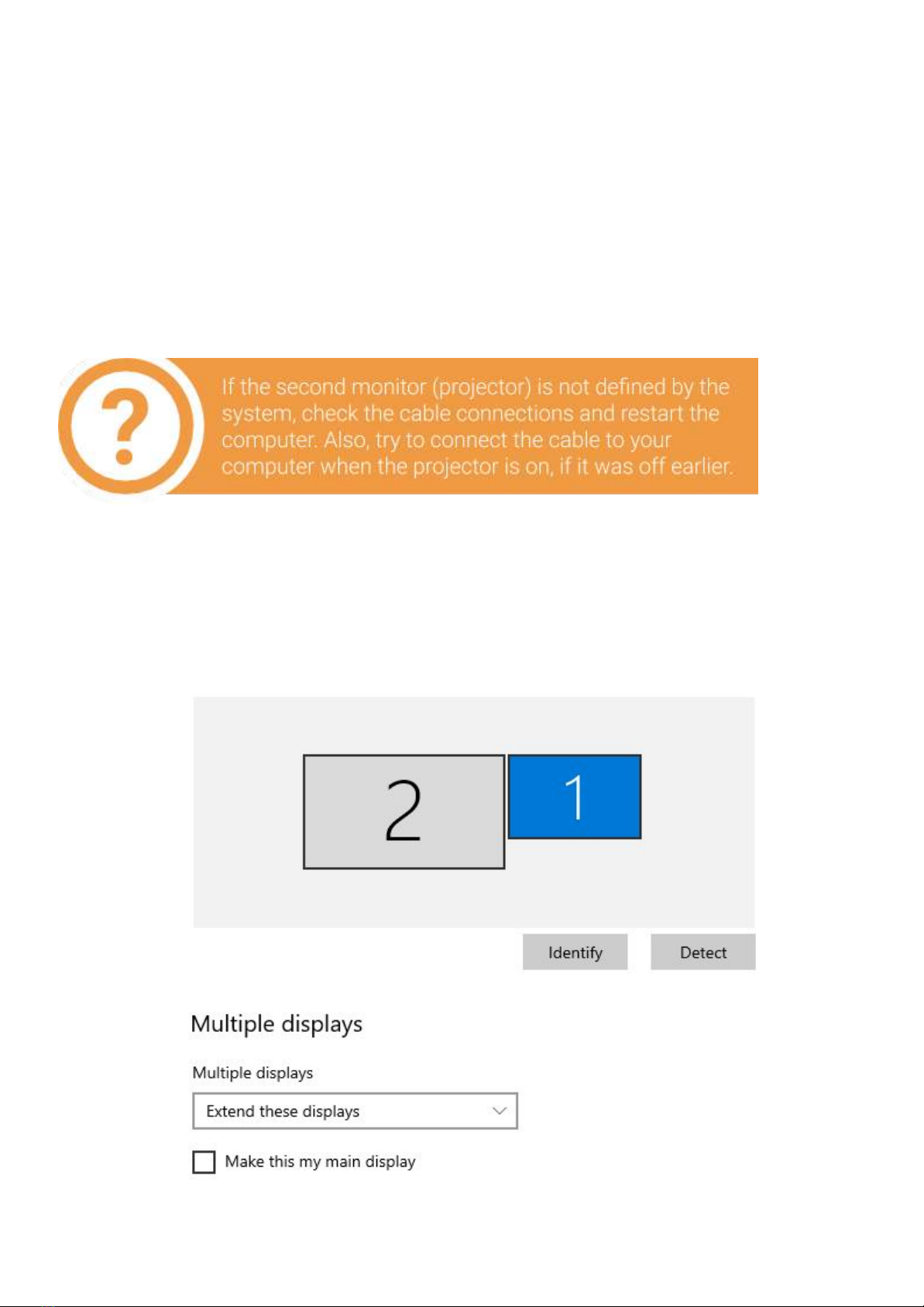

2. Makesurethattheprojectorhasbeensuccessfullyrecognizedbythesystem
andthatbothconnectedscreensaredisplayed.
8
Configuringcomputerparameters
Toavoidarecurrenceoftheproblemsduringthescanneroperation,youmustturn off
the screensaverandsleepmode.
Byclickingrightmousebuttononthedesktop,selectPersonalize→Screensaver and
turn off thescreensaver,disableturningoffthedisplayandputtingthe computer in
sleep mode.
9
ScannerAssembly
1. Mountthecamerasonthescanningmodule.
2. Installthescanningmoduleontripod.
3. ConnecttheprojectorwithHDMIcable.
4. ConnectcameraswithUSBcables.
5. Connectpowersupplyandturnontheprojector.
*old color variant with identical specifications is pictured
