Ranger design C13-E Manuel utilisateur

INSTALLATION GUIDE

C13-E WIRE MESH PARTITION

Transit Connect Partition ( Wire Mesh, Steel )

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 2

REQUIRED ITEMS

PERSONS

qCordless Impact

qCordless Drill

qKnife

q1/2" Socket

q10mm Socket

qT50 Torque Bit

q1/2" Wrench

q9/64" Drill Bit

QUICK START GUIDE

q1.1 Setup..................................................................................................................................................

q1.2 Partition Assembly..............................................................................................................................

Phase 1 - Assembly

q2.1 Vehicle Preparation.............................................................................................................................

q2.2 Wire Mesh Partition Installation..........................................................................................................

Phase 2 - Installation

3 - 4

7 - 9

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 3

PHASE 1 – ASSEMBLY

1.1 SETUP

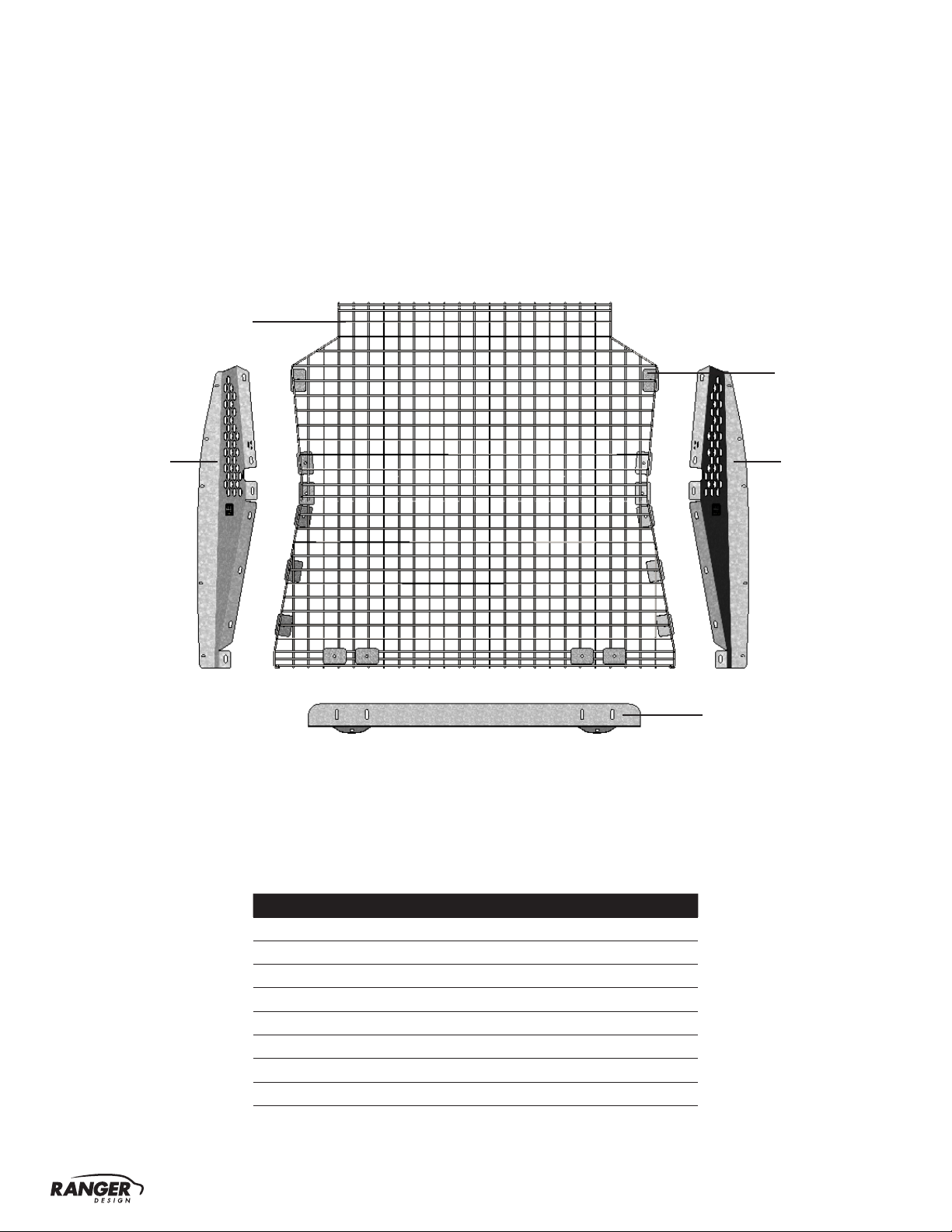

1.1.2 Verify all parts are present

Item No. Description Qty.

30-106 Wire Mesh Panel 1

30-309 Fastening Clip 16

30-368 Driver Side Bracket 1

30-369 Passenger Side Bracket 1

30-402 Floor Bracket 1

79-932 Warning Label ( Bilingual ) 1

94-3030 Assembly Fastener Bag 1

96-3003 Installation Fastener Bag 1

1.1.1 Unpack components; compare with the bill of materials.

30-402

30-106

30-369

30-309

30-368

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 4

32×32×

Flat Washer

5/16", 7/8" OD

ZINC

# 98-116

Hex Bolt

5/16"-18 × 1"

GR-5 ZINC

# 90-208

16×16×

Locknut

5/16"-18

ZINC

# 94-110

16×16×

#90-208 Hex Bolt 5/16" × 1"

#98-116 Flat Washer

#94-110 Locknut

1.1.3 Identify the 94-3030 and 96-3003 fastener bags.

94-3030 Fastener Kit Fastener Assembly

96-3003 Fastener Kit Fastener Assembly

# 90-971

Self-Tapping Screw

M6-1.0 × 20mm

1022 BO

10×10× #90-971Self Tapping Screw M6

10×10×

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 5

PHASE 1 – ASSEMBLY

1.2 PARTITION ASSEMBLY

1.2.2 Attach oor bracket to the wire mesh partition using 4 fastening clips.

1.2.1 Remove all the PVC from all the parts, then attach the side brackets to the wire mesh partition using 12

fastining clips.

TOOLS

qCordless Impact

q1/2" Socket

HARDWARE USED

4× hand-tighten the nuts.

#90-208 Hex Bolt 5/16" × 1"

#98-116 Flat Washer

#94-110 Locknut

TOOLS

qCordless Impact

qKnife

q1/2" Socket

q1/2" Wrench

HARDWARE USED

12×

#90-208 Hex Bolt 5/16" × 1"

#98-116 Flat Washer

#94-110 Locknut

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 6

2.1.1 Floor preparation.

TOOLS

qCordless Impact

qT50 Torque Bit

PHASE 2 – INSTALLATION

2.1 VEHICLE PREPARATION

Remove the 2 D-rings,

for re-use.

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 7

2.2.1 Lift the partition inside the van and put it in place, then screws both brackets to the van.

NOTE: Be careful not to overtighten.

PHASE 2 – INSTALLATION

2.2 WIRE MESH PARTITION INSTALLATION

NOTE: Drill the holes using 9/64" drill bit to

remove the paint inside the holes.

HARDWARE USED

10×

TOOLS

qCordless Drill

q10mm Socket

q9/64" Drill Bit

#90-971 Self-Tapping Screw M6

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 8

HARDWARE USED

2×

Use the D-ring bolt

TOOLS

qCordless Impact

qT50 Torque Bit

2.2.2 Attach the oor bracket to the van using 2 D-rings, then tighten the bolts that

attach the froor bracket and lower panel.

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 9

2.2.3 Apply the warning label on the passenger side bracket.

NOTE: The english warning label is already

attached to the passenger side

panel.

For technical support, contact us at 1-800-565-5321 C13-E Installation Guide |REV. F4 | Page 10

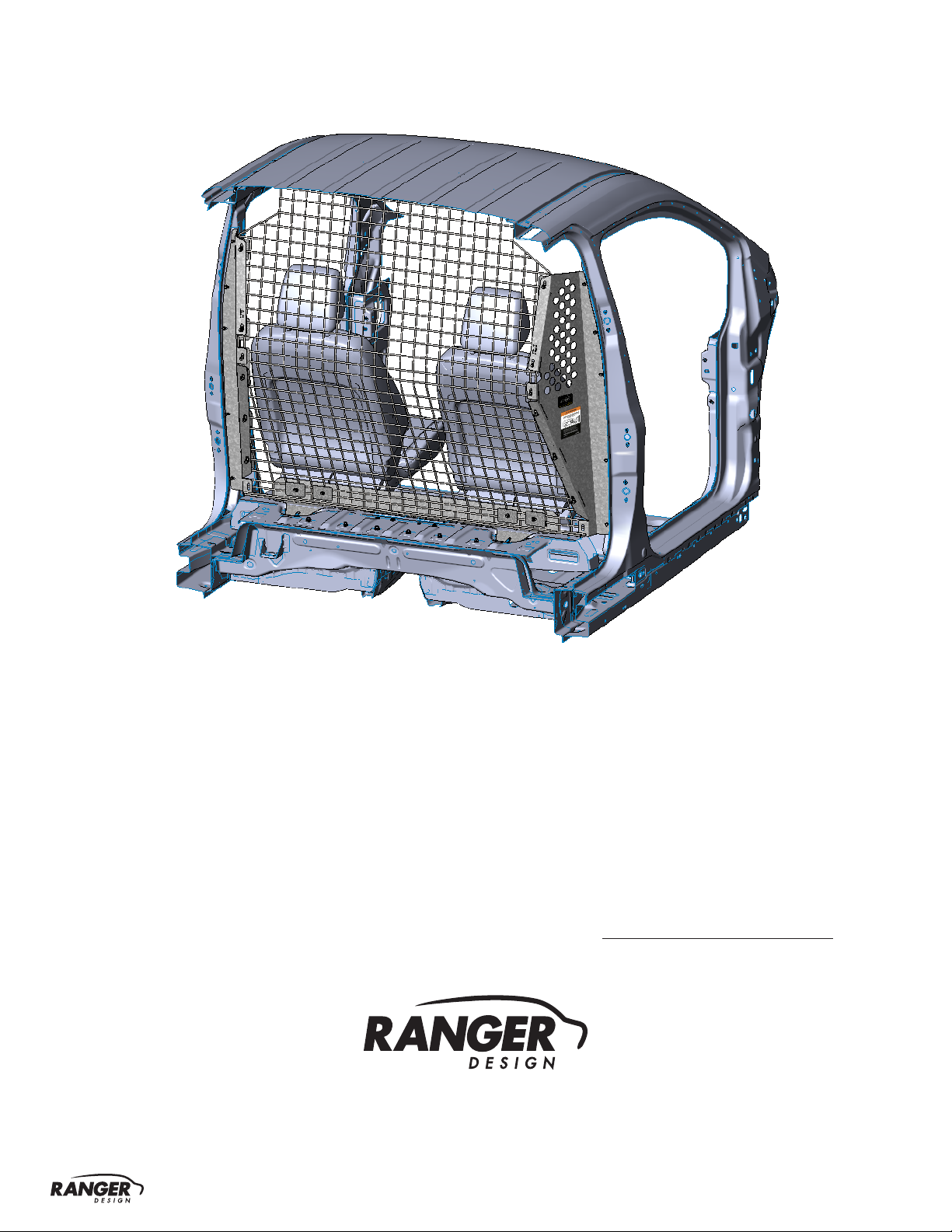

“Congratulations, you have successfully installed your

C13-E Partition!

Thank you for doing business with us.”

For any feedback or suggestions you may have, please contact: cs@rangerdesign.com
