FITTING INSTRUCTIONS FOR CP0485

AERO CRASH PROTECTORS

DUCATI V2 2020-

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE.

SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING.

IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS

OR HAVE FITTED BY A QUALIFIED TECHNICIAN.

PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF

MOUNTING TO THE BIKE.

IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS,

THESE RUBBER WASHERS CAN BE THROWN AWAY.

DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:

WWW.RG-RACING.COM

Page 2of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

TOOLS REQUIRED

•Socket set to include 2.5, 3, 4, 5, 6, 7 & 8mm

A/F socket and wrench.

•Torx head tools

•Socket set to include a deep 8mm & 19mm

socket and wrench.

•8 & 10mm spanner.

•Flat headed screwdriver.

•Torque wrench (up to 40Nm).

•Suitable centre lift stand to support the

chassis during rear suspension removal

GENERAL TORQUE SETTINGS

M4 BOLT = 8Nm

M5 BOLT = 12Nm

M6 BOLT = 15Nm

M8 BOLT = 20Nm

M10 BOLT = 40Nm

M12 BOLT = 40Nm

LEGEND

ITEM NO.

DESCRIPTION

QTY

ITEM 1

M0382 LHS CRASH PROTECTOR BRACKET

ITEM 2

M0383 RHS CRASH PROTECTOR BRACKET

ITEM 3

M0384 RHS ENGINE MOUNT PLATE

ITEM 4

EB077 ENGINE BAR

ITEM 5

B0431 M12 CRASH PROTECTOR

ITEM 6

BC002 BOBBIN CAP

ITEM 7

M12 x 1.25 x 100mm HEX HEAD BOLT RHS

ITEM 8

M12 x 1.25 x 140mm HEX HEAD BOLT LHS

ITEM 9

M12 19MM O/D WASHER

ITEM 10

LW0001 SHAKE PROOF WASHER

ITEM 11

S0670 9mm SPACER (LHS REAR)

ITEM 12

S0735 41.5mm SPACER (RHS FRONT)

ITEM 13

S0736 6.5mm SPACER (SHOCK MOUNT)

ITEM 14

S1252 23.5mm RHS PANEL SPACER

ITEM 15

S0757 3mm RHS PANEL SPACER

ITEM 16

S0791 82mm SPACER (LHS CRASH PROTECTOR)

ITEM 17

S1251 41mm SPACER (RHS CRASH PROTECTOR)

ITEM 18

M8 x 1.25 x 25mm BUTTON HEAD BOLT

ITEM 19

M8 x 1.25 x 30mm BUTTON HEAD BOLT

Page 3of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

ITEM 20

M6 x 1.00 x 20mm BUTTON HEAD BOLT

ITEM 21

M6 x 1.00 x 35mm BUTTON HEAD BOLT

ITEM 22

M6 x 1.00 x 55mm BUTTON HEAD BOLT

ITEM 23

M6 x 1.00 x 65mm BUTTON HEAD BOLT

ITEM 24

M6 x 1.00 x 70mm LONG BUTTON HEAD BOLT

ITEM 25

M10 x 1.25 x 50mm CAP HEAD BOLT

ITEM 26

MP0116 LHS CRASH PROTECTOR BRACE PLATE

ITEM 27

MP0117 RHS CRASH PROTECTOR BRACE PLATE

ITEM 28

S0792 16.5mm RHS REAR SPACER

ITEM 29

S0793 40mm RHS REAR BRACE SPACER

ITEM 30

S0794 36.5mm RHS CENTRAL BRACE SPACER

ITEM 31

S0795 35mm RHS FRONT BRACE SPACER

ITEM 32

M6 STAINLESS NUT

ITEM 33

M6 WASHERS 12mm OD x 1mm

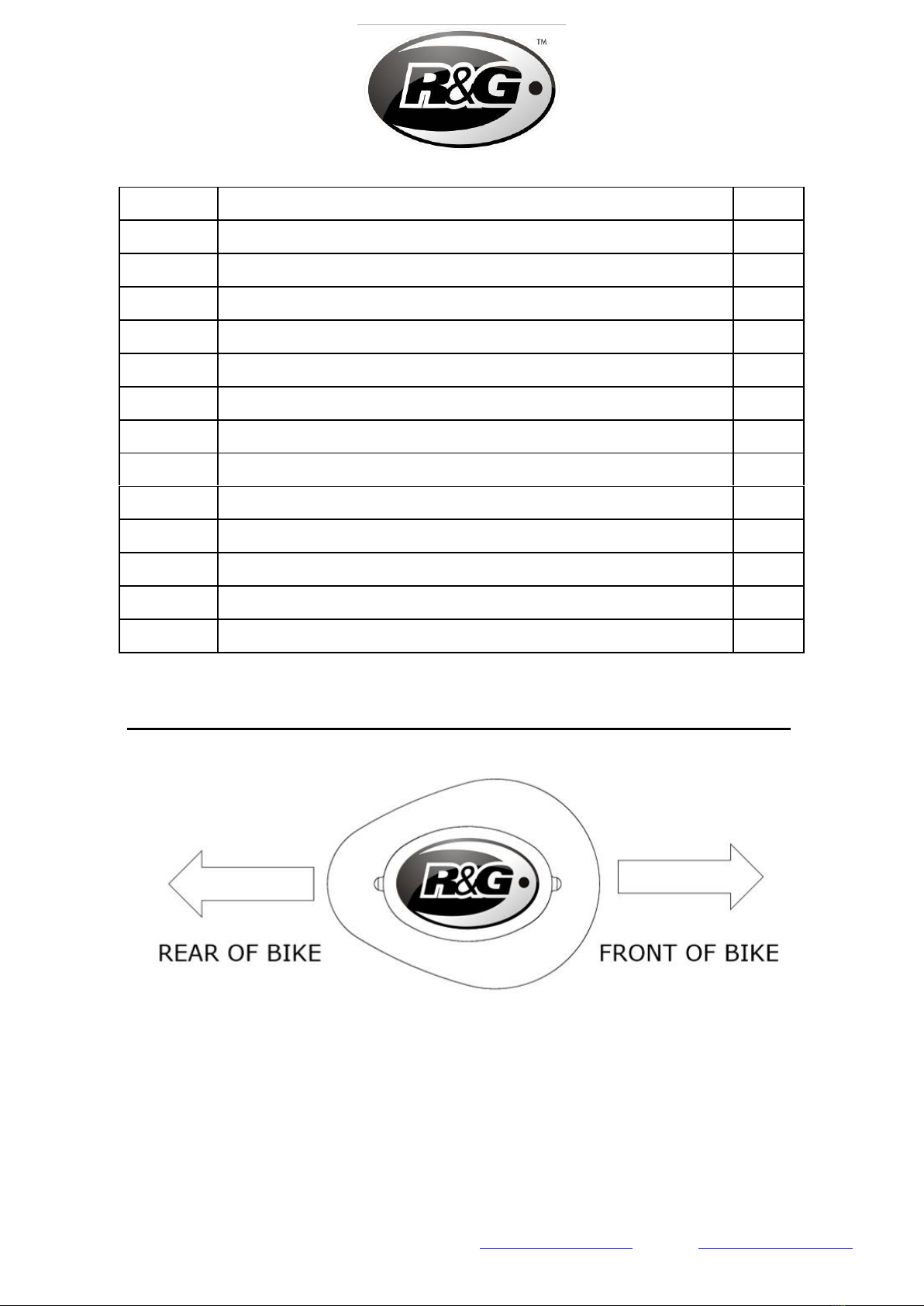

AERO-STYLE CRASH PROTECTOR ORIENTATION

Page 4of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

RHS ASSEMBLY DIAGRAM 1

RHS ASSEMBLY DIAGRAM 2

Page 5of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

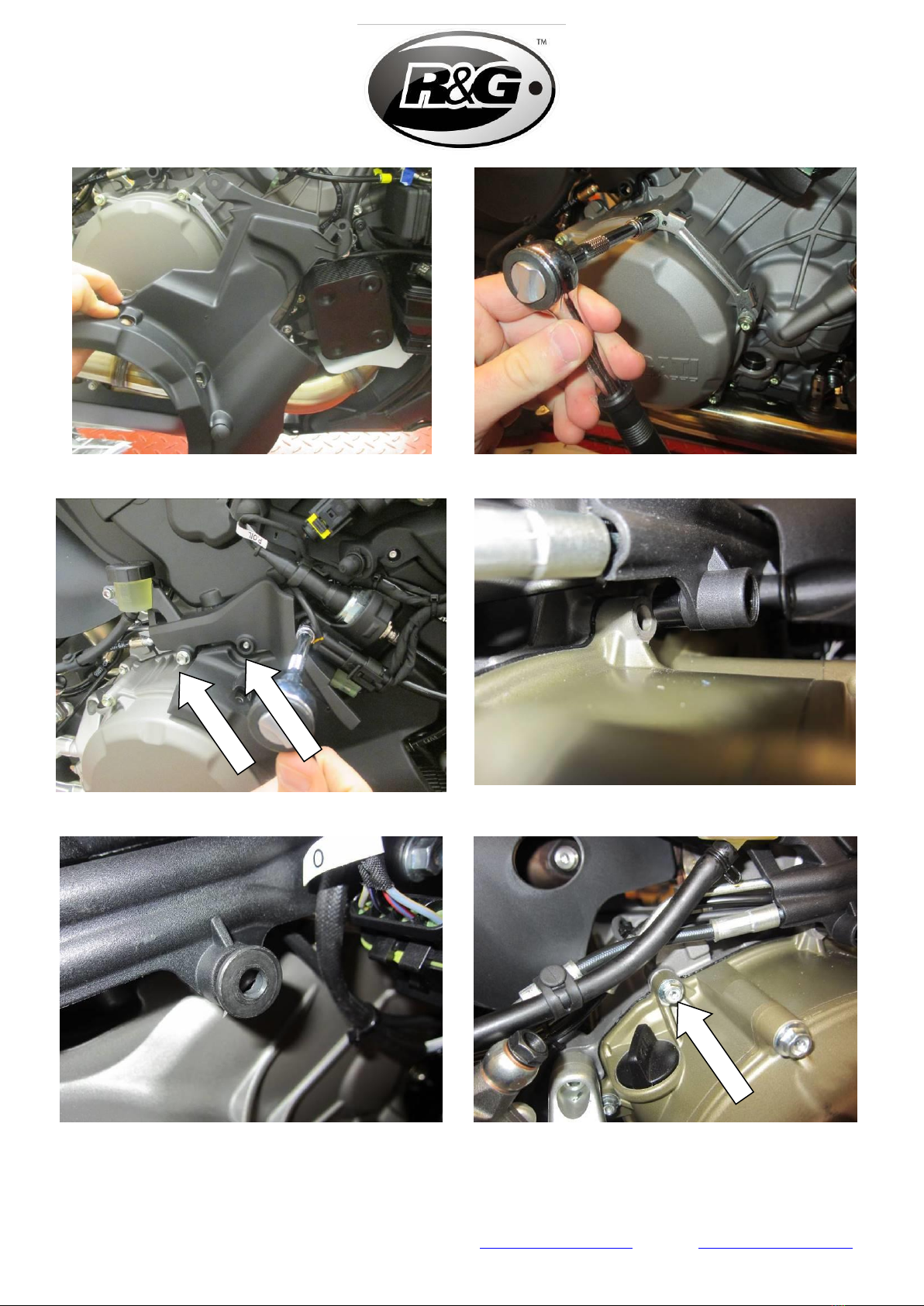

FITTING PICTURES

Picture 1

Picture 2

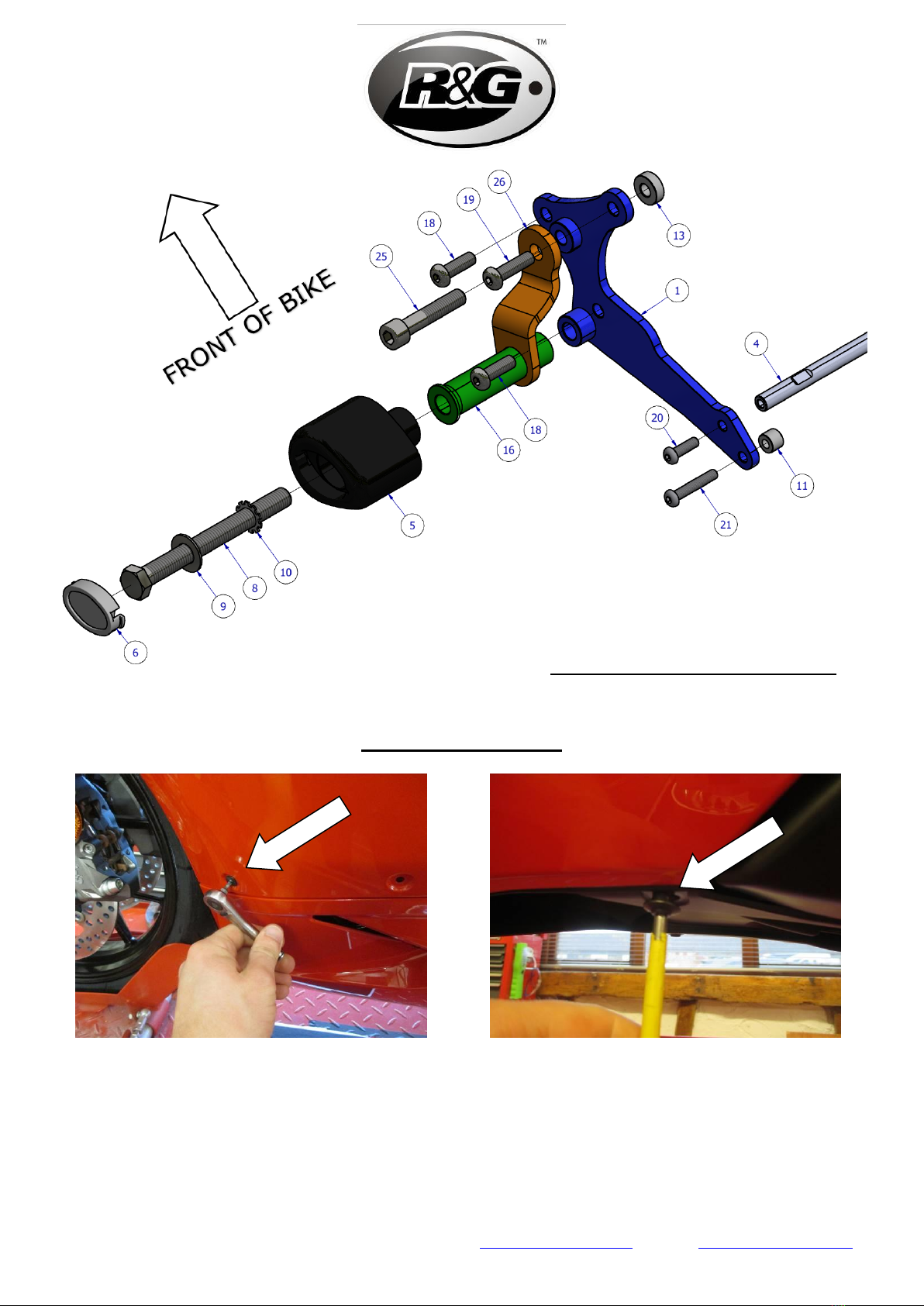

LHS ASSEMBLY DIAGRAM 1

Page 6of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

Picture 3

Picture 4

Picture 5

Picture 6

Picture 7

Picture 8

Page 7of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

Picture 9

Picture 10

Picture 11

Picture 12

Picture 13

Picture 14

Page 8of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

Picture 15

Picture 16

Picture 17

Picture 18

Picture 19

Picture 20

Page 9of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

Picture 21

Picture 22

Picture 23

Picture 24

Picture 25

Picture 26

Page 10 of 47 CP0485

R&G Racing

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: in[email protected]

Picture 27

Picture 28

Picture 29

Picture 30

Picture 31

Picture 32
