WP-CONC Instruction Manual
For programming information: Wired system Programming Guide
For general overview: Wired RAK Application Sheet
The WP-CONC is required for the following products:
WAPIR, WLED30CV4, WLED75CV1, WLED150CV1
What is the WP-CONC?
The WP-CONC is used to connect certain products to the Rako Wired network. It allows
cables to be connected to the wired network via a punchdown. It also provides termination
jumpers which must be set appropriately for the system to work correctly.
The wired system is most commonly configured in one of two ways:
“Daisy Chain” configuration - A single leg of wired devices runs from the RAK-LINK to an
end point. It is still usually advisable to run a return leg back to the RAK-LINK as a spare.
“STAR” configuration - Cables are all run back to a central point: a RAK-STAR usually
located with the RAK-LINK. Each cable can be from a single keypad or a leg of keypads.
WCM-070 Manual Version 2.0.1

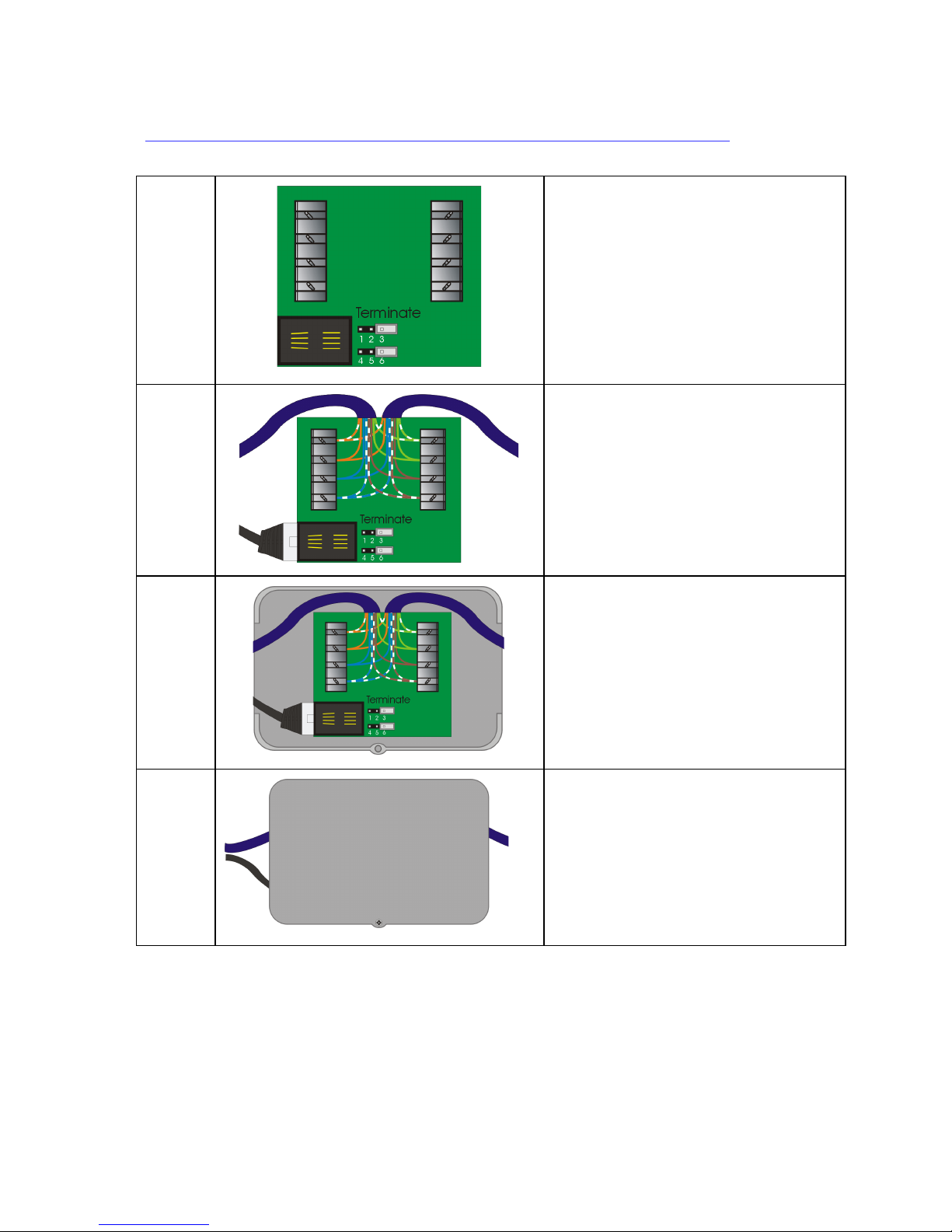

Installation of the WCM with screwless finish plates (WLF/WLM):
Step 1
Prepare the WP-CONC for connection
by removing it from the case.
Prepare the junction box by cutting slots
in each side for cable entry/exit.
Step 2
Punch down cable(s) matching cable
colours to colours written on the circuit
board.
There may be either one or two sets of
cables to punch down.
Step 3
Terminate the WCM as required. See
“Terminating the WCM” on page 3 of
this manual.
TIP:
Take care when preparing and installing not
to disturb the punchdown connections.
Loops are provided on the back section to
cable tie the cable(s) if desired.
Step 4
Slot the circuit board into the junction
box.
FIx cable clamps, close lid and screw
close to complete installation.
WCM-070 Manual Version 2.0.1
Terminating the WCM
It is important to terminate WCMs correctly otherwise the wired system will not function. The
termination that is required depends on the nature of the installation and the position of the
RAK-LINK within the system.
No Term - Both Jumpers removed
Used when the WCM is not at the end of line. This is usually
identifiable by two cables being punched down to the WCM.
Term - Jumper fitted across 1+2 & 4+5
Used when the WCM is end of line in a daisy chain configuration.
For example the WCM marked “TERM” shown in “Typical Wired
Installation layout” on page one.
Star Term - Jumper fitted across 2+3 & 5+6
Used when the WCM is end of line in a STAR wire configuration.
For the example the WCMs marked “STAR TERM” on page one.
Troubleshooting the Wired Network
Sometimes cabling problems or incorrectly punched down cables
means a degree of fault finding needs to be done on the wired
network. This may cause of
WCM Diagnostic Feedback - For fault finding “Daisy Chain” and
“Star” configuration.
RAK-LINK diagnostics - For fault finding “Daisy Chain” and “Star” configuration.
RAK-STAR diagnostics - For fault finding “Star” configuration.
WCM-070 Manual Version 2.0.1
