1
Facial Recognition Device
Product model: F6
Product version: V1.0
Please read this instruction carefully before use
2
Catalogue
ⅠProduct overview.................................................................................................................................................. 3
ⅡFunctional characteristics.....................................................................................................................................4
ⅢSpecification performance................................................................................................................................... 4
ⅣProduct list........................................................................................................................................................... 7
ⅤProduct Structure...................................................................................................................................................7
ⅥProduct wiring......................................................................................................................................................8
6.1 Integrated wiring harness wiring instructions................................................................................................9
6.2 Reference instructions for field magnetic door installation.......................................................................... 10
6.2.1 Schematic installation of magnetic gate system.................................................................................... 10
6.2.2 Schematic diagram of the wiring of the magnetic gate system..............................................................10
ⅦInstallation instructions...................................................................................................................................... 10
7.1
Wall-mounted installation instructions......................................................................................................
12
7.1.1 I
nstallation site....................................................................................................................................
12
7.1.2 Description of the size and hole position of the wall hanging bracket................................................. 13
7.1.3 Install steps............................................................................................................................................14
ⅧDeclaration of toxic and harmful substances..................................................................................................... 14
ⅨProduct warranty................................................................................................................................................ 15
3
I. Product overview
(The diagram is for reference only, and the actual product shall be subject to the corresponding
product number)
This product is a convenient, safe industrial-level visual face recognition all-in-one machine. In view of
the needs of large capacity, high performance, wide application, customizable and other aspects existing
in the process of face recognition application, an intelligent face recognition hardware launched can be
combined with face recognition algorithm, without user cooperation, to achieve live detection, dynamic
face recognition, to provide users with the use environment of the safety area.
The product is based on 200W RGB, 200W IR binocular camera, supports WIFI + 10 / 100M network
and rich peripheral security interface, to meet the needs of user access control, can realize personnel
authentication, personnel entry and exit management and attendance management.
The products are widely applicable to office buildings, office areas, hotels, schools, shopping malls,
communities, public services, stations and scenic spot pavilions and other traffic scenarios that need to be
used, which is conducive to the realization of intelligent safety control.
ⅡFunctional characteristics
High performance engine Binocular Distance induction Card read Security interface Multiple installation High levels of protection
Serial
number
Characteristi
c
Content
1
function
Combined with the face recognition algorithm, to support the ten thousand
level face bottom library
2
algorithm
Support the domestic top AI manufacturers algorithm
3
velocity
Combined with face recognition algorithm, face recognition
4
anti-fake
Binocular facial recognition that supports live detection
5
communication
Live detection, 8-inch ultra-clear touch screen + sound interaction prompt
6
environment
Super strong environmental adaptability, low light and strong reverse light,
all have a very good performance
7
stabilize
Android 11.0 system, long-term and stable operation
8
come into
bloom
Provide SDK to meet the secondary development needs of S / ISV
manufacturers
9
epidemic
prevention
Infrared temperature detection and screening
10
Prevent strong
light
Sunshades [Optional]
ⅢSpecification performance
4 / 16
Access control attendance
Face recognition
all-in-one machine terminal
Product model
F6
Product
features
major function
Access control, attendance check, access gate
Usage
environment
Indoor, outdoor
enclosure
Aluminum alloy material, space gray color
5 / 16
resolution ratio
200, megapixels
200, megapixels
Vertical wide
Angle
65°
65°
Horizontal wide
Angle
40°
40°
White light
supplement
support
Infrared light
supplement
support
Core
parameters
system
android 11.0
CPU
RK3566 4x ARM® Cortex™ A55 up to1.8GHz
SC
Memory 2G, storage 8G
human-
computer
interaction
display screen
8-inch, Full View, 170°IPS LCD, resolution 800 * 1280
touch screen
support
Human
temperature
measurement
module
[apolegamy]
Test accuracy: 0.1℃
test error:≤±0.5℃
Temperature measurement distance: the recommended use distance
is 50cm
Operating temperature: 15℃~40℃
communicat
ion mode
Ethernet
10 / 100Mbps Ethernet
WIFI
Compliance with the IEEE802.11b/g/n standard (2.4G)
4G[apolegamy]
CAT1, domestic full Netcom
RM
human face
support
IC card
[optional]
support
certificate of
identification
Network ID card [Optional]
Local ID card needs external connection [optional]
Interface
data interface
USB 2.0*2
electric relay
*1
6 / 16
gorge line
RS485*1
Wigan
The 26bit / 34bit protocol
Go out switch
* 1 [Expandable]
Fire linkage
* 1 [Expandable]
key
Upgrade key
source
adapter
DC12V / 2A power supply
Environmen
tal
requirement
s
working
temperature
-20℃～60℃
Operating
humidity
20% ⾄90% (in no condensation ⽔drop state)
static electricity
ESD
IEC61000-4-2,LEVEL3
levels of
protection
IP65
Installation
Two ways
Wall hanging version:
Turnstile version:
Size of product
7 / 16
ⅣProduct list
Serial
Numb
er
cont
ent
quan
tity
1
main engine
*1
2
Support kit
*1
3
Power adapter
*1
4
Sunshades [Optional]
*1
5
Install the screw bag
*1
6
Product warranty card
*1

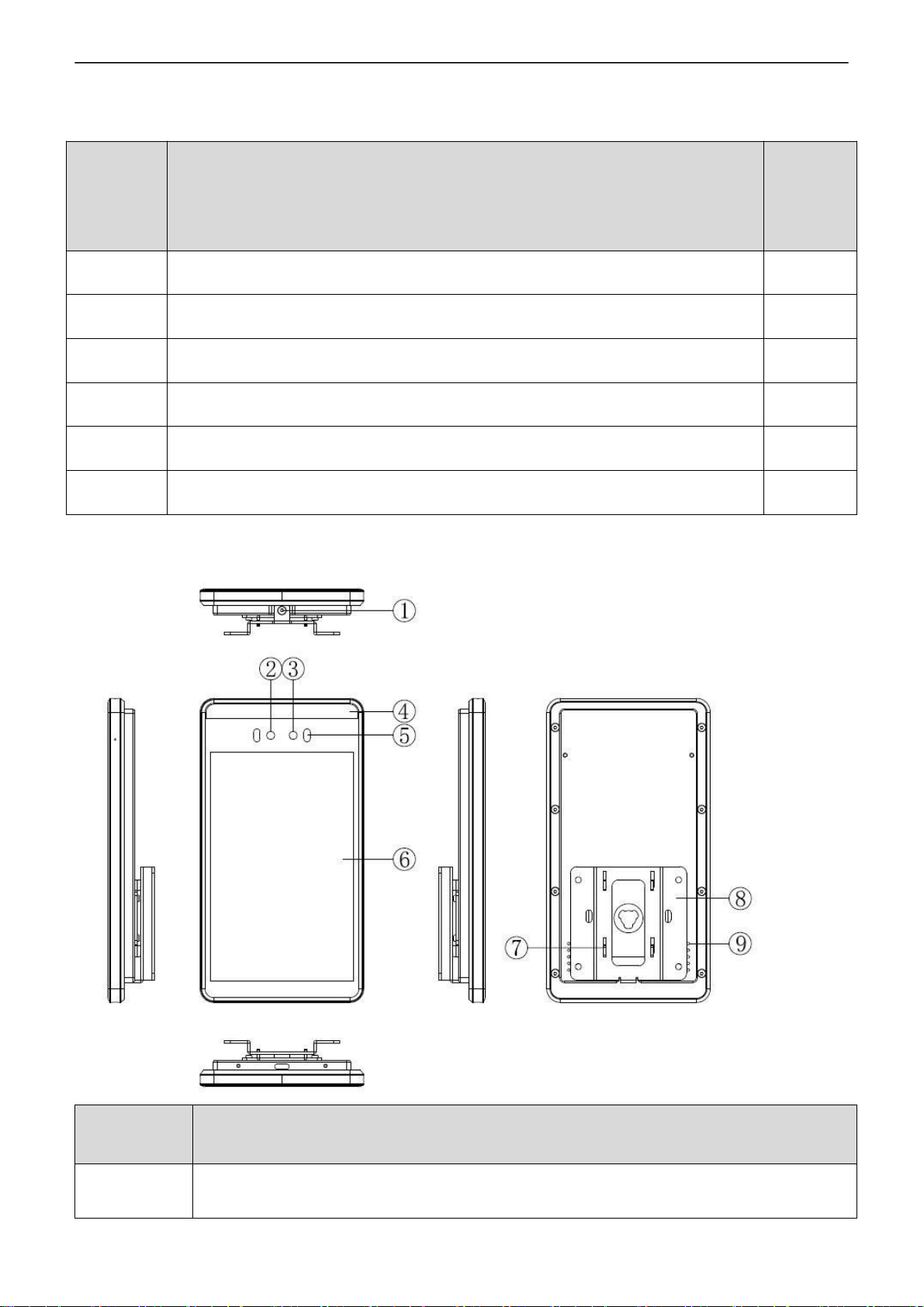

ⅤProduct structure
Part serial
number
function declaration
①
Fixed screws for the
wall-mount bracket
7 / 16
②
RGB, camera
8 / 16
③
IR camera
④
White light
supplement
⑤
Infrared light
supplement
⑥
Multi-point
capacitive touch
screen
⑦
Wall-mounted
bracket connector
⑧
Wall hanging
bracket
⑨
Horn net hole
⑩
swing card
⑪
End line interface
ⅥProduct wiring
Description of the hardware wiring of the external interface
type
port
explain
internet
access
RJ45
Support for 10 / 100Mbps
electric
relay
NC
COM
NO
Relys are often closed / public / regular.The door lock power supply
is generally being connected to the COM end,
Depending on the door lock type, then negatively connect the NO
port or NC port to the relay power supply.Note: The relay contact
load is up to 1A
Go out
button
IO5
GND
Check the key door opening control signal, and input
report to
the police
IO4
GND
Check the fire control linkage control signal and input
8 / 16
reset
Upgrate
GND
Support for manual reset, upgrade
Serial
RS485 TX
RS485 RX
Support for serial port RS485
