Raindrip WeatherSmart RSC600i Instructions de montage
Smart Controller
Installation
& Programing
RSC600i
watch the video at raindrip.com/smart
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:51 PM Page 1
Support
watch the video at raindrip.com/smart
Installation & Programming
Product Information
The model and serial numbers are located at the rear of the
controller. Record these numbers in the space provided
below. Have these numbers available when contacting
Technical Support.
MODEL NO.:
SERIAL NO.:
Additional Support
If additional support is required after reading the instructions
in this guide, then Internet Video Support or Technical Phone
Support is available.
Internet Video Support:
raindrip.com/smart
Technical Phone Support: 877-502-7952
Monday - Friday 8:00 AM - 5:00 PM (Pacific Standard Time)
Saturday - Sunday 9:00 AM - 1:00 PM (Pacific Standard Time)
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:51 PM Page 2
Smart Controller Technology . . . . . . . . . . . . . . . . . . .1
Irrigation System Overview . . . . . . . . . . . . . . . . . . .2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Smart Controller Features . . . . . . . . . . . . . . . . . . . .4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Installation Requirements . . . . . . . . . . . . . . . . . . . . .7
Installation Mount Docking Station . . . . . . . . . . . .8
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Dock Controller . . . . . . . . . . . . . . . . . . .10
Programming: Settings . . . . . . . . . . . . . . . . . . . . .11-12
Programming: Edit Schedule . . . . . . . . . . . . . . . .13-16
Auto Run (ON / SKIP / OFF) . . . . . . . . . . . . . . . . . .17
Water Now . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Disabling Smart Mode . . . . . . . . . . . . . . . . . . . . . . .19
Rain Sensor / Switch . . . . . . . . . . . . . . . . . . . . . . .20
Operational Notes . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . .22
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Programming Aid - Introduction . . . . . . . . . . .25-26
Programming Aid - Example . . . . . . . . . . . . . .27-28
Programming Aid - Worksheet . . . . . . . . . . . .29-30
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Table of Contents
watch the video at raindrip.com/smart
Installation & Programming
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:51 PM Page 3
Smart Controller Technology
watch the video at raindrip.com/smart
Installation & Programming
1
Smart controllers can reduce water consumption as
much as 30% by optimizing the amount of water
applied to landscaping. A smart controller applies
100% of the programmed watering duration during
the hottest months of the year and reduces watering
durations for cooler months. Watering duration
compensation factors are based on 10 years of
historical weather data for specific zip code regions.
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
jan feb mar apr may jun jul aug sep oct nov dec

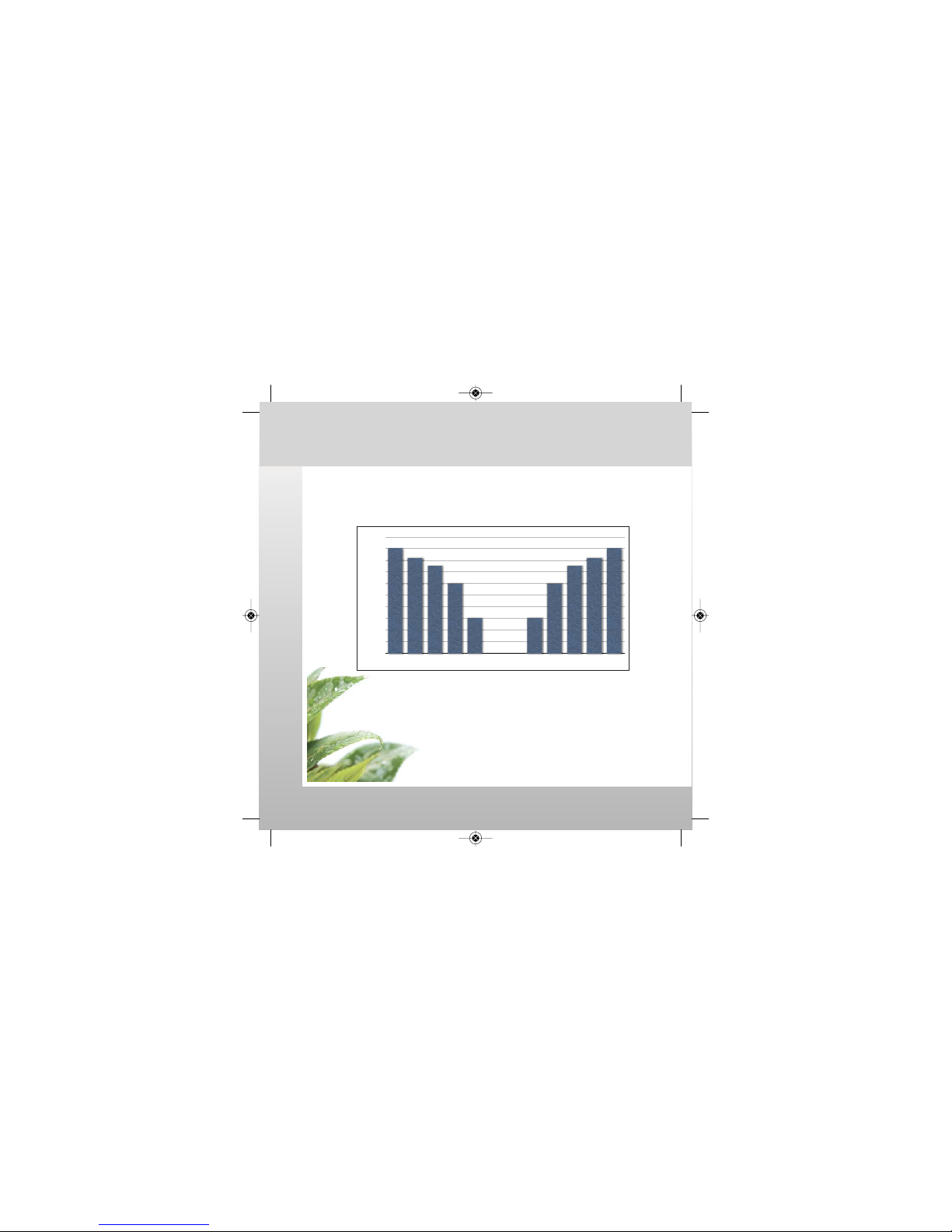

Typical Monthly Water Savings %
*results will vary by zip code region
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:53 PM Page 1
watch the video at raindrip.com/smart
Installation & Programming
2
illustration 3 E
E
D
A
B
D
C
A. Controller
B. Wires
C. Valves and Solenoids
D. Sprinkler Zones
E. Drip Irrigation Zones
Irrigation System Overview
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 2
watch the video at raindrip.com/smart
Installation & Programming
3
Package Contents
❶Smart Controller / Docking Station
❷AC Power Supply
❸Mounting Hardware
a. #8 X 11/4" Screws (4)
b. Drywall Anchors (4)
❹Installation & Programming Guide
❺Registration Card
❶
❷❸
❹ ❺
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 3
Smart Controller Features
RSC600i
watch the video at raindrip.com/smart
Installation & Programming
4
• 6 zones with up to 4 independent watering cycles per day per zone.
• Automatically adjusts watering duration based on historical weather
patterns for your zip code and time of year.
• Daily and Year-to-Date water savings displayed.
• Built-in diagnostics automatically troubleshoots and alerts of wiring issues.
• Audible beeps to alert for low batteries, wiring faults, and other user
interface actions.
• "Skip" function allows for manual interruption of watering schedule for
yard work and other activities.
• "Water Now" function allows for manual watering to test irrigation system.
• Rain Sensor / Switch ready - works with most major brands.
• Easy to read, oversized backlit display.
• Controller "undocks" to allow for comfortable / convenient programming.
• Automatically adjusts for daylight savings.
• Optional conventional timer mode (non-smart).
• Requires 2 AA batteries (not included).
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 4
Overview
RSC600i
watch the video at raindrip.com/smart
Installation & Programming
5
❶LCD Display – Displays status of the controller. (page 21-22)
❷Navigation Pad – Used to select, change, and enter values.
• LEFT and RIGHT arrows to move left or right.
• UP and DOWN arrows to increase or decrease values.
• ENTER saves all values and advances to next screen.
❸Settings – View or change DATE, TIME, ZIP CODE, and
WATERING DAYS option. (page 11-12)
❹Edit Schedule – View or change the WATERING SCHEDULE. (page 13-16)
❺Auto Run – Change operating mode to ON / SKIP / OFF. (page 17)
❻Water Now – Manual watering Start / Stop. (page 18)
❼A/C Power Connection – External power connection.
❽Valve Solenoid Wire Terminals – Color coded quick connect terminals.
❾Rain Sensor / Switch Terminals – For rain sensor / switch wiring
(optional). No additional programming required. (page 20)
❿Reset – Stops watering; clears controller memory of any errors;
and returns controller to the idle state. DATE, TIME, ZIP CODE,
WATERING DAYS option, and WATERING SCHEDULE are not erased.
⓫Removable Cover – To access SETTINGS, EDIT SCHEDULE, and RESET
buttons.
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 5
Overview
RSC600i
watch the video at raindrip.com/smart
Installation & Programming
6
❼
⓫
❶
❺
❸
❷
❻
❹
❿
❾
❽
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 6
watch the video at raindrip.com/smart
Installation & Programming
7
Items Required for Installation
• Docking Station (provided)
• #8 X 11⁄4" screws (4) (provided)
• Drywall anchors (4) (provided)
• Phillips head screwdriver
• Wire strippers
• Power drill (if drywall anchors are to be used)
• 1/4" drill bit (if drywall anchors are to be used)
• Sprinkler wire (18 gage, solid copper wire recommended)
Installation Requirements
Note: If replacing an existing irrigation timer, label each of the
wires as they are removed from the old timer so they can be
placed in the same position on the RSC600i.
SmrtCntrl_InstlltnPrgrmng_Bklt 3/31/09 4:56 PM Page 7
