iR8624-S3 User Manual

2. Product Appearance and Packaging Content

Thank you for purchasing RAIDON products. This manual will introduce the IR8624-S3 Series.

Before using your IR8624-S3, please read this manual thoroughly. Although all information contained

in this user manual has been carefully veried before publishing, however, the actual product

specication will be based on the time of delivery from RAIDON. Any updates to the product

specications or relevant information may be found on www.raidon.com.tw. Products are subject

to change without prior notications.

If you have any questions regarding the products of RAIDON, or you would like to know the latest

product information, user manual update, or rmware update, please contact your local supplier or

visit www.raidon.com.tw for further information.

Open the package and you should nd the following:

IR8624-S3

IR8624-S3 x 1 ( with removable drive tray enclosed )

SATA Cable x 2

Quick Setup Guide x 1

Screws and keys

» InTANK IR8624-S3 User Manual

• Please check the product and accessories for any defect or missing parts. If you have any questions,

please contact your product supplier.

• Please visit the o󰀩cial website (www.raidon.com.tw) to download drivers and other related resources.

About this Manual

1. Environmental Requirements

Operating Temperature : 0 ~ 40 °C (32 ~ 104 °F)

Storage Temperature : -20 ~ 47 °C (-4 ~ 116 °F)

Line Voltage : 12V/5V DC

iR8624-S3 User Manual

14 16

FAIL LED

PRI HDD MUTE

SEC HDD

Front View

LED Indicators :

1. 2.5" HDD status indicator LED

2. 2.5" HDD tray key lock

3. HDD tray ejection

4. 2.5" HDD tray handle

5. LCD Display

6. LED of failure Alarm

7. Pri HDD status indicator

8. Sec HDD status indicator

9. Mute Button

10. 3.5" Removable drive tray

11. 3.5" HDD tray key lock

12. Pri HDD tray access light

13. Sec HDD tray access light

14. Cooling fan

15. RAID mode switch & RS232 Port

16. 3.5" SATA Port

17. 15 PIN SATA Port

18. 4Pin Power socket

19. 2.5" SATA Port

Status

Panel light 3.5" HDD tray access light M.2 SATA

SSD

access light

Buzzer

Fail LED Pri HDD

status indicator

Sec HDD

status indicator

Pri HDD tray

access light

Sec HDD tray

access light

Power On — — Orange light

always on Blue and Purple light ashing Blue light

always on — —

Stabdby — — Orange light

always on

Blue light

always on

Blue light

always on — —

HDD

Failure

Red light

always on — — Red light

always on

Blue light

always on On

Access — — Orange light

always on Blue and Purple light ashing Blue light

ashing — —

Rebuilding

(Source) — — Orange light

always on

Blue light

always on

Blue light

always on — —

Rebuilding

(Target) — — — — Red light

ashing

Blue light

always on — —

Fan Failure Red light

always on

Orange light

always on

Blue light

always on

Blue light

always on On

Over Heat

（≥50℃)

Red light

always on

Orange light

always on

Blue light

always on

Blue light

always on On

iR8624-S3 User Manual

3. Hardware Requirements and Precautions

1. Computers or servers with SATA I & SATA II & SATA III.

2. Hard drive with SATA I & SATA II & SATA III interface and 2242/2260/2280 M.2 SATA SSD

3. You are strongly advised to set the storage mode (the default is the Independent mode) before

using the IR8624-S3.

4. The product needs to be restarted after adding or changing the RAID mode, and the update is

guaranteed to be the new RAID mode.

5. The product allows the user to simultaneously utilize two hard drives manufactured by di󰀨erent

companies. However, if the user expects better e󰀩ciency, we strongly recommend the users to

use hard drives manufactured by the same manufacturer.

6. Please make sure that the two hard drives are free from bad blocks or defects prior to installation

in order to avoid system crashes or data loss.

7. The actual storage capacity of IR8624-S3 recognized by the system may differ from the total

capacity stated on the hard drives combined once the drives have been formatted.

8. It is highly recommended for users to back up important data contained within the IR8624-S3

unit on a regular basis or whenever the user feels necessary to a remote or a separate storage

device. Stardom will not be responsible for any lost of data caused during the use of the unit or

the recovery of the data lost.

Note :

Once the drive mode conguration has been completed, re-conguration using the same hard

drives to set the drive mode will result in complete data loss. If you must change the drive

mode, make sure to backup all data prior to the mode change.

iR8624-S3 User Manual

Lock Unlock Press

4. Hardware Installation

Please follow the instructions below to complete the hardware installation.

2. For 3.5" HDD/SSD, please secure it by

use six the larger screws included in the

accessory kit. For 2.5" HDD/SSD, please

secure it by use four the smaller screws

included in the accessory kit.

3. For the 2.5" HDD tray, please use the key

included in the accessory kit to unlock

the 2.5" HDD tray key lock and push the

HDD eject button to the right, the 2.5"

HDD tray handle will pop up to remove

the tray.

For the 2.5" HDD tray, please use the key

included in the accessory kit to unlock the

2.5" HDD tray key lock and push the HDD

eject button to the right, the 2.5" HDD tray

handle will pop up to remove the tray.

FAIL LED

PRI HDD MUTE

SEC HDD

Lock Unlock

1. For the 3.5" HDD tray, please use the key

included in the accessory kit to unlock

the HDD tray key lock, and then press

the HDD tray key lock. The removable

drive tray will pop open and extract the

removable drive tray.

5. Open the upper cover and remove

the screw .

iR8624-S3 User Manual

※ Note :

1. RS232 Port and RS232 Cable: Provides hardware status monitoring to industrial control system or IPC via RS232.

2. We do not recommend users to disassemble the device without proper instructions and authorization. The manufacture warranty

will not cover the damages caused by unauthorized disassembling.

3. To prevent the device from malfunction, please make sure the device is connected with a direct and dedicated power connection of

a stable power input.

4. RS232 Port: For industrial control system or IPC to monitor the hardware status. More information, please contact your sales

window or [email protected]

5. How to set the RAID Mode

The default is RAID 1 mode. Please set the RAID mode with the jumper at the rear side. For RAID 0

mode, please select the bottom two pins. For RAID 1, please select the top two pins.

1. RAID 1 Mode

1). Place two new hard drives into IR8624-S3 and strongly suggest you to use two identical hard

drives to get the equal capacity. If the capacity is di󰀨erent, IR8624-S3 is downward to the small

hard drive capacity.

RAID 0 mode

(R0)

RAID 1 mode

(R1)



󾙖󾙗





󾙓

󾙔

󾙚󾙘󾙔󾙖󾙕

COM1

COM2

7. Remove the paper from

the heat sink in the upper

cover and put the upper

cover back.

󾙚Fix the screws.

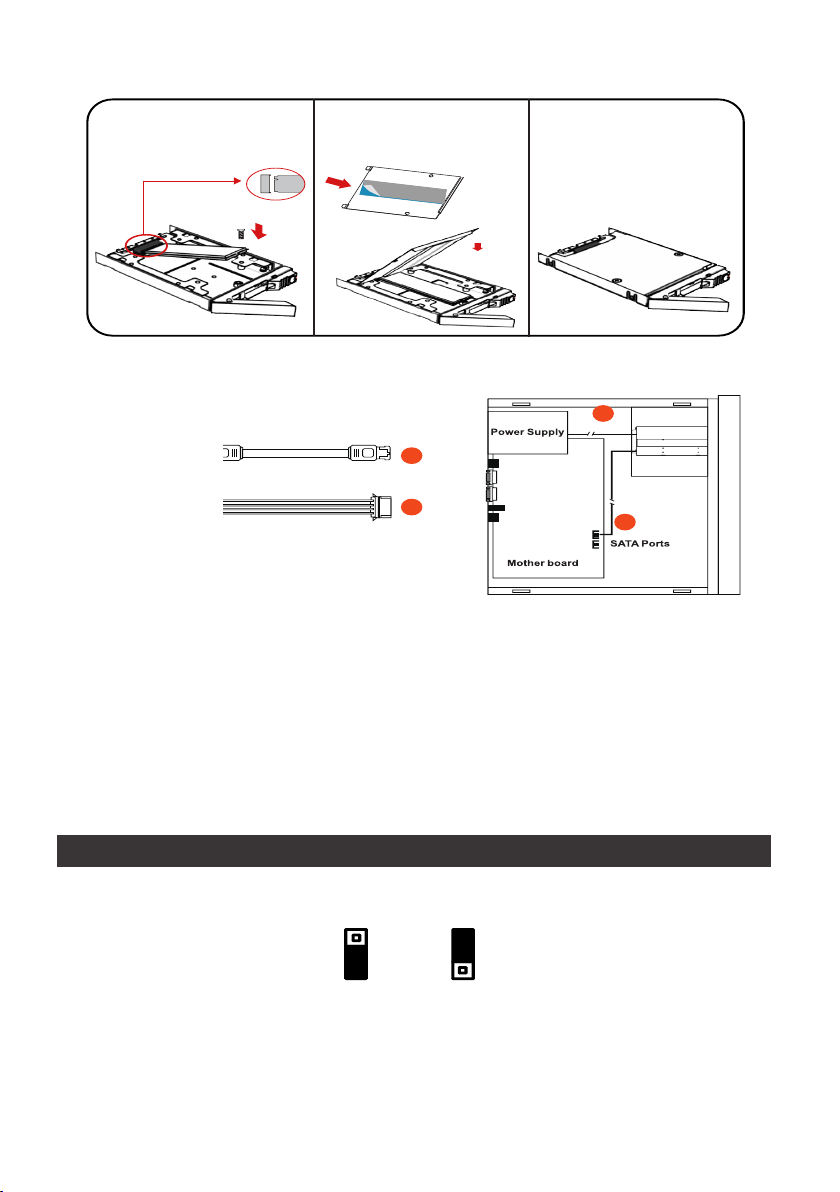

Install the M.2 SATA

Bridge tray back into

the iR8624.

󾙘Insert M.2 and fix the

screw.



9. Install device into one of the CD-ROM bays with screws from the accessory kit.

Then properly connect SATA cable and SATA power cable from your system to device.

10. Power on your system after hardware installation is completed, and your operating system will

automatically detect the hard drives from booting. Then follow the steps from your operating

system to partition and format the drives when necessary, device will be ready to use once the

format is completed.

iR8624-S3 User Manual

6. Computer Set Up

When the hardware setup for IR8624-S3 is complete, you are now ready to turn the machine on.

After the hardware installation is complete, the IR8624-S3 will be treated as one single hard drive.

Set the hard drive to AUTO in the computer’s BIOS. When the computer is turned on, the system will

retrieve the following information:

1. In IR8624-S3, the installed hard drive can be detected by the Device Manager of Computer

Management for Windows.

2. Customers can choose to format the hard drive by using the Disk Management tool of the

operating system before using the IR8624-S3.

At this point, the installation process is completely nished. The user can freely retrieve and save

data to IR8624-S3 just like retrieving and saving data to a regular hard drive. If the user experiences

any abnormality during the operation, please refer to the trouble shooting Q&A section in Appendix.

2). Under RAID 1 mode, two hard drives has the identical information as one to mirror to the other

one, therefore each of the hard drive failed is still able to function normally. When you replace

the failed hard disk to the new one the system automatically rebuilding the data to the newly

place hard disk.

2. RAID 0 Mode

1). Place two new hard drives into IR8624-S3 and strongly suggest you to use two identical hard

drives to get the equal capacity. If the capacity is di󰀨erent, IR8624-S3 is downward to the small

hard drive capacity.

2). Under RAID 0 mode, capacity is add up to a one big volume, also with the feature of faster

read/write performance e󰀩cient.

iR8624-S3 User Manual

7. Hard Disk status on LCD screen

2. Over Temperature (≥50°C)

Pri HDD : OK

Sec HDD : OK T

3. Fan Failure.

Pri HDD : OK F

Sec HDD : OK

4. RAID 1 Degraded. Primary hard drive is failure, but secondary hard drive is normal.

RAID-1 degraded

Pri : X Sec : O

5. RAID 1 Failure. Primary and secondary hard drives are failure.

RAID-1 failure

Pri : X Sec : X

6. RAID 1 Failure. (Double Source)

RAID-1 failure

Double Source

7. RAID 0 Failure. Primary hard drive is missing, but secondary hard drive is normal.

RAID-0 failure

Pri : M Sec :O

8. Rebuilding

Rebuilding

Sec →Pri 32%

1. Booting and Normal status.

RAIDbox4

RAID-1 vxxxxxx.x

Pri HDD : OK

Sec HDD : OK

iR8624-S3 User Manual

The hard drive Hot Swap and Auto Rebuilding functions are available.

O󰀨-line Back up When the data is stored within IR8624-S3, the user can remove one of the hard

drives from IR8624-S3 as back up drive for data such as system operation le, secured les, seldom

modified files or image and music files. The user can periodically insert the hard drive back into

IR8624-S3 to execute automatic backup to protect the system from being hit by computer virus or to

avoid risk of having both hard drives failing at the same time.

When one of the two hard drives fails in the IR8624-S3 system, the system will alarm the hard

drive failure message both on the LCD display screen and in the monitoring software. The user can

remove the failed hard drive from the system while the system is still in operation without shutting

down the machine. If the failed hard drive is replaced shortly, the system will automatically execute

the Auto Rebuilding function without affecting the system operation and without any operation

command from the user.

When the IR8624-S3 detects a hard drive missing or a hard drive failure, the Buzzer will start and the

LCD display screen will display the following messages:

After removing the failed hard drive and replacing with a new hard drive, if the hard drive is properly

installed, the LCD display screen will display the following messages:

After few seconds of installing the new hard drive, the LCD display screen will display the data

rebuilding progress:

When the rebuilding is fully completed, the LCD display screen will again display the following

messages:

8. Data Rebuilding Operation

Pri HDD : OK

Sec HDD : OK T

RAID-1 degraded

Pri : X Sec : O

Pri HDD : OK

Sec HDD : Insert

Rebuilding

Sec →Pri 32%

Pri HDD :Insert

Sec HDD : OK

Rebuilding

Pri →Sec 32%

Autres manuels pour InTANK IR8624-S3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Raidon Système de sécurité

Raidon

Raidon InTANK iR2624-S3 Series Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
