Rage BC-7635-3 Manuel utilisateur
AB
MODEL: BC-7635-3
INSTRUCTIONS
×2
×2
×2
×2 ×2
×2
×2
×2
×1
×1
×1
×1
×1 ×1
×8
×4
AB
11
12

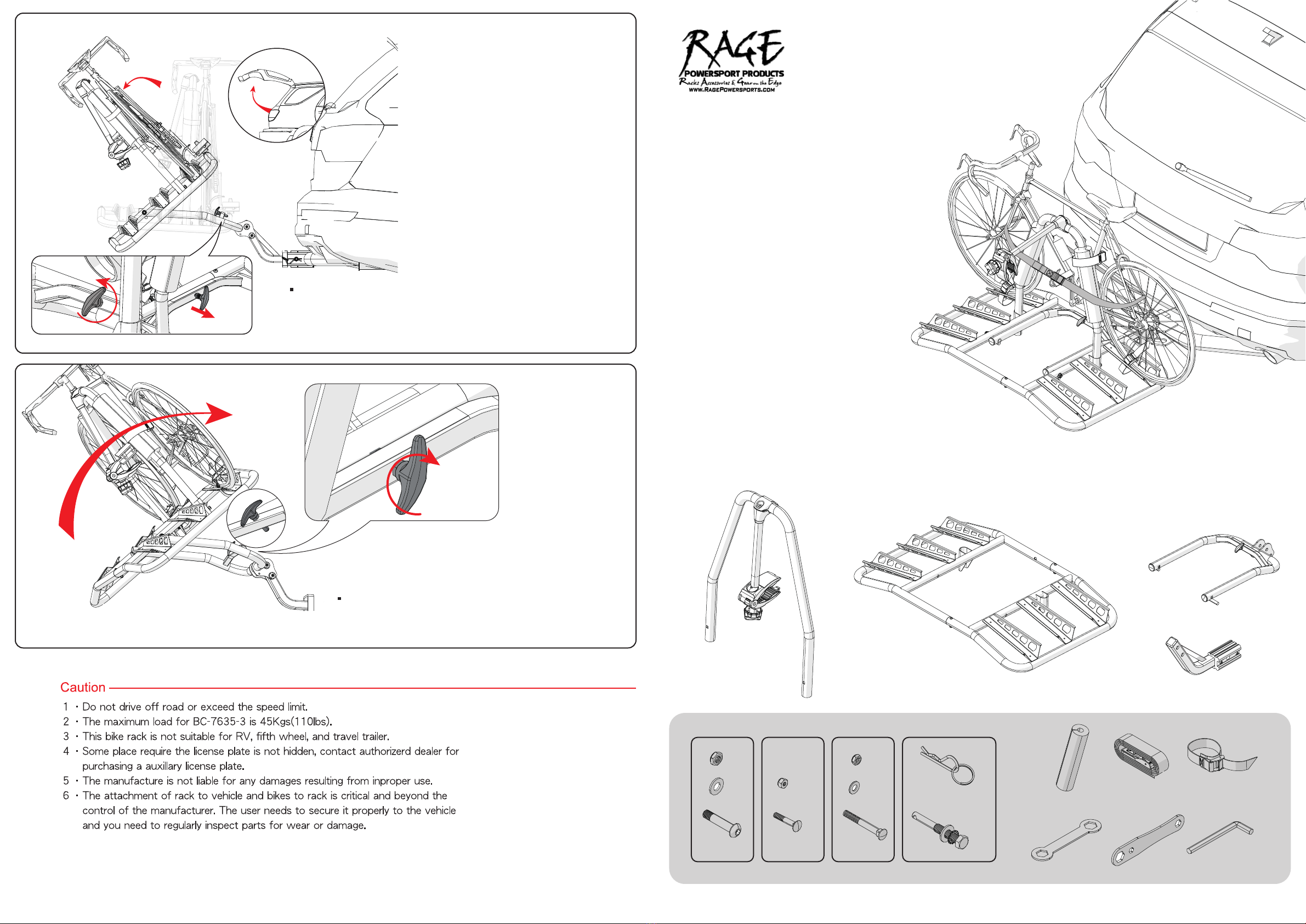

After cargo access, please pull the tray back to
mainframe then rotate the knob clockwise to
tighten it.
The bike rack is also equipped with tilting mechanism.
Simply loosen the knob by turning anticlockwise then
once you hear the click then pull it out to allow the tray
to tilt down.
1
2
3
3 12
1
3
5
4
6
7
8
910
1
2
3
2
First fix the upper arm post with bolts and nuts.
Fit the main frame to the bike tray frame with
bolts and nuts.
Fix the bike rack with the receiver hitch by
bolts and then further secure it with cotter pin. Install the foam pads to bikes supporting
post.
Use the strap with buckle to fix the first
and second bike to bike rack.
Use the strap with buckle to fix the bike
wheels to bike rack.
Use the clamp to fix the third bike which
is further secured by wheel straps.
The last step is to use the security
strap to fix all bikes to bike rack to
prevent any movement.
Check if the car is equipped with 2 inch
and 1.25 inch receiver. If it is equipped
with 1.25 inch receiver, please remove
the sleeve from the draw bar.
Fix the draw bar to the main frame
with bolts and nuts.
