Radio Shack Passive Manuel utilisateur

Owner’s Manual

Please read before using this equipment.

Passive Infrared

Sensor Alarm

with Keychain Remote

49-329.fm Page 1 Thursday, June 1, 2000 7:46 AM

2Contents

Contents

Features ................................................................. 3

Preparation ............................................................ 5

Installing Batteries ............................................... 5

Setting the Security Code ................................... 9

Resetting the Security Code ............................. 13

Installation ........................................................... 13

Choosing a Mounting Location ......................... 14

Temporarily Placing the Sensor Alarm .............. 15

Mounting the Sensor Alarm .............................. 17

Operation ............................................................. 19

Arming and Disarming the Sensor Alarm .......... 19

Using the Chime Alarm ..................................... 22

Using the Panic Alarm ...................................... 23

Care ...................................................................... 24

Replacing the Remote Control’s Battery ........... 25

FCC Statement ................................................. 26

Specifications ...................................................... 27

RadioShack and RadioShack.com are trademarks

used by Tandy Corporation.

49-329.fm Page 2 Thursday, June 1, 2000 7:46 AM

Features

Your RadioShack Passive Infrared Sensor Alarm is a

high-quality, battery-operated security device. It uses

a passive infrared (PIR) motion sensor to detect in-

truders and activate a built-in alarm.

The sensor alarm’s features include:

Wireless RF (Radio Frequency) Operation — pro-

vides maximum reliability with no wiring required.

Built-In PIR Sensor — detects motion up to 30 feet

(9.1 m) away and from an angle of up to 110 degrees.

Built-In Alarm Siren — activates when the sensor

detects an intruder, then automatically shuts down

and resets after about 2 minutes.

User-Programmable Security Code — lets you set

your own disarm code.

Entry/Exit Delay — gives you 30 seconds to disarm

the sensor alarm after you enter the protected area,

and gives you 10 seconds to leave the protected area

after you arm the alarm.

49-329.fm Page 3 Thursday, June 1, 2000 7:46 AM

4Features

Chime — lets you select a more pleasant sounding

doorbell-type chime as the audible alarm.

Panic Alarm — sounds the alarm immediately if you

press PANIC on the main unit or if you press both ARM

and DISARM (at the same time) on the remote control.

RF Remote Control Keychain — gives you simple

handheld control of your sensor alarm up to 50 feet

(15.2 m).

Battery-Operated — works even when electrical

power is off.

49-329.fm Page 4 Thursday, June 1, 2000 7:46 AM

Preparation

INSTALLING BATTERIES

The main unit of your sensor alarm requires four AA

batteries (not supplied) for power. For the best perfor-

mance and longest life, we recommend alkaline bat-

teries (available at your local RadioShack store).

Warning: Dispose of old batteries promptly and prop-

erly. Do not burn or bury them.

Cautions:

• Use only fresh batteries of the required size and

recommended type.

• Do not mix old and new batteries, different types

of batteries (standard, alkaline, or rechargeable),

or rechargeable batteries of different capacities.

Important: This alarm can use nickel-

cadmium rechargeable batteries. At

the end of a nickel-cadmium battery’s

useful life, it must be recycled or dis-

posed of properly. Contact your local,

county, or state hazardous waste

49-329.fm Page 5 Thursday, June 1, 2000 7:46 AM

6Preparation

management authorities for information on recycling

or disposal programs in your area or call 1-800-822-

8837. Some options that might be available are: mu-

nicipal curbside collection, drop-off boxes at retailers

such as your local RadioShack store, recycling collec-

tion centers, and mail-back programs.

1. Use a Phillips screwdriver to remove the screws

from the battery compartment cover, then lift off

the cover.

49-329.fm Page 6 Thursday, June 1, 2000 7:46 AM

Preparation

2. Place the batteries in the compartment and on

top of the attached ribbon, as indicated by the

polarity symbols (+ and –) marked inside.

Note: As soon as you press the last battery in

place, the alarm sounds a loud chirp and both the

red and the green indicators light briefly.

3. Replace the cover, then reinsert and tighten the

screws.

Notes:

• The alarm is disarmed after batteries are

installed.

• Replacing the main unit’s batteries automatically

resets the security code to 1234. Any time you

49-329.fm Page 7 Thursday, June 1, 2000 7:46 AM

8Preparation

replace these batteries, be sure to apply the cur-

rent security code to the remote control so the

sensor alarm will recognize the remote signals

(see “Remote Control” on Page 11).

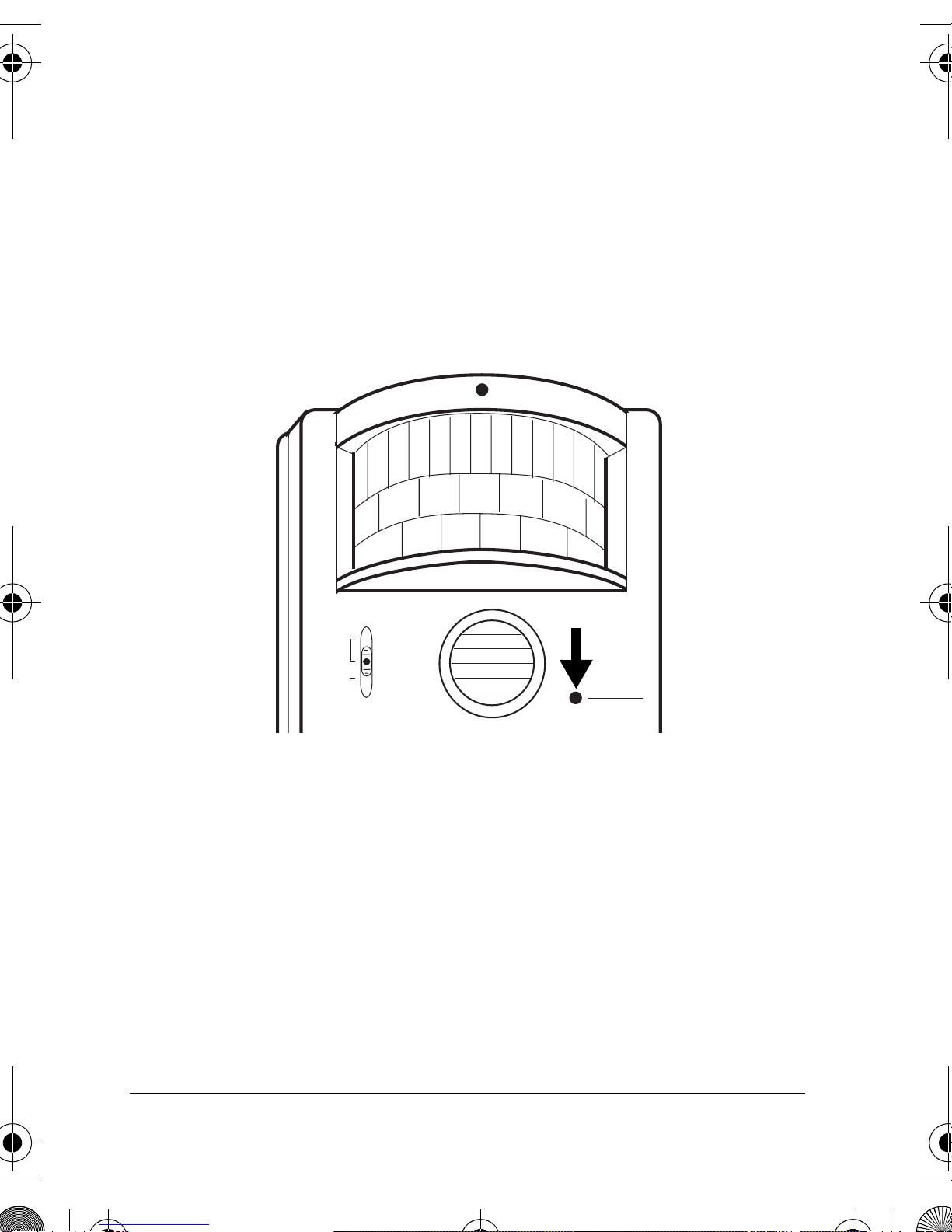

When the main unit’s LOW BATT indicator flashes

about every 5 seconds, or if the sensor alarm stops

operating properly, replace the batteries.

Cautions:

• Dispose of old batteries promptly and properly.

Do not burn or bury them.

• Always remove old or weak batteries. Batteries

can leak chemicals that can destroy electronic

parts.

LOW BATT

PROG

INSTANT

DELAY

ARM

CHIME

49-329.fm Page 8 Thursday, June 1, 2000 7:46 AM

Preparation

SETTING THE SECURITY CODE

Main Unit

You can use a four-digit security code to disarm the

alarm. The default code is 1234. Follow these steps

to set a new security code at any time.

1. Set the slide switch to either of the ARM settings.

LOW BATT

PROG

INSTANT

DELAY

ARM

CHIME

PANIC ARM CODE LEARN PROG

1234

67890

Red Indicator

Green Indicator

49-329.fm Page 9 Thursday, June 1, 2000 7:46 AM

10 Preparation

2. If necessary, disarm the sensor alarm (the red

indicator should not be flashing) by entering the

current security code.

3. Press PROG. The sensor alarm beeps once and

the green PROG indicator lights.

4. Press CODE. The sensor alarm beeps twice and

the PROG indicator flashes slowly.

5. Enter the current four-digit security code. The

sensor alarm beeps three times and the PROG

indicator flashes quickly.

6. Enter your new four-digit security code. The

PROG indicator lights steadily and the sensor

alarm chirps to show that it stored the new secu-

rity code.

7. Press PROG. The PROG indicator turns off.

Note: If you don’t press a button for about 30 sec-

onds, the sensor alarm beeps, the PROG indicator

turns off automatically, and (if you have not complet-

ed Step 5) the security code remains unchanged.

Try arming and disarming your sensor alarm from the

main unit to be sure the security code works (see

49-329.fm Page 10 Thursday, June 1, 2000 7:46 AM
