Congratulations on your purchase of the Radial J-Rak. The J-Rak is a 19" rack adaptor
that has been designed to work with products like the Radial JDI, Radial J48 and the
many other Radial products that employ the same compact bookend design.
As with all Radial products, the J-Rak features heavy duty 14-gauge steel construction
and a baked enamel finish that should provide you with years of trouble free performance.
The J-Rak is also supported with the Radial 3-year warranty to protect against
manufacturing defects.
Although the J-Rak is a simple device, we invite you to take a few moments to read
through this manual and familiarize yourself with some of the unique features that we
have built into this simple yet extremely versatile device.
Should you have any questions or comments, please feel free to contact us by sending us
www.radialeng.com for the latest updates or applications.
Enjoy!
Radial J-Rak
19” Rack Mount Adapter Shelf
Part #R800 1015
True to the Music
www.radialeng.com
Radial Engineering
1638 Kebet Way, Port Coquitlam BC V3C 5W9
tel: 604-942-1001 • fax: 604-942-1010
Radial Engineering is a division of JP CableTek Electronics Ltd.
Operator’s Manual
Radial Engineering J-Rak Operator’s Manual
1. PRODUCT DESCRIPTION
The Radial J-Rak is essentially an upside down shelf that has been designed to work with Radial
products such as the JDI and J48, allowing as many as eight of these to be rack-mounted in a
standard 19" rack system. The J-Rak requires 2 rack spaces (3 ½”).
The J-Rak was originally designed to allow touring companies to make better use of their DI box
inventory by allowing stand-alone units to be converted to rack mounted DIs for applications
such as keyboards and electronic drums. With the recent addition of the Radial JS-2 two-way and
JS-3 three-way mic splitters, it is now possible to create a variety of custom rack options for
touring, permanent installations or studio.

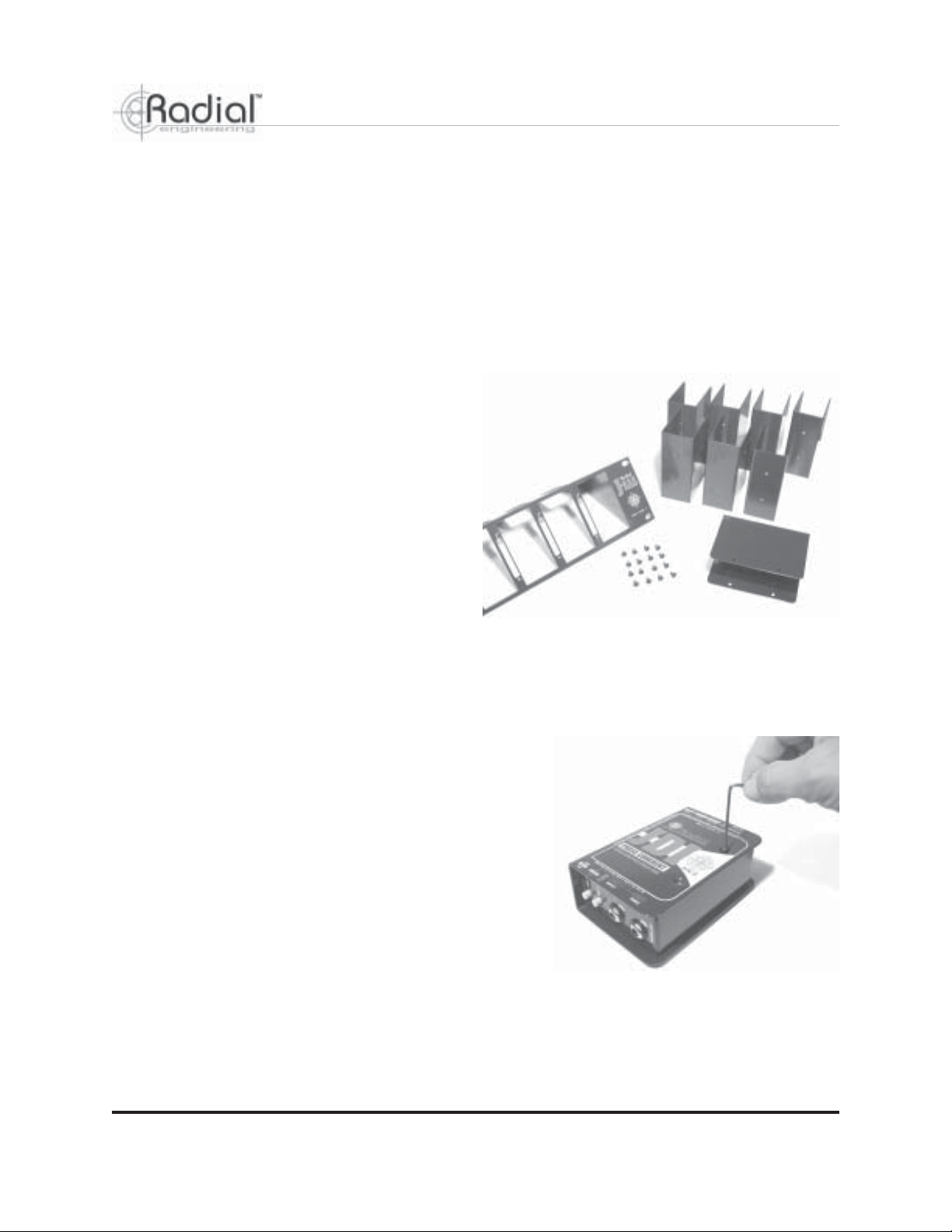

2. STANDARD EQUIPMENT
The J-Rak comes complete with the rack-shelf and eight
(8) insert sleeves. These resemble the book-end outer
shells that are common to all Radial compact direct boxes
and splitters. The difference being is that these shells
are slightly smaller and feature threaded screw holes to
fit the J-Rak.
The J-Rak itself features a series of wax pencil writing
ID strips to allow the engineer to assign and label the
eight channels. This simple feature makes channel
identification easy while also simplifying trouble
shooting on busy stages.
NOTE: Before writing on the ID strips, we suggest that you test a small section to make sure
that the pencil you are using will not react with the paint. Although most wax pencils and dry
erase pencils seem to work, some may mar the finish or be difficult to erase. As we are unable to
test all brands, we cannot assure all erasable markers will work.
3. SETTING THE J-RAK
To begin, remove the protective ‘book-end’ shells by
unscrewing the four (4) hex screws on each of the Radial
devices that you intend to rack mount.
All Radial products employ a standard hardened 6/32"
hex screws. Do not discard these screws as these are
used to reinstall the smaller outer shells that come with
your J-Rak.
True to the Music
The J-Rak is unique in that it allows one to install the
direct box or splitter module ‘frontward’ or ‘backward’
depending on the system designer’s need. Before you
bolt the new assembly into the J-Rak, take a moment to
think about how you will be connecting your gear. For
instance, when using the J-Rak with a keyboard rack, you
may find it best to have the ¼” jacks on the inside of the
rack to make hooking up to rack-mounted sound modules
and samplers easier.
To add even more versatility, you may order factory made
Radial rack-panels that act as extensions for front or rear
19" rack mounting. Please contact your Radial dealer for
more details.

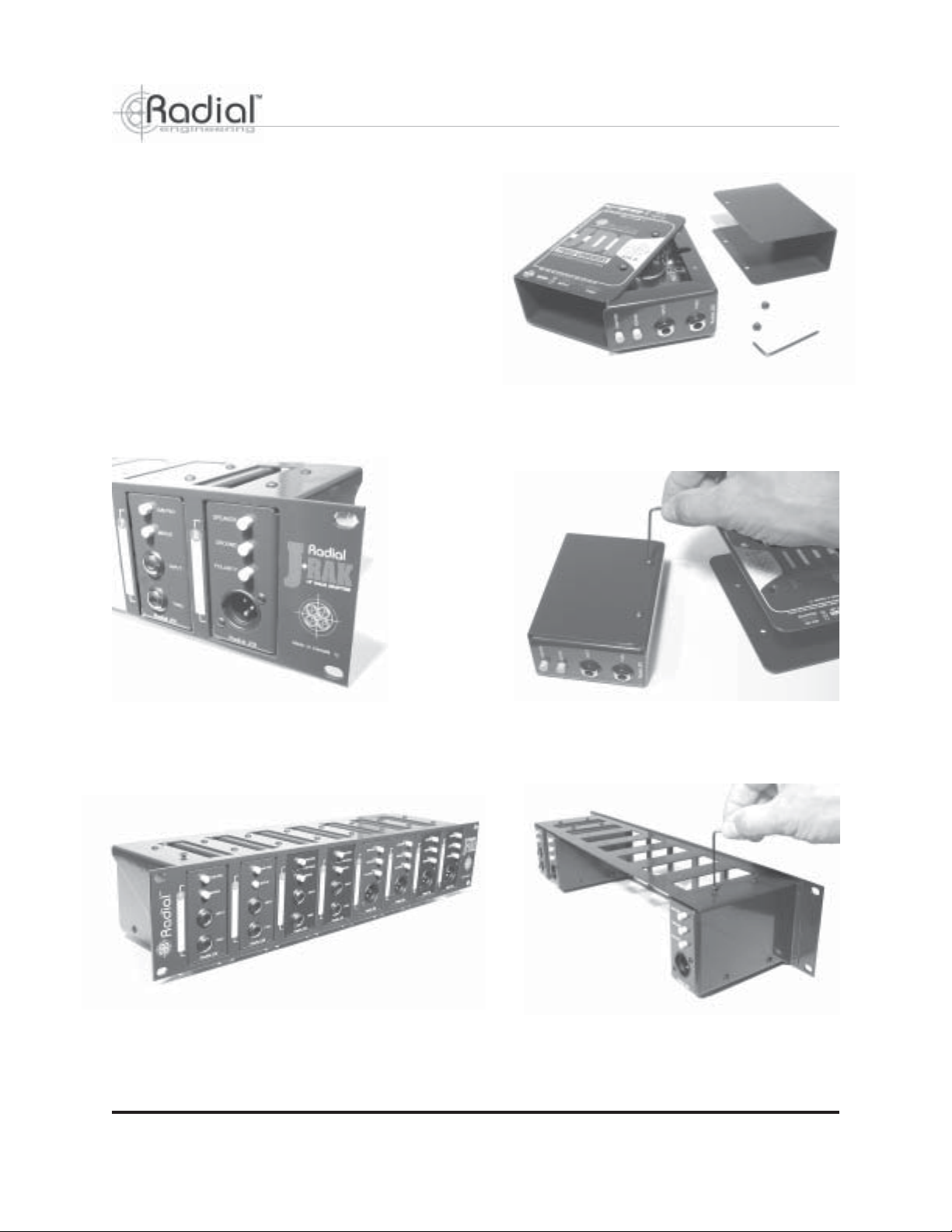

This photo shows a J-Rak with 8 modules installed.
Radial Engineering J-Rak Operator’s Manual
When tightening, make sure you get a nice snug fit but
do not overtighten as this will only make removing the
device more difficult later on.
Installation is easy - slide the Radial module into place
and affix the modules to the J-Rak top shelf with the
supplied hex screws.
Install the smaller J-Rak shells. Be careful not to
strip the screws or pem-nuts. Note that the XLR
connection is always on the bottom.
True to the Music
RADIAL LIMITED THREE YEAR WARRANTY
Radial Engineering - a division of JP CableTek Electronics Ltd. ("Radial") warrants this product to be free
from defects in material and workmanship to the original owner and will remedy any such defects free of
charge according to the terms of this warranty. Radial will repair or replace at its option any defective
component(s) of this product, excluding the finish, wear and tear on components under normal use, and
the tube and footswitch (which are warranted for 90 days), for a period of three (3) year from the original
date of purchase. In the event that a particular product is no longer available, Radial reserves the right to
replace the product with a similar product of equal or greater value. To make a request or claim under this
limited warranty, the product must be returned prepaid in the original shipping container (or equivalent)
to Radial or to an authorized Radial repair centre and you must assume the risk of loss or damage. A copy
of the original invoice showing date of purchase and the dealer name must accompany any request for
work to be performed under this limited warranty. This limited warranty shall not apply if the product has
been damaged due to abuse, misuse, misapplication, accident or as a result of service or modification by
any other than an authorized Radial repair centre.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE HEREOF AND
DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD
DESCRIBED ABOVE OF ONE YEAR.
RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPECIAL OR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE OF THIS PRODUCT. THIS
WA R R A N T Y G I V E S Y O U S P E C I F I C L E G A L R I G H T S , A N D Y O U M AY A L S O H AV E O T H E R R I G H T S ,
WHICH MAY VARY, FROM STATE/PROVINCE TO STATE/PROVINCE.
www.radialeng.com
True to the Music
Radial Engineering
1638 Kebet Way, Port Coquitlam, BC V3C 5W9
tel: 604-942-1001 • fax: 604-942-1010
Radial Engineering is a division of JP CableTek Electronics Ltd.
Radial J-Rak Operator’s Manual • V1 07-30-03 (Ref # R800 9645 00)
