RA FLMSMD50B-1 Manuel utilisateur
PRODUCT: LED SMD FLOODLIGHTS /
LED SMD FLOODLIGHTS WITH PHOTOCELL
PRODUCT CODES: FLMSMD50B-1, FLSMD70B-1, FLSMD100B-1,
FLSMD150B-1, FLSMD200B-1, FLSMD50BPC-1,
FLSMD100BPC-1, FLSMD150PC-1 & FLSMD200BPC-1
BOX CONTENTS -
1x LED SMD Floodlight
SPECIFICATION
Dimensions:
50W: L: 315 x W: 310 x D: 65mm
70W & 100W: L: 325 x W: 320 x D: 90mm
150W: L: 360 x W: 365 x D: 95mm
200W: L: 425 x W: 403 x D: 115mm
Material: Metal
Working
Temperature: -200C - 400C
SAFETY WARNING
• The installation should be carried out
by a qualified electrician in compliance
with the current edition of the IEE
Wiring Regulations.
• Prior to installation, carry out the
necessary risk assessment considering
the people who could be at risk, the
level of risk and the precautions
required to control the risk
• Ensure that the circuit supply is
isolated either by the circuit supply
fuse being removed or the applicable
circuit breaker being turned off before
installation or any maintenance.
• Check the total load on the circuit
ensuring the luminaire does not exceed
the rating of the circuit cable, fuse or
circuit breaker.
• Long-term use and voltage fluctuations
can reduce the life span of the fitting.
• If the fitting incorporates control gear,
ensure careful sizing to avoid instances
of nuisance tripping of the protective
device used in the installation.
• Follow the provided installation
instructions, using the fixings supplied
or recommended.
• Keep out of reach of children.
50-
200
WATT
LED 6500K
86-
264V
IP65 3
YRS
GUARANTEE
INSTALLATION INSTRUCTIONS
4000-
16000lm IK07
T: 0800 195 0006
Red Arrow Electrical Distribution
Cortonwood Drive, Brampton,
Barnsley, S73 0UF
redarrowelectrical.co.uk
PAGE 1 (FRONT PAGE)
Automatic Circuit
Breaker Type B10 B13 B16 B20 C10 C13 C16 C20
Rated Current 6A 10A 13A 16A 20A 10A 13A 16A
Installation 1.5 1.5 1.5 1.5 2.5 1.5 1.5 1.5
FLSMD50B-1/PC-1 21 31 42 48 27 42 55 70
FLSMD70B-1 15 22 30 34 19 30 39 50
FLSMD100B-1/PC-1 10 15 20 24 13 21 27 34
FLSMD150B-1/PC-1 7 10 14 16 9 14 18 23
FLSMD200B-1/PC-1 5 8 10 12 7 10 13 17
MAXIMUM FITTINGS PER CIRCUIT
PAGE 4 (BACK PAGE)
PAGE 1 (FRONT PAGE)
T: 0800 195 0006
INS/FLOODLIGHTS/0004/FLSMD/V2
Red Arrow Electrical Distribution
Cortonwood Drive, Brampton,
Barnsley, S73 0UF
INSTALLATION INSTRUCTIONS
PRODUCT: LED SMD FLOODLIGHTS /
LED SMD FLOODLIGHTS WITH PHOTOCELL
PRODUCT CODES: FLMSMD50B-1, FLSMD70B-1, FLSMD100B-1,
FLSMD150B-1, FLSMD200B-1, FLSMD50BPC-1,
FLSMD100BPC-1, FLSMD150PC-1 & FLSMD200BPC-1
PAGE 4 (BACK PAGE)
redarrowelectrical.co.uk

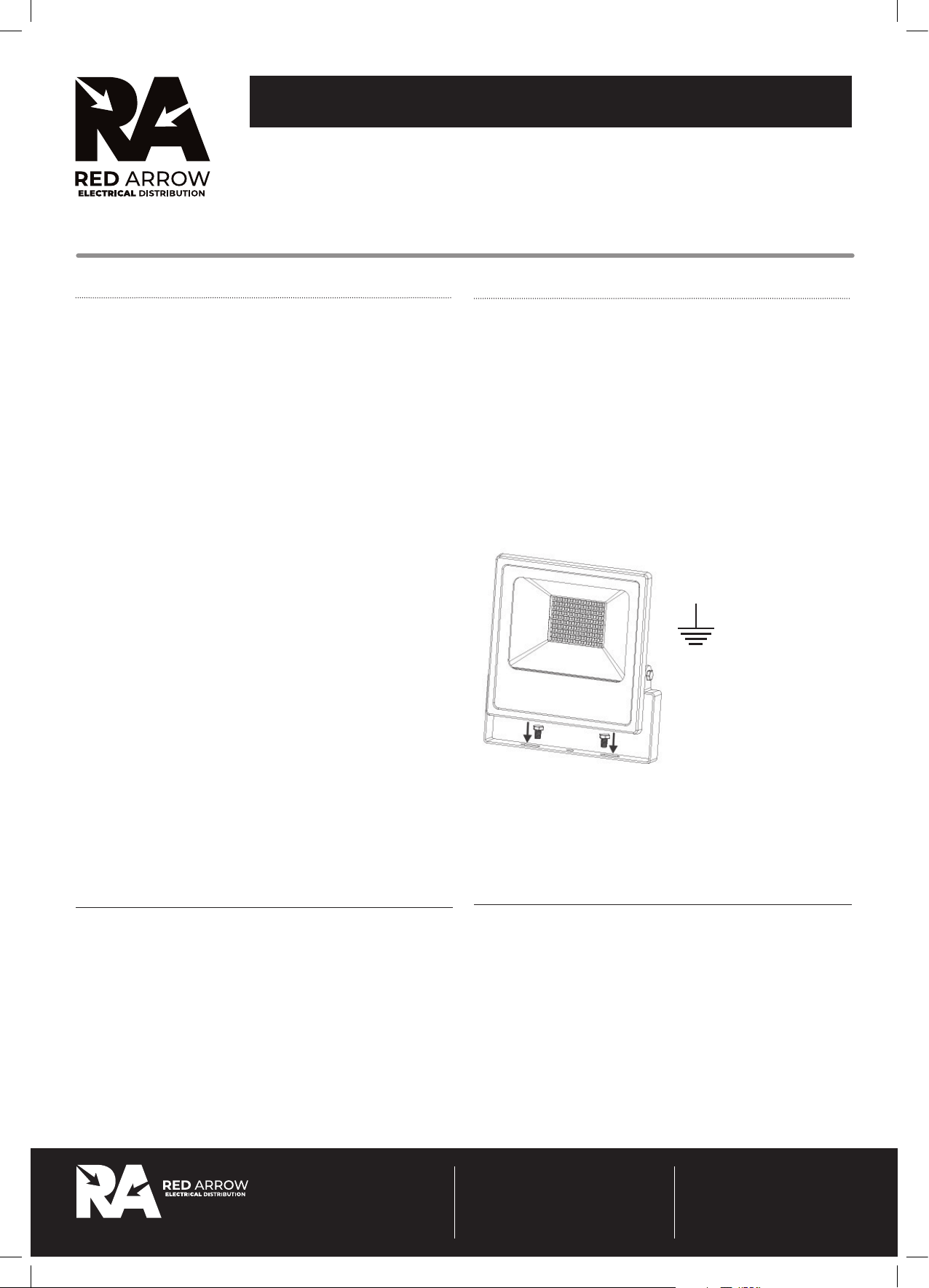

INSTALLATION INSTRUCTIONS -
1. ENSURE THERE IS ADEQUATE FREE AIR CIRCULATION
OF AT LEAST 100MM AROUND THE LUMINAIRE.
ALL LUMINAIRES RUN HOT. IT IS THE INSTALLER’S
RESPONSIBILITY TO CONSIDER ANY FIRE RISKS AND TAKE
APPROPRIATE PRECAUTIONS.
2. THE NEAREST ILLUMINATED SURFACE MUST BE AT LEAST
0.5M FROM THE FRONT OF THE FITTING.
3. DO NOT USE IF THE GLASS IS BROKEN.
REPLACE THE LUMINAIRE.
4. FOR PHOTOCELL VERSIONS DO NOT INSTALL IN AREAS
WHERE THE LENS COULD BECOME DIRTY.
5. FOR PHOTOCELL VERSIONS DO NOT ALLOW AN ARTIFICIAL
LIGHT SOURCE TO ACTIVATE THE PHOTOCELL, AS THE
LIGHT MAY FLASH ON AND OFF.
6. DRILL TWO HOLES ACCORDING TO THE HOLES ON THE
BRACKET, ON A WALL OR SIMILAR HARD SURFACE.
7. FIX THE BRACKET TO THE WALL OR SIMILAR HARD
SURFACE WITH SUITABLE FIXINGS (NOT INCLUDED).
8. CONNECT THE CABLE CORRECTLY TO THE SUPPLY,
OBSERVING THE COLOUR-CODING SHOWN TO THE RIGHT.
ENSURE ALL ELECTRICAL CONNECTIONS ARE TIGHT WITH
NO LOOSE STRANDS.
L = Brown
= Green/ Yellow
N = Blue
ADDITIONAL INFORMATION
• PLEASE NOTE THIS IS AN IP65 RATED PRODUCT, TAKE CARE
NOT TO BREAK ANY SEALS AS THIS WILL AFFECT IT’S WATER
RESISTANT RATING.
• DO NOT MODIFY THIS PRODUCT. ANY MODIFICATION TO THIS
FITTING WILL VOID THE WARRANTY.
• RED ARROW WILL NOT TAKE ANY RESPONSIBILITY
FOR ANY PRODUCT DAMAGES CAUSED BY MOUNTING
PROCEDURES WHICH ARE NOT IN ACCORDANCE WITH
THESE INSTRUCTIONS.
• THESE FITTINGS COMPLY TO CE AND UKCA STANDARDS.
• POWDER COATED FINISH
G U A R A N T E E
This product is guaranteed for a period of 3 years from the date of purchase.
The guarantee is invalid in the case of improper use, tampering, removal
of the Q.C. date label, installation in an improper working environment
or installation not according to the current edition of the I.E.E. Wiring
Regulations (BS7671).
The guarantee is also invalidated if the luminaire has been insulation tested.
Should this product fail during the guarantee period it will be replaced free
of charge, subject to correct installation and return of the faulty unit. We
do not accept responsibility for any installation costs associated with the
replacement of this product. Your statutory rights are not affected. We
reserve the right to alter specifications without prior notice.
M A I N T E N A N C E
• This fitting will require routine cleaning if used in adverse (dust, paint,
welding, oils etc) environments. Do not use solvents, aggressive
detergents or abrasives.
• When this fitting comes to the end of it’s life or you choose to replace it,
please do not dispose of it with your general waste. Please recycle where
the facilities exist, check with your local authority for suitable options.
