R82 Bronco Manuel utilisateur

bronco

The R82 logo and the Bronco are registered trademarks of R82 A/S.

04.2007

English user manual

GB Contents

Bronco ............................................................................... 3

Safety ................................................................................ 4

Guarantee.......................................................................... 4

Tools .................................................................................. 4

Washing............................................................................. 4

Maintenance...................................................................... 4

Ready for use .................................................................... 5

Height adjustment of seat and body support..................... 6

Angle adjustment of the body support............................... 6

Brake ................................................................................. 7

Directional stabilizer .......................................................... 7

Abdominal pad................................................................... 8

Rear support...................................................................... 8

Head support..................................................................... 9

Handbrace....................................................................... 10

Armrest ............................................................................ 10

Side supports................................................................... 11

Helper’s handle ............................................................... 11

Vertical hand grips, mounted at the ends ........................ 12

Vertical hand grips, mounted in the middle...................... 13

Product identification ....................................................... 14

Measurements................................................................. 15

Technical data.................................................................. 16

Producer.......................................................................... 16

Distributor ........................................................................ 16

Pat. pend.

BronCo

Congratulations on choosing the Bronco. We are convinced that it will fully live up

to your expectations.

The Bronco is the outdoor walking aid from R82 for children from 1½ to 8 years

of age.

This manual describes and illustrates all functions, and will enable you to take

maximum advantage of your Bronco.

safety

The Bronco has earned the CE-mark. This certify that it meets all relevant

European safety requirements.

The durability of this product is 7 years when it is used on a daily basis.

Hereafter we recommend that the product should be renovated (by R82

personnel) to extend the lifetime.

Remove the CE-mark, when re-building the product or when using other

than original R82 spare parts and fittings.

Never leave your child unattended in this product. Ensure permanent

supervision by an adjult. Incorrect use of the Bronco, may cause serious

injury on the user. Take care that all the fixations and adjustments are

placed and fitted correctly and check it on a regular basis.

Guarantee

Notification of defects will be received at R82 A/S within two years.

The Bronco is guaranteed for 12 months. The guarantee is only valid when

using original R82 spare parts and fittings. All special adjustments must be

made by R82. R82 will not be held responsible for damage or injury caused by

use of non-original parts or repairs made by a non-authorized R82 person.

tools

Behind the rear support you will find a 6 mm Allan key. This key is used to

perform some of the adjustments described in this manual.

WashinG

We recommend to clean the frame frequently.

MaintenanCe

- Clean the frame on a regular basis, especially when it has been in contact

with rainwater / saline water.

Do not use any cleaning materials containing chlorine or methylated

spirit.

Adjustments which are not described in this manual, must only be made

by authorized R82 personnel.

GB ready for use

The Bronco is delivered in parts to make it take

up as little room as possible during transporta-

tion. To make your Bronco ready for use, please

follow the below description.

1) Dismount the fitting (A).

2) Mount the seat (B) on the vertical bar on the

frame and fasten with the enclosed Allen key.

Remount the fitting (A).

3) Mount the rear support (C) beneath the sean

and fasten using the handle (D).

4) Mount the handlebar (E) on the body support

(F) and fasten with the enclosed Allen key.

5) Mount the body support (F) in the vertical bar

on the frame and fasten the fitting (A).

Your Bronco is now ready for use.

heiGht adjustMent

of seat and Body

support

Use the Allen key as shown (A) to adjust the seat

height. Fasten at the right position.

Adjust the height or remove the body support by

using the Allen key. (B)

anGle adjustMent of

the Body support

Pull the small handle forward as shown (C), to

release the gasspring.

Release the handle at the right angle.

GB Brake

The Bronce is equipped with brakes on all four

wheels. The brakes can be activated when

needed.

1) Activate the brake (A) using a foot.

2) Deactivate the brake (B) using a foot.

Make sure that all four brakes are activated

before placing the user into the Bronco.

GB direCtional

staBilizer

The directional stabilizer prevents the wheels

from turning. Directional stabilizers are mounted

on all four wheels.

Follow the below to activate the directional sta-

bilizers:

1) Place the wheel in a forward pointing position

(A).

2) Turn the button (B) and the stabilizer activa-

tes.

Lift and turn around the button (B) to deactivate

the stabilizers.

GB aBdoMinal pad

Use the Allen key to height adjust the abdominal

pad (A).

Use the Allen key to depth adjust the abdominal

pad (B).

The abdominal pad is only to be used on

size 1+2.

rear support

Remove or adjust the depth of the rear support

by utilizing the handle behind the seat. (C)

Use the Allen key to adjust the height of the rear

support. (D)

head support

Follow the below to mount the head support

correctly on the Bronco:

1) Loosen the screw (A) to dismount the rear

support and the side supports.

2) Mount the head support beneath the seat and

fasten the screw (B).

3) Loosen the handles (C), (D) and (E) to height,

width and angle adjust the head support.

When both head support and side sup-

ports are needed, the side supports have

to be mounted on the body support bar.

Please notice that Bronco size 2 can not

be equipped with both head support and

side supports.

GB handBraCe

Use the enclosed 6 mm Allen key (A) to height

adjust the handbrace.

Depth adjustment of the handbrace is done with

the 6 mm Allen key (B).

arMrest

To adjust the angle, loosen the black lever (C)

below the armrest.

Table des matières

Autres manuels R82 Aide à la mobilité

R82

R82 Crocodile 1 Manuel utilisateur

R82

R82 X:panda Manuel utilisateur

R82

R82 Mustang 1 Manuel utilisateur

R82

R82 High-low:x Guide de l'utilisateur

R82

R82 Cricket Manuel utilisateur

R82

R82 Penguin Manuel utilisateur

R82

R82 X:panda Guide de l'utilisateur

R82

R82 Crocodile 1 Manuel utilisateur

R82

R82 Crocodile 1 Manuel utilisateur

R82

R82 Rabbit Up Manuel utilisateur

R82

R82 Crocodile Manuel utilisateur

R82

R82 Caribou Manuel utilisateur

R82

R82 High-low Manuel utilisateur

R82

R82 x:panda Series Manuel utilisateur

R82

R82 86112 Series Guide de l'utilisateur

R82

R82 X:panda Guide de l'utilisateur

R82

R82 buffalo Manuel utilisateur

R82

R82 Gator Manuel utilisateur

R82

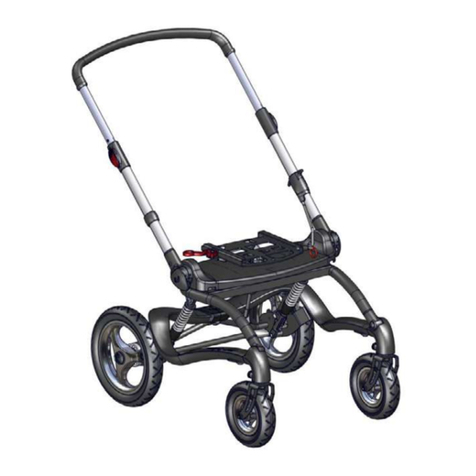

R82 Stingray Manuel utilisateur
