Quantum Quantum 1121 Series Manuel utilisateur

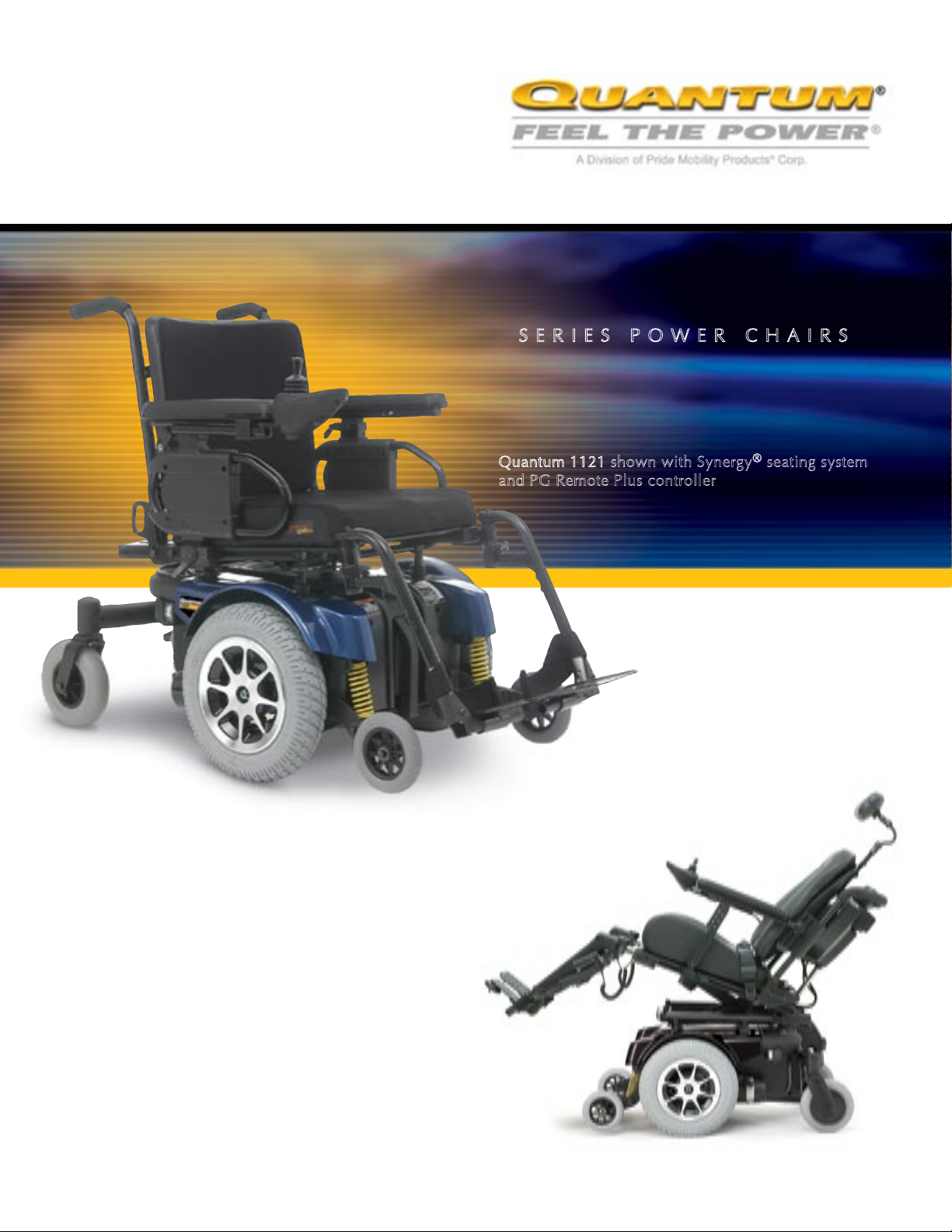

Quantum 1121 shown with Synergy®seating system

and PG Remote Plus controller

Quantum®1121

SERIES POWER CHAIRS

The Quantum®1121 combines outstanding performance

with sleek mid-wheel design for superb maneuverability.

Fully rehab capable, the 1121 accepts an excellent range

of electronic and seating options.

High performance

indoors and out.

14”

8” solid

6” solid, adjustable, front-mounted

Active-Trac®Suspension

Up to 5 mph

Intelligent Braking

(electronic, regenerative disc brakes)

3.5”

20.5”

Length: 38.125” Width: 21.5”

Synergy®Seat

Adjustable Width: 10”-24”

Adjustable Depth: 10”-24”

TRU-Balance®2 Power Positioning System

Adjustable Width: 14”-24”

Adjustable Depth: 14”-24”

Contoured seating (max. size: 20” x 22”)

Manual recliner

Solid seat pan option

2 motor, mid-wheel drive

Two 12 volt, NF-22

Up to 20 miles

8A, Off-board Lester Charger

70A, PG VSI controller

70A, PG Remote Plus controller

300 lbs. maximum (user weight)

140 lbs.

53.5 lbs. (each)

Lifetime limited warranty on frame

2-year warranty on electronics

18-month warranty on drive motor

DRIVE WHEELS

REAR CASTERS:

ANTI-TIPS:

SUSPENSION

MAXIMUM SPEED 1

BRAKES

GROUND CLEARANCE

TURNING RADIUS 2

OVERALL SIZE 2

SEATING

DRIVE TRAIN

BATTERIES

RANGE PER CHARGE 1

BATTERY CHARGER

AVAILABLE

ELECTRONICS

WEIGHT CAPACITY

BASE WEIGHT

BATTERY WEIGHT

WARRANTY

.2-pole, patented two-motor, mid-wheel drive design

provides superb power and acceleration

.Active-Trac®and rear caster suspension for

outstanding outdoor performance

.Adjustable front anti-tips to meet your preferences

and terrain challenges

.8A, Lester off-board charger

.Easy front access to batteries

.Cup holder

.Weather cover

.Swing-away joystick

.Elevating leg rests

.Oxygen tank holder

.Cane/crutch holder

.Walker holder

.Rear basket

.Angle-adjustable footplates

.Saddlebag

.5A on-board and 8A off-board charger

Specifications Features

Options

Shroud Colors

Candy

Apple Red

Viper

Blue

Onyx

Black

Champagne Sunburst

Orange

Q1121-7-23-07

Q1121 3SP - SS (Code: K0856)

Q1121 3SP - C (Code: K0857)

Q1121 3MP - SS (Code: K0861)

Code Coverage

FOOTNOTES:

1) Range and speed vary with user weight, terrain type,

battery charge, battery condition and tire pressure.

2) Due to manufacturing tolerances and continual product

improvement, this specification can be subject to variance

of + or – 3 %.

(US) 866-800-2002

(Canada) 888-570-1113

www.quantumrehab.com
