The aggressively styled, Quantum®6000 incorporates

Mid-Wheel®6 design and a powerful drivetrain

for excellent overall performance and maximum

torque. The Quantum 6000 is fully compatible with

a broad range of seating and electronic options for

limitless rehab capability.

Limitless rehab capability.

Quantum®6000

SERIES POWER CHAIRS

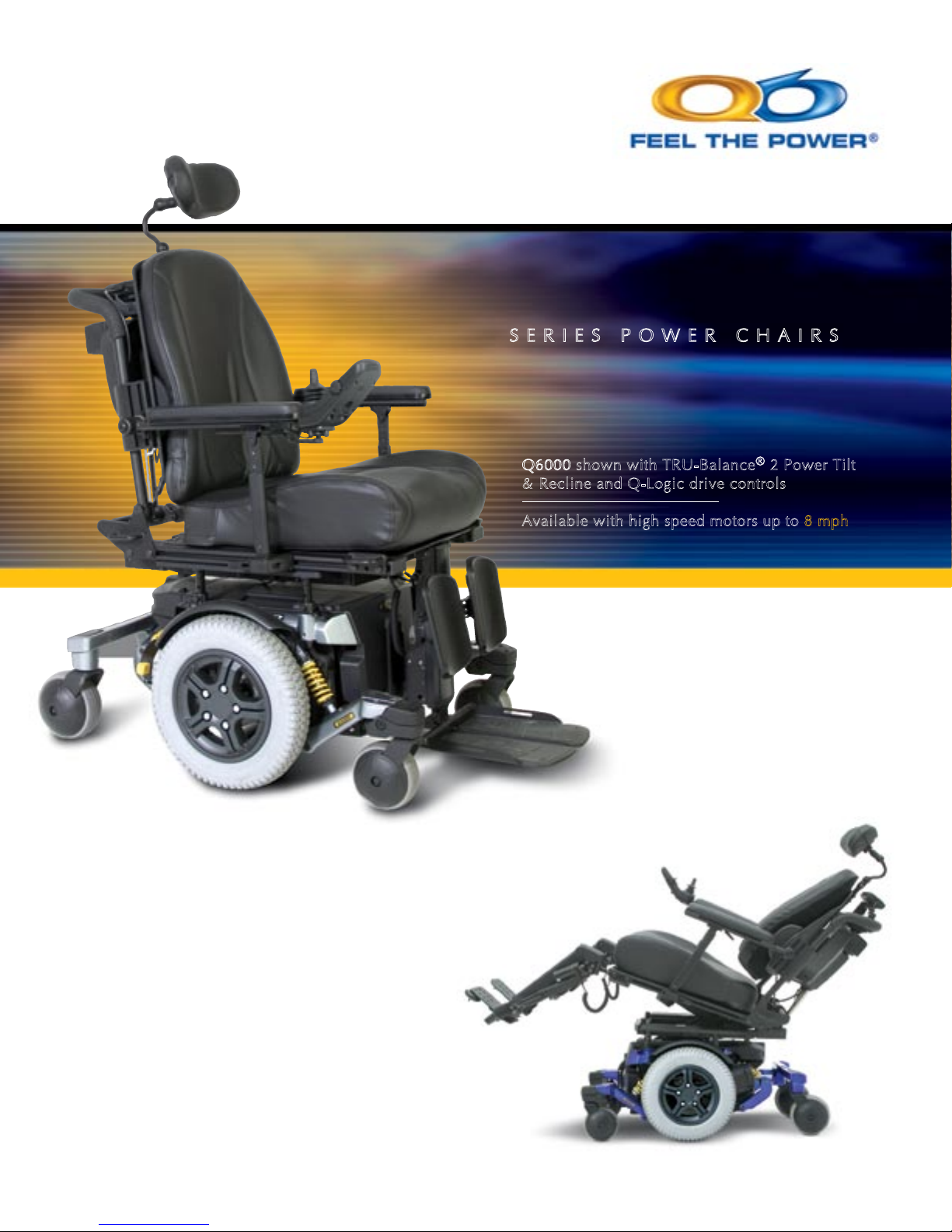

Q6000 shown with TRU-Balance®2 Power Tilt

& Recline and Q-Logic drive controls

Available with high speed motors up to 8 mph

14”

Front: 5” solid

Rear: 6” solid

Active-Trac®ATX Suspension with

integrated rear dual-strut suspension

and articulating caster beam

Up to 6.5 mph 1 / Up to 8 mph 1,2

Intelligent Braking

(electronic, regenerative disc brakes)

3.5”

22”

Length: 37” Width: 25.875”

Synergy®Seat

Adjustable Width: 10”-24”

Adjustable Depth: 10”-24”

TRU-Balance®2 Power Positioning System

Adjustable Width: 14”-24”

Adjustable Depth: 14”-24”

High-back Seat (24” x 24”)

4-pole, Hammer Mid-Wheel 6®

Two 12 volt, deep cycle Group 24

Up to 20 miles

8A, Lester off-board

70A and 100A, PG Remote Plus

70A and 100A, Q-Logic 3

300 lbs. maximum (user weight)

170 lbs.

53.5 lbs. (each)

Lifetime limited warranty on frame

2-year warranty on electronics

18-month warranty on drive motor

DRIVE WHEELS

OMNI-CASTERS

SUSPENSION

MAXIMUM SPEED

BRAKES

GROUND CLEARANCE

TURNING RADIUS 4

OVERALL SIZE 4

SEATING

DRIVE TRAIN

BATTERIES

RANGE PER CHARGE 1

BATTERY CHARGER

AVAILABLE

ELECTRONICS

WEIGHT CAPACITY

BASE WEIGHT

BATTERY WEIGHT

WARRANTY

.Mid-Wheel 6®allows six wheels on the ground

for maximum stability

.Compatible with TRU-Balance®2 Power Positioning

.OMNI-Casters (nylon, spherical-shaped casters)

on front and rear prevent wheel hang-ups

.Side-mounted, easily accessible freewheel levers

.ATX Suspension (Active-Trac®with extra stability)

incorporates front OMNI-Casters for enhanced

performance over more varied terrain

.4-pole Hammer motors

.Accepts (2) Group 24 & (1) NF-22 when used

with a vent tray

.Solid tires

.Swing-away joystick

.Multi-axis joystick mount

.Elevating leg rests

.Oxygen tank holder

.Neoprene leg rest sleeves

.Gel adductor buttons

.Vent tray

.TRU-Balance®2 power elevating seat

.Angle-adjustable footplates

.High-mount foot platform

.70° drop-in footrests

.TRU-ComfortTM seating system

.Contoured seating with solid seat pan

.Q-Logic Drive Control System

Specifications Features

FOOTNOTES:

1) Range and speed vary with user weight, terrain type, battery

charge, battery condition and tire pressure.

2) 8 mph with high speed motor package; standard on Group 4

units; optional on Group 3 units

3) 100 amp controller required with high speed motors

4) Due to manufacturing tolerances and continual product

improvement, this specification can be subject to variance

of + or – 3 %.

Options

Shroud Colors

Metallic

Red

Metallic

Blue

Metallic

Black

Sunburst

Orange

(US) 866-800-2002

(Canada) 888-570-1113

www.quantumrehab.com

Q6000-7-19-07

Q6000 3SP - SS (Code: K0856)

Q6000 3MP - SS (Code: K0861)

Q6000 4S - SS (Code: K0868)

Q6000 4S - C (Code: K0869)

Q6000 4SP - SS (Code: K0877)

Q6000 4MP - SS (Code: K0884)

Code Coverage

Metallic

Silver
