QUAD Link D-1 Manuel utilisateur
16
Safety Caution
Read these instructions.
Follow all instructions.
Keep these instructions.
Heed all warnings.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wider blade or the
third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
Attention before service
Symptom
LED on Link D-1
USB D/A Converter
does not glow.
There is no sound.
Cause
Computer is switched off.
Connection at either end is loose.
Computer does not detect the
presence of the Link D-1; outboard
DAC does not lock onto incoming
data even with USB cable is
connected.
Audio cable to amplifier input not
connected.
Volume control is set to minimum.
Remedy
Switch on the computer.
Re-connect USB cable to
secure connection.
Go to control panel - >
Sounds and Audio Devices
Properties - > Audio tab - >
Sound playback - > Select the
Link D-1 as default device.
Connect the audio cable.
Turn volume control up to
desired level.
Should the above symptoms persist with all instructions observed, your Link D-1 USB D/A
Converter may require servicing.
QH11-MNL0002
Link D-1 USB D/A Converter
the design and specifications
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-REMOVEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVERTISSEMENT: RISQUE DE CHOC ELECTRIQUE-
NE PAS OUVRIR
C A U T IO N !
where they exit from the apparatus.
Use only attachments/accessories specified by the
manufacturer.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
WARNING: To reduce the risk of fire or electrical shock, do
not expose this product to rain or moisture. The product
must not be exposed to dripping and splashing and no
object filled with liquids such as a vase of flowers should
be placed on the product.
No naked flame sources such as candles should be placed
on the product.
CAUTION: Changes or modifications not expressly
approved by the manufacturer could void the user's
authority to operate this device.
WARNING: The mains power switch for this appliance is
located on the rear panel. To permit free access to this
switch, the apparatus must be located in an open area
without any obstructions.
WARNING: The mains plug is used as disconnect device,
the disconnect device shall remain readily operable.
This equipment is a Class II or double insulated
electrical appliance. It has been designed in such
a way that it does not require a safety connection to
electrical earth.

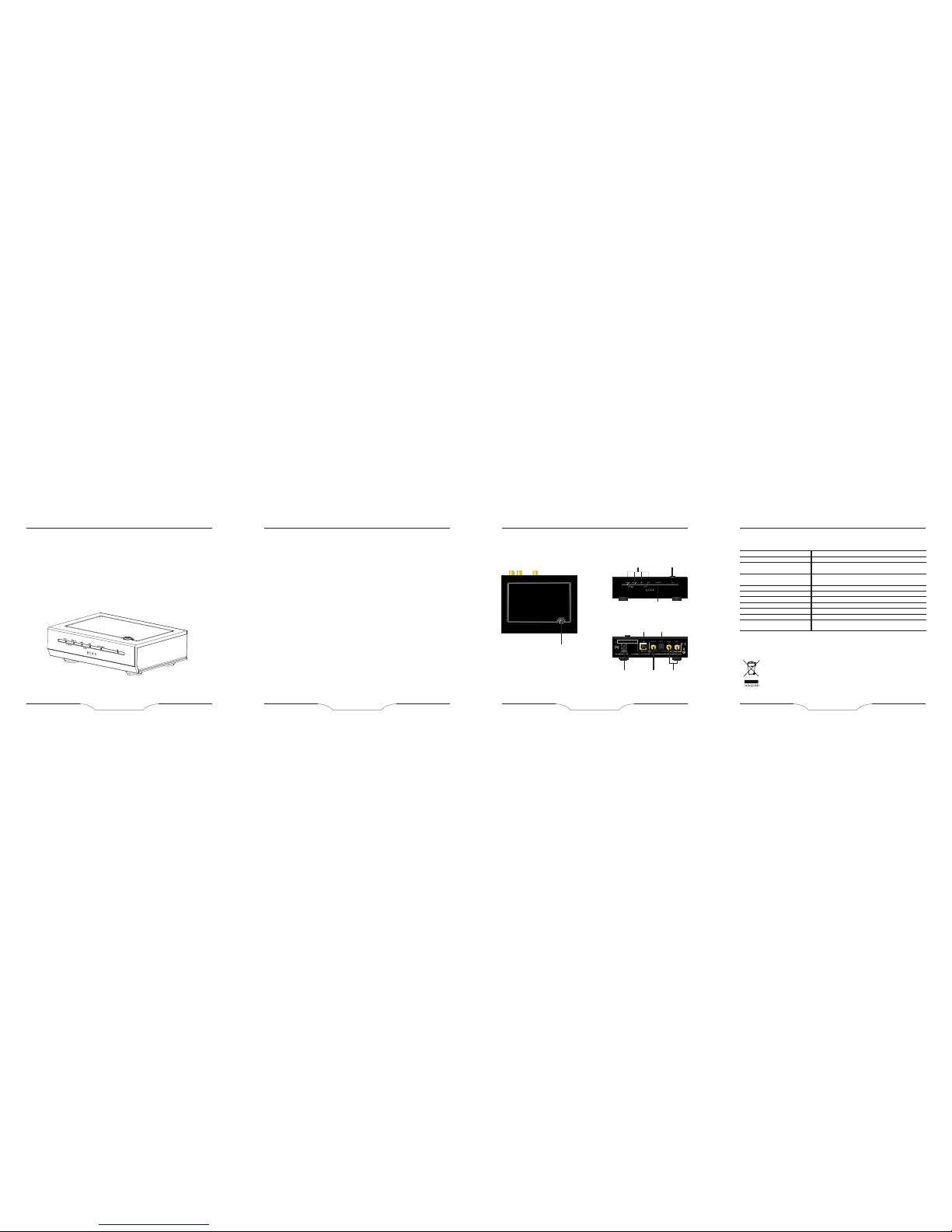

Introduction Instructions
2 3 4 5
Similarly, to indicate sampling frequency
of 192kHz, the 48kHz and the 96kHz
LEDs will glow.
Note: Windows does not support
192kHz sampling frequency. Owners of
computers (Windows) are required to
install corresponding software provided
in the accompanying CD-ROM. Simply
follow the software installation instruc-
tions contained.
As a USB interface
1. Connect the coaxial or Toslink optical
digital output on the Link D-1 USB D/A
Converter to a corresponding digital
receiver on your DAC as illustrated
below.
2. Your DAC or CD player with digital
inputs will lock onto the input data. The
display screen will then indicate the
presence of a digital signal and show the
output sampling frequency of the music
file in your computer.
Connections Specifications
With the increased popularity of computers as source, this Link D-1 USB D/A Converter
allows consumers to enjoy listening to digital music sources from a computer (Windows
or Mac) via USB connection. This product is USB 1.1 and 2.0 compliant. This device
supports sampling frequencies ranging from 32kHz to 192kHz and incorporates a high
quality digital-to-analogue converter (DAC). It can also serve as an USB interface simply
to convert the data of music files from your computer to SPDIF signal for use with
outboard DAC’s.
As a digital-to-analogue converter
1. When switched on, all the LEDs on the
front panel will flash for less than a
second. This unit enters standby mode
when switched on and the power LED
glows red. It turns white in operation
mode.
2. Connect your computer and Link D-1
USB D/A Converter via USB link.The
factory default 48kHz input sampling
frequency will glow white.
3. Connect the audio output terminals to
the RCA unbalanced input sockets of
your pre-amplifier or integrated amplifier
using high quality, screened audio
cables.
4. With the computer in operation the
Link D-1 USB D/A Converter will detect
and lock onto input data and the USB
input indicator LED glows red.
Meanwhile, the source sampling
frequency indicator LED glows white.
To indicate a sampling frequency of
176.4kHz, the 44.1kHz and 88.2kHz
LEDs will glow.
Resolution
Digital Input
Digital Outputs
Displayed sampling frequencies
Analogue output level
Output impedance
Frequency response
Dynamic range
Dimensions (W x D x H)
Net weight
Accessories
24 bits / 32kHz ~ 192kHz
USB 1.1 and 2.0 compliant
S/PDIF coaxial x 1
Toslink optical x 1
44.1kHz, 48kHz, 88.2kHz,
96kHz, 176.4kHz, 192kHz
2.2V
100 Ohms
20Hz – 20kHz (+/-0.2dB)
110dB
130mm x 108mm x 42mm
0.5kg
Universal power adapter with power cords,
USB Cable, CD-ROM
Top Panel Front Panel
Rear Panel
Correct disposal of this products. This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for
environmental safe recycling.
2. USB input indicator LED
3. Locking LED
6. Optical digital data output to digital receiver
7. Analogue output to line level input of amplifier
8. To accessory AC/DC power adaptor
4. USB digital data input from computer
5. Coaxial digital data output to digital receiver
1. Standby/Operation key
1
2 1
3
4 6
857
* Design and specifications are subject to change without further notice.
