Qtx TETRAMER Manuel utilisateur

TETRAMER

Quad-Beam LED Moving

Head System

Item ref: 150.451UK

User Manual

Thank you for choosing the TETRAMER moving head system. This is an innovative system of

four moving heads in one unit ideal as a space saving effect for venues with limited lighting

space. Each head boasts a 10W quad colour CREE® LED which produces strikingly sharp

beams of coloured light over a long distance. The beam effect can be softened by projecting

the light through smoke or haze. Each moving head can be controlled individually via DMX or

all four will synchronise using the pre-programmed options. The unit can be mounted

overhead on ceiling, a truss system or on a lighting stand or can be placed on the floor for an

uplighting effect. Perfect as a fixed centrepiece in any venue, and fully transportable for

mobile DJ use.

In the box:

Your Tetramer unit should arrive in a single carton in good condition with the following:

Tetramer moving head unit

2 x overhead mounting brackets

2 x IEC mains leads (UK and EU)

Manual

Warning

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments.

In the event of a spillage, disconnect the mains and allow the unit to dry out naturally.

Qualified personnel should then check the unit before continuing use.

Always check the correct voltage and the condition of the IEC lead before connecting to a

power outlet.

Always ensure any DMX leads used are in good condition with no short connections or

damaged plugs.

Please read through this manual thoroughly before use, any damage cause by

misuse of product will not be covered by warranty.

Please do not open cover, contain high voltage. This

product is not serviceable or repairable by end user.

Please refer to qualified personnel for service and repair.

er or professional when unit malfunction.

150.451UK User Manual

Installation

Installation should be carried out

by qualified personnel only and

must comply to HSG95

guidelines. Avoid projecting the

effect directly towards the

audience’s eye level. This unit is

suitable for free standing,

overhead installation or mounted

on a speaker stand.

For overhead mounting, use the

supplied mounting brackets as

pictured below. Simply guide the

thumbscrews into the sockets on

the back of the unit and turn 90°

until you feel a click which

indicates the screw is locked into

place. The brackets are suitable

to mount on truss bar of up to

48mmØ . Ensure the fly point is

connected to the truss by safety

wire for additional support.

The Tetramer has a built-in

35mmØ top hat allowing

the unit to be mounted on

a speaker stand, ideal for

mobile DJs. Further effect

lighting units such as a

PAR Can or a mini laser

can be mounted on top of

the unit, maximising the

use of a single stand.

Please note, equipment

that creates momentum

while working; such as

moving heads are not suitable to be added. Extra weight should not exceed 5kg and max

weight should not exceed the max weight load rating of the stand. Cable management should

be performed carefully to avoid cables being caught up by the movement of the 4 heads.

150.451UK User Manual

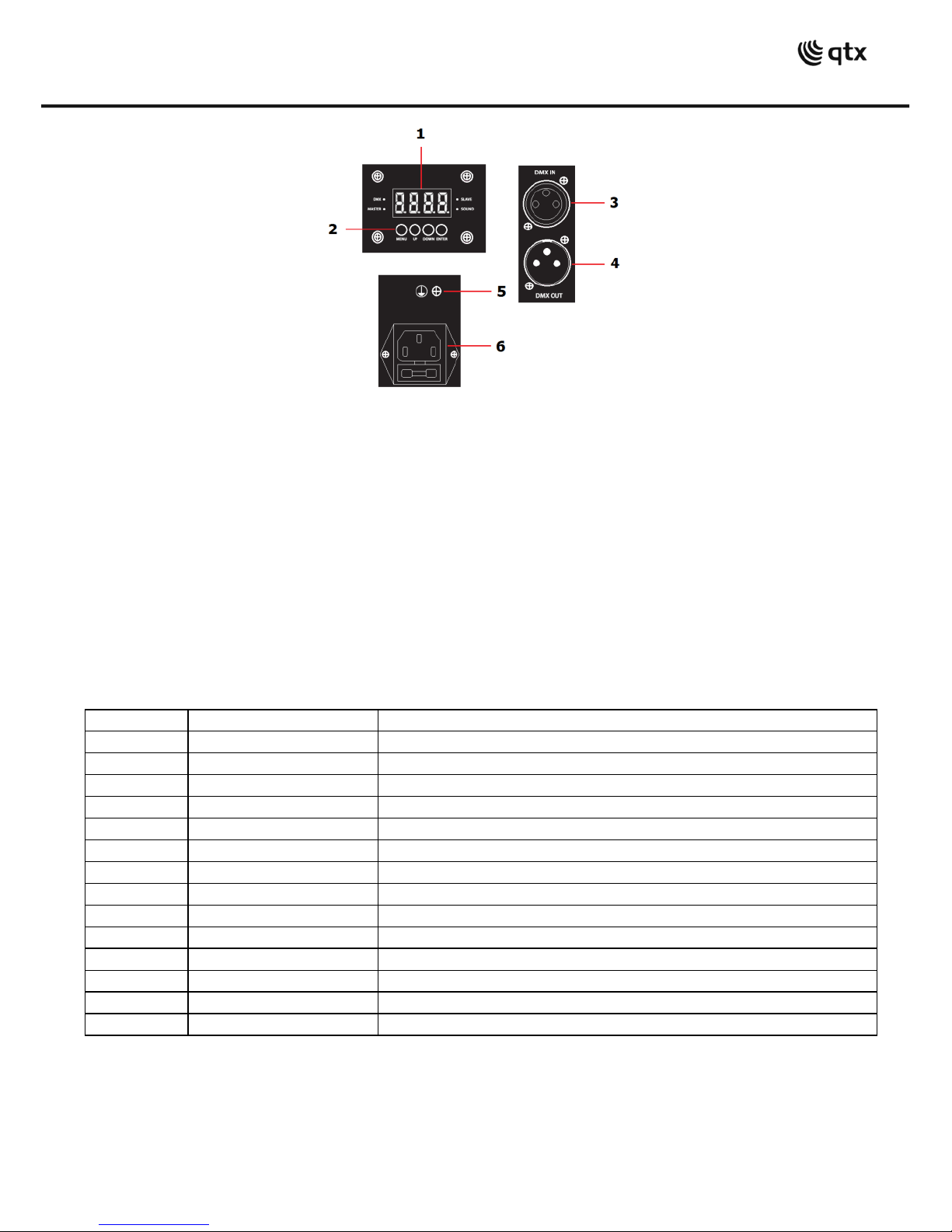

Control Layout:

1. LCD display

2. Control buttons

3. DMX signal in

4. DMX signal loop out

5. Earth screw, DO NOT REMOVE

6. IEC mains in

Manual control menu:

Press the “menu” button to enter setting menu, press “up” and “down” to navigate through

various setting option, press “enter” to enter desire setting, choose set value by “up” and

“down” button and confirm setting by press “enter”.

Display

Mode

Press ENTER for setting



DMX address

to 



DMX Channel mode

, ,, for 6, 12, 14, 27 channel control



Slave mode

= master, = slave 1,= slave 2



Auto mode

 to  16 pre-programmed auto mode



Sound activation

= sound to light on, = sound to light off



Microphone sensitivity

(0-100% gain)



LED display

 = stays on, = turns off after 10 sec untouched



LED display inverted

 / (normal or inverted display)



Pan reverse

 = pan normal direction, = pan in reversed direction



Tilt reverse

 = tilt normal direction, = tilt in reversed direction



Fixture test sequence

Fixture steps through all functions –press MENU to exit



Fixture hours

Displays how many hours of use for the fixture



Software version





Unit reset

Press enter to reset to factory setting

150.451UK User Manual

Operation:

The Tetramer can operate in stand-alone, master, slave or DMX mode.

Stand-alone/master/slave –For stand-alone mode, first choose whether sound-to-light is

required by selecting  or  from . Then select one of the 8 pre-programmed modes

from  option to , select  for random chase option. Further Tetramer units

can be control by a master allowing synchronization. Ensure the master unit slave mode 

is set as  and the controlled unit slave mode is set as  or . Connect DMX out

from the master unit to the DMX in of the slave unit.

 allows slave unit to match the master unit,  allows slave unit to have different

movement to the master unit.

DMX mode –Connect the DMX signal source to DMX in via balanced XLR lead. Extra fixtures

can be controlled by the same DMX signal by looping through the DMX out. Ensure the correct

DMX start address is set from the  option on the manual control.

Maintenance:

There are no end-user serviceable parts within the unit. To maintain a workable condition we

advice dusting the unit on a regular basis. Before cleaning or dusting, always ensure the

mains power cable is removed from the unit. Use a soft cloth, lightly dampened with water or

mild detergent to wipe off the dust from the casing. DO NOT use spray on the case as

droplets may enter the unit through the ventilation and cause damage to electronics inside.

Remove the trapped dust from the ventilation holes of the unit with a vacuum cleaner with a

brush attachment, a dust blower or a hand brush.

DMX channel value reference:

6 channel mode:

Channel

DMX Value

Function

Channel 1

000-255

Master dimmer 0-100%

Channel 2

000-255

Strobe, speed increases with DMX value.

Channel 3

000-007

Auto mode off

008-022

Pre-programmed play 1

023-037

Pre-programmed play 2

038-052

Pre-programmed play 3

053-067

Pre-programmed play 4

068-082

Pre-programmed play 5

083-097

Pre-programmed play 6

098-112

Pre-programmed play 7

113-127

Pre-programmed play 8

128-142

Pre-programmed play 9

143-157

Pre-programmed play 10

158-172

Pre-programmed play 11

173-187

Pre-programmed play 12

188-202

Pre-programmed play 13

203-217

Pre-programmed play 14

218-232

Pre-programmed play 15

233-247

Pre-programmed play 16

248-255

Sound to light mode

150.451UK User Manual

Channel 4

000-255

Auto mode speed, speed increases with

DMX value

Channel 5

000-000

Colour selection –Red

001-001

Colour selection –Green

002-002

Colour selection –Blue

003-003

Colour selection –White

004-004

Colour selection –R+G

005-005

Colour selection –R+B

006-006

Colour selection –R+W

007-007

Colour selection –B+G

008-008

Colour selection –G+W

009-009

Colour selection –B+W

010-010

Colour selection –R+G+B

011-011

Colour selection –R+G+W

012-012

Colour selection –R+B+W

013-013

Colour selection –B+G+W

014-014

Colour selection –R+G+B+W

015-255

Colour chase

Channel 6

000-255

Colour chase speed, increases with DMX

value

12 channel mode:

Channel

DMX Value

Function

Channel 1

000-255

Head one Pan position

Channel 2

000-255

Head one tilt position

Channel 3

000-007

Head one LED off

008-024

Colour selection –Red

025-041

Colour selection –Green

042-057

Colour selection –Blue

058-074

Colour selection –White

075-090

Colour selection –R+G

091-107

Colour selection –R+B

108-123

Colour selection –R+W

124-140

Colour selection –B+G

141-156

Colour selection –G+W

157-173

Colour selection –B+W

174-189

Colour selection –R+G+B

190-206

Colour selection –R+G+W

207-222

Colour selection –R+B+W

223-239

Colour selection –B+G+W

240-255

Colour selection –R+G+B+W

Channel 4

000-255

Head two Pan position

Channel 5

000-255

Head two tilt position

Channel 6

000-007

Head two LED off

008-225

Head two LED colour, refer to Channel 3

for value reference

Channel 7

000-255

Head three Pan position

Channel 8

000-255

Head three tilt position

Channel 9

000-007

Head three LED off

150.451UK User Manual

008-225

Head three LED colour, refer to Channel

3 for value reference

Channel 10

000-255

Head four Pan position

Channel 11

000-255

Head four tilt position

Channel 12

000-007

Head four LED off

008-225

Head four LED colour, refer to Channel 3

for value reference

14 Channel mode:

Channel

DMX Value

Function

Channel 1

000-255

Master dimmer 0-100%

Channel 2

000-255

Strobe 0-100%, speed increase

with DMX value

Channel 3

000-255

Head one Pan position

Channel 4

000-255

Head one tilt position

Channel 5

000-007

Head one LED off

008-225

Head one LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 6

000-255

Head two Pan position

Channel 7

000-255

Head two tilt position

Channel 8

000-007

Head two LED off

008-225

Head two LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 9

000-255

Head three Pan position

Channel 10

000-255

Head three tilt position

Channel 11

000-007

Head three LED off

008-225

Head three LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 12

000-255

Head four Pan position

Channel 13

000-255

Head four tilt position

Channel 14

000-007

Head four LED off

008-225

Head four LED colour, refer to

Channel 3 in 12 channel mode

for value reference

27 Channel mode:

Channel

DMX Value

Function

Channel 1

000-255

Master dimmer 0-100%

Channel 2

000-255

Strobe 0-100%, speed increase

with DMX value

Channel 3

000-255

Head one pan position

Channel 4

000-255

Head one fine pan position

Channel 5

000-255

Head one tilt position

Channel 6

000-255

Head one fine tilt position

Channel 7

000-255

Head one movement speed,

150.451UK User Manual

speed reduce with increase DMX

value

Channel 8

000-007

Head one Black out

008-255

Head one LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 9

000-255

Head two pan position

Channel 10

000-255

Head two fine pan position

Channel 11

000-255

Head two tilt position

Channel 12

000-255

Head two fine tilt position

Channel 13

000-255

Head two movement speed,

speed reduce with increase DMX

value

Channel 14

000-007

Head two Black out

008-255

Head two LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 15

000-255

Head three pan position

Channel 16

000-255

Head three fine pan position

Channel 17

000-255

Head three tilt position

Channel 18

000-255

Head three fine tilt position

Channel 19

000-255

Head three movement speed,

speed reduce with increase DMX

value

Channel 20

000-007

Head three Black out

008-255

Head three LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 21

000-255

Head four pan position

Channel 22

000-255

Head four fine pan position

Channel 23

000-255

Head four tilt position

Channel 24

000-255

Head four fine tilt position

Channel 25

000-255

Head four movement speed,

speed reduce with increase DMX

value

Channel 26

000-007

Head four Black out

008-255

Head four LED colour, refer to

Channel 3 in 12 channel mode

for value reference

Channel 27

000-199

N/A

200-209

Pan and tilt position reset to

return to home position

210-240

N/A

241-255

Sound to light auto mode

150.451UK User Manual

Specifications

Power supply

110-240Vac, 50/60Hz (IEC)

Power consumption (Max.)

100W

Fuse rating

F7A

LED type

4 x 10W CREE® Quad-colour (RGBW)

DMX channels

6, 12, 14 or 27

Pan range

540° per head

Tilt range

270° per head

Dimensions

320 x 320 x 250mm

Weight

7kg

Laser & LED safety standard

BSEN62471:2008

Troubleshooting

No power (mains)

Check mains voltage is correct and outlet is switched on

Check IEC lead and fuse (if fuse continually blows, refer to your dealer)

No LED display

Press any control panel button and check LED setting in menu

No light output

Check control panel mode settings (standby, slave, sensitivity, DMX)

Check DMX settings from controller (dimmer levels, blackout etc.)

No strobe output

Check strobe settings on control panel or from DMX controller

Unresponsive to DMX

Check DMX connection and leads

Check that DMX mode is enabled (set “Addr” on control panel)

Overheating/

cutting out

Ensure that the unit is not too close to a heat source

Ensure that adequate airflow is afforded for cooling

This product is classed as Electrical or Electronic equipment and should not be disposed

with other household or commercial waste at the end of its useful life.

The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.

Table des matières

Autres manuels Qtx Équipement d'éclairage

Qtx

Qtx PB-1214 Manuel utilisateur

Qtx

Qtx 151.604UK LED DUOFLOWER Manuel utilisateur

Qtx

Qtx smartLIGHT SL-H7 Manuel utilisateur

Qtx

Qtx MHS-30 Manuel utilisateur

Qtx

Qtx TetraCube Manuel utilisateur

Qtx

Qtx DMX-D8 Manuel utilisateur

Qtx

Qtx Derby 9 Manuel utilisateur

Qtx

Qtx HZ-1500LED Manuel utilisateur

Qtx

Qtx Tri-Bar Manuel utilisateur

Qtx

Qtx MDMX-24 Manuel utilisateur

Qtx

Qtx RP4 Manuel utilisateur

Qtx

Qtx HPWash 100 Manuel utilisateur

Qtx

Qtx LUX-LD01 Manuel utilisateur

Qtx

Qtx LED DERBY III Manuel utilisateur

Qtx

Qtx MITO Manuel utilisateur

Qtx

Qtx HPWash200 Manuel utilisateur

Qtx

Qtx Starscape Manuel utilisateur

Qtx

Qtx GoboPar35 Manuel utilisateur

Qtx

Qtx SpectraWash Manuel utilisateur

Qtx

Qtx PAR-180 Manuel utilisateur

Qtx

Qtx Wash & Beam Manuel utilisateur

Qtx

Qtx Derby FX-Bar Manuel utilisateur

Qtx

Qtx LED TWISTER IV Manuel utilisateur

Qtx

Qtx 3D OBJECTS 152.762UK Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
