Qtx DMX-D4 Manuel utilisateur

DMX-D4

4-way DMX Booster/Distributor

Item ref: 154.101UK

User Manual

154.101UK User Manual

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

4 way DMX Booster/distributor with one input, loop through and four electrically opto-isolated outputs.

Both DMX input and DMX output are provided with 3 pin XLR connectors, making it universally compatible with most

lighting systems. This item is ideally used for splitting the signal over a large area or to isolating individual fixtures

making it quick and easy to diagnose and fix faulty fixtures without the whole system failing.

DMX Loop out or DMX terminated (supplied)

4 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)

Powered by mains to boost signal over a long distance.

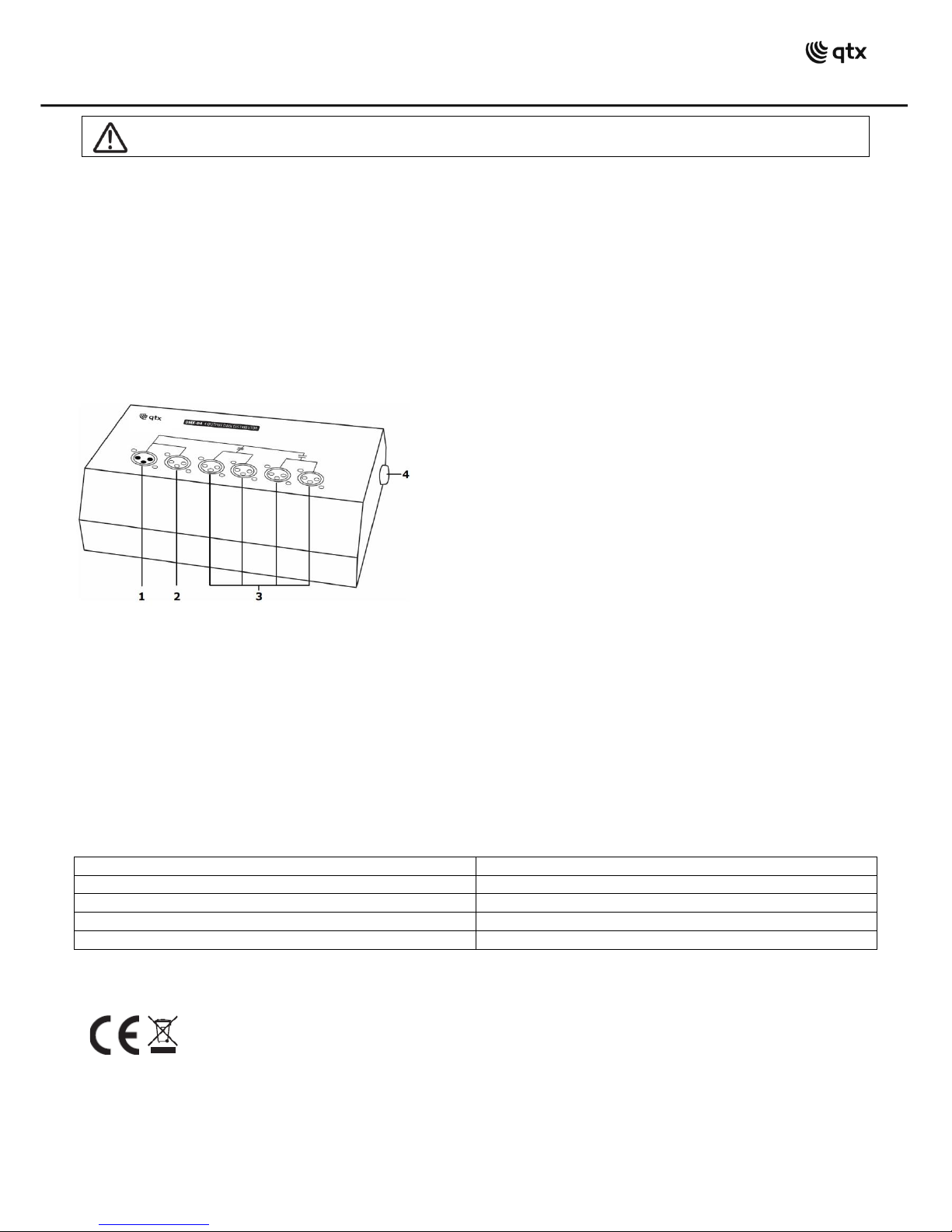

Layout

1. DMX Input

2. DMX Loop out

3. DMX Output

4. IEC Power input

WARNING: BEFORE USE

This item is for professional use only. Please take note of the following instructions before using this device.

This unit must be earthed.

Do not turn on the power until all connections are securely made.

If you are not using the DMX LOOP out socket ensure you use the DMX XLR terminator supplied.

Always disconnect from the mains before replacing the fuse

There are no user serviceable parts inside

Specifications

Power supply

230Vac, 50Hz

DMX input

1 x XLRM

DMX output

4 x XLRF (+ loop output)

Dimensions

248 x 165 x 70mm

Weight

1.5kg

Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or

Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
