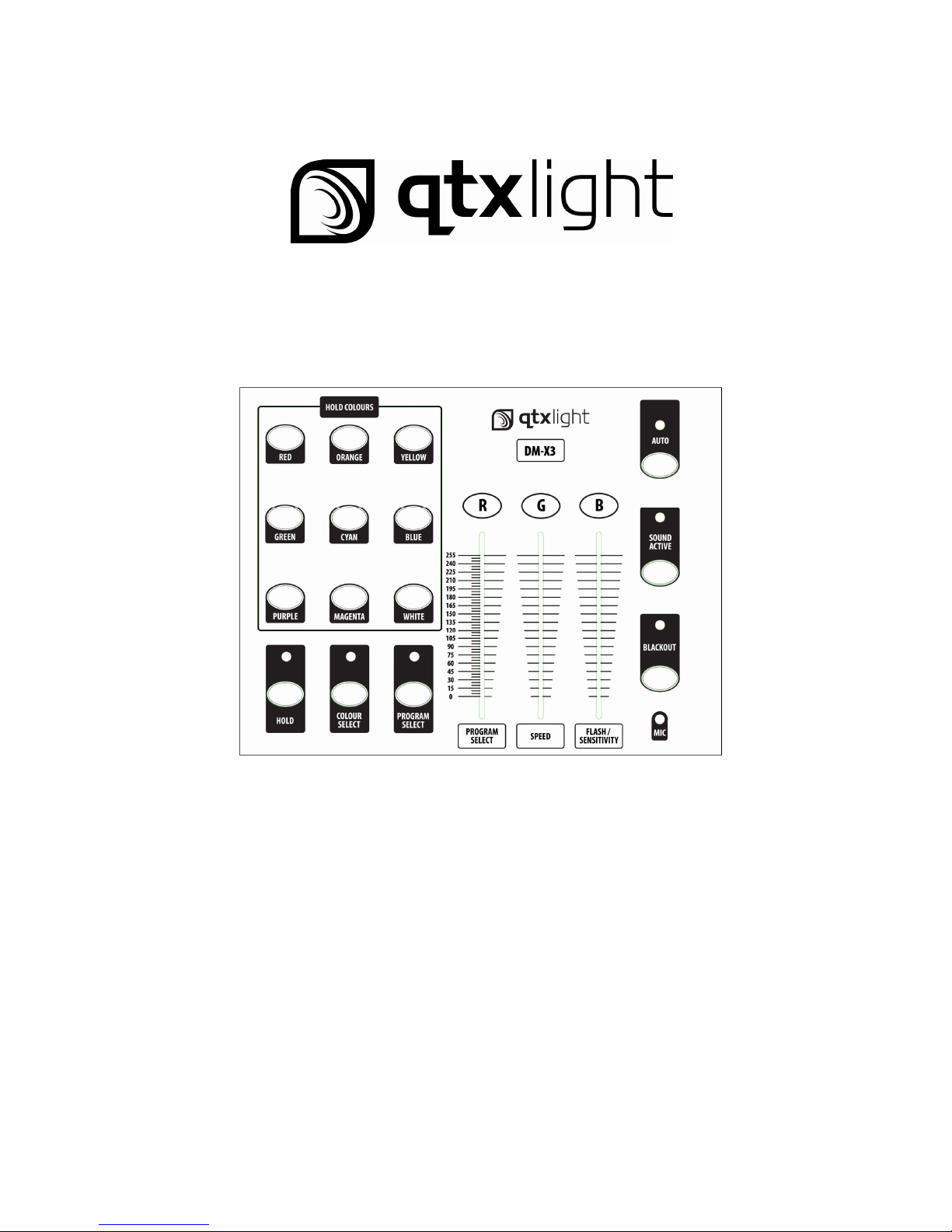

DM-X3 RGB PAR Can DMX
Controller
USER MANUAL
154.090UK
ersion 1.0
USER MANUAL – DM-X3 RGB PAR CAN CONTROLLER 154.090
Page 2
INTRODUCTION
This clever device can control all LED RGB products such as PAR cans and Lighting bars that have
the first three DMX channels as RGB. The controller features si preset colours, a sound-to-light
mode, and pre-set colour changing sequences while also being about to adjusting the flash
sensitivity.
•16 Pre programs (colour select, colour fade and auto run sequences)
•Manual RGB colour mi ing
•Auto run with speed control
•9 present colours at the push of a button
•Sound activated button
•Built in microphone
CONTROLLER LAYOUT
USER MANUAL – DM-X3 RGB PAR CAN CONTROLLER 154.090
Page 3

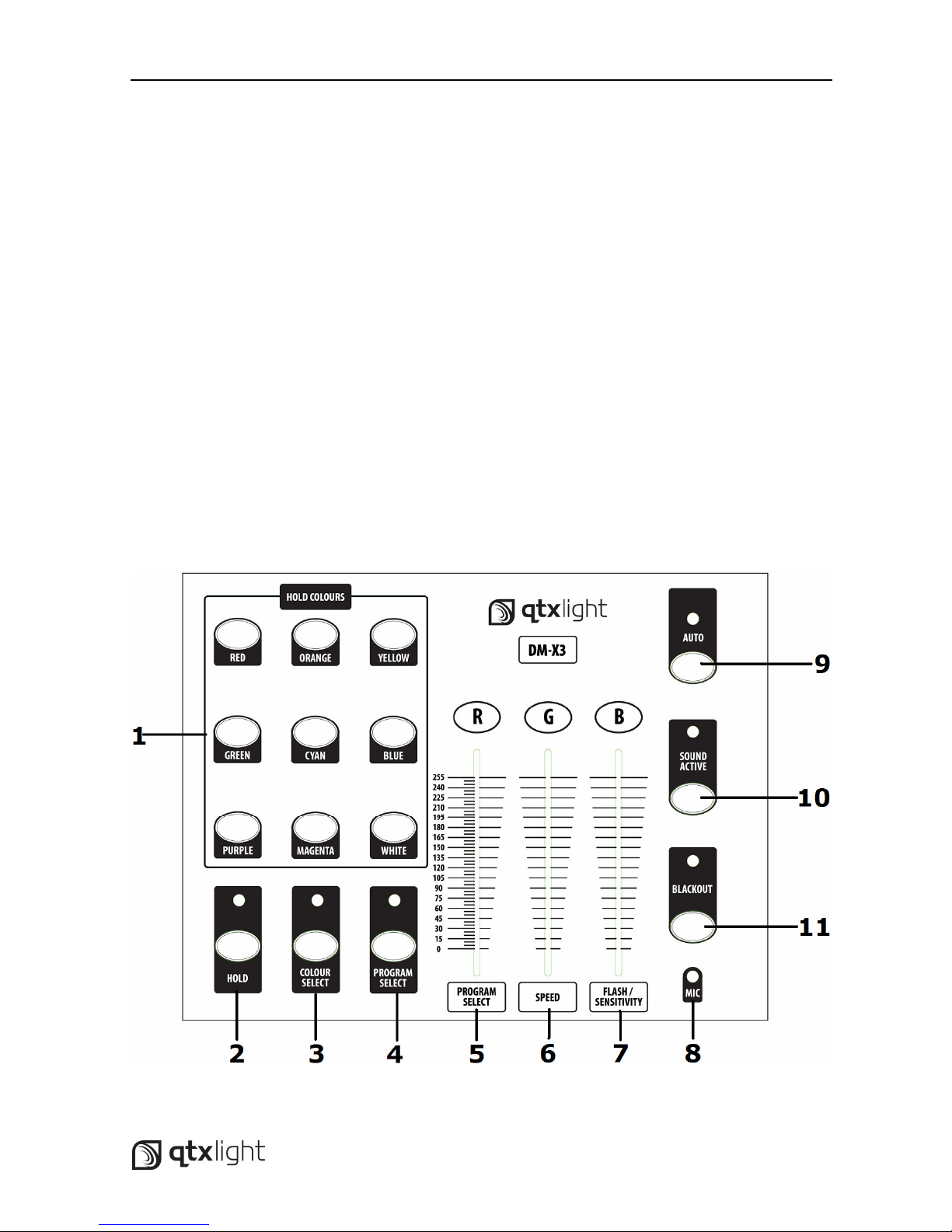

NUMBER
BUTTON/FADER FUNCTION
1 HOLD COLOURS When COLOUR SELECT is active select a pre-set static colour from
the options
2 HOLD COLOURS Immediately stops any colour change or fade and holds the current
colour until deactivated
3 COLOUR SELECT Press to activate the HOLD COLOUR or manual RGB Faders
4 PROGRAM SELECT Activates the Pre-set programs selected by FADER 1
COLOUR SELECT PROGRAM SELECT
5 (FADER 1) Slide fader to adjust red
brightness Used to select the internal program
6 (FADER 2) Slide fader to adjust green
brightness
Adjusts the colour change speed of the
internal program (Slow to fast)
7 (FADER 3) Slide fader to adjust blue
brightness Sets the strobe speed (slow to fast)
8 AUTO Turns automatic colour change on. Use FADER 2 and FADER 3 to
adjust change speed and strobe effect
9 SOUND ACTIVATED Colour changes to the beat of the sound (use FADER 3 to adjust MIC
sensitivity)
10 BLACKOUT Turns off all light output
11 MIC Detects sound beats
OPERATIONS GUIDE:
PRESET STATIC COLOURS:
Press “COLOUR SELECT” button. A green LED above the button will indicate this mode is active.
You can then select a preset colour from: RED
，
ORANGE
，
YELLOW
，
GREEN
，
CYAN
，
BLUE
，
PURPLE
，
MAGENTA
，
WHITE by pressing the desired button, or choose your own by using the RGB FADERS.
BUILT-IN PROGRAMS
Press “PROG SELECT” button. An amber LED above the button will indicate this mode is active.
Use FADER 1 to select one of the programs listed below (from 0-255)
Red Static
Green Static
Blue Static
Light Green Static
Purple Static
Cyan Static
White Static
Red Pulse
USER MANUAL – DM-X3 RGB PAR CAN CONTROLLER 154.090
Page 4
Blue Pulse
Green Pulse
Yellow Pulse
Purple Pulse
Cyan Pulse
Colour Switch
Hold current Colour
Use FADER 2 to adjust the speed of change or pulse speed
Use FADER 3 to adjust the flash speed of the light
AUTO MODE
Press “AUTO” button and the green LED light will illuminate to indicate this mode is active.
The light effects will change colour at a set speed which is controlled by “FADER 2” from slow to
fast.
SOUND ACTI ATED MODE
Press “SOUND ACTIVE” button and the red LED light above the button will illuminate to indicate
this mode is active. Use “FADER 3” to adjust the microphone sensitivity. The fi ture will then
change colour when the beat of sound is detected
HOLD
Press the “HOLD” button and the RED LED above the button will illuminate to indicate this mode
is active. When in hold mode it will freeze all operations of any other buttons and sliders. The
light effect displays a static colour. You must release the “HOLD” button before any other
operation can happen.
BLACKOUT
Press the “BLACKOUT” button and the amber LED will flash to indicate that blackout mode is in
operation. It will turn off all fi tures instantly and turn them back on again when deactivated.
SPECIFICATION:
Power supply: 9-12V 300mA
Power consumption: 3.6 W
Size: 22 14 3.6cm
Weight: 0.81kg
Please disposal of the unserviceable device according to the current statutory requirements.
Copyright protected by QTX Light Manchester
WWW.QTXLIGHT.COM
