Qtran QOM-eLED+DMX Manuel utilisateur

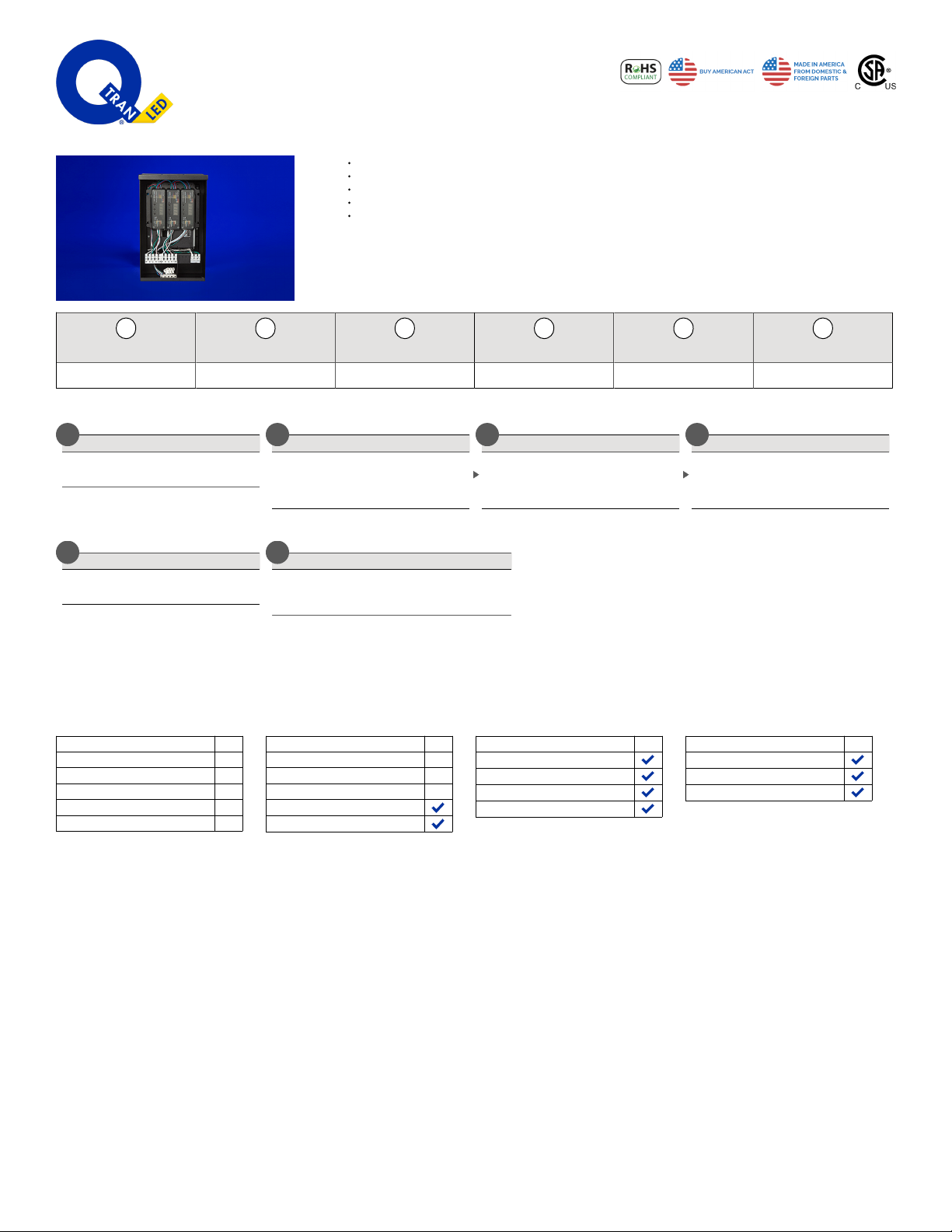

QOM-eLED+DMX

LED POWER SUPPLY 100W–300W

Utilizes a 100W constant voltage LED Driver from Thomas Research and the LINEARdrive DMX decoder from eldoLED

Designed for outdoor use with its exterior rating

Can accommodate up to 300W of power and control within a single enclosure

Comes prewired with all decoders connected together using terminal blocks

Suitable for connecting RGB or RGBW wires for color control

PRODUCT

WATTAGE

PRIMARY VOLTAGE

SECONDARY VOLTAGE

CONTROL

COLOR

QOM-eLED UNV 24VDC DMX

Sample Part Number: QOM-eLED-100W-UNV-24VDC-DMX-BK

PRODUCT WATTAGE PRIMARY VOLTAGE SECONDARY VOLTAGE

QOM-eLED 100W

200W

300W

UNV Universal (120-277V)

24VDC

CONTROL COLOR

DMX BK Black Powder Coat Finish

SS 316 Marine Grade Stainless Steel

COMPATIBLE LEDS

STATIC WHITE

SW24/1.5-4.0

SW24/5.0, SW-HE, SW-HE+

SD-SW24/1.0-4.0

SD-SW24/6.0

SW-IA

SW-XT

OTHER

DW-HE Tunable Applications

DW-HE Warm Dim Applications

RGB

RGBW, RGBW-HE

SHEETS

Q-SHEETS SW

Q-SHEETS DW Tunable Applications

Q-SHEETS DW Warm Dim Applications

Q-SHEETS RGB

Q-SHEETS RGBW

MICRO 5

MICRO 5-SW

MICRO 5-DW Tunable Applications

MICRO 5-DW Warm Dim Applications

MICRO 5-RGB

1234

5 6

QOM-eLED+DMX

LED POWER SUPPLY 100W–300W

PRODUCT INFORMATION

Limited output voltage and current, plus isolation for safe operation

Controllable with DMX controller

Control up to 4 LED channels with DMX

DMX dimming down to 0.1%

Fully potted driver(s) for moisture resistance

Primary voltage - universal (120-277V)

Wide operating temperature range: -4˚F to 122˚F

Fits up to (3): 100W 24 VDC driver(s) and DMX decoder module(s)

5 year warranty

Driver has Class A sound rating

Class 2 output

CSA #239924

Low Voltage Lighting Systems

- CSA Class 3425-15 and Class 3425-95

- CSA Standard C22.2 No. 250.0-08 - Luminaires

- ANSI/ UL Standard 2108 - Low Voltage Lighting System

- ANSI/ UL Standard 8750 - Light Emitting Diode (LED) Equipment

for Use in Lighting Products

- CSA Std C22.2 No 250.13-14 - Light Emitting Diode (LED)

Equipment for Lighting Applications

Landscape Lighting Systems

- CSA Class 3402-15 and Class 3402-95

- CSA Standard C22.2 No. 250.7-07 - Extra-Low-Voltage Landscape

Lighting Systems

- ANSI/ UL Standard 1838 - Low Voltage Landscape Lighting

Systems

- ANSI/ UL Standard 8750 - Light Emitting Diode (LED) Equipment

for Use in Lighting Products

- CSA Std C22.2 No 250.13-14 - Light Emitting Diode (LED)

Equipment for Lighting Applications

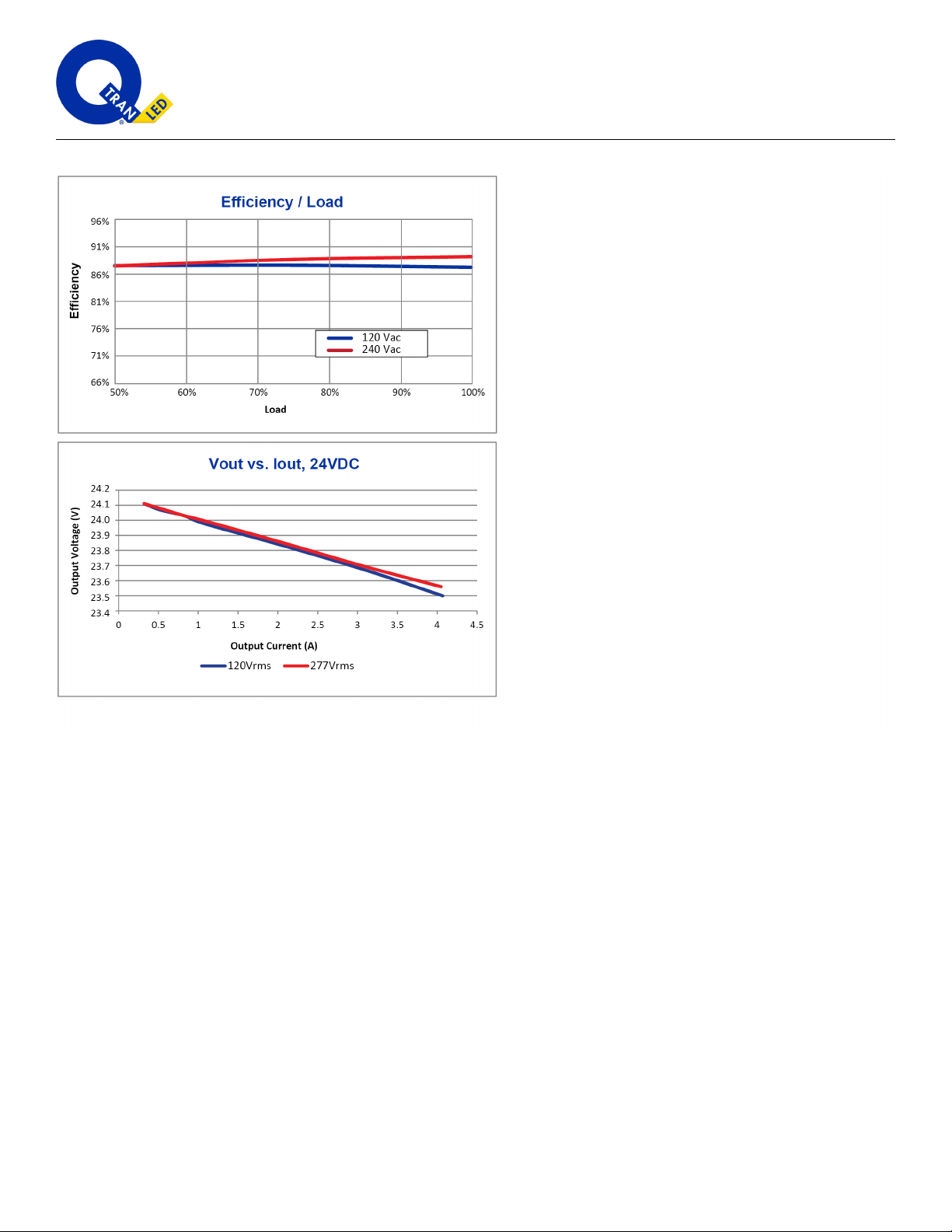

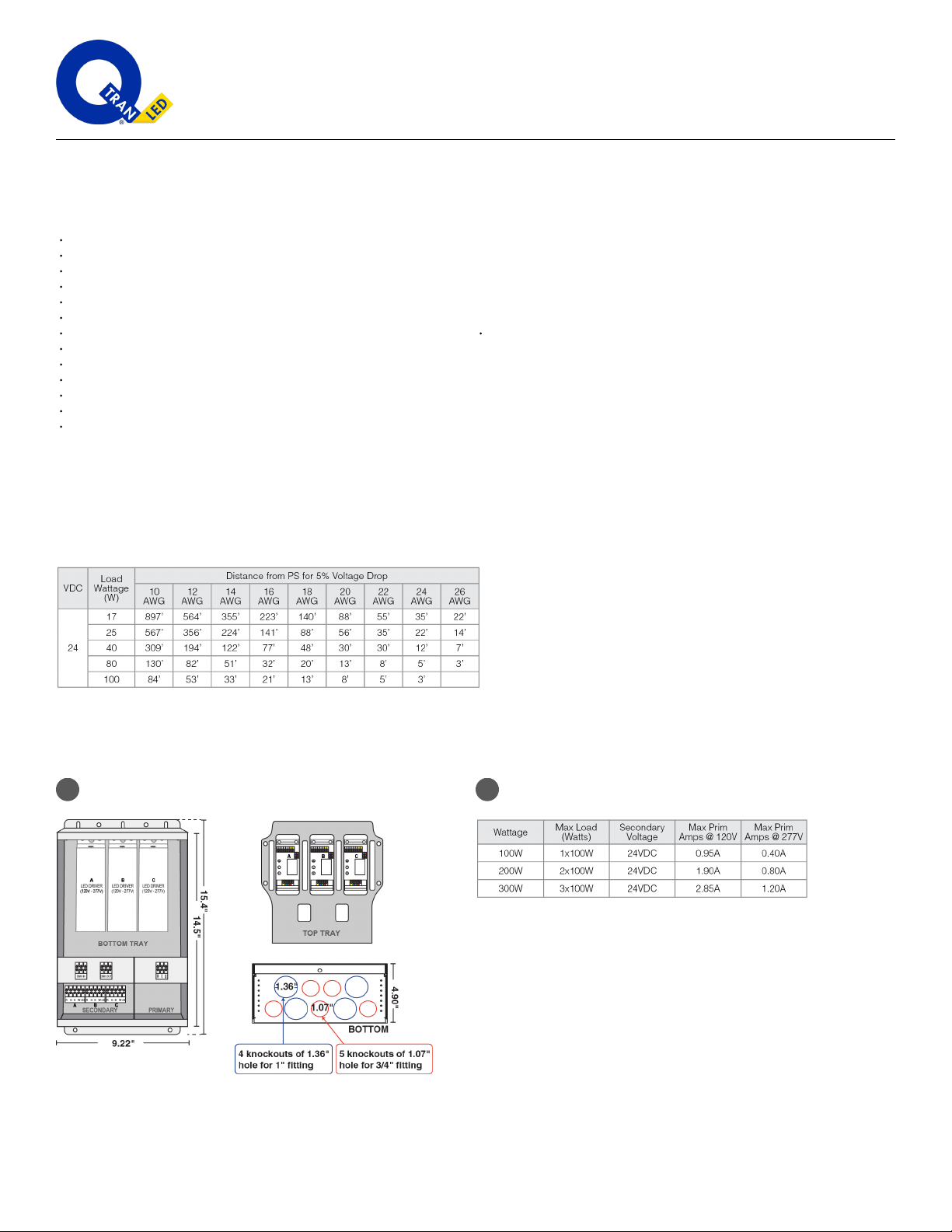

VOLTAGE DROP CHART

This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved

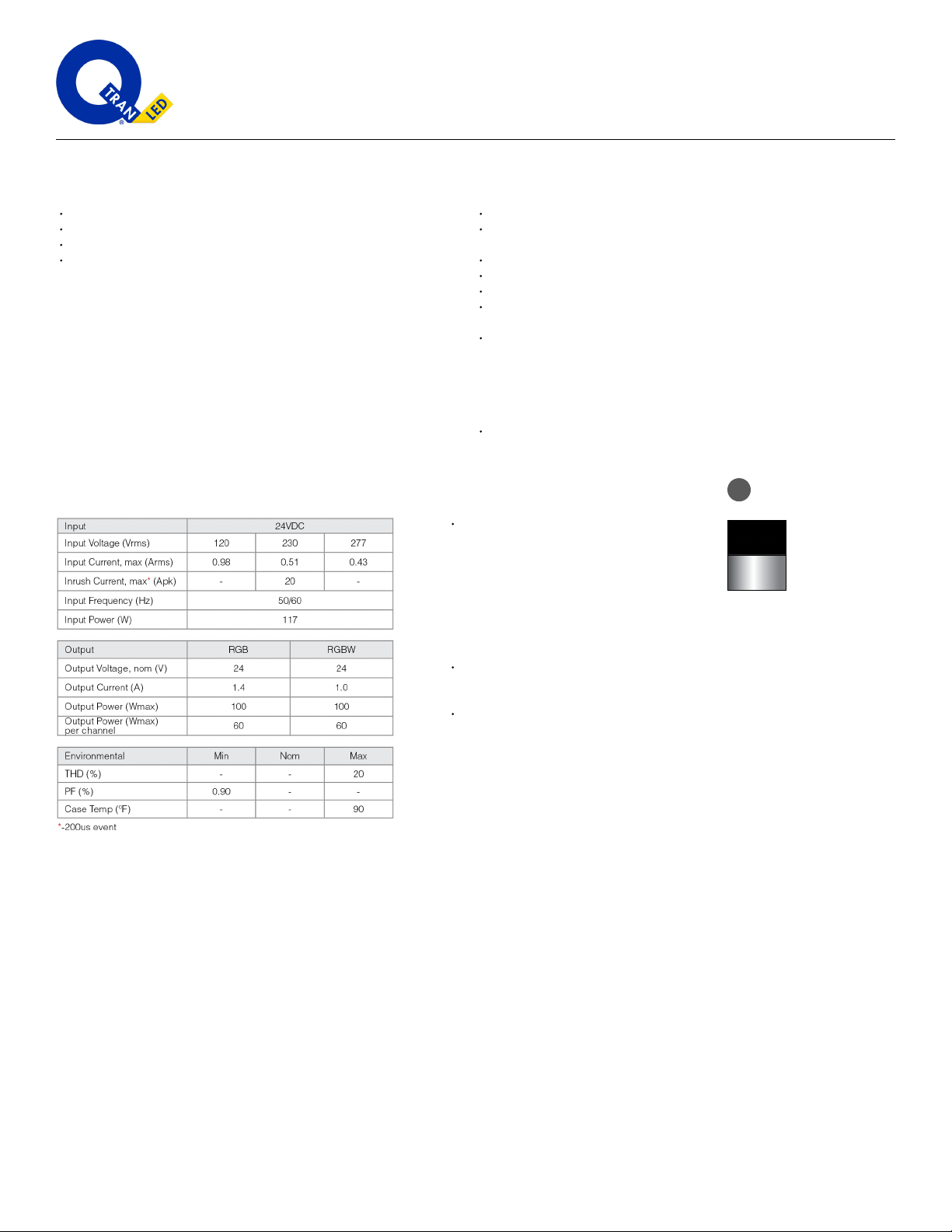

PRODUCT - DIMENSIONS TECHNICAL INFORMATION

1 2

QOM-eLED+DMX

LED POWER SUPPLY 100W–300W

HOUSING

18 gauge welded steel enclosure: 15.4"L x 9.22"W x 4.90"D

Door: 14.5"L x 9.27"W

Knockouts: 9

Built-in support bracket incorporated to secure housing for Surface

mounting

PERFORMANCE

Rated for surface mount or outdoor use

Fully rated to operate low voltage load at listed wattage (No derating

required)

Voltage regulation to 2% or less of rated output voltage

The ability to be dimmed using DMX dimming

Universal input range of 120-277 Vrms

Low Voltage Lighting Systems

- CSA Class 3425-15 and Class 3425-95

LED Landscape Lighting System Components

- CSA Class 3402-15 and Class 3402-95

- Short circuit protection (SCP)

- Over voltage protection (OVP)

- Over current protection (OCP)

- Live tested by the manufacturer to ensure proper operation

Terminal blocks are made of tin plated copper with a voltage rating of

300V and a current rating of 40A

SPECIFICATIONS PROTECTIONS

Short Circuit Protection

(SCP)Over Voltage Protection

(OVP)Over Current Protection

(OCP)Class 2 Output

COMPLIANCE

EMI Spec

- FCC 47 Part 15

- EN61000-3-2

CSA Certified

- UL-2108

- UL-1838

- UL-8750

- CSA C22.2 No 250.7-07

- CSA C22.2 No 250.0-08

- CSA C22.2 No 250.13-14

COLOR

Black Powder

Coat Finish

316 Marine

Grade

Stainless Steel

QOM-eLED+DMX

LED POWER SUPPLY 100W–300W

QOM-eLED+DMX

LED POWER SUPPLY 100W–300W

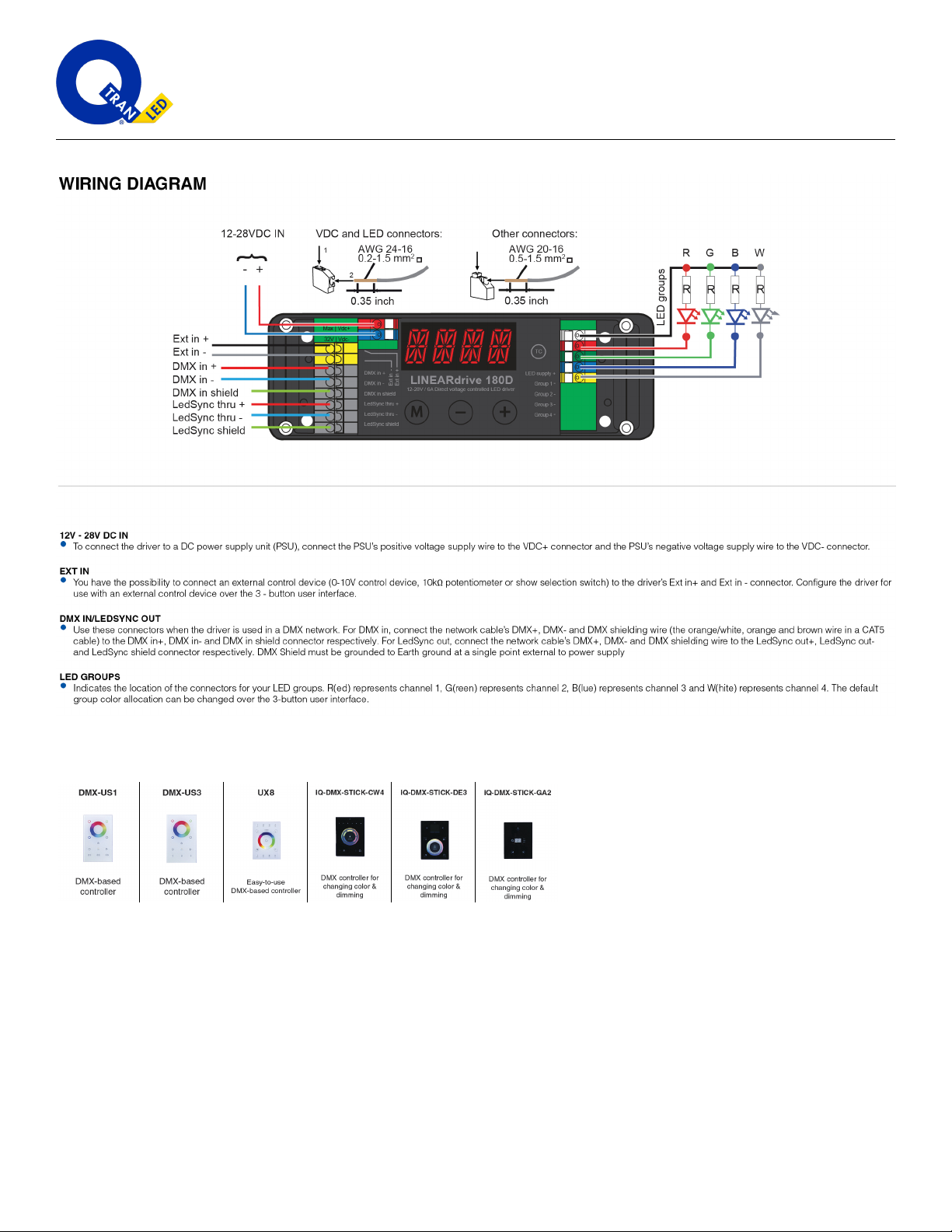

COMPATIBLE CONTROL ACCESSORIES

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX

• Must be installed by licensed electrician.

• Installation must be in accordance with DMX512-A standard

• DMX Shield must be grounded to Earth Ground at a single point external to power supply

• Wear rubber shoes and work on a sturdy wooden or ﬁberglass

ladder.

• This power supply must be installed according to the National

Electric

• Code and local codes and ordinances.

• This power supply is to be installed and serviced only by an licensed

electricians.

• This power supply is to be installed so that it is not likely to be

contacted by people.

• To avoid a hazard to children, account for all parts and destroy all

packaging materials.

LOW VOLTAGE LIGHTING SYSTEM &

LANDSCAPE LIGHTING SYSTEMS

CLASS: 3425-15

3425-95

3402-15

3402-95

COMPLIANT

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX

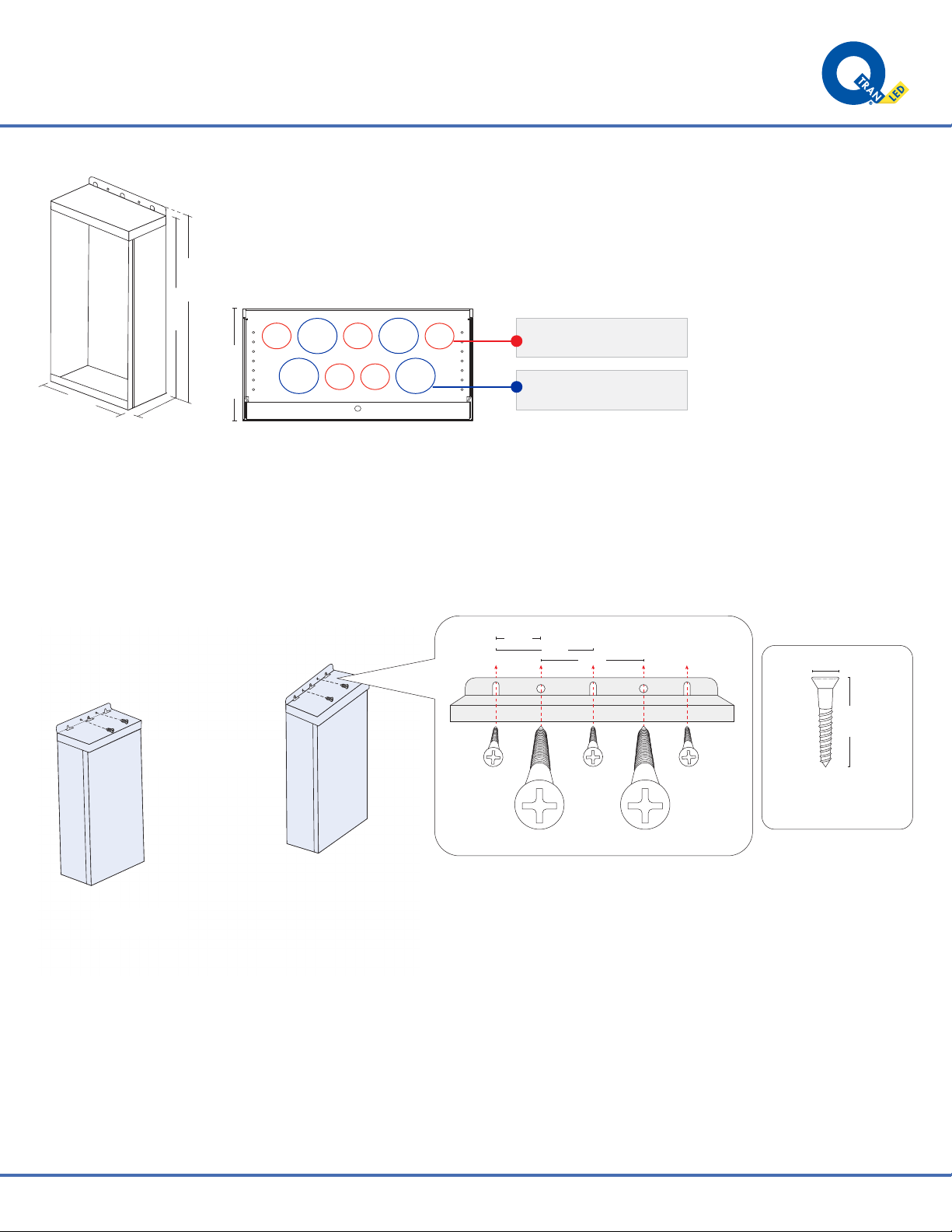

Mounting Options

Housing

BOTTOM VIEW

ISOMETRIC VIEW

1.36" KNOCKOUT 4X

(FOR 1" FITTINGS)

1.07" KNOCKOUT 5X

(FOR 3/4" FITTINGS)

4.90"

14.5"

15.4"

9.22" 4.90"

NOTE: To order additional lengths of wire for connection in the secondary

Please call factory for availability.

: QOM must be installed as shown.

Pole Mount

Surface Wall Mount

2.00"

0.25"

1/4”x2” wood screw or

LAG bolt recommened

1.82"

3.38"

3.14"

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX

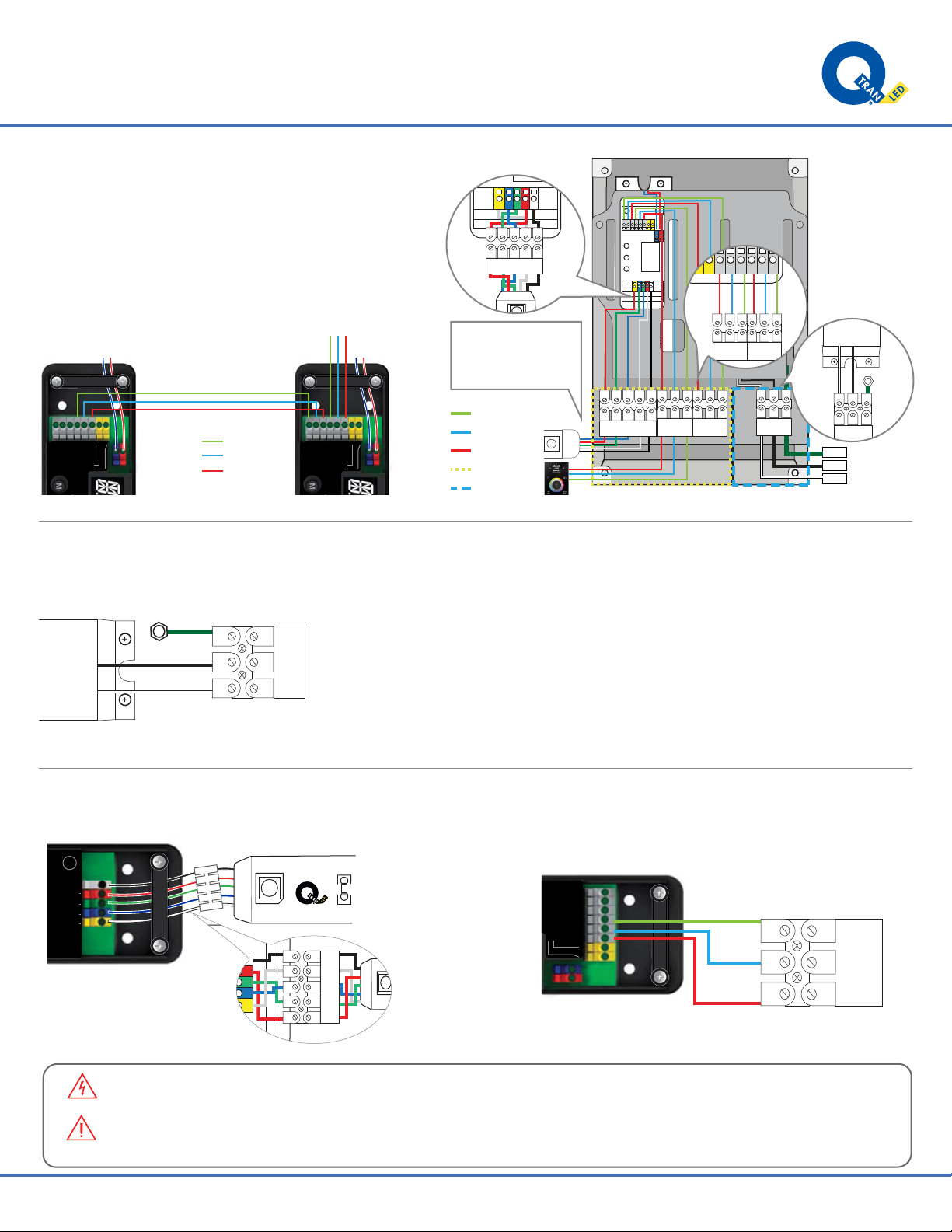

Connecting and Configuring the LINEARdrive 100D/180D

Primary Wiring

Secondary Wiring Control Wiring

DMX Connections

Commonly Asked Questions

1) How can I verify my installation?

• Apply AC input, verify display turns on : This confirms AC input wiring

• Run “Visual Test Run” : This verifies wiring of LEDs. Make sure LEDs turning on go in same order as the Test Run

2) I don’t have a controller yet, how can I keep my lights on?

• Change the Mode to “COLOR” : This allows to manually set a specific color to be on

• Adjust the Hue or WHITE to achieve the desired color : This sets that specific color

3) My LEDs aren’t coming out the right color. They look like white has been added in

• Verify the Network Resolution “NETW RES” : Default is 8 BT

• Check your DMX Programming. Stick controllers come with RGB programs by default. This will cause RGBW

LEDs to show Pink vs. Red

To DMX Controller

Ext in +

Ext in

DMX in +

DMX in -

DMX in shield

LedSync thru +

LedSync thru -

LedSync shield

LINEARdrive 180D

12-28V / 6A Direct voltage controlled LED driver

Ext in +

Ext in

DMX in +

DMX in -

DMX in shield

LedSync thru +

LedSync thru -

LedSync shield

LINEARdrive 180D

12-28V / 6A Direct voltage controlled LED driver

DMX in shield LedSync shield

DMX in - LedSync thyu -

DMX in + LedSync thyu +

Blue Wire = Blue LED

Red Wire = Red LED

Green Wire= Green LED

White Wire = White LED

Black Wire = +24V

A C

LED DRIVER 2

(120 - 277V)

GND

NEU

SECONDARY

PRIMARY

DMX Shield

DMX -

DMX +

iQ-LED

Blue = Blue

White = White

Green = Green

Red = Red

Black = +24V

R G B W+24

DMXOUT

iQ-LED

DMX in +

DMX in -

DMX Shield

LedSync thru +

LedSync thru -

LedSync Shield

DMXIN DMX OUT

HOT

NEU

GND

HOT

GND

HOT

NEU

LED DRIVER

(120 - 277V)

NEU

GND

HOT

DMXIN

GND

HOT

NEU

LED DRIVER

(120 - 277V)

NEU

GND

HOT

iQ-LED

Group

LED supply +

LINEARdrive 180D

Black Wire = +24V

Red Wire = Red LED

Green Wire = Green LED

Blue Wire = Blue LED

White Wire = White LED

iQ-LED

R G B W+24

Ext in +

Ext in

DMX in +

DMX in -

DMX in shield

LedSync thru +

LedSync thru -

LedSync shield

DMX in shield

DMX in -

DMX in +

DMX

WARNING:

Risk of electrical shock. May result in serious injury or death. Disconnect power before servicing or installing.

CAUTION:

The device may only be connected and installed by a qualiﬁed electrician. All applicable regulations, legislation and building codes must be observed.

Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.

● DMX Shield must be grounded to Earth Ground at a single point external to power supply

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX

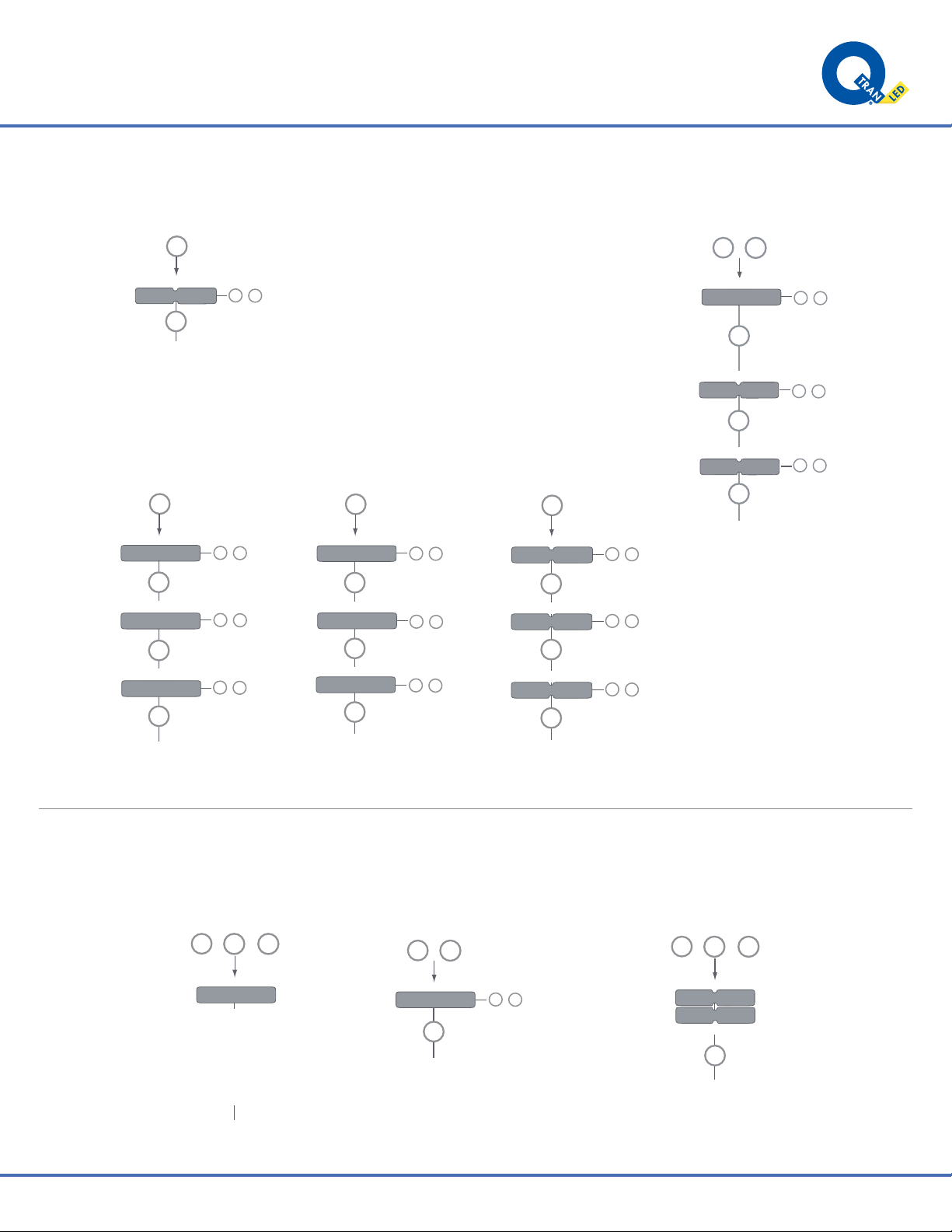

Manual Configuration

Other Features

1. Select mode of operation: 2. Set LED groups:

3. Standalone Standalone Networked

operation or operation or operation

- Colour*- - Show - - DMX -

display off

SHOW

COLR

DMX

(5 sec)

Set mode

MODE

SET

RGB

RGBW

RGBA

RRGB

RGGB

CCWW

CWWW

1-1L

2-2L

3-3L

4-4L

2-4L

1-4L

LED groups

LED

OFF

POTM

10V

SWIT

display off

External input

EXT INP

LOG

LIN

Dimming curve

DIM CURV

00...20

display off

SHOW

-99...99

0...255

Intensity

Speed

Show

SPD

INT

HUE

White

WHIT

Intensity

0...255

INT

display off

0...1535

0...255

1...512

Network resolution

DMX address

8 BT

16 BT

display off

ADDR

DMX

RES

NETW

Interpolation

OFF

VID

COLR

WHIT

GLOW

INTERPOL

* The colour menu depends on the LED group settings you have selected in step 2.

Visual test run Locking the configuration: Reset to factory defaults

display off

TEST

Test

+ +

R 1 sec

G 1 sec

B 1 sec

W 1 sec

RGBW 1 sec

R 1 sec

G 1 sec

B 1 sec

W 1 sec

RGBW 1 sec

display off

LOCK

Lock driver

+(5 sec)

SOFT

HARD

display off

RE - SET

Reset

+ +

(5 sec)

Press menu

PRES MENU

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX

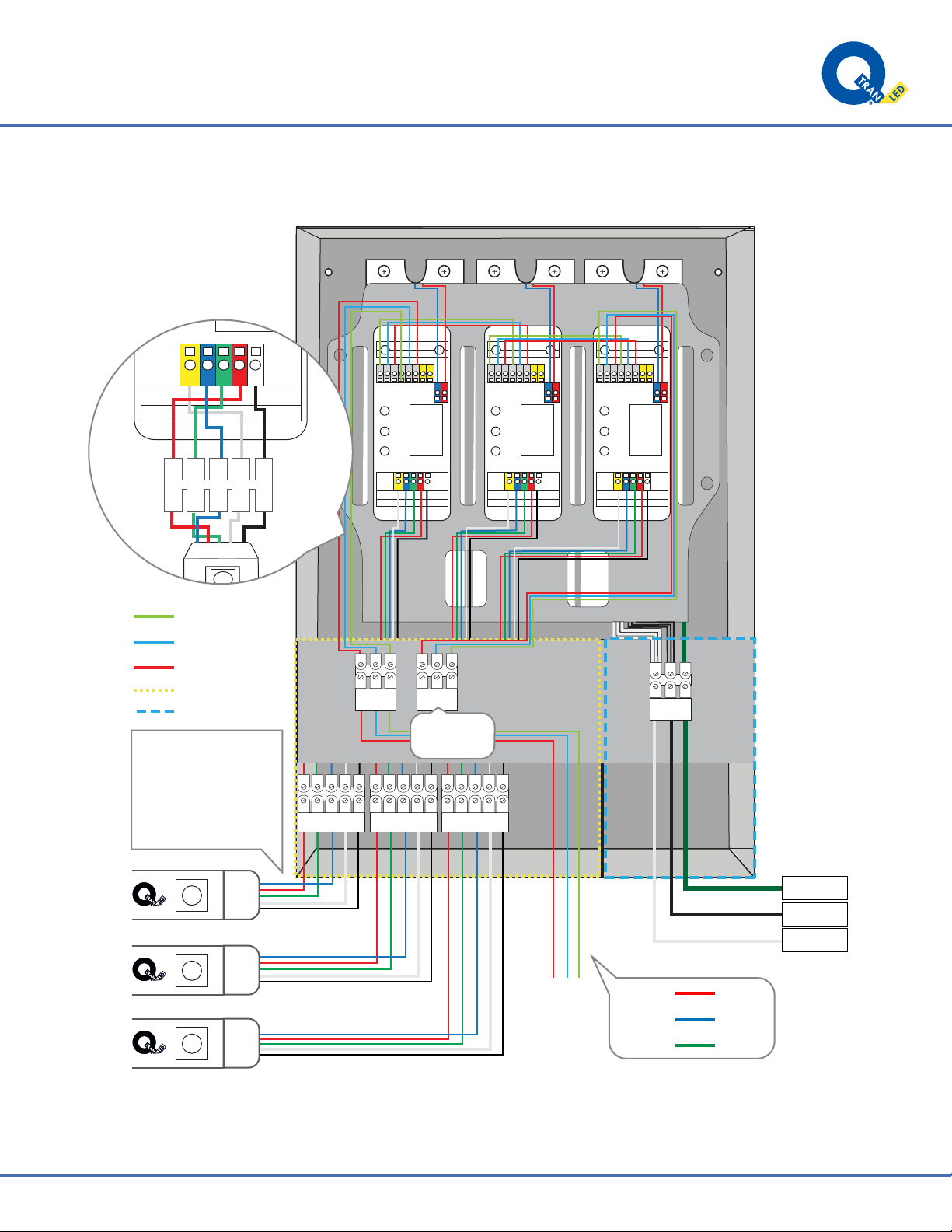

Wiring Installation

QOM-eLED+DMX

: for exterior

Blue Wire = Blue LED

Red Wire = Red LED

Green Wire = Green LED

White Wire = White LED

Black Wire = +24V

A C

LED DRIVER 2

(120 - 277V)

LED DRIVER 2

(120 - 277V)

LED DRIVER 2

(120 - 277V)

SECONDARY

PRIMARY

DMX Shield

DMX -

DMX +

NEU

GND

HOT

GND

HOT

NEU

A B C

DMX IN DMXOUT

A B C

GND

DMX +

DMX -

Red

Blue

Green

To next

power supply

LEDLED LED

R G B W+24 R G B W+24 R G B W+24

LED

Blue = Blue

White = White

Green = Green

Red = Red

Black = +24V

R G B W +24V

Table des matières

Autres manuels qtran Alimentation

qtran

qtran QOM-eLED+DALI-DT8 Manuel utilisateur

qtran

qtran QOM-eLED Manuel utilisateur

qtran

qtran QTM-eLED+DALI-DT6 Manuel utilisateur

qtran

qtran QTM-eLED+DALI-DT8-AN Manuel utilisateur

qtran

qtran QTM-eLED+DMX Manuel utilisateur

qtran

qtran QOM-eLED+DALI-DT6 Manuel utilisateur

qtran

qtran QTM-eLED+DALI-DT6-AN Manuel utilisateur

qtran

qtran QOM-eLED+DMX Manuel utilisateur

qtran

qtran QTM-DRIVE Manuel utilisateur

qtran

qtran Q-VAULT-5 Manuel utilisateur

qtran

qtran QTM-DRIVE Manuel utilisateur

qtran

qtran QOM-eLED+DALI-DT8 Manuel utilisateur

qtran

qtran QTM-eLED+DMX Manuel utilisateur

qtran

qtran QTM60 Manuel utilisateur

qtran

qtran QOM-eLED+IA Manuel utilisateur

qtran

qtran QTM-eLED+DALI-DT8 Manuel utilisateur

qtran

qtran QOM-eLED Series Manuel utilisateur

qtran

qtran Q6S Manuel utilisateur

qtran

qtran QOM-DRIVE Series Manuel utilisateur

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur
