BT-Q1000eX 10Hz Quick Installation Guide

A. Standard Package

GPS Unit BT-Q1000eX 10Hz (1) + Lithium-ION Rechargeable Battery

(2) + Cigarette Adapter (3) + mini USB Cable (4) + Driver CD (5) +

Leather Bag (6) + Warranty Card + User’s manual

NOTE: The Cigarette Adaptor can only be used to charge

BT-Q1000eX. Please don’t make use of it with devices other

than BT-Q1000eX.

1. 2. 3.

4. 5. 6.

B. Appearance

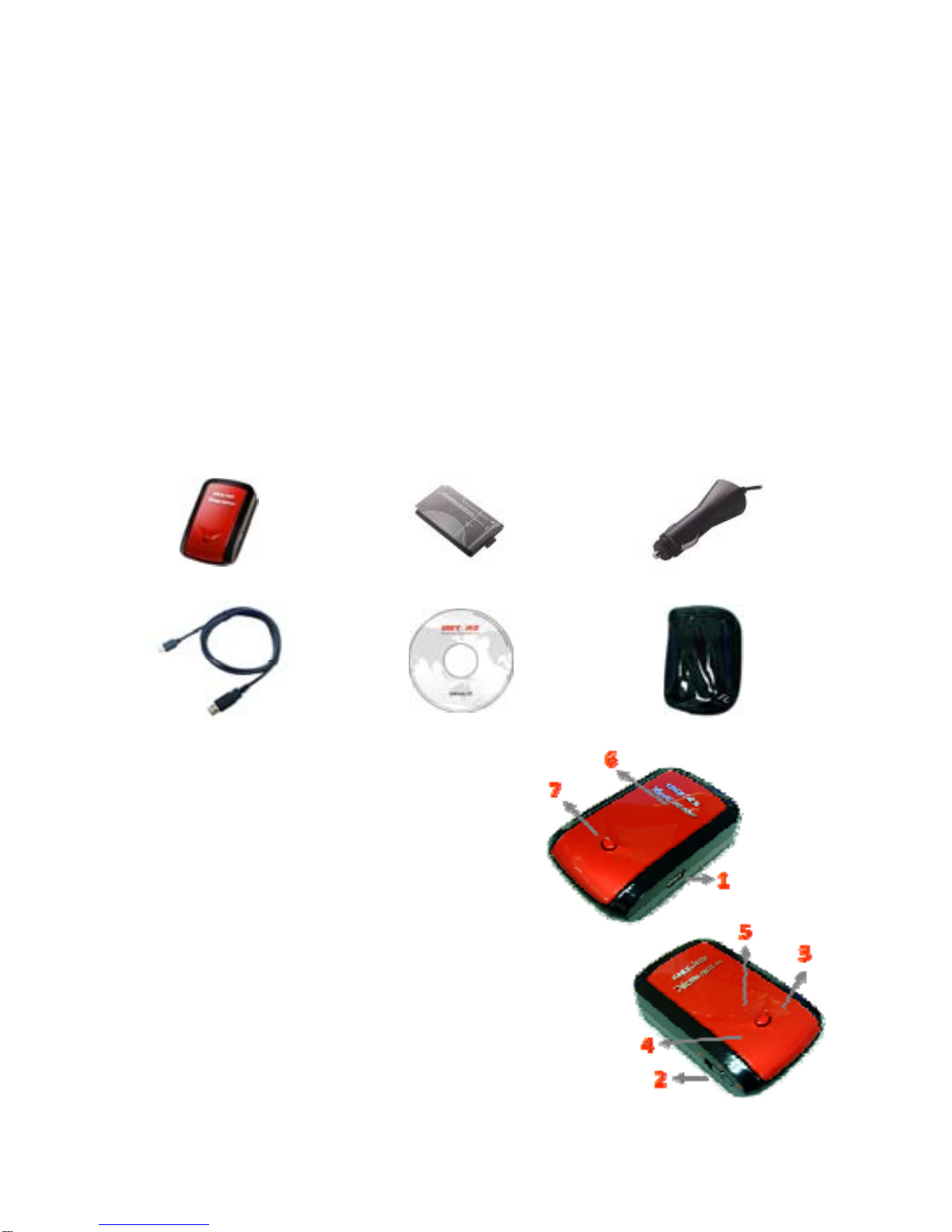

1. Power jack (mini USB type)

2. Mode switch (OFF/1Hz/10Hz)

3. Battery status LED (Red/Green)

4. Bluetooth status LED (Blue)

5. GPS status LED (Orange) /

Log Status LED (Red)

6. Internal antenna

7. POI button

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

2 www.Qstarz.com

C. LED Indicators

LED Status Flash ON OFF

Power

(Red/Green) Low Power (Red) Recharging

(Green)

Fully

charged

Bluetooth

(Blue)

Flash per 2 sec.:

Bluetooth connected

and transmitting

Mode

Flash per 5 sec.:

Power saving mode

Not

connected /

Pairing / Log

Mode is on

(1Hz mode)

GPS not

powered /

Log Mode is

on (10Hz

mode)

GPS

(Orange)

GPS position is fixed,

Navigation

Detecting

Satellite,

GPS position

not fix

GPS not

powered

Log

(Red)

Flash per 2 sec: Low

memory (20%)

Flash 3 times:

POI(Point of Interest)

is recorded

Memory is

full

Log Mode

is off

D. Beeper Code

*Beeper can be turned off from software -> config GPS.

Status Beep code Description

Startup 1 short beep One short beep on off->1Hz,

Off->10Hz, 1Hz->10Hz, or 10Hz->1Hz

GPS fix 2 short beeps 2 short beeps when GPS fix on 1Hz

or 10Hz mode

POI button 3 short beeps 3 short beeps when POI button

being pressed

Memory

exhausted 3 long beeps 3 long beeps when the device is out

of memory

Sleep mode 1 long and 1 1 long and then 1 short beep when

GPS Lap Timer 10Hz English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 3

short beeps the device enters sleep mode

E. Register your Qstarz product

Register your Qstarz product to get the latest news,

software update, event, and product information.

http://www.qstarz.com/reg.php

Update the Software:

Please always go to Qstarz download page to check if there

is any latest software update.

http://www.qstarz.com/download.php

Start to use

Step 1: Install Battery

Open the Battery Cover and Insert the Battery.

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

4 www.Qstarz.com

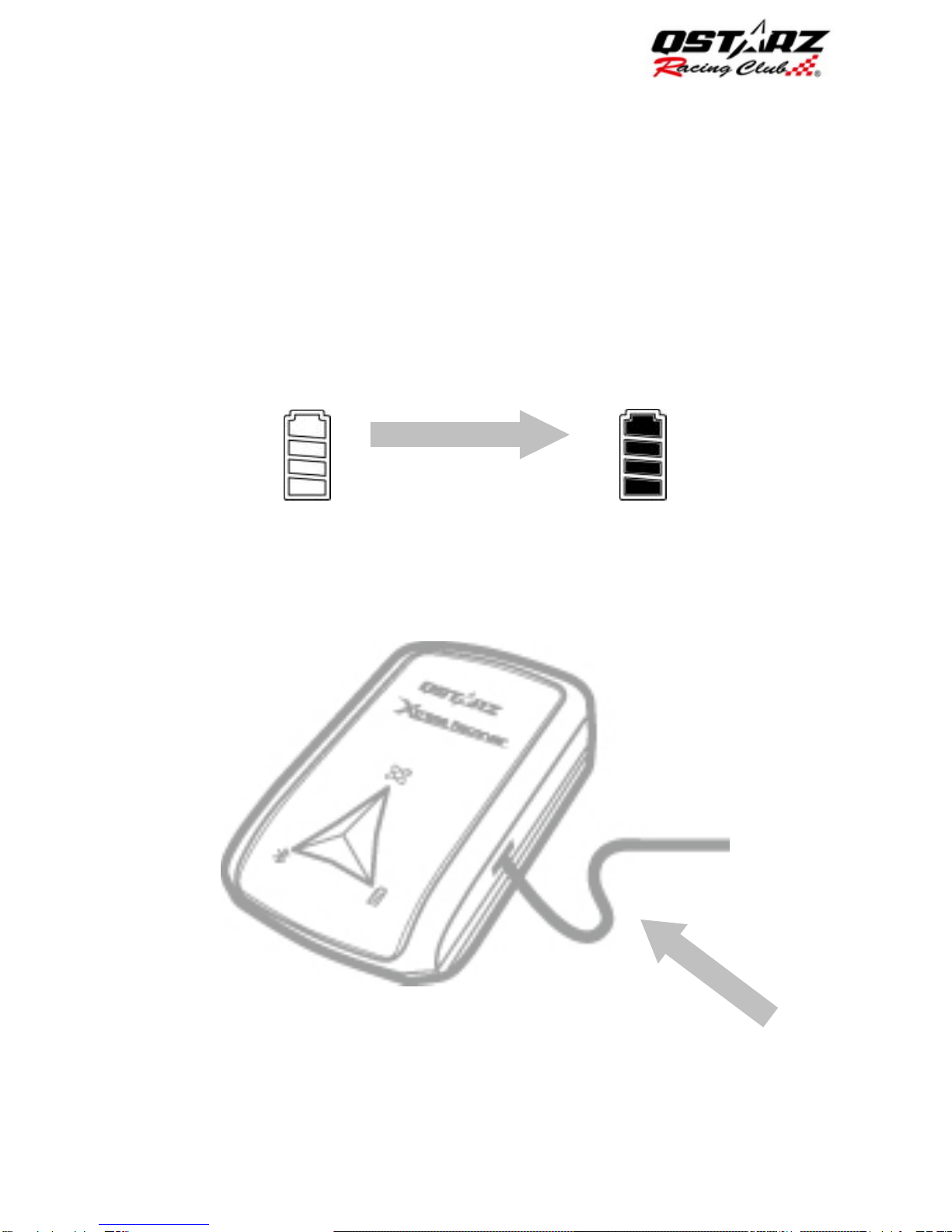

Step 2: Charge Battery

Plug in USB cable and charge it for 3 hrs until

the green power LED goes off.

GPS Lap Timer 10Hz English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 5

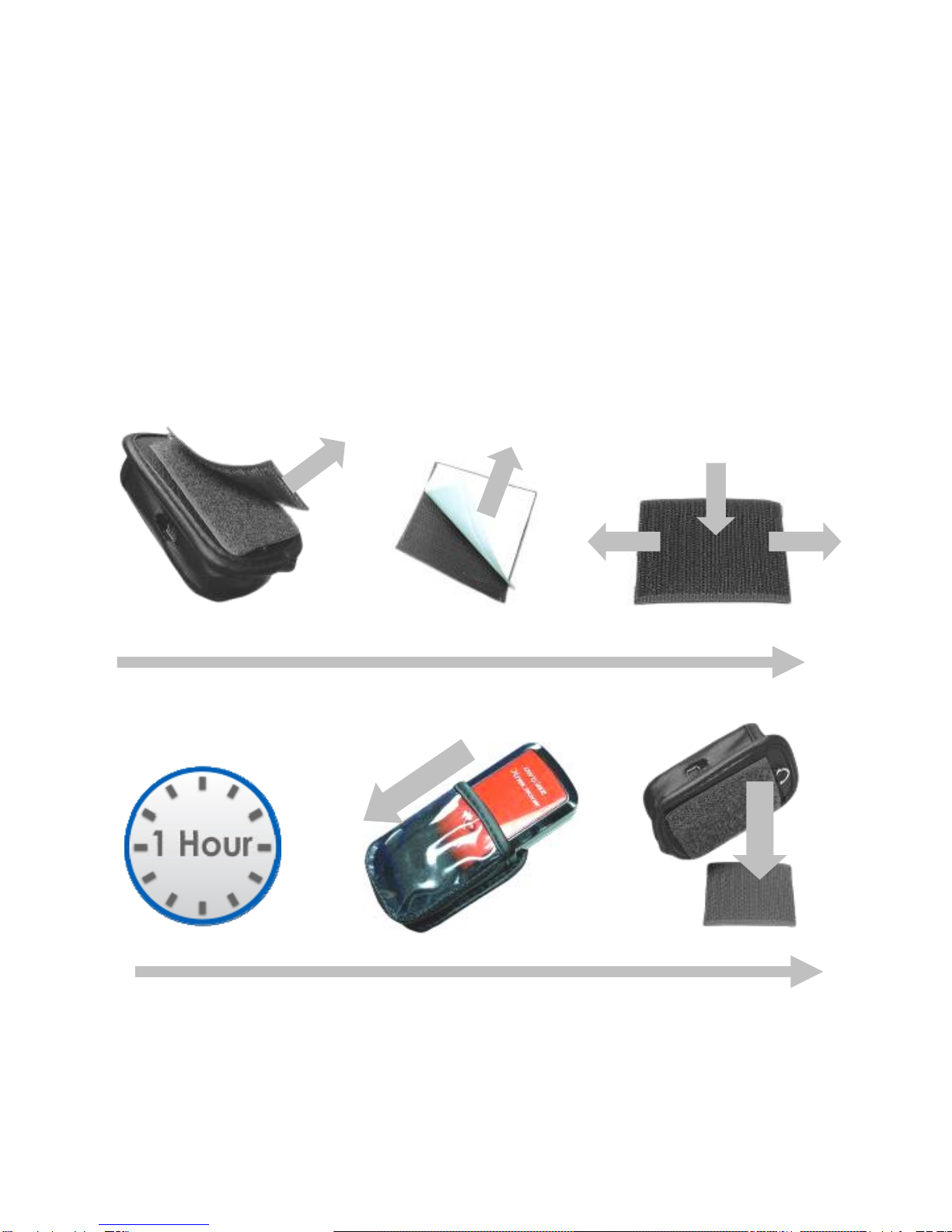

Step 3: Mount Q1000eX 10Hz - 1

Mount Q1000eX on your eXtreme sports

equipment.

1. 2. 3.

4. 5. 6.

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

6 www.Qstarz.com

Step 3: Mount Q1000eX 10Hz - 2

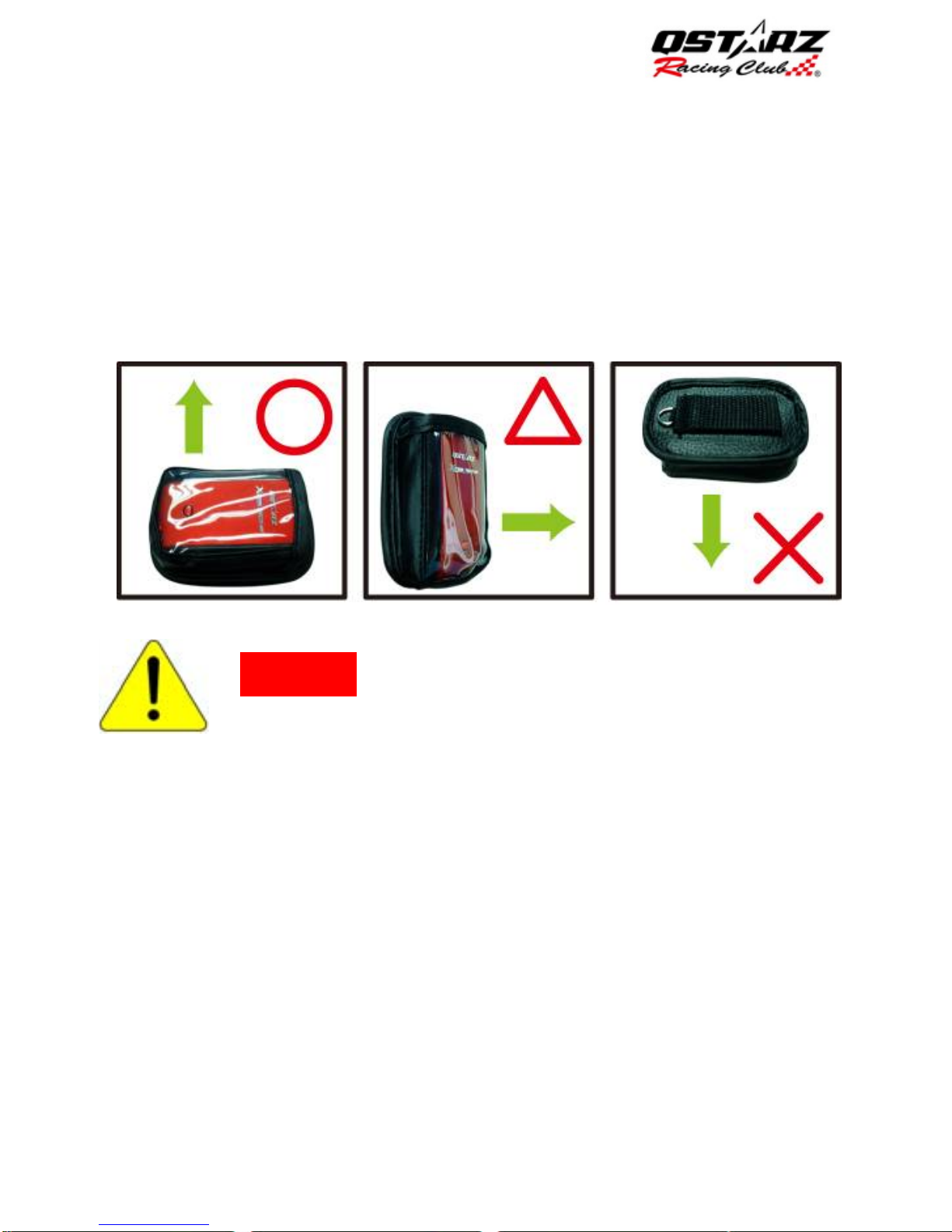

To get best accuracy, please position the GPS

antenna side up to sky.

Caution: To reduce the risk of fire or

shock hazard, do not expose this

product to rain or moisture. If the

device will be exposed to outside

environment, such as attached on

motorcycle, any other safety

protection equipment must be applied

to prevent the device from sliding out

of the bag.

GPS Lap Timer 10Hz English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 7

Step 4: Start Racing

Note: Q1000eX is for outdoor use; an open sky

outdoor environment will enable faster satellite

acquisition and provide better positioning

accuracy.

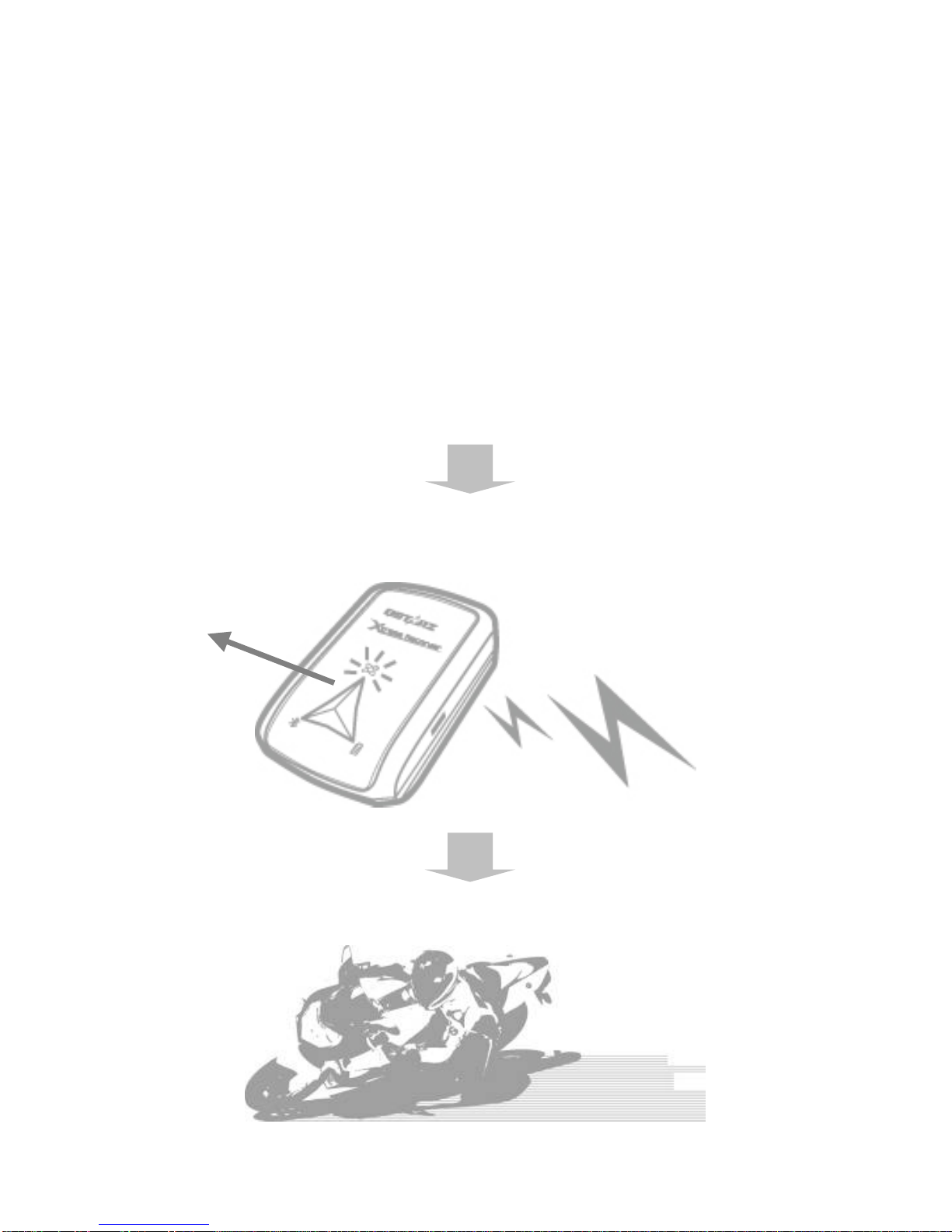

1. Switch Q1000eX to 10Hz mode

2. Confirm GPS gets fix

3. Start to Race

2 short

beeps

GPS LED

flashes

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

8 www.Qstarz.com

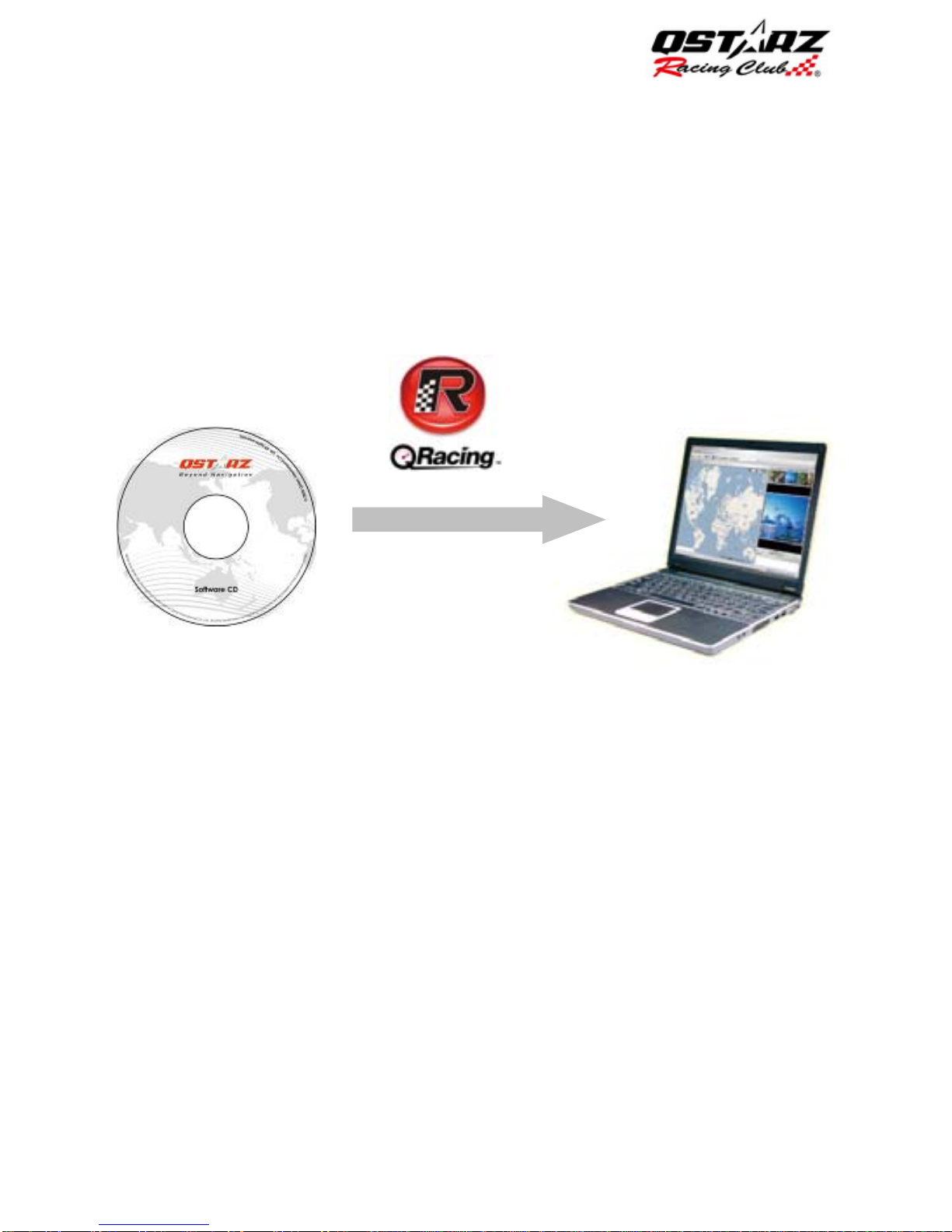

Step 5: Install Qstarz QRacing

Software

Install the QRacing from Qstarz software CD.

You may also install PC Suite software (QSports

and QTarvel) for manage other sports activity or

geotagging your travel photos.

Note: Users have to input product key at the

first time of use. The product key is located on

the envelope of the software CD

GPS Lap Timer 10Hz English

……………………………………………………………………………………………………………………………………………………………………………………….

www.Qstarz .com 9

Step 6: Import Data from

Q1000eX 10Hz

1. Switch on and Connect to PC, then open

QRacing

2. QRacing will automatically detect the device

and ask if you want to read log from device.

English

……………………………………………………………………………………………………………………………………………………………………………………….

.........................................................................................................................................................................................

10 www.Qstarz.com

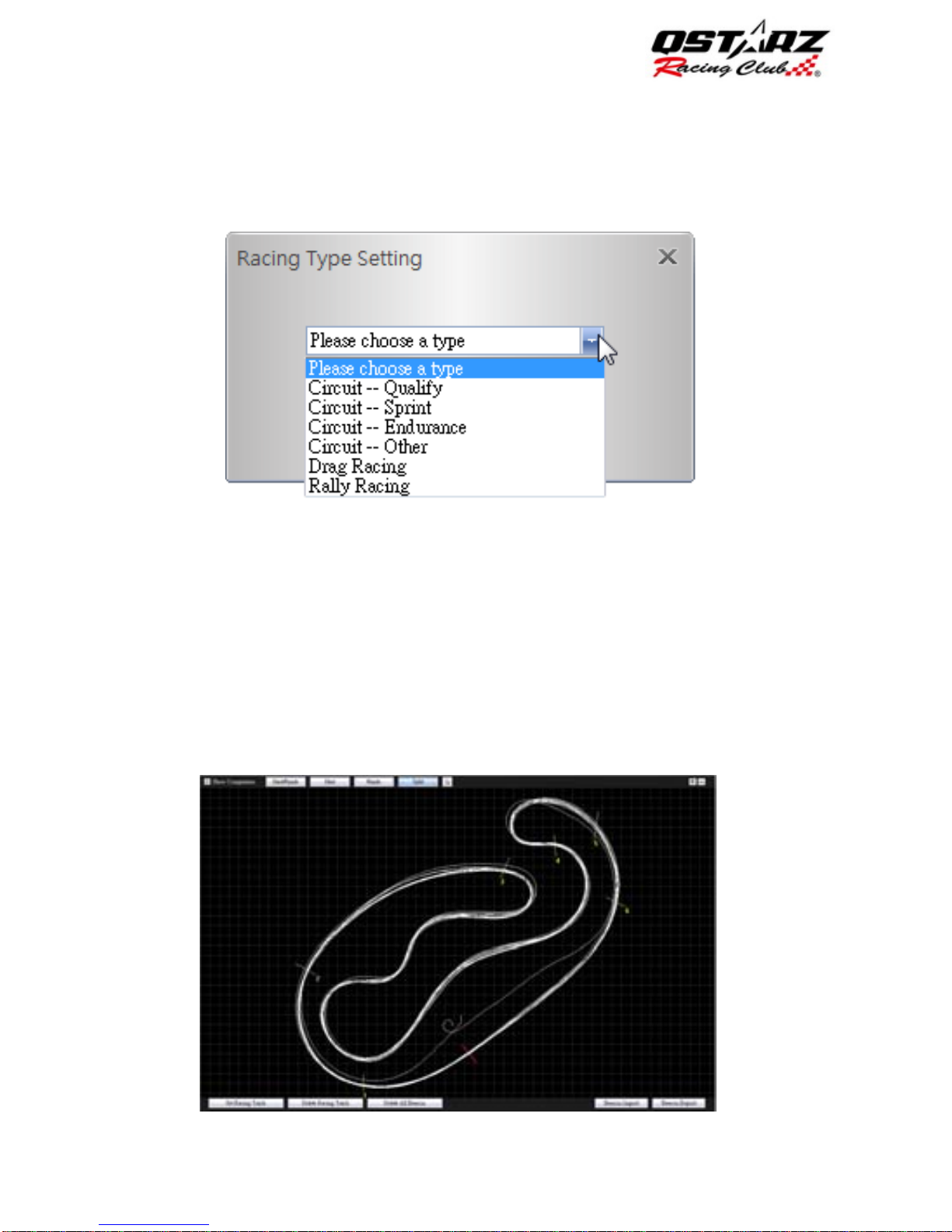

3. Click on “Yes” to import the data and Select

your Racing Type.

Step 7: Edit Beacon

After import data from Q1000eX, if you have not

edited beacons for this track, QRacing will ask

you to edit beacons.
