LM-200-R2 Warranty
The LM-200-R2 has been thoroughly tested and is guaranteed for a period of 12 months from the
date of delivery. Under the terms of this guarantee all components which are proven defective within
the warranty period will be repaired or replaced free of charge. Our technical assistance service is the
sole authority in determining whether or not defects come under the coverage of the guarantee. The
guarantee excludes all responsibility on the part of the Quality Stainless Products for direct or
indirect loss or damage to persons or things deriving from incorrect operation or servicing of the
product. The guarantee is limited to defects in materials, workmanship and assembly, and excludes
all components subject to normal wear. Furthermore, the guarantee excludes return shipping of
defective part to QSP. We will however ship the replacement part by standard ground service at no
charge.
Parts Department 888-473-5378
TYPE: Tire and Wheel lift
MODEL: LM-200-R2
Serial Number:
______________________________________
_________________________________________________________________________________
OPERATION INSTRUCTIONS
Removing the Tire and Wheel Assembly from a vehicle using The LM-200-R2
1. Position LM-200-R2 under tire and wheel on the vehicle and raise lifting fork by pressing the
top of the control rocker switch [UP].
3. Once the rollers have made contact with the bottom of the tire, release the switch.
4. Remove lugs & pull the top of the tire toward you and disengage wheel from the vehicle.
5. With the tire on the rollers back the lift away from the vehicle and lower the lifting fork.
6. With the tire & wheel assembly resting on the ground, roll the LM-200-R2 away from
assembly.
It is not necessary to lift the tire & wheel assembly off of the LM-200-R2.
Installing the Tire and Wheel Assembly on a vehicle using the LM-200-R2
1. With the tire & wheel assembly on the ground, position the LM-200-R2 so that the forks are
beneath the assembly.
2. Press the top side of the control rocker switch [UP] to raise the lifting fork up to the proper
installation height.
3. Rotate the tire and wheel on the rollers to align lug studs to the wheel.
4. Slowly raise or lower to exact position and push the top of the tire and wheel assembly
forward to engage the stud and lug nut holes.
5. Install lug nuts and lower lifting fork.
6. Move LM-200-R2 from beneath vehicle before lowering lift to avoid damaging product.
Please retain this document for reference when calling Technical Assistance.

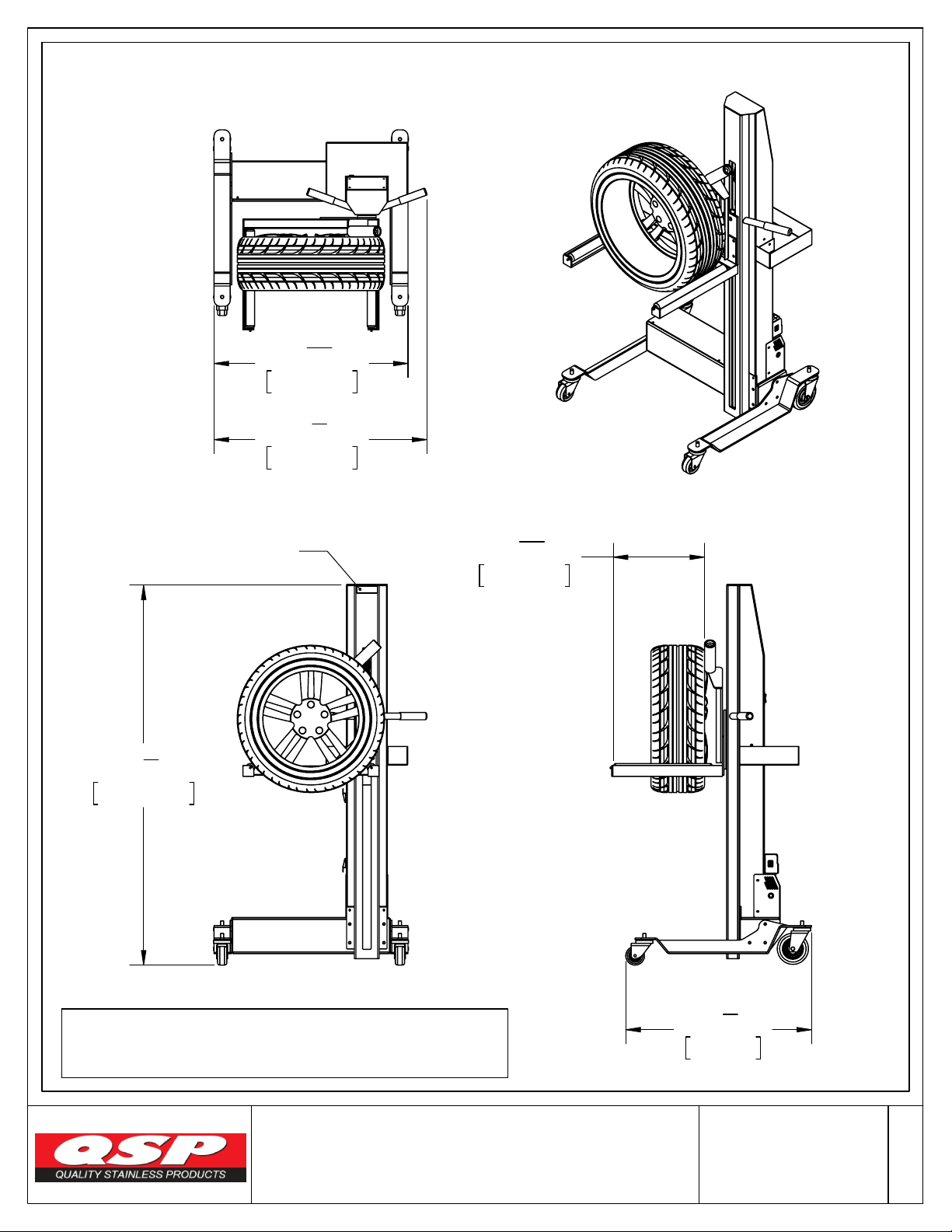

61 1
8
"
1551.9mm
NAMEPLATE
SERIAL # / REV
29 7
8
"
759mm
14 11
16
"
373.1mm
34 1
4
"
869.7mm
31 3
16
"
792.5mm
LIFTING CAPACITY: 200LBS
THIS UNIT IS OUTFITTED WITH A CLUTCH THAT WILL MAKE
A REVERBERATING NOISE AT THE TOP AND BOTTOM OF
ITS' STROKE.
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
2
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
8000-8
GRIP
2
2
EG16
ROLLER-TIRE
2
3
H-.500 BUSHING
1/2" PRESS IN BUSHING
1
4
LM-200-410
WHEEL FORK OFF SET
1
5
LM-200-415
ROLLER SUPPORT
1
6
LM-200-714
CASTER SUPPORT RH
1
7
LM-200-715
CASTER SUPPORT LH
1
8
LM-200-927
CABLE ASSEMBLY
1
9
LM-200-930
CASTER 5" DIA WHEEL
2
10
LM-200-931
CASTER 3" DIA WHEEL
2
11
LM-200-R2-001
LIFTING ACTUATOR
1
12
LM-200-R2-010
UP / DOWN SWITCH 24VDC 30A
1
13
LM-200-R2-020
LOW VOLTAGE DISCONNECT 24VDC 30A
1
14
LM-200-R2-165
RECHARGEABLE TOOL TRAY
1
15
LM-200-R2-168
RECHARGEABLE REAR COVER
1
16
LM-200-R2-16B
MOTOR COVER WELDMENT
1
17
LM-200-R2-16L
LEFT SIDE PANEL WELDMENT
1
18
LM-200-R2-16R
RIGHT SIDE PANEL WELDMENT
1
19
LM-200-R2-170
CORD WRAP BRACKET
2
20
LM-200-R2-174B
SUPPORT 2ND GEN BATTERY CHARGER
1
21
LM-200-R2-204
LARGE BASE LID
1
22
LM-200-R-127
BATTERY 12 VOLT
2
23
LM-200-R-145
RELAY-PANEL MOUNT 30 AMP
1
24
LM-200-R-152
ROLLER
1
25
LM-200-R-173
BATTERY CHARGER
1
26
LM-200-R2-10
COLUMN ASSEMBLY
1
27
LM-200-R2-20
RECHARGEABLE BASE ASSEMBLY
1
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL

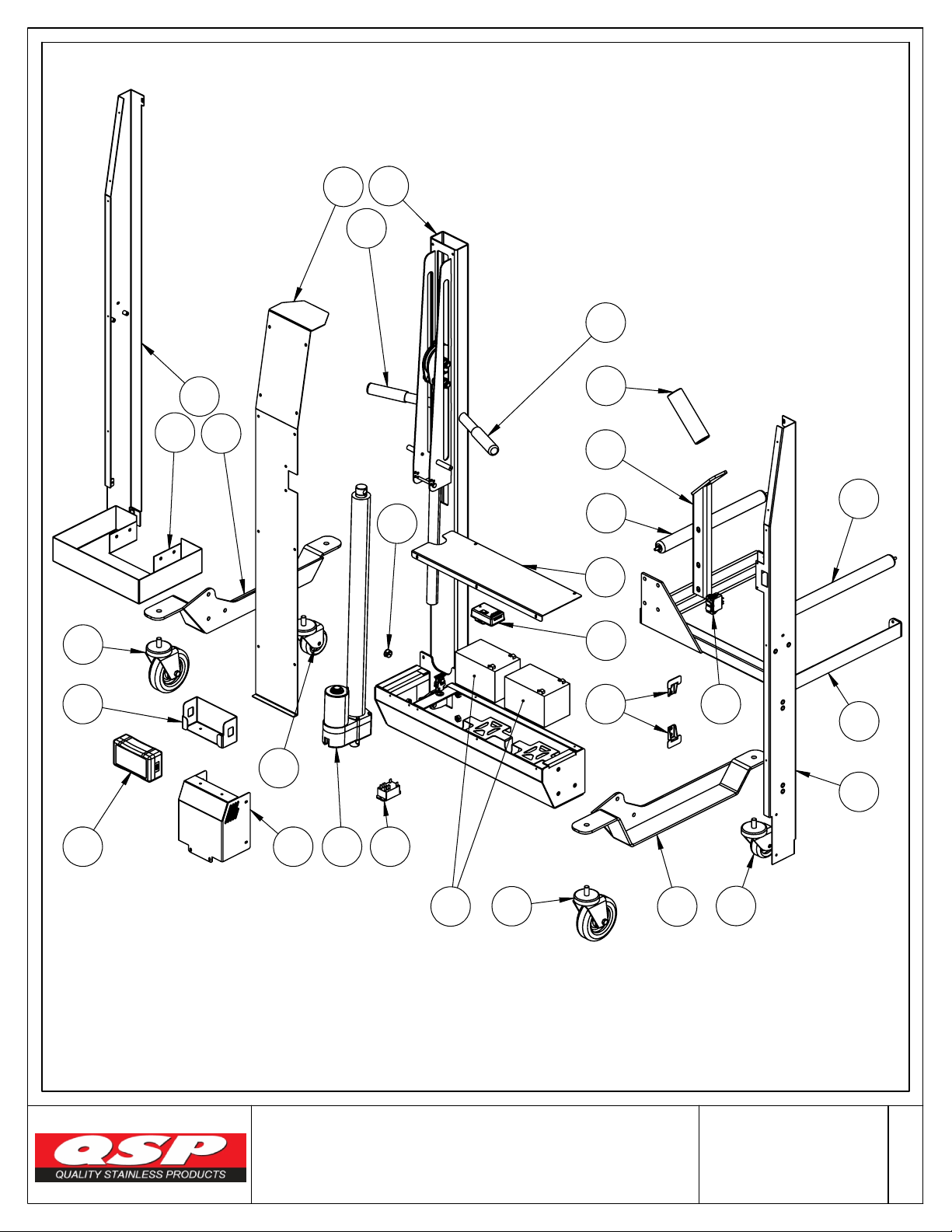

3
15
5
1219
10
622 9
13
23
3
1116
20
9
10
7
14
17
25
21
26
2
24
4
2
18
1
1
CABLE ASSEMBLY
LM-200-927
NOT DEPICTED
ON PRINT
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
4

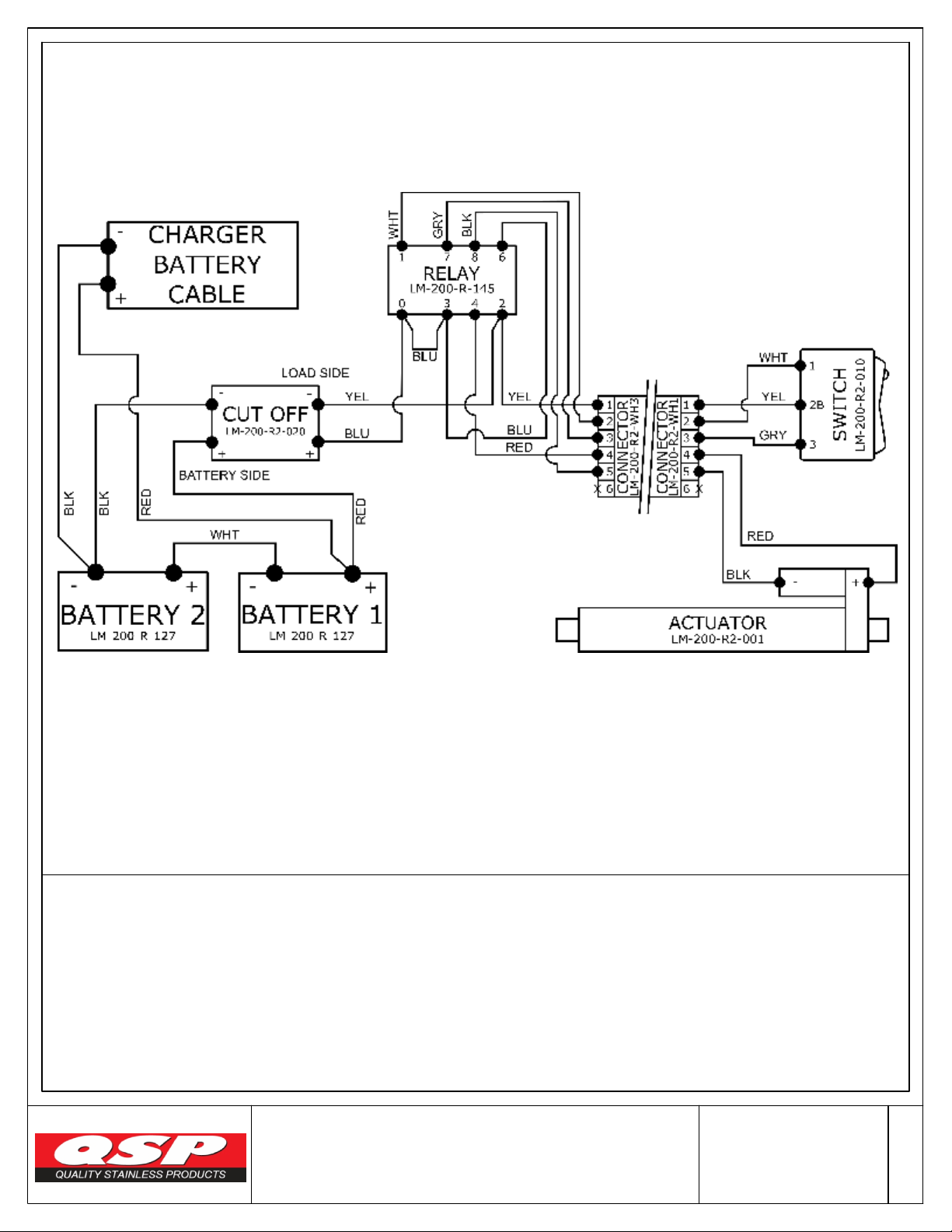

THIS UNIT IS EQUIPPED WITH A LOW VOLTAGE CUTOFF & MAY STOP MID-CYCLE.
IF THIS HAPPENS HERE IS HOW TO COMPLETE THE CYCLE PRIOR TO CHARGING:
REMOVE (5) 8-32 SCREWS FROM THE LOWER BATTERY COVER
1.
LOCATE THE LOW VOLTAGE CUTOFF ON TOP OF THE CENTERMOST BATTERY
2.
CHECK THAT THE LOW VOLTAGE CUTOFF HAS A RED LIGHT ON
3.
IF THE SWITCH HAS A RED LIGHT, MOVE THE ROCKER TO THE "ON" POSITION
4.
CHECK TO SEE THAT THE RED LIGHT HAS TURNED GREEN
5.
COMPLETE CYCLE, AND LOWER FORK TO BOTTOM
6.
MOVE ROCKER BACK TO "AUTO" & VALIDATE RED LIGHT HAS REAPPEARED
7.
REPLACE BATTERY COVER & CHARGE
8.
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
5
BATTERY BOX / BASE
3/8"-16 X 1-1/4" LG BOLTS
CASTER SUPPORT
LH SHOWN.
ATTACH CASTER SUPPORTS RH & LH
1.
TO BASE USING HARDWARE NOTED.
LM-200-930
LEFT HAND
CASTER SUPPORT
SHOWN
LM-200-931
3/8"-16 X 1-1/4" LG
BOLT, 4 PLACES.
BATTERY
BOX / BASE
ATTACH THE COLUMN TO THE BATTERY
1.
BOX / BASE USING HARDWARE NOTED.

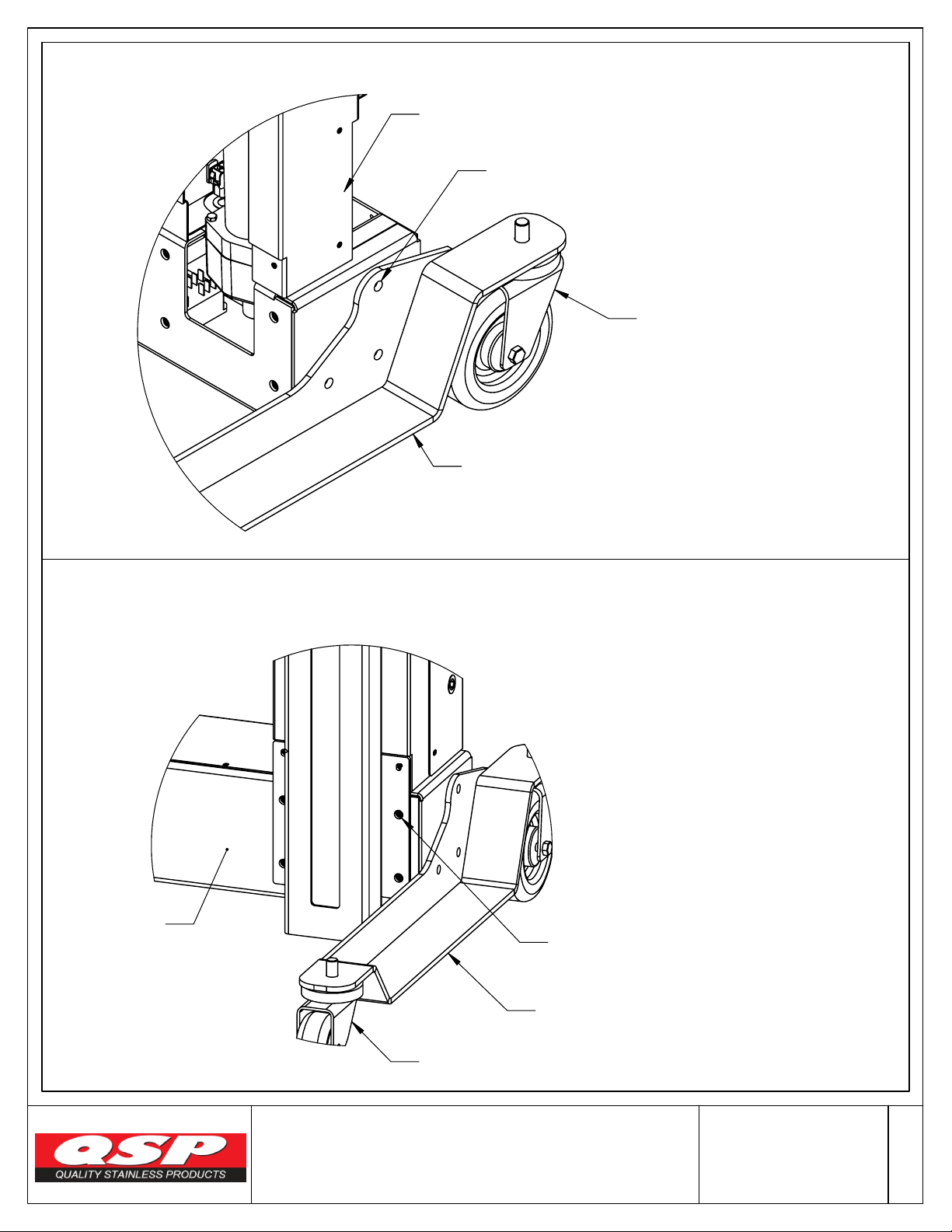

STEP #2 MAST INSTALLATION
STEP #1 CASTER & LEG INSTALLATION
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
6
ROLLER
SUPPORT
3/8"-16 X 3/4" LG
BOLT, WASHER
LOCK WASHER
2 PLACES
3/8"-16 X 7/8" LG
BOLT, WASHER
LOCK WASHER
2 PLACES
ROLLER
WHEEL FORK
ASSEMBLY
REAR COVER
RH COVER
TOOL TRAY
1/4"-20 X 5/8" LG
BOLT, WASHER
4 PLACES
CONTROL
ROCKER
SWITCH

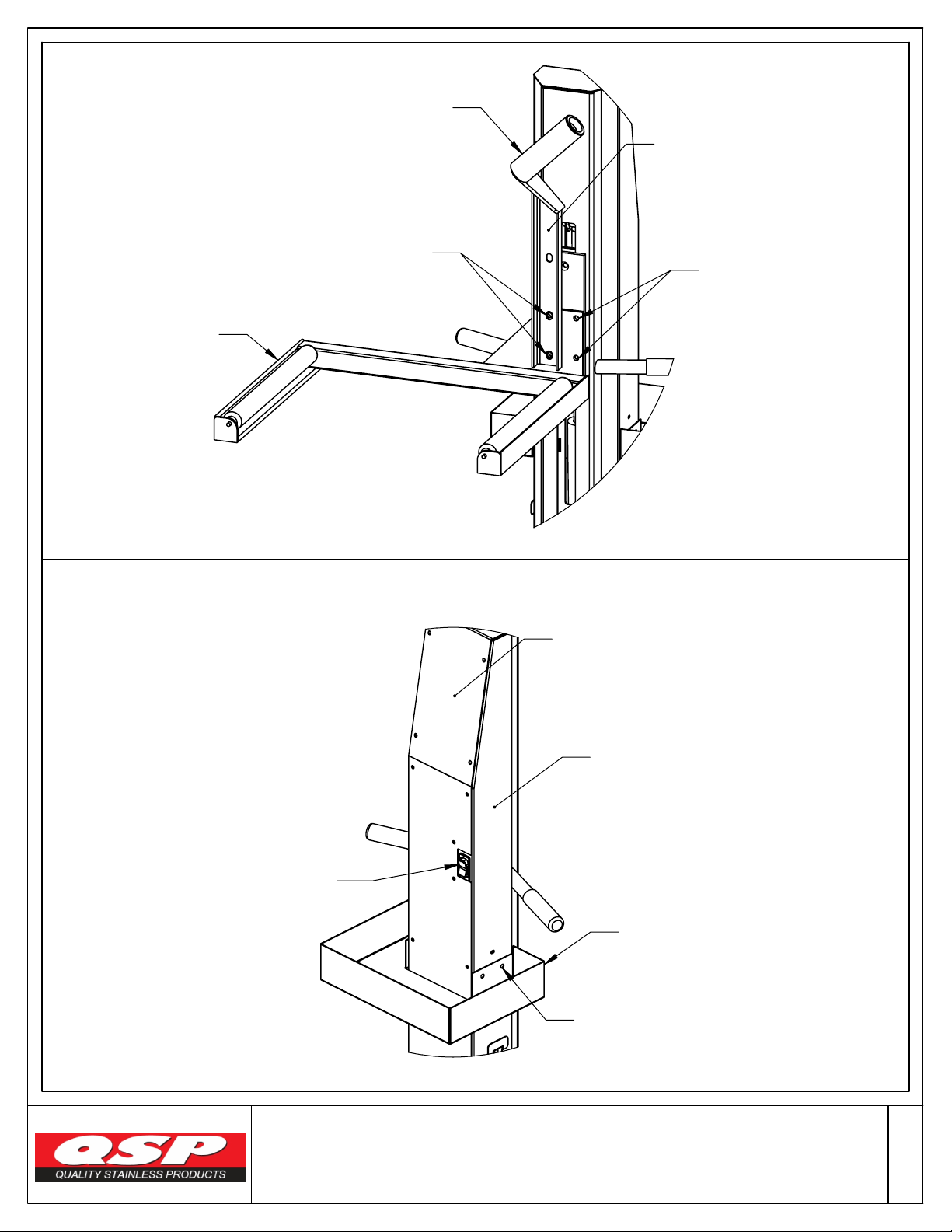

STEP #4 TOOL TRAY INSTALLATION.
STEP #3 FORK INSTALLATION
ATTACH WHEEL FORK ASSEMBLY
WITH HARDWARE NOTED. IMPROPER
LOCATION OF HARDWARE CAN CAUSE
INTERFERENCE OF BOLT WITH COLUMN.
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
7
CHARGER
CORD WRAP
BRACKET
POWER CORD
CONNECTION
8-32 X 3/8
PAN HEAD
SCREW
8-32 X 3/8
PAN HEAD
SCREW
8-32 X 3/8
PAN HEAD
SCREW
SPLIT
GROMMET
CHARGER
CABLE EXIT
CHARGER
CABLE
RECEPTACLE
8-32 X 3/8
PAN HEAD
SCREW (2)
LM-200-R2-400C
LM-200-R-174B

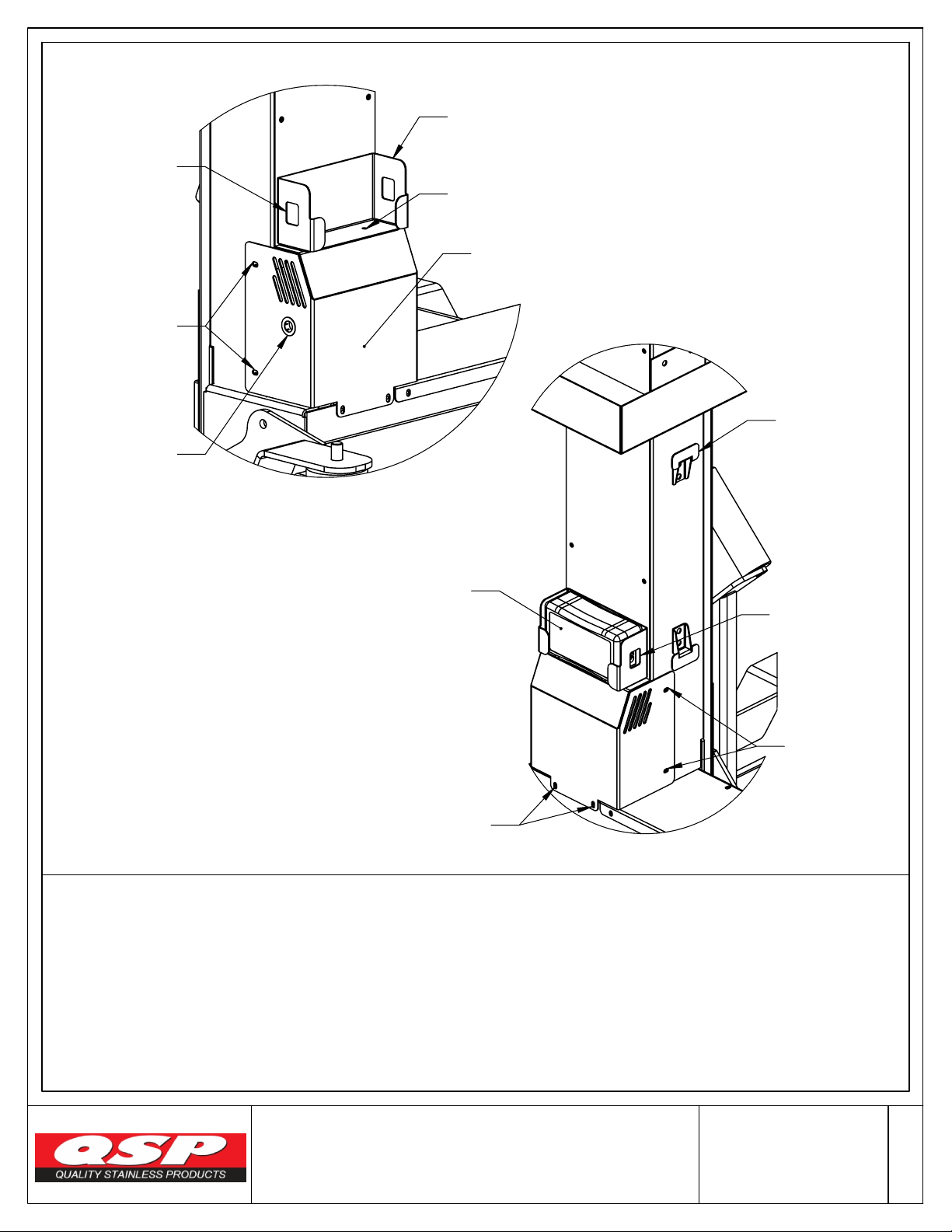

STEP #5 CHARGER CONNECTION & CORD STORAGE
SUGGESTED MAINTENANCE:
CHARGE UNIT NIGHTLY.
1.
PERIODICALLY CHECK THE TIGHTNESS OF ALL FASTENERS.
2.
PERIODICALLY CHECK THE CONDITION OF LIFTING CABLE. IF ANY FRAYED STRANDS
3.
ARE NOTICED REPLACE CABLE.
ROUTE CHARGER CORD THROUGH
1.
LM-200-R2-400C AND OUT THROUGH
HOLE, INSTALL SPLIT GROMMET & INSERT
INTO HOLE TO PROTECT CABLE
INSERT CHARGER INTO CRADLE
2.
PLUG IN CHARGER CORD
3.
PLUG IN POWER CORD & WRAP AROUND
4.
CORD WRAP BRACKETS
LM-200-R2 INSTALLATION &
ASSEMBLY INSTRUCTION
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
QSP. ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF QSP IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
8
