QSI 520 Manuel utilisateur

500 Series User Guide

Revision 1.1

March, 2007

Disclaimer:

The specifications in this document are subject to change without notice.

All trademarks mentioned in this document are the property of their respective owners,

and are used herein for informational purposes only.

Phone 888-QSI-4CCD • www.QSImaging.com

Table of Contents

1. GETTING STARTED

What’s In the Box? 2

Get to Know Your Camera 3

Install Software and Drivers 4

Confirm Installation and Camera Operation 4

Launch MaxIm LE 4

Connect the camera 5

Take an image 7

View the image 8

2. CAMERA FEATURES

AND OPERATION

Camera Attachment Options 9

Using SLR Lenses 10

Attach the camera to your telescope 10

Electrical Connections 11

DC Power Connector 11

USB Connector 12

Guider Control Port 12

Cooling the Camera 14

Standard Air Cooling 14

Liquid-Assisted Cooling 14

How Much Cooling Is Enough 15

Controlling the Cooler 16

Internal Color Filter Wheel 18

Advanced Setup Options 19

Camera Selection 20

Status Indicators 21

Imaging Options 21

Status and Notification 23

Camera Status Indication 23

Camera Error Indication 23

Audible Beeper 25

Imaging Application Messages 25

3. CCD IMAGING OVERVIEW

How CCDs work 26

Types of CCDs 26

Full-Frame CCDs 26

Interline transfer CCDs 27

Anti-Blooming CCDs 27

Microlenses 28

Single-shot color CCDs 28

Signal versus noise 29

Reducing noise in CCD images 30

Dark Frames 30

Flat Fields 32

Bias Frames 34

Stacking Images 35

Color images 36

4. TAKING IMAGES

Launch MaxIm LE 37

Camera Control Window 38

Cool the CCD 40

Focusing with MaxIm LE 41

Take a series of images 43

Image Calibration 45

ark Frames 46

Bias Frames 46

on in MaxIm LE 50

axIm LE 54

s in MaxIm LE 55

Using the internal Color Filter Wheel 61

Cont 62

5. GUIDING

Autoguider support in MaxIm LE 63

Using an AutoGuider 64

Using a QSI Camera as an AutoGuider 67

6. ACCESSORIES

T-mount adapter 69

2” nosepiece 69

1 ¼” nosepiece 69

C-mount adapter 69

LR lens adapter 70

iquid heat exchanger 70

ox 70

ENANCE

oving color filters 71

Cleaning the CCD cover glass 72

echnical support 73

Series Specifications 74

Take a single image 42

View the image in MaxIm LE 43

Flat Fields

Flat Darks

Manual Image Calibration 7

Subtract Dark Frames

Scale by Flat Fields

Automatic Calibrati

Calibrate Images in M

Combine Frame

Binning

Shutting down your camera

rolling with other software

Recirculating pump

Color filter wheel

Guider Breakout B

7. CARE & MAINT

Cleaning the exterior

Installing or rem

Cleaning the color filters

Recharging the desiccant 72

APPENDIC

Appendix A – 500

Appendix B – Warranty

QSI 500 SERIES USER GUIDE

Getting tStar ed

Thank you for your purchase of a QSI 500 Series Camera.

The QSI 500 Series family of t ermoel meras is designed

produce scientific-grade imag with wid ent linearity and l noise.

Your QSI 500 Series camera w ll provi properly treated and

o get the most fr your mend that you read this ser

ghly and follow the included

in a hurry to try out your new camera and are familiar with the general operation of

ed” section provides the basi

take yo r first i nd the

ed with MaxI LE fo .

ectrically cooled CCD ca to

e dynamic range, excell ow

i de years of service if

maintained. T om camera, we recom U

Guide thorou precautions.

If you’re

CCD cameras, this “Getting Start

setup your camera and u

c information you will need to

mage. Please refer to the full User Guide a

online help provid m r complete instructions

The QSI 500 Series Camera Family Showing Different Body Styles

Sectio

QSI 500 SERIES USER GUIDE

What’s In the Box?

Your QSI 500 Series camera was shipped in a water-tight Pelican case

foam to provide the ultimate in protection. Please take a few minutes to

camera to make sure that it has arrived in good condition, and that the c

items listed below. Note that additional items purchased at the time of o

included as well.

Camera body

epending on configuration

-Mount depending on configuration

Body cap T-Mount or C-Mount depending on configuration

(100-240VAC, 50-60Hz) with

detachable, region-specific AC power cord

ing:

py of MaxIm LE

with custom-cut

examine your

ase contains the

rder may be

Nosepiece 2” or 1 ¼” d

Mounting Adapter T-Mount or C

AC Power Adapter Universal AC power supply

USB Cable 10 ft. USB 2.0 cable

Guider Cable 14 ft. guider cable with modular connectors on each end

Tools Tool kit for camera maintenance

Documentation envelope containing the follow

Quick Start Guide

CD-ROM containing the Installation program, MaxIm LE, the USB and

camera drivers, and the Installation Guide and this User Guide in PDF format.

A document with the serial number for licensing your co

Open Pelican case showing QSI 500 Series camera and standard accessories

QSI 500 SERIES USER GUIDE

Get to Know Your Camera

and features of your camera.

Take a few minutes to familiarize yourself with the external

connections

The image above shows the major external features of a typical QSI 500 Series camera.

The depth of the Camera Cover on your camera may differ depending on the internal

options installed.

QSI 500 SERIES USER GUIDE

Install Software and Drivers

The USB drivers and associated software included on the installation CD-ROM must be

installed before connecting your QSI camera to your computer.

Note: cted to do so

during

Refer to the QSI 500 Series Camera Installation Guide for complete software and

tallation instructions.

m Installation and Camera Operation

cessful installation of the camera and the associated software is complete, you

n quickly test your camera with MaxIm LE if you choose. Leave the camera USB cable

and power supply connected, and follow the steps below.

Launch MaxIm LE

After installing the camera drivers and MaxIm LE from the Installation CD-ROM, launch

MaxIm LE by double-clicking the MaxIm LE icon on your desktop or by selecting

“Programs > MaxIm LE > MaxIm LE” from the Windows Start menu.

The first time you run MaxIm LE you will be asked to enter your temporary User

Registration information. Enter the Name, Email, Expiry dates and Serial number

information exactly as printed on the MaxIm LE License Information sheet included in the

documentation envelope with your camera.

Do not connect your camera to your computer until instru

the camera installation process.

hardware ins

Confir

After the suc

Caution: Do not enter your real name and email address. Enter the information

exactly as printed on the included MaxIm LE License Information sheet.

This license will work for 30 days.from the time it is installed. You must register direc

with Diffraction L

tly

imited to receive your permanent license. Select Register Online

from the Help Menu in MaxIm LE and follow the given directions to receive your permanent

license.

QSI 500 SERIES USER GUIDE

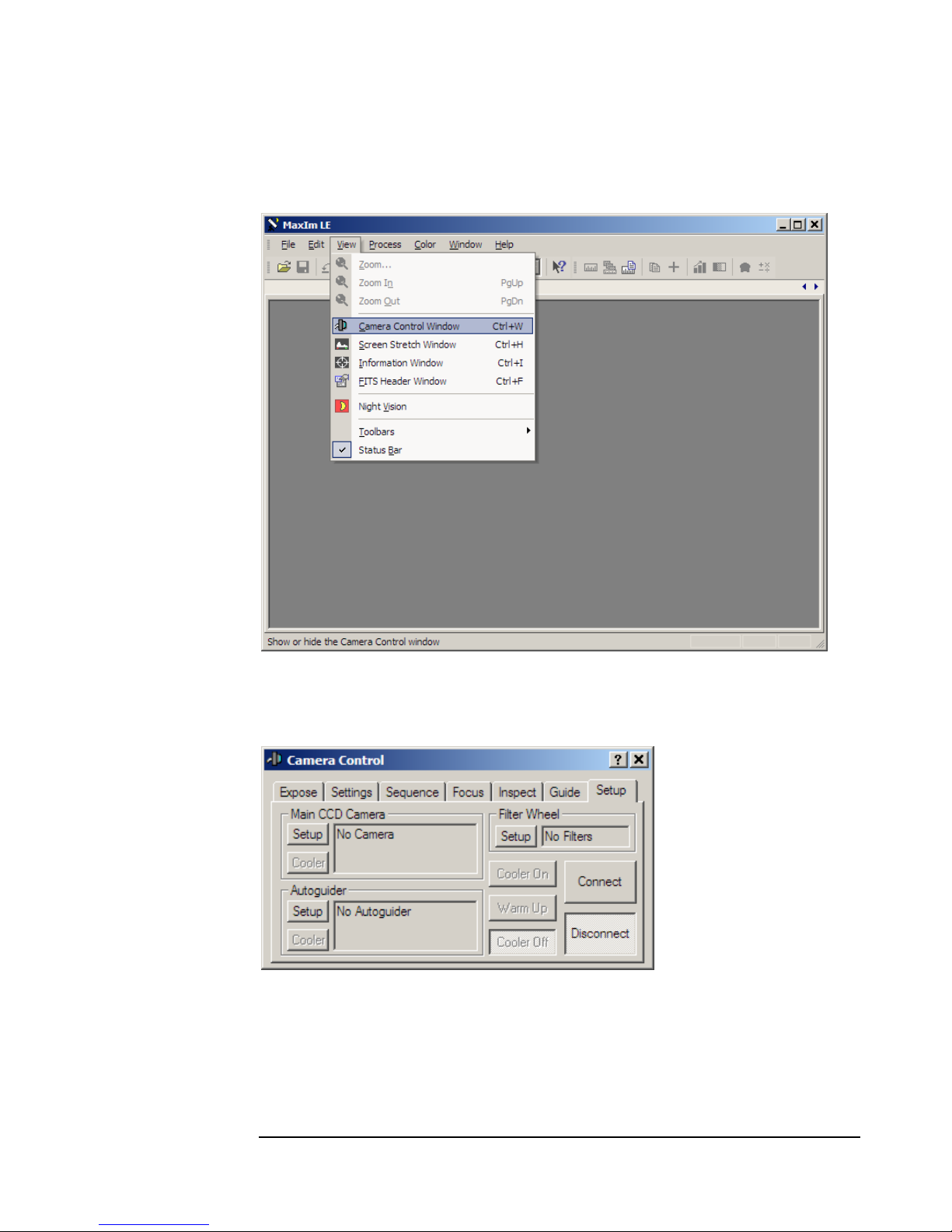

Connect the camera

Select “Camera Control Window” from the View menu to open the Camera Control

Window.

MaxIm will open the Camera Control window and display the Setup tab. After MaxIm is

installed it must be told which camera to use.

Click the “Setup” button in the upper left corner under Main CCD Camera.

QSI 500 SERIES USER GUIDE

Select “QSI Universal” from the Camera Model list box. Click OK.

That will take you back to the Camera Control Window. If you have a QSI camera with an

internal color filter wheel you’ll also need to tell MaxIm about that by clicking “Setup” under

“Filter Wheel” toward the upper right of the Setup tab.

Select “QSI Universal” as the filter wheel model. Click OK.

QSI 500 SERIES USER GUIDE

Click the “Connect” button to establish communication between MaxIm and your QSI

camera. If MaxIm fails to connect to the camera, double-check that power is supplied to the

camera and that the USB cable is securely connected. Once MaxIm connects to the

camera the Camera Control window will look like this:

Note: This example assumes the camera does not have a color filter wheel. If

you setup a filter wheel, “QSI Universal” will be displayed under Filter Wheel in

the dialog above.

Take an image

Click the “Expose” tab along the top of the Camera Control window.

There are several fields and buttons in this window. On the left is a series of radio buttons

to select the type of frame to expose. The options are Light, Bias, Dark and Flat. Click the

button next to “Bias” to select a bias frame. A bias frame is an exposure with the shutter

closed of essentially zero exposure time. The Minutes and Seconds will be grayed

indicating that the exposure time can’t be modified for a bias frame. Make sure the Delay is

set to “0”. Click “Expose” to take one bias frame.
