QQZM T5008 Manuel utilisateur

www.zmvideo.com

User Manual

Full HD Cube Wireless IP Network Camera

Model: T5008

www.zmvideo.com

STATEMENT

This user manual may not describe some technical item in details / correctly or there is

some typographical error. If you can’t solve your problem according to this manual, please call /

email us directly.

This manual will be updated aperiodically without any prior notice.

PRECAUTIONS FOR USE

1. OperatingEnvironment

Keep away from high temperature environment and direct sunlight

Keep it dry. Power it off when it watered

Device should not be subjected to excessive heat(-10℃~+50℃) or moisture (85%RH)

Device should be horizontal installation or wall mount installation.

Device should avoid installation inviolent shock place

Please use Power Adapter and other accessories come with camera

2. Transportation

Please use the original carton/box when carry the camera in case damage the device

caused by the shaking and accident:

Avoid transporting in overheated / supper cooled environment incase of dew in the device

and influence service life;

Avoid live-line carrying the camera in case damage the main board.

3. PasswordProtection:

CHANGE Camera Password and REMEMBER the New One!

Setthe PC enter password to prevent the video/camera setting leakage.

www.zmvideo.com

Table of Contents

1 Overview .............................................................................................................................. 4

2. Access the Wireless IP Camera....................................................................................6

2.1 Access the Wireless IP Camera through App...........................................................................6

2.1.1 Download and Install App: .........................................................................................6

2.1.2 Connect Camera to Wi-Fi with Smart Link Function .......................................................6

2.1.3 Connect Camera to Wi-Fi with Access Point Function ....................................................8

2.2 Access the Wireless IP Camera via PC CMS........................................................................... 10

2.2.1 Download and Install PC CMS ................................................................................... 10

2.2.2 Login IP Camera Client ............................................................................................. 10

2.2.3 Adding IP Camera Device ......................................................................................... 11

3. Operation of Wireless IP Camera by CMS ...............................................................13

3.1 Wi-Fi Setting .................................................................................................................... 13

3.2 PT and Color Setting.......................................................................................................... 14

3.2.1 PT Control Panel ..................................................................................................... 14

3.2.2 Color Control Panel ................................................................................................. 14

3.2.3 IR-Cut Filter Control ................................................................................................ 14

3.3 Record, Snapshot and Two way Audio ................................................................................. 15

3.3.1 Operation of alarm, snapshot and two way audio........................................................ 15

3.3.2 Record onto SD Card................................................................................................ 15

3.3.3 Schedule Record ..................................................................................................... 16

3.3.4 Setting Picture and video file path............................................................................. 16

3.4 Playback Video ................................................................................................................. 17

3.4.1 Playback Video Recorded onto Local Computer .......................................................... 17

3.4.2 Remote Playback Video from SD Card........................................................................ 17

3.5 OSD Setting...................................................................................................................... 18

3.6 Time Setting .................................................................................................................... 19

3.7 Camera Password and Factory Reset ................................................................................... 19

3.7.1 Password of Camera................................................................................................ 19

3.7.2 Factory Reset.......................................................................................................... 20

3.7.3 Password of Client Software ..................................................................................... 20

4. Operation of Wireless IP Camera by App.................................................................21

4.1 Wi-Fi Setting .................................................................................................................... 21

4.2 Basic Operation ................................................................................................................ 21

4.3 Change Password.............................................................................................................. 21

4.4 Zoom .............................................................................................................................. 22

4.5 Alarm Setting ................................................................................................................... 22

4.6 Reverse P/T...................................................................................................................... 22

4.7 Schedule Alarm ................................................................................................................ 23

4.8 More Setting.................................................................................................................... 23

4.8.1 Network Setting...................................................................................................... 24

4.8.2 OSD Setting............................................................................................................ 24

4.8.3 Restore to Factory Setting ........................................................................................ 24

4.8.4 SD Card Management.............................................................................................. 25

4.9 Picture preview and video playback .................................................................................... 25

4.10 Alarm Push Setting and Live Stream .................................................................................. 26

www.zmvideo.com

1 Overview

The N5008 Cube Wireless IP Camera is an integrated wireless IP Network Digital Camera with a

2.0MP (1920*1080) CMOS sensor, Wireless unit, IR Board etc. It works basing on the TCP/IP protocol

and P2P technology, help to bring the quality video to your PC/Tablet/Laptop/Smart Phone in real time

both in Local Network and over the Internet simply. The camera is designed for indoor surveillance

application such as the home, school, office, shop, hospital, warehouse etc.

It uses the high-performance chip to realize the audio & video acquisition, compression and

transmission. The industry-standard H.264 video compression technology helps to reduce the video file

sizes; contributes to less bandwidth, higher picture quality and smoother video transmission. The free

Windows OS Central Management System and Android/IOS App will also help to access to camera

anytime anywhere.

1.1 Key Feature

Standard H.264 video compression algorithm to meet the transmission of high definition

video under narrow bandwidth network;

Supports 3-level Video Quality Setting;

Advanced P2P technology supports Plug and Play;

Support Voice Prompt;

Resolution: 2.0 Mega-Pixel (1920×1080);

IR night vision (Range:8 Meter);

Supports IR-Cut and the auto/manual filter change;

Providing free Windows OS Central Management Software to manage multi-cameras;

Providing Phone APPs for Android and IOS users;

Support 4 Time Digital Zoom on PC;

Supports Remote/Local snapshot, Two-way Audio, Video Recording anytime anywhere;

Support Remote/Local Video Playback;

6-zone Motion detection alert via email or Push Notification by Smartphone;

Support s Color(Brightness, Contrast, Saturation) Adjustment;

Supports OSD Setting, Time Setting and Password Change;

Wi-Fi compliant with wireless standards IEEE 802.11b/g/n;

Supports Access Point Connection and Smart link Wi-Fi Connection;

Supports WPA and WPA2 Encryption;

Supports multiple network protocols: TCP /IP /UDP /DHCP /DDNS / UPNP/NTP;

www.zmvideo.com

1.2 Read BeforeUse

Please check all contents received are complete according to the Package Contents below. Before

the Wireless IP Camera is installed, please read this manual intensively and follow instructions step by

step to avoid damage due to faulty assembly or transportation.

1.3 PackageContents

Wireless IP Camera ×1

Mounting Bracket ×1

Power Adaptor ×1

Micro USB Cable ×1

Screws ×1

CD ×1

Quick Start Guide ×1

Certificate ofApproval ×1

1.4 PhysicalDescription

Mega Pixel Lens

Light Dependent Resistor

Hidden IR Led

Power Port

Speaker

128G TF Card Slot

www.zmvideo.com

2. Access the Wireless IP Camera

2.1 Access the Wireless IP Camera through App

2.1.1 Download and Install App:

Download and install “Qvision”from CD Or scan QR Code to install below:

2.1.2 Connect Camera to Wi-Fi with Smart Link Function

Open WLAN Service in Smartphoneand Connect to the Wi-Fi like below:

Take camera close to wireless router and power on Camera. 20s later, A voice will

raise ”Please use smartphone client to add device and configure Wi-Fi network”;

Open ”Qvision”app and press button “+”to add camera:

Scan to add the camera device

Android App

IOS App

www.zmvideo.com

Press “Configure Wi-FiNetwork”button and click “Hear the Voice”button

Enter Wi-Fi Password, operate according to the device voice prompt like below:

www.zmvideo.com

2.1.3 Connect Camera to Wi-Fi with Access Point Function

Set your smart phone as a portable hotspot device (SSID:qqzm1224 and

Password:12345678) like below:

Power on camera. Then the camera will connect to the portable hotspot

automatically. Then open “Qvision” app, scan to Add the Camera to App

Visit the Camera

www.zmvideo.com

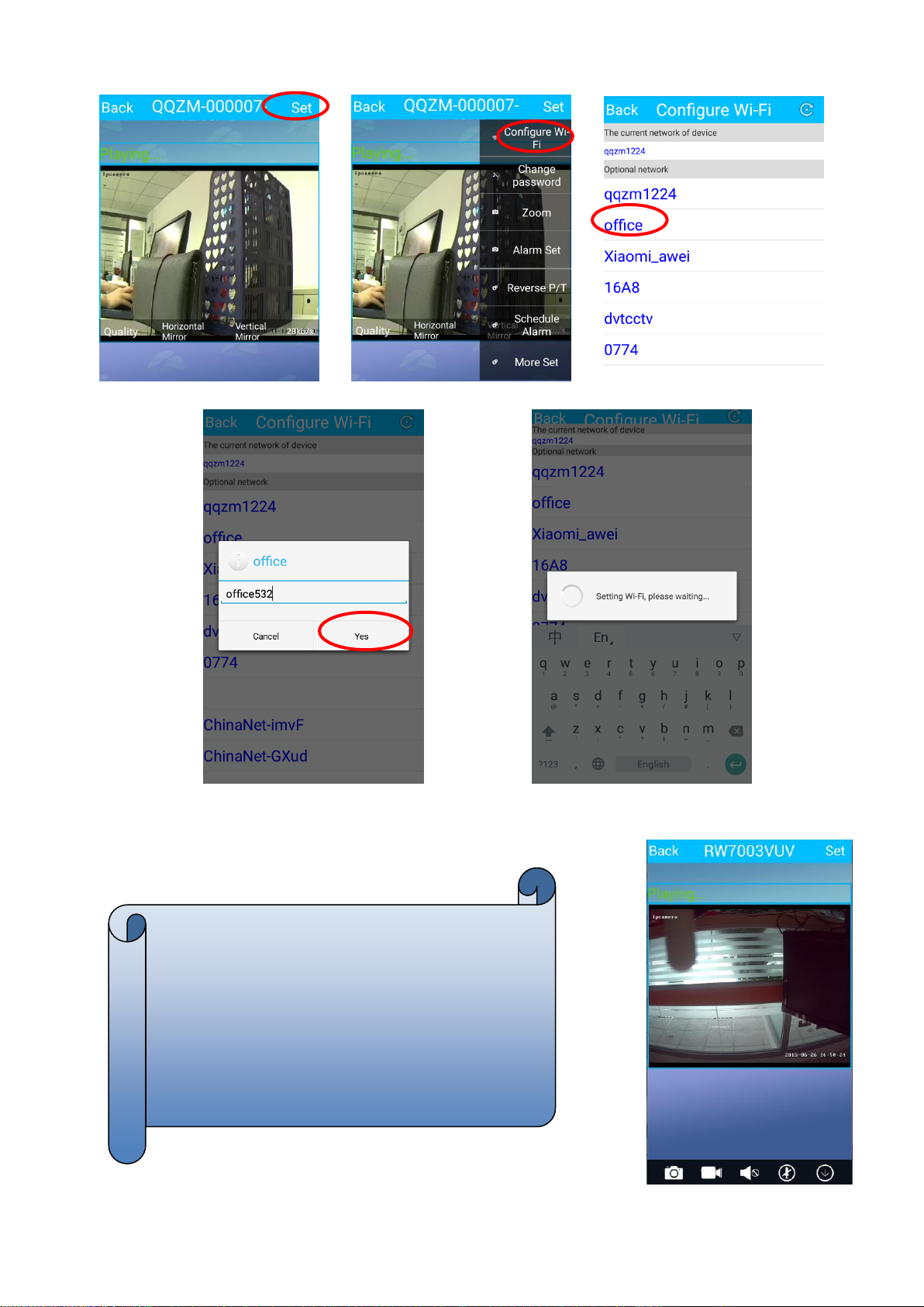

Click “Setting”and Select the “Configure Wi-Fi”Tag to search the Wi-FiSSID

Select the right Wi-Fi and Input the Password to set it up.

After setting, close app and connect your smart phone to wireless router. Open

“Qvision” and begin monitoring via smart phone in LAN/WAN

Note:

Please make sure your Wi-Fi SSID and

Password have no special character,

such as space, question mark etc. It is

suggested that the Wi-Fi will work

more smoothly with number, letter or

the combination of number and letter.

www.zmvideo.com

2.2 Access the Wireless IP Camera via PC CMS

2.2.1 Download and Install PC CMS

The Wireless IP Camera supports the Windows OS system; you can get the

installation package on the CD. The name of Windows CMS is “IpCamV”And we will

show how to use the “IpCamV”in the following

The installation package for “IpCamV”is in the directory of “1. Camera Monitoring

Software \For Windows OS”.

After finishing installation, the icon like below will display on your desktop

2.2.2 Login IP Camera Client

Double click the icon to login in; you will see the following interface

After click “Login”, you will see the client interface as below:

Default is “admin”

Default is “123456”

Select the Language
