IQ Outdoor Plug-PG Installation Guide

Safety information

WARNING:

• Only install and use this product in accordance with applicable electrical codes and regulations

in your region.

• The device is suitable for outdoor and damp locations. However, you should not immerse the

device in water.

• Install the device above ground level at a minimum of 4.7 ft or 1.4 m with the outlets facing

downwards when outdoors.

• The total current limit of the device is 15 Amps. To prevent damage, do not exceed the 15 Amps

limit. A direct short on the output may cause the device to malfunction.

• Do not attempt to disassemble or repair the product yourself. Doing so may result in electric

shock and will void the limited warranty. If you require assistance, contact our after-sales

services.

• IP65 protection can only be achieved when the rubber cover blocks the outlets.

• Ensure that the plugs are completely inserted into the socket without any metal prongs

exposed.

• Ensure that each socket is covered when not in use. To properly use the rubber cover, turn the

IQ Outdoor Plug-PG with the sockets facing up and press firmly on the rubber covers.

• Make sure to use this product together with a 15A circuit breaker.

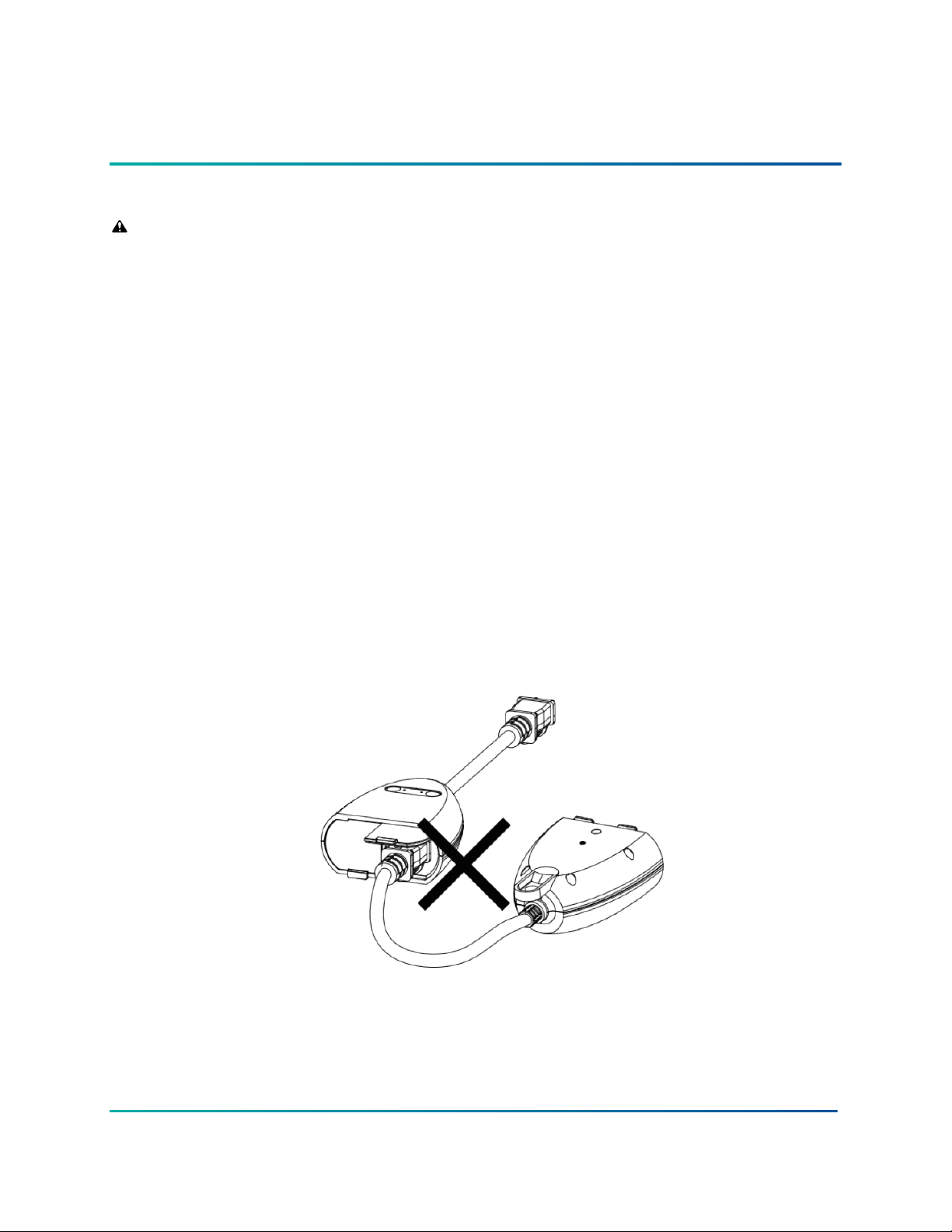

•Figure 1: Do not plug smart devices into each other

D-308966

*D-308966*

D-308966 Rev 00

D-308966 IQ Outdoor Plug-PG Install Guide

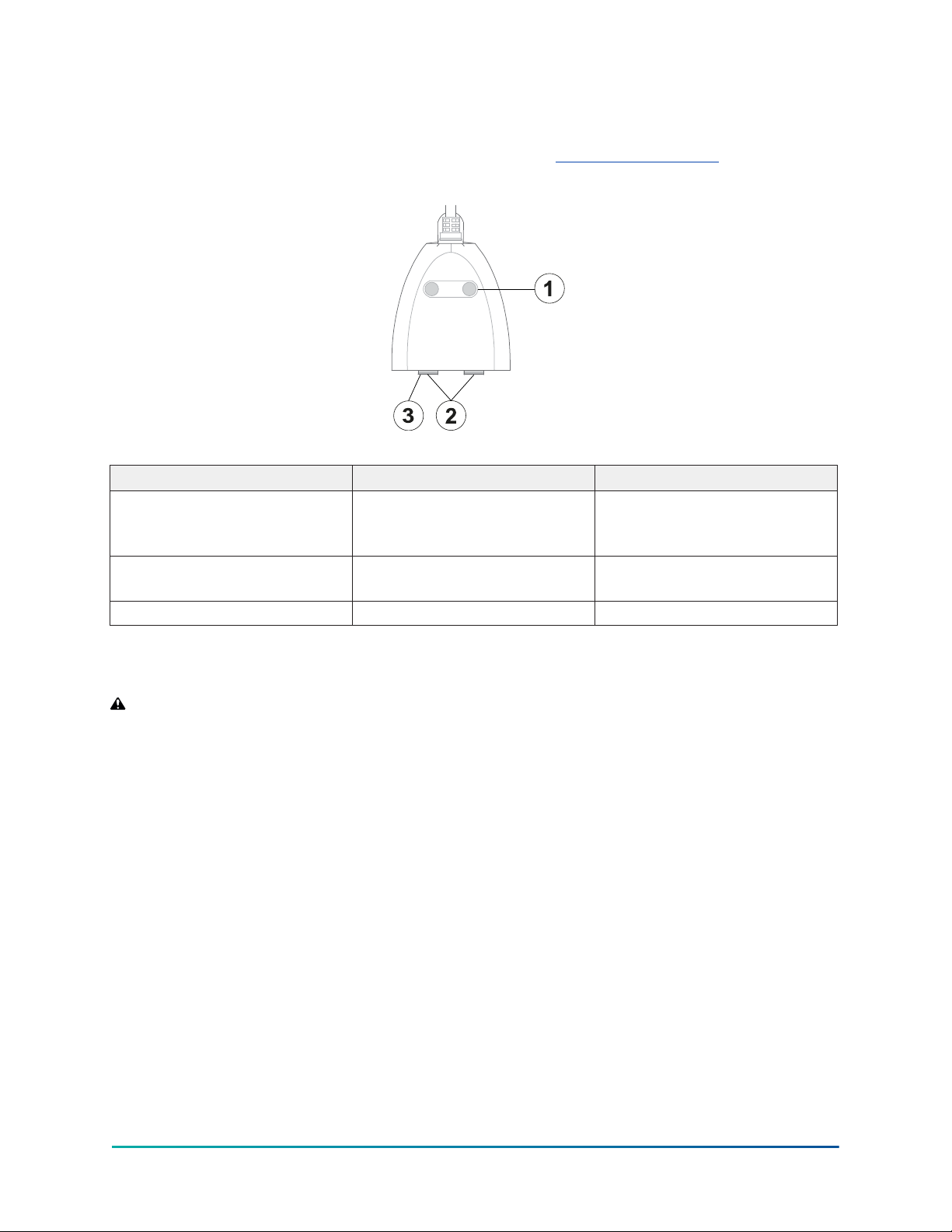

Overview

With the IQ Outdoor Plug-PG you can control your devices remotely through your control panel. For

panels that are compatible with the IQ Outdoor Plug-PG, see https://bit.ly/3CO71g8.

Table 1: Overview

Callout Description Function

1 LED power buttons Press the left or right button to

turn the corresponding socket

on or off as required.

2 Power socket Insert the plug of the appliance

you want to control here.

3 Rubber cover Cover for the power socket.

Installing the device

WARNING: Do not link more than one extension lead per outlet. Doing so significantly raises

the risk of overloading the outlet.

• Plug your device into a power outlet according to the safety information provided. For more

information, see Safety information.

Enrolling the device with Auto Learn Enroll

Before you begin: Ensure power is connected to the device.

1. On the IQ panel menu, select Settings > Advanced Settings > Enter Installer Code >

Installation > Devices > Automation > Auto Learn Devices.

2. Press and hold both buttons on the device for 2 seconds or until the LED turns orange.

3. Release the buttons and the LED turns off. The device enters enrollment mode, and the panel is

notified of the device initiating enrollment.

4. When the device is recognized, tap OK when the pop-up window appears. Enter the device

details in the next configuration pop-up window.

5. Optional: Enter the PIN code on the product label for increased security during enrollment. The

device does not pair with the panel if you enter an incorrect PIN code.

6. Tap Pair.

IQ Outdoor Plug-PG Installation Guide2

D-308966 IQ Outdoor Plug-PG Install Guide

7. If the device does not automatically enroll, perform a factory reset as indicated in Resetting the

device of the user manual.

Result: The device enrolls successfully.

Enrolling the device with Add PowerG

Before you begin: Ensure power is not connected to the device.

You can enroll the device in the IQ panel using the Add PowerG feature or scan the QR code on

the box. To enroll the device in the IQ panel using the Add PowerG feature, complete the following

steps:

1. On the IQ panel menu, select Settings > Advanced Settings > Enter Installer Code >

Installation > Devices > Automation > Add PowerG.

2. Enter the sensor id in the Sensor ID field or scan the QR code on the box label to enroll the

device.

3. Optional: Enter the PIN code on the product label for increased security during enrollment. The

device does not pair with the panel if you enter an incorrect PIN code.

4. Tap Pair.

5. Plug in and power on the device.

Result: The device enrolls successfully.

Considerations when you enroll a device

• If the buttons remain pressed after the light is turned off, the device returns to low-power

mode.

• If the connection is successful, the PowerG signal strength displays on the device. For more

information, see Table 2.

• If the connection fails, a not enrolled status indicates on the control panel.

• The IQ Outdoor Plug-PG enrolls as 2 devices that are individually controlled.

Checking the PowerG signal strength of the device

1. Ensure that the IQ Outdoor Plug-PG is powered on.

2. On the IQ panel, tap Settings > Advanced Settings > Enter Installer Code > Installation >

System Tests > PowerG Test > Run.

PowerG signal strength indication

Table 2: PowerG signal strength

Signal strength LED colour and pattern

Strong LED turns green and flashes 3 times

Good LED turns orange and flashes 3 times

Poor LED turns red and flashes 3 times

3IQ Outdoor Plug-PG Installation Guide

D-308966 IQ Outdoor Plug-PG Install Guide

LED indication and configuration

Table 3: Device configuration state

# Configuration Definition

1 Activation LED enabled Green LED appears when the load is on. Green LED

does not appear when the load is off.

2 Activation LED disabled LED is always off.

Note: The PowerG signal strength test blinking

overrides the Activation LED disabled mode.

Note: If the connection fails and the LED indicator turns off, reset the device to factory

default. For more information see, Resetting the device.

Additional behavior of the device

Behavior Corresponding behavior

Turn the plug on or off using the built-in button IQ panel updates the status within 10 seconds.

When enrolled The IQ Panel registers the device as a PowerG

device.

When power is removed from the device The IQ panel updates the device status to

unreachable within 14 minutes.

When power is restored to the device The IQ panel automatically updates the device

status to normal within 5 minutes.

When communication is lost and then restored The IQ panel automatically updates the device

status to normal within 5 minutes.

Resetting the device

To reset the IQ Outdoor Plug-PG to factory default complete the following steps:

1. Press and hold both buttons until the LED turns orange for 2 seconds.

2. Release both buttons and then press and hold again for 5 seconds.

3. After 5 seconds the LED turns red and flashes 3 times to indicate the device is now back to

factory default.

Note:

- After performing a reset, you must manually enroll the device. For more information,

see Enrolling the device with Auto Learn Enroll.

- After a device is reset back to factory default, you must delete it from the panel and

re-enroll the device.

Troubleshooting

The IQ Outdoor Plug-PG is not connecting to the IQ panel

• Unplug the IQ Outdoor Plug-PG from the outlet and plug it back in.

• Check other PowerG devices if they are detected by the IQ panel.

• Ensure that the IQ Outdoor Plug-PG is not enrolled in other IQ panels.

IQ Outdoor Plug-PG Installation Guide4

D-308966 IQ Outdoor Plug-PG Install Guide

• Perform a factory reset on the IQ Outdoor Plug-PG. Delete the IQ Outdoor Plug-PG from the IQ

panel and re-enroll it.

The IQ Outdoor Plug-PG is not working with certain devices

• Check if the device you want to control is compatible with the IQ Outdoor Plug-PG.

• Ensure that the device is properly plugged into the IQ Outdoor Plug-PG and is properly

connected to the power source.

• Check if there is any interference from other electronic devices in the area that could be

affecting the connection.

• Ensure the device you want to control works in an outlet without the IQ Outdoor Plug-PG.

Specifications

Frequency 912 to 919 MHz

Communication protocol PowerG

Input voltage 120VAC 60Hz

Output current 120 VAC @60Hz, Max 15A in total for two outlets

Maximum load power (Resistive load) 1800W @120V

Maximum load power (Inductive load) 1/3 HP 250W

Standby power consumption <1W

Operating temperature -30°C to 50°C or -22°F to 122°F

Storage temperature -30°C to 60°C or -22°F to 140°F

Operating humidity 10% to 90% RH, Non-condensing

Dimensions 128 mm x 94.3 mm x 46 mm or 5.04 in. x 3.71 in.

x 1.81 in. (excluding power cord)

Product weight 273.5 g

Color Black

Tamper resistant Yes

Compliance with standards

FCC and ISED Canada Compliance Statement

This device complies with FCC Rules Part 15 and with ISED license-exempt RSS standard(s).

Operation is subject to two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

that may be received or that may cause undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts

de licence. L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter

tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

5IQ Outdoor Plug-PG Installation Guide

D-308966 IQ Outdoor Plug-PG Install Guide

To comply with FCC Section 1.1310 for human exposure to radio frequency electromagnetic fields

and IC requirements, implement the following instruction:

A distance of at least 20 cm. between the equipment and all persons should be maintained during

the operation of the equipment.

Le dispositif doit être placé à une distance d'au moins 20 cm à partir de toutes les personnes au

cours de son fonctionnement normal. Les antennes utilisées pour ce produit ne doivent pas être

situés ou exploités conjointement avec une autre antenne ou transmetteur.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.

WARNING: Changes or modifications to this equipment not expressly approved by the party

responsible for compliance (DSC.) could void the user’s authority to operate the equipment.

UL/ULC notes

The IQ Outdoor Plug-PG has been listed by ETL for home automation applications in accordance

with the requirements in the Standards UL 60730-1 Automatic Electrical Controls. For UL/ ULC

installations use this device only in conjunction with compatible wireless receivers: Qolsys IQ4, IQ4

Hub. After installation, verify the product functionality in conjunction with the compatible receiver

used.

Safety Instructions

Read the safety information before you install the equipment.

The detector shall be installed and used within an environment that provides the pollution degree

max 2 and over voltages category II in non-hazardous locations only. This product is to be installed

or used in accordance with local electrical codes and regulations.

W.E.E.E Product recycling declaration

IQ Outdoor Plug-PG Installation Guide6

D-308966 IQ Outdoor Plug-PG Install Guide

For information regarding the recycling of this product you must contact the

company from which you originally purchased it. If you are discarding this

product and not returning it for repair then you must ensure that it is returned

as identified by your supplier. This product is not to be thrown away with

everyday waste.

Directive 2012/19/EU Waste Electrical and Electronic Equipment.

Limited Warranty and EULA

To access Warranty and EULA information, access the following link: https://bit.ly/3CO71g8 or scan

the following QR code:

Technical support

Intrusion Tech support: +1- 855-476-5797 #2 or 1-800-387-3630

7IQ Outdoor Plug-PG Installation Guide

D-308966 IQ Outdoor Plug-PG Install Guide

trademarks. Unauthorized use is strictly prohibited.

D-308966 IQ Outdoor Plug-PG Install Guide

www.johnsoncontrols.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels QOLSYS Adaptateur

QOLSYS

QOLSYS QS1605-840 Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
