1. Preface

About This Guide

This guide provides information on the QNAP TS-x31K NAS and step-by-step instructions on installing the

hardware. It also provides instructions on basic operations and troubleshooting information.

Audience

This document is intended for consumers and storage administrators. This guide assumes that the user has

a basic understanding of storage and backup concepts.

Document Conventions

Symbol Description

Notes provide default configuration settings and other supplementary

information.

Important notes provide information on required configuration settings and other

critical information.

Tips provide recommendations or alternative methods of performing tasks or

configuring settings.

Warnings provide information that, when ignored, may result in potential loss,

injury, or even death.

TS-x31K User Guide

Preface 3

2. Product Overview

This chapter provides basic information about the QNAP TS-x31K NAS.

About the TS-x31K

The TS-x31K is powered by Annapurna Labs Alpine AL-214 ARMv7 processors for multi-tasking. The TS-

x31K ensures data security and performance with built-in AES 256-bit encryption engines. It features a USB

One Touch Copy port for quick and convenient backup and data transfer. The TS-x31K is available in 1-drive

bay, 2-drive bay, and 4-drive bay models that support SATA 6 Gbps data transfer. The TS-x31K series NAS

with the exception of the 1-drive bay model, offers two Gigabit Ethernet ports (two GbE RJ45 ports) for

optimal throughput and streaming multimedia content while on the move.

Hardware Specifications

Warning

• If your QNAP product has hardware defects, return the product to QNAP or a QNAP-

authorized service center for maintenance or replacement. Any attempt to repair or

perform maintenance procedures on the product by you or an unauthorized third-party

invalidates the warranty.

• QNAP is not responsible for any damage or data loss caused by unauthorized

modifications and installation of unsupported third-party applications.

For details, see the QNAP Warranty Terms and Conditions.

Ordering P/N Drive bays Memory Power supply

TS-131K 1 1 GB Single

TS-231K 2 1 GB Single

TS-431K 4 1 GB Single

Component TS-131K TS-231K TS-431K

Processor

CPU Annapurnalabs Labs Alpine AL-214 ARMv7

Frequency 4-core 1.7 GHz

Architecture ARM 32-bit

Encryption engine AES-256

Memory

Pre-installed memory 1 GB RAM: 1GB DDR3

Note

This memory is not expandable.

Maximum memory 1 GB RAM: 1GB

Flash memory 512 MB (Dual boot OS protection)

Storage

Drive bays 1 x 3.5-inch SATA 6

Gbps

2 x 3.5-inch SATA 6 Gbps 4 x 3.5-inch SATA 6 Gbps

TS-x31K User Guide

Product Overview 4

Component TS-131K TS-231K TS-431K

Drive compatibility 3.5-inch bays:

• 3.5-inch SATA hard disk drives

2.5-inch bays:

• 2.5-inch SATA hard disk drives

• 2.5-inch SATA solid-state drives

SSD cache acceleration

support

• 3.5-inch drive bays:1 • 3.5-inch drive bays:1

to 2

• 3.5-inch drive bays:1

to 4

Hot-swapping Supported

Network

Gigabit Ethernet ports 1 x GbE RJ45 2 x GbE RJ45

External I/O Ports & Expansion Slots

USB ports Front:

1 x USB 3.2 Gen 1 (5 Gbps)

Note

This USB port supports One Touch Copy.

Rear:

2 x USB 3.2 Gen 1 (5 Gbps)

Interface

Buttons • Power

• Reset

• USB One Touch Copy

Dimensions

Form factor Tower

Dimensions (H x W x D) 169 x 73 x 219 mm

6.65 x 2.87 x 8.62 in

169 x 102 x 219 mm

6.65 x 4.02 x 8.62 in

169 x 160 x 219 mm

6.65 x 6.3 x 8.62 in

Net weight 1.04 kg (2.29 lbs) 1.28 kg (2.82 lbs) 3 kg (6.61 lbs)

Others

Power supply unit 36W, 100-240V DC,

50/60 Hz

60W, 100-240V DC,

50/60 Hz

90W, 100-240V DC,

50/60 Hz

System battery CR2032 lithium battery (3V, 225 mAh)

Sound level 16.0 dB(A) 22.1 dB(A) 23.2 dB(A)

Note

The sound level was tested at a bystander position, which is

within one meter of the NAS. The test NAS operated at low

speed with the maximum number of drives installed.

Fans System: 1 x 50 mm, 12V

DC smart fan

System: 1 x 70 mm, 12V

DC smart fan

System: 1 x 120 mm,

12V DC smart fan

Operating temperature 0˚C to 40˚C (32˚F to 104˚F)

Relative humidity • Non-condensing relative humidity: 5% to 95%

• Wet-bulb temperature: 27˚C (80.6˚F)

TS-x31K User Guide

Product Overview 5

Component TS-131K TS-231K TS-431K

Security slot Kensington security slot

Components

Front Panel

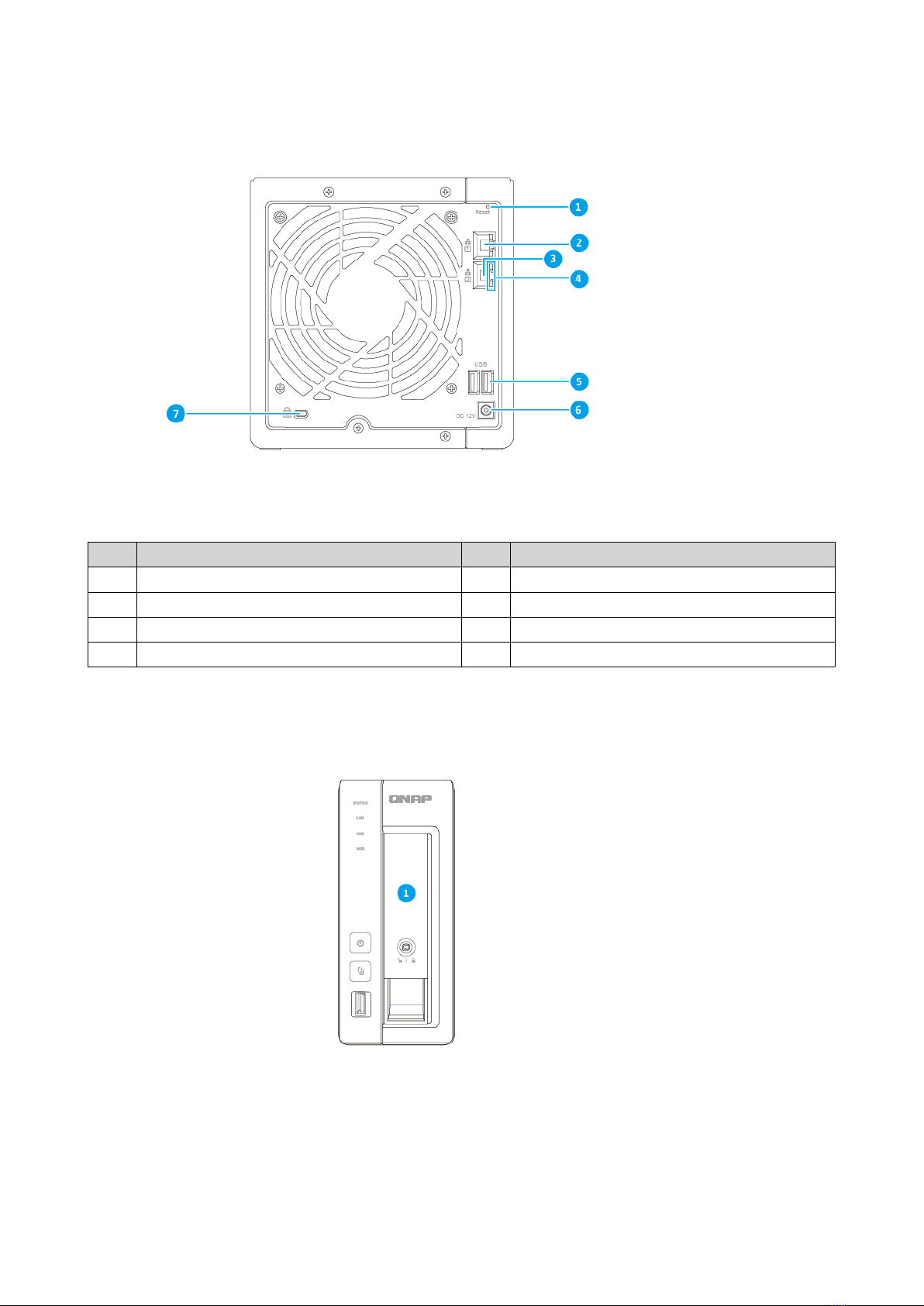

TS-131K

No. Component No. Component

1 Status LED 5 Power button

2 LAN LED 6 USB One Touch Copy button

3 USB LED 7 USB 3.2 Gen 1 One Touch Copy Type-A port

4 Drive LED - -

TS-x31K User Guide

Product Overview 6

TS-231K

No. Component No. Component

1 Status LED 5 Drive 2 LED

2 LAN LED 6 Power button

3 USB LED 7 USB One Touch Copy button

4 Drive 1 LED 8 USB 3.2 Gen 1 One Touch Copy Type-A port

TS-431K

No. Component No. Component

1 Status LED 6 Drive 3 LED

2 LAN LED 7 Drive 4 LED

TS-x31K User Guide

Product Overview 7

No. Component No. Component

3 USB LED 8 Power button

4 Drive 1 LED 9 USB One Touch Copy button

5 Drive 2 LED 10 USB 3.2 Gen 1 One Touch Copy Type-A port

Rear Panel

TS-131K

No. Component No. Component

1 Reset button 4 USB 3.2 Gen 1 Type-A ports

2 Gigabit Ethernet Port (RJ45) 5 Power input

3 Gigabit Ethernet LEDs 6 Kensington security slot

TS-x31K User Guide

Product Overview 8

TS-231K, TS-431K

No. Component No. Component

1 Reset button 5 USB 3.2 Gen 1 Type-A ports

2 Gigabit Ethernet Port 1 (RJ45) 6 Power input

3 Gigabit Ethernet Port 2 (RJ45) 7 Kensington security slot

4 Gigabit Ethernet LEDs - -

Drive Numbering

TS-131K

TS-x31K User Guide

Product Overview 9
