LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 1/ 12 V1.0
MSP0962&MSP0963
0.96inch IPS TFT SPI Display Module
Specification
ShenZhen QDtech electronic technology Co.,LTD.
REV
Record
Date
V1.0
First Release
Sept-25-2023
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 2/ 12 V1.0
CONTENTS
1. GENERAL DESCRIPTION ...............................................................................3
1.1.Product Introduction .......................................................................................................... 3
1.2.Image .................................................................................................................................. 3
1.3.Accessory List .................................................................................................................... 4
2. PRODUCT FEATURES .......................................................................................... 5
2.1.Feature Description ........................................................................................................... 5
3. PRODUCT PARAMETERS ................................................................................. 5
3.1.TFT Parameters ................................................................................................................ 5
3.2.Size Parameters ................................................................................................................ 6
3.3.Electrical parameters ........................................................................................................ 6
3.4.Other Parameters .............................................................................................................. 6
4. PRODUCT OUTLINE DRAWING .................................................................... 7
4.1.MSP0963(With Glass Cover Plate) Outline Drawing ................................................... 7
4.2.MSP0962(without Glass Cover Plate) Outline Drawing .............................................. 8
5. PRODUCT INTERFACE ........................................................................................ 9
5.1.Interface Function Description ......................................................................................... 9
5.2.Pin Function Description .................................................................................................. 9
6. PRECAUTIONS........................................................................................................... 10
6.1.Safe Use of Products ...................................................................................................... 10
6.2.Frequently Asked Questions FAQ.................................................................................. 10
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 3/ 12 V1.0
1. GENERAL DESCRIPTION
1.1. Product Introduction
MSP0962 and MSP0963 are two 0.96-inch IPS circular color LCD display
modules, with MSP0962 without a glass cover plate and MSP0963 with a glass
cover plate. The display module adopts a 4-wire SPI interface, which only requires 5
IOs to achieve display. The 240x198 standard definition resolution can be applied to
various products that require screen display function.
1.2. Image
Picture 1 MSP0963 (with glass cover plate) product
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 4/ 12 V1.0
Picture 2 MSP0962 (without glass cover plate) product
1.3. Accessory List
Configure a DuPont wire with a 1.25mm spacing of 8P and connectors.
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 5/ 12 V1.0
Picture 3 8P DuPont wire with connector
2. PRODUCT FEATURES
2.1. Feature Description
0.96 “ color screen with 240x198 resolution of 65K colors and rich display colors
The upgrade adopts IPS full view panel, with good visual angle
On board level conversion circuit, compatible with 5V and 3.3V MCU
Adopting a 4-wire SPI serial bus to save I/O pins
Modules can be selected with or without glass cover plates
Unique circular display screen
Module input supports slot interfaces with a spacing of 1.25mm
Provide rich example learning programs
(ESP32/STM32/Arduino/C51/CH32/RaspberryPi)
Provide low-level driver technical support, and update WIKI information online
Multiple tests for module aging can meet military level standards, supporting
long-term stable work
3. PRODUCT PARAMETERS
3.1. TFT Parameters
Item
Parameters
Unit
Panel Size
0.96
inch
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 6/ 12 V1.0
Panel Type
IPS
-
Resolution
240xRGBx198
pixels
Active Area
24.408(W)x20.137(H)
mm
Number of Colors(Max)
65K
-
Driver IC
ST7789H2
-
Display Interface
4-Line SPI
-
Pixel Size
0.1017(H)x0.1017(V)
mm
View Angle
ALL 0’CLOCK
deg
Brightness(TYP)
300
cd/m2
Backlight Type
White LED*4
-
Operation Temperature
-10~60
℃
Storage Temperature
-20~70
℃
3.2. Size Parameters
Item
Parameters
Unit
TFT Outline
Size
27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)
( Excluding cables and adhesive backing)
mm
Module
Outline Size
NO Glass Cover Plate:
29.73(W)x28.14(H)x6.66(D) (including Pin Header)
Have Glass Cover Plate:
31.88(W)x31.88(H)x9.65(D) ( including Pin
Header)
mm
3.3. Electrical Parameters
Item
Parameters
Unit
Working Voltage
5.0/3.3V
V
Backlight Current
40
mA
Power
0.09
W
3.4. Other Parameters
Item
Parameters
Unit
SKU
NO Glass Cover Plate :
MSP0962
Have Glass Cover Plate :
MSP0963
-
Interface
8P 1.25mm slot interface
-
Weight(including package)
MSP0962: 21
MSP0963: 25
g
lcdwiki.com
lcdwiki.com
RECORD Date
NOTES:
1.DISPLAY TYPE:
2.VIEWING DIRECTION:
3.DRIVE IC:
4.POLARIZER MODE:
5.RESOLUTION:
6.INTERFACE:
7.UNMARKER TOLERANCE:
8.OPERATING TEMP:
REVISION
mm
深圳市全动电子技术有限公司
ShenZhen QDtech electronic technology Co.,LTD.
TITLE.
SKU.
LCM OUTLINE REV. UNIT SIZE
A4
DRG DATE
DRAWING
CHECK
APPROVE
V1.0 First release 2023-09-05
0.96" Circular IPS TFT
ALL O'CLOCK
TRANSMISSIVE/POSITIVE
240*RGB*198
SPI_4-Line
±0.2
-10℃~+60℃
ST7789H2
V1.0
2023-09-05
Joan
Green
Rose
240x198 Pixels
ST7789H2
0.96inch IPS Module
20.137(LCD AA)
24.408(LCD AA)
31.88(cover plate)
31.88(cover plate)
3.736
3.736
3.60
(connector)
1.20(PCB)
4.00(column) 1.31±0.15(LCD)
0.46(cover adhesive)
2.53(cover plate)
1.00(SMD Max)
1.15(Narrow
connector)
9.65(total thickness)
29.73(PCB)
23.10
28.14(PCB)
15.01
14.87
8.63
3.32
1.07
0.94
2-∅2.50
2-∅5.50
1
8
全动 电子
Front Side Back
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
4. PRODUCT OUTLINE DRAWING
4.1. MSP0963(with Glass Cover Plate) Outline Drawing
www.lcdwiki.com 7/ 12 V1.0

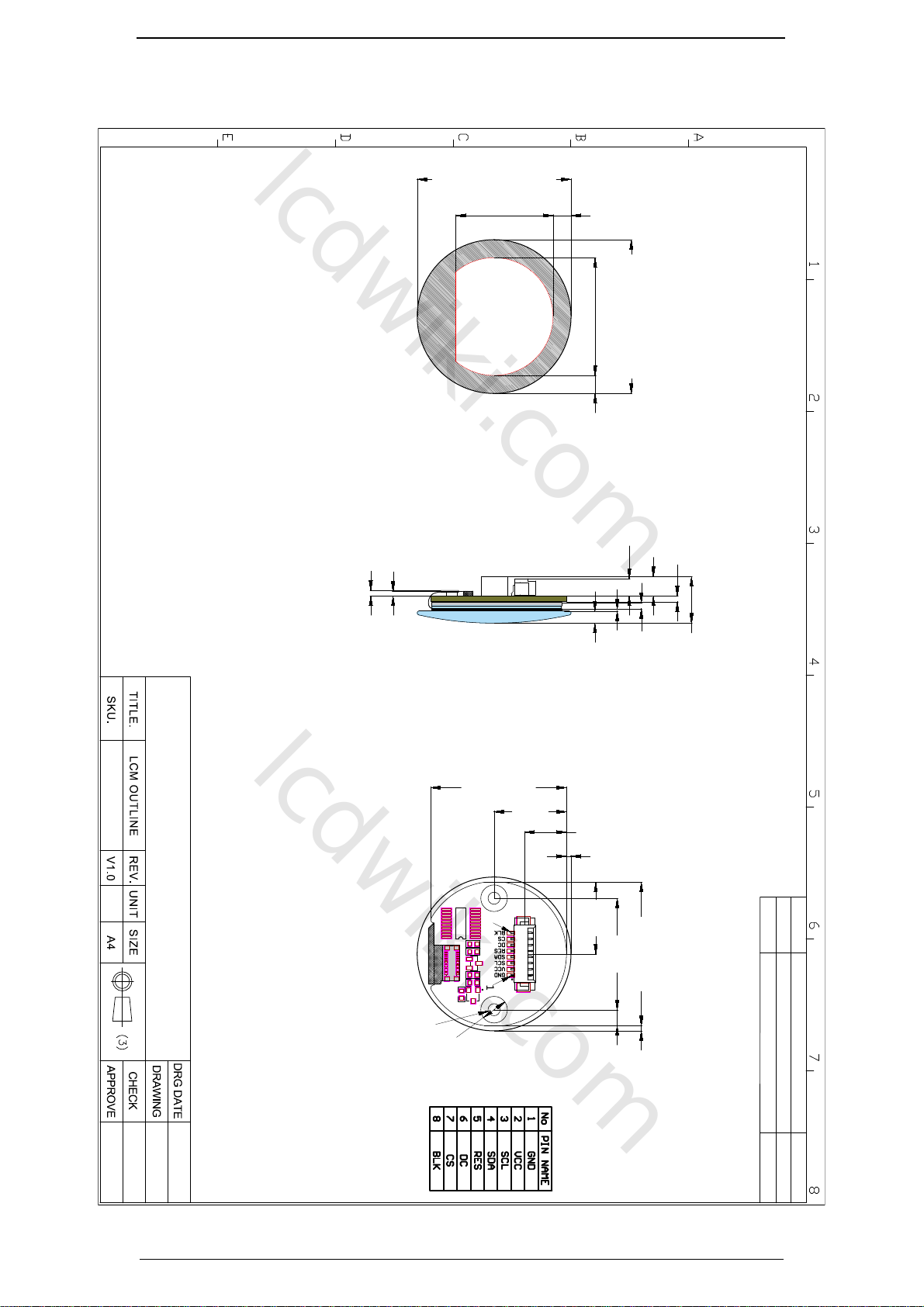

Picture 4MSP0963 Outline Drawing
lcdwiki.com
lcdwiki.com
RECORD Date
NOTES:
1.DISPLAY TYPE:
2.VIEWING DIRECTION:
3.DRIVE IC:
4.POLARIZER MODE:
5.RESOLUTION:
6.INTERFACE:
7.UNMARKER TOLERANCE:
8.OPERATING TEMP:
REVISION
mm
深圳市全动电子技术有限公司
ShenZhen QDtech electronic technology Co.,LTD.
TITLE.
SKU.
LCM OUTLINE REV. UNIT SIZE
A4
DRG DATE
DRAWING
CHECK
APPROVE
V1.0 First release 2023-09-06
0.96" Circular IPS TFT
ALL O'CLOCK
TRANSMISSIVE/POSITIVE
240(H)*RGB*198(V)
SPI_4-Line
±0.2
-10℃~+60℃
ST7789H2
V1.0
2023-09-06
Joan
Green
Rose
240x198 Pixels
ST7789H2
0.96inch IPS Module
3.60(connector)
1.20(PCB)
4.00(column)
1.31±0.15(LCD)
1.00(SMD Max)
1.15(Narrow connector)
6.66(total thickness)
23.10
15.01
14.87
8.63
3.32
2-∅2.50
2-∅5.50
1
8
全动 电子
Front Side Back
29.73(PCB)
27.40±0.2(BL)
24.408(LCD AA)
28.14(PCB)
27.00±0.2(BL)
20.137(LCD AA)
2.661±0.25
1.165
2.80±0.25
1.00
0.96" TFT
240*RGB*198
ALL 0' CLOCK
1.25
MSP0962
易撕贴
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
4.2. MSP0962(without Glass Cover Plate) Outline Drawing

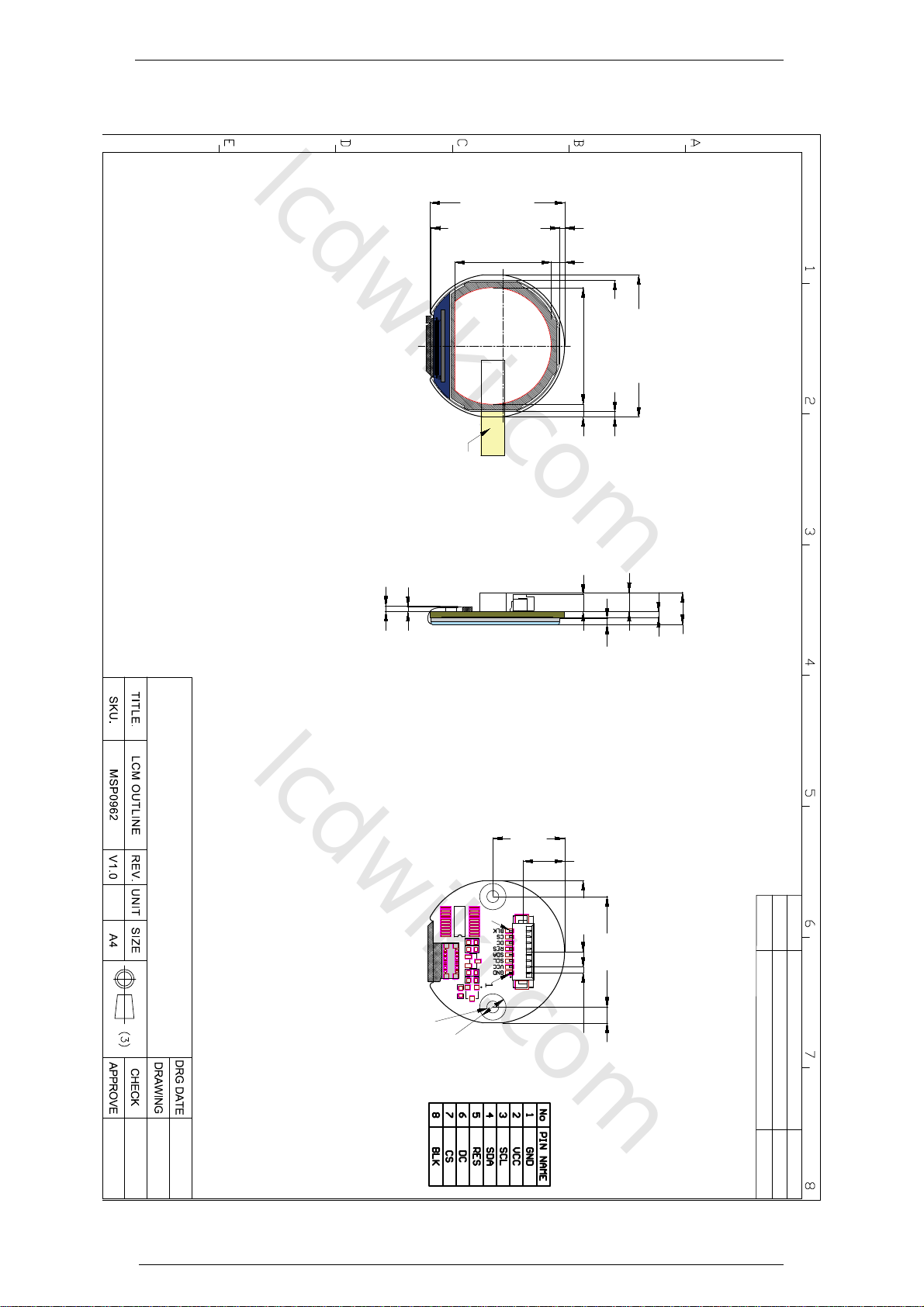

Picture 5MSP0962Outline Drawing
www.lcdwiki.com 8/ 12 V1.0
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 9/ 12 V1.0
5. PRODUCT INTERFACE
5.1. Interface Function Description
Picture 6 Product Interface
Number
Interface
Function Description
①
8P slot
1.25mm spacing slot, module signal input pins
5.2. Pin Function Description
Module Pin
Pin Function Description
GND
LCD Power ground
VCC
LCD power positive(It is recommended to connect to 5V.
When connected to 3.3V, the backlight brightness will be
slightly dim)
SCL
LCD SPI bus clock signal
SDA
LCD SPI bus write data signal
LCDWIKI MSP0962_MSP0963 Specification CR2023-MI2973
www.lcdwiki.com 10 / 12 V1.0
RES
LCD reset control signal, Low level reset
DC
LCD command / data selection control signal
High level: data, low level: command
CS
LCD selection control signal, Low level active
BLK
LCD backlight control signal (If you need control, please
connect the pins. If you don't need control, you can skip it)
6. PRECAUTIONS
6.1. Safe Use of Products
Do not use violence to press or hit the screen to avoid damaging it
Do not use hard objects to scratch the screen to avoid scratching it
Do not place heavy items on the product to avoid crushing the screen
Please keep the product clean and do not drip water or oil on the screen
Please use a clean, soft, and dry cloth to wipe the screen, and do not spray
water or cleaning agents directly onto the screen
Do not disassemble the product randomly to avoid damaging the screen or
wiring
Do not place the product in a high temperature and humidity environment
Please place the product facing upwards in a stable place to prevent it from
falling and damaging the product
Please use the correct voltage to connect to the product to avoid damage due to
high voltage
When using the product, do not touch the components or pins with wet hands to
avoid causing short circuits and damaging the product
When the product is not in use for a long time, please unplug the power supply
6.2. Frequently Asked Questions FAQ
Question 1: After receiving the product, there is no response from the
wiring and the screen does not light up
Analysis:
Due to the fact that this module is an IPS display panel, only connecting to
the power supply will not emit white light. It is recommended to first connect only
three pins (VCC connected to 5V/3.3V, GND grounded, LED pin connected to
