Q-See QSDT404C Manuel utilisateur

QSDT404C

User’s Manual

Q-see Products

8015E.Crystal Dr

Anaheim, CA 92807

Website:

http://www.q-see.com

Customer Service:

Phone: 877-998-3440 x 538

Email:cs@dpsi-usa.com

Tech Support:

Phone: 877-998-3440 x 539

Email:ts@dpsi-usa.com

Fax:

714-998-3509

Rev 032109

TABLE OF CONTENTS

FCC STATEMENT………………….………………………………….……3

1. INTRODUCTION.…………………………………..…………………....3

2. WHAT’S INCLUDED…..…………………………………………………3

3. MAIN FEATURES……………………………………..………………....3

4. BUTTONS ON RECEIVER………………….…………………………..4

5. SIDE PANEL………………….…………………………..………………5

6. CAMERA INSTALLATION………………….……………………………6

7. MENU…………………………………………………………………….. 7

8. TROUBLESHOOTING………………….…………………………..……8

9. TECHNICAL SPECIFICATIONS……………………………………….. 9

10. NOTES…………………………………………………………………. 10

Q-SEE PRODUCT WARRANTY………………….……………….…….. 10

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

1 Introduction

This miniature size product adopts an advanced microwave and wireless transfer

technology developed and manufactured with 2.4GHz wireless digital receiving modules,

which has stable performance and a strong anti-interference function. This product can be

used with wireless cameras to record wireless camera signals.

2 What's included:

The following items should be included in the box. Please check that you have them all before

installation.

A One receiver

B One power adapter for the receiver

C 1camera with power adapter

D One RCA cable

E stands of camera and receiver

F screws for camera mounting

3 Main features.

3.1 Supports up to 4 cameras simultaneously.

3.2 Digital 2.4G wireless modules.

3.3 Supports A/V output from receiver

3.4 Supports AE andAWB

3.5 Supports OSD (On Screen Display) screen-controlled operation

3.6 Supports 4 Channels displayed in order

3.7 Supports automatic channel switch

3.8 Transmission distance up to 100M (Tested in open air)

3.9 M-JPEG format Compression

4 Buttons On Receiver

4.1 Mode switching Switch between quad mode and single channel mode

4.2 Pairing Pairing the cameras and receiver

4.3 Menu OSD menu display

4.4 Auto Scan Switching the channels automatically with set time interval

4.5 Right/CH2 Move to the Right / Switch to Channel 2

4.6 Up/CH1 Move Up / Switch to Channel 1

4.7 Manual Scan Switching the channel manually

4.8 Down/Ch3: Move Down / Switch to Channel 3

4.9 Left/CH4 Move to the Left / Switch to Channel 4

4.10 SMA Antenna SMA antenna plug in

4.11 Power LED Red Light when power on

5Side panel

5.1 A/v output

5.2 Power input (DC 9V)

6Camera Installation

6.1 Camera stand mounting screw (for ceiling mount)

6.2 Power in cable (DC 5V input)

6.3 Pairing button

6.4 SMA antenna plug

6.5 Camera stand mounting screw (for desk top mount)

6.6 Microphone

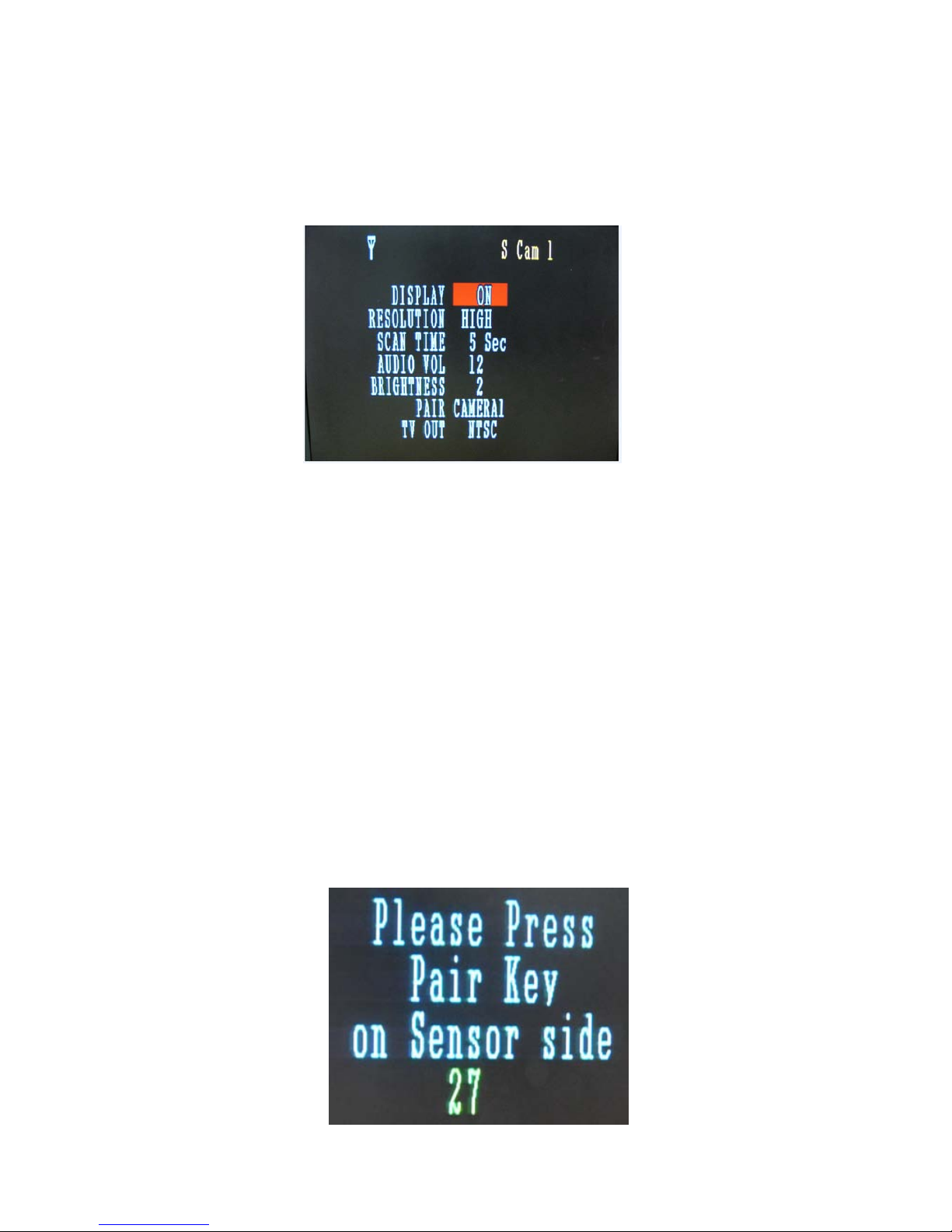

7Menu

Enter the Menu option to setup the main feature of this product.

Through Right/Leftbutton can adjust parameters, and through Up/Down button can

select the features to set.

7.1 Resolution (High / Low): When set to low, the image is not as clear, but it displays

more frames per second. When set to high, the image will be clearer, but it

displays fewer frames per second.

7.2 SCAN TIME：This option sets the time interval between cameras when

switching channels automatically.OFF，Scan is inactive. When on options are: 5

seconds to 20 seconds between cameras.

7.3 AUDIO VOL:Adjust the volume of the audio from 0 to 20. Use the Left/right button

to reduce/increase the volume.

7.4 BRIGHTNESS: Adjust the brightness of images, range of brightness is from 0 to 5,

use the Left/right button to adjust it.

7.5 PAIR: Use this option to pair the cameras with specific channels, press the Pair

button, use the Right/Left button to choose the channel; one channel can only pair

with one camera. After selecting the specific channel and pressing the pair button

again the window below will appear:

Press the Pair the button on corresponding camera and wait for a while, the

monitor connected to the receiver will display the images from the cameras

that have been matched. Pairing succeeded.

7.6 TV OUT: This option allows you to select the video format (NTSC/PAL) for video

output resources. In the United States we use NTSC format.

7.7 Channel selection keys

You may select channels by using the corresponding keys on the receiver to

manually choose channel.

Channel 1：Up

Channel 2：Right

Channel 3：Down

Channel 4：Left；

Circulation Button：Monitor screen circulates the image from Channel 1 to

Channel4 then back to Channel1. The receiver will skip the channels that do not

have cameras assigned to them.

8Troubleshooting

Symptom

Remedy

The power does not

turn on.

Check that the AC power cord is connected securely.

(In case of power failure) Check the breaker.

No image display on

monitor

Check if Monitor is on and video format (NTSC / PAL)

is correct.

Check monitor’s video cable and connections.

Confirm that the camera has power.

There is no sound. Check if the audio cable is well connected to monitor.

Interruption in

Image and Sound

If there is a microwave oven close by, turn the microwave oven

off.

You may have other units that run on the 2.4GHz signal. Move

their base away from both the transmitter and/or the receiver

Your home may have a metal frame that reduces the range of the

unit.

Poor Reception

Quality

Move the Cameras and/or the receiver around to see it reception

improves.

Try resetting Pairing between camera and receiver

9Technical specifications

10 Notes

10.1 This product can be damaged by pressure or impact.
