Q-See Prosumer QT528 Manuel utilisateur

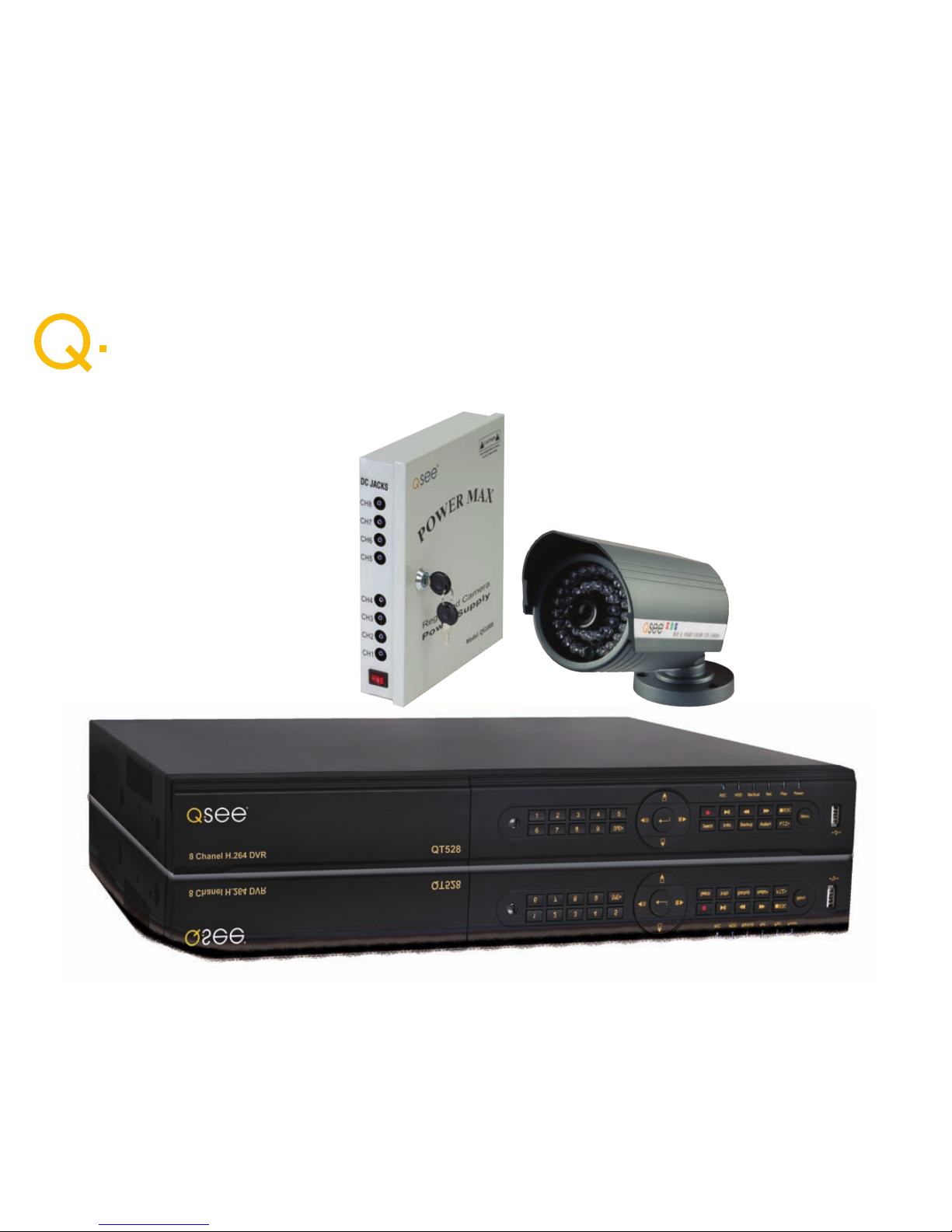

8 CH H.264 NETWORK DVR

Quick Start Guide

DVR MODEL QT528

D1 Broadcast Quality Recording

CUSTOMER SUPPORT

24/7 Technical Resources on www.q-see.com

Live Chat on the Homepage (M-F 9-5 PST)

E-mail: [email protected]

Call Q-See Support Specialists at 877-998-3440 (M-F 9-5 PST)

Questions Or Comments? Contact Us

Before You Get Started

ADDRESS

Q-SeeProducts

DigitalPeripheralSolutions,Inc.

8015E.CrystalDrive

Anaheim,CA92807

FAX

714-998-3509

WEBSITE

http://www.Q-See.com

Make sure you register your product.

Visit www.q-see.com, click SUPPORT,

then online registration form.

Complete the product registration form to receive

warranty/technical support beneﬁts, and to be

notiﬁed of product updates and free downloadable

ﬁrmware updates to your DVR.

A: Gather your Components.

You will Need:

1: A 19” or larger VGA PC monitor and VGA cable OR television of any size.

2: A surge protector.

We STRONGLY recommend that you use one that has the following speciﬁcations:

- UL-1449 rated

- Clamping voltage of 330 or lower

- Joule rating of at least 400

- Response time of 10 nanoseconds or less

3: A power screw driver/drill and bubble level to mount your cameras and included power distribution panel.

Your DVR can be controlled using the included USB mouse, remote control or the function keys on the front

of the unit. For the purposes of this guide, we will be giving instructions using the mouse.

B: Unpack the Box...

Check contents against the “What’s in the Box” list that was packed at the top of your product.

If you notice any damage, please contact Q-See Customer Care at 877-998-3440.

IMPORTANT!

This walkthrough will allow

you to test your

cameras and connections

before you mount them.

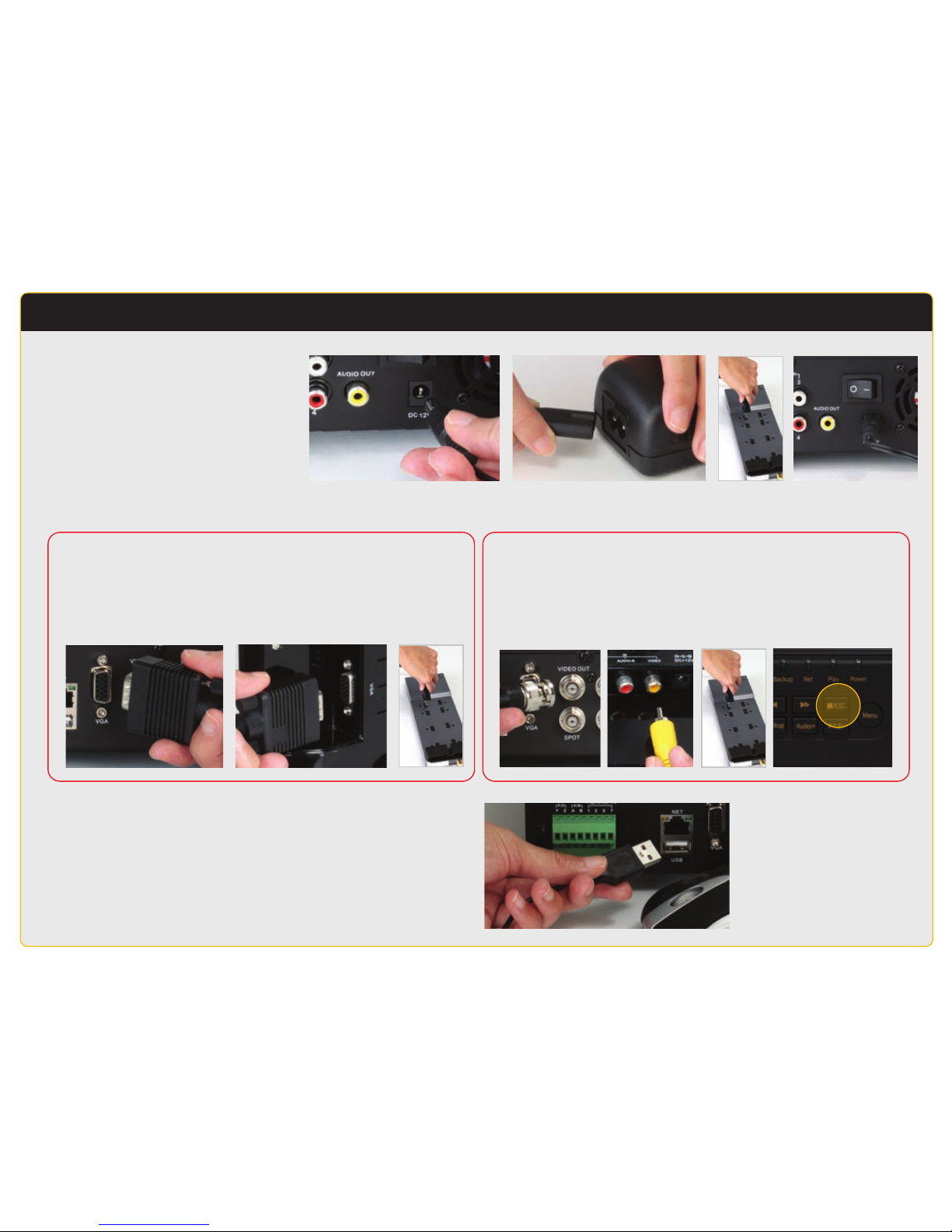

Connect the Devices

1 Plug the VGA cable into the port marked “VGA” in the back of the DVR.

2Plug the other end of the VGA cable into the similar port on the back of the monitor.

3Plug the monitor’s power cable into the surge protector.

Plug in the mouse to the port labeled USB on the rear of the DVR.

NOTE: The USB port on the front is used for backing up video ﬁles.

1 Connect the BNC to RCA cable to the Video Out port on the back of the DVR.

2Plug the RCA end into the Video In port on the television.

3Plug the television’s power cable into surge protector.

4Press and hold the ESCAPE button on the front of the DVR for 10 seconds or until

you hear a beep to indicate that the video mode has been changed.

1 Connect the power cable to the DVR.

2Connect the power adapter to the power cable.

3Plug the power cable into a surge protector.

4Turn on the DVR.

You will hear a beep as the DVR powers up.

STEP 1 Turning on the DVR

STEP 2 Connect a PC Monitor or Television

STEP 3 Connect Mouse

Option A: Connect a VGA PC Monitor Option B: Connect a Television

1 42 3

1 2 34

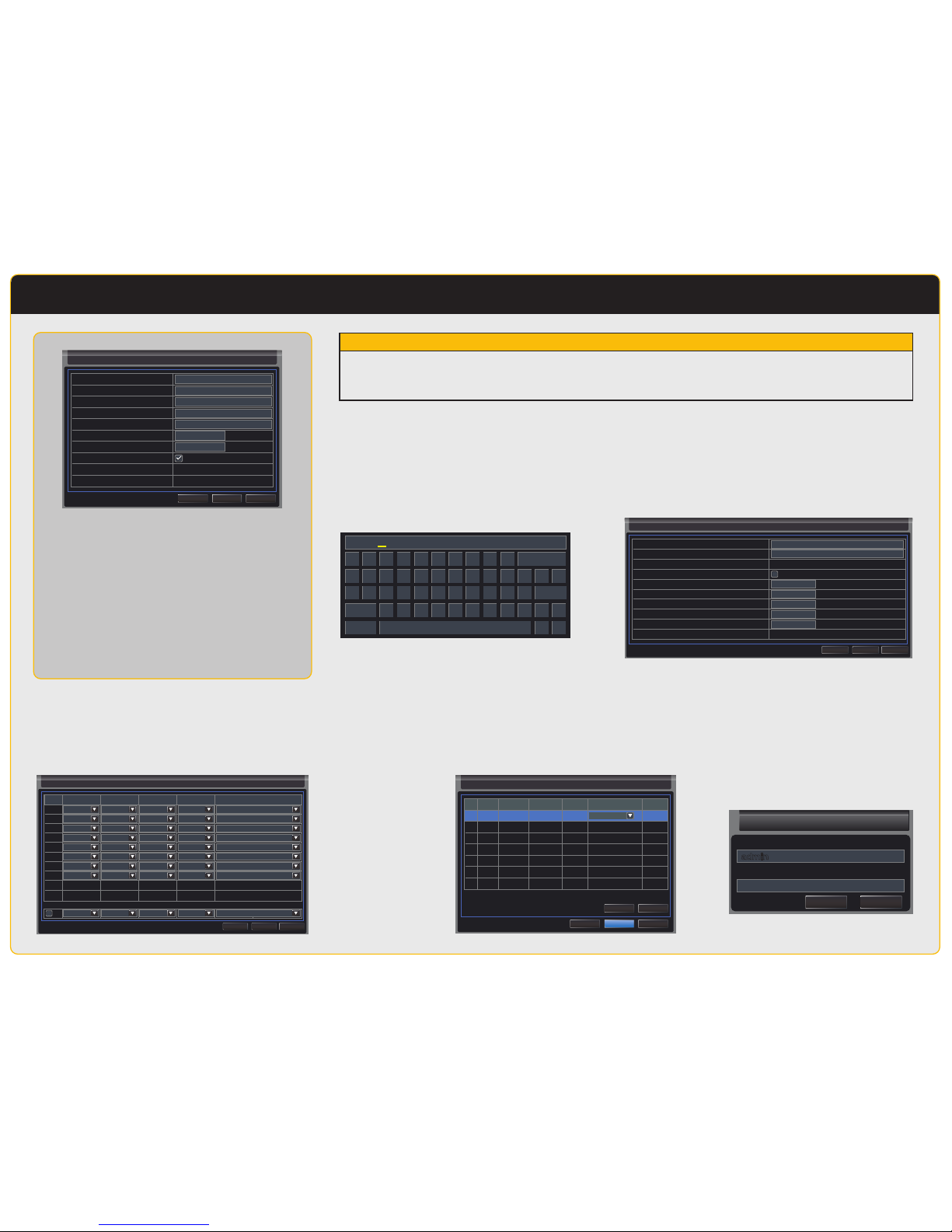

DVR Set Up

IMPORTANT!

You must enter the current date and time at this point before continuing

in order to effectively use the video search function described later.

HTTPPort

ServerPort

ObtainanIPaddress automatically

IPAddress

SubnetMask

Gateway

PreferredDNSServer

AlternateDNSServer

Next Exit

528

6528

192.168.000.146

255.255.255.000

192.168.000.001

068.094.156.001

068.094.157.001

WIZARD

Device Name

Language

DateFormat

TimeFormat

TimeZone

SystemDate

SystemTime

Startup Wizard

Next Exit

EDVR

English

MM-DD-YY

24Hour

GMT

12/08/2010

12: 38 : 04

WIZARD

NOTE: If you change the language, the DVR

will have to be restarted after Step 7.

1 To enter numbers or characters, click in the

appropriate eld and a virtual keyboard will appear.

Symbols can be accessed through the SHIFT key.

2Input the text and hit the ENTER key.

STEP 4 Set Date and Time

1234567890

a s d f g h j k l ; ‘

q w e r t y u i o p

Enter

Backspace

********

Shift

Esc

[

‘

] \

z x c v b n m , ‘ / `

- =

Type

SATA

Next Exit

Refresh Format

WIZARD

Size(GB)

456.76

Free(GB)

286.13

Status

Normal

Properties

Read& Write

Source

Local

User Name

admin

Password

Prev Next Exit

WIZARD

All

fps

Encode

CBR

Resolution

CIF

Remaining:90(CIF, 22(D1).

D1 30 CBR

Quality

Higher

MaxBitrate

1536 kbps

Skip this section at this time. This will be covered in the

Remote Monitoring and Smartphone Guide.

Click the NEXT button to continue.

STEP 5 Network Conﬁguration

STEP 8 Log In

This DVR is already pre-set to provide broadcast quality recording in the D1 (704x480 pixel)

format at a real-time rate of 30 frames per second. Click NEXT to continue.

STEP 6 Recording Format/Resolution

Your drive is ready to record. You do not need

to make any changes. Click NEXT to continue.

STEP 7 Hard Drive Info

The Start Up Wizard will appear when your screen is connected.

USER ACCOUNT: admin

PASSWORD: 123456

Refer to the User’s Guide if you wish

to change this password.

Your name for this DVR

Default set to English

Day-Month-Year,

Month-Day-Year or

Year-Month-Day

12-hour or 24-hour formats

This window will open on

system restart if this box

is checked

DEVICE NAME

LANGUAGE

DATE FORMAT

TI ME FORMAT

STARTUP WIZARD

Screen Display

Mode

Dwell

Volume Snapshot Playback

PTZ Record

Color

Zoom

Hide

Control Bar

Function

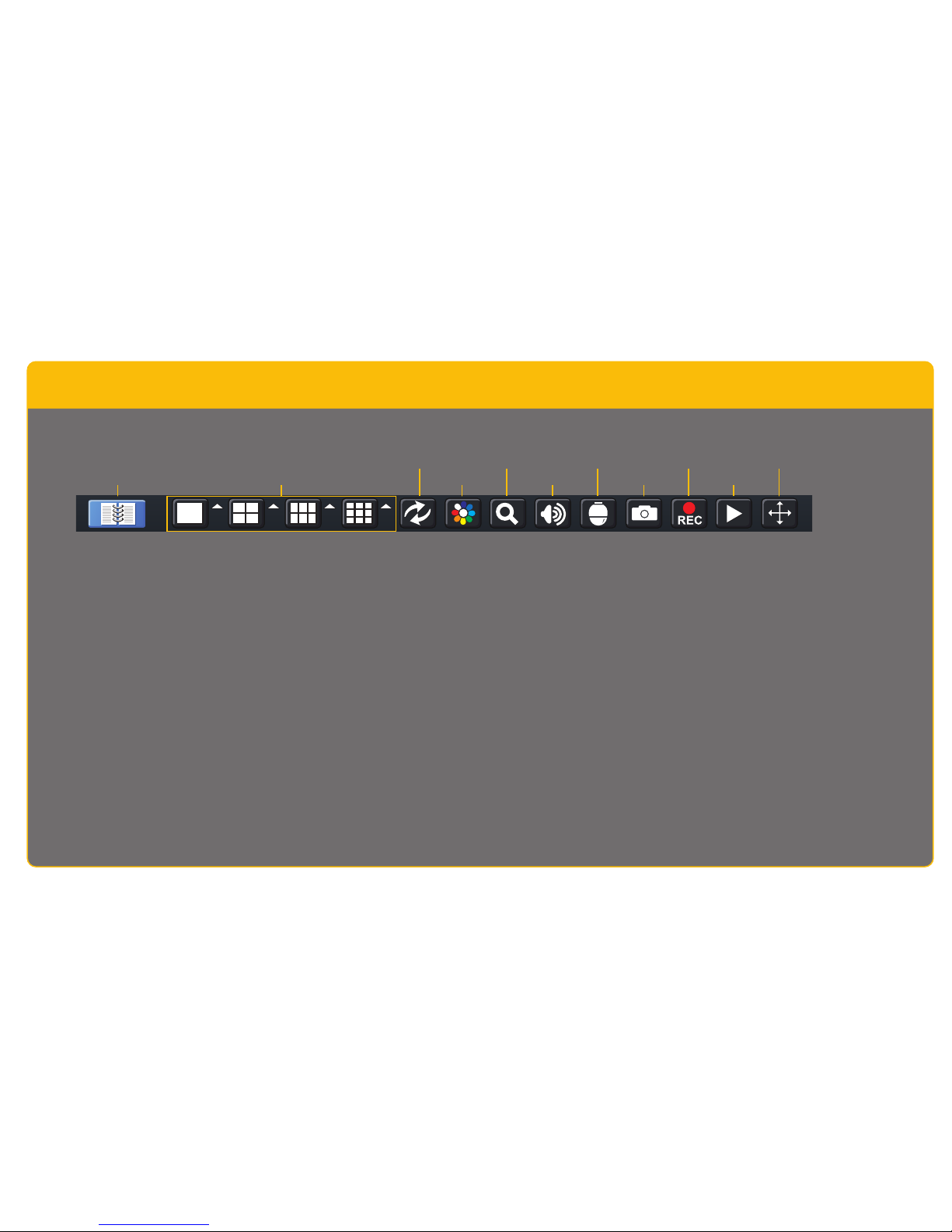

Control Bar Click on any icon on the Control Bar to use that feature.

MAIN MENU

SCREEN DISPLAY MODE

DWELL

COLOR

ZOOM

VOLUME

PTZ

SNAPSHOT

RECORD

PLAYBACK

HIDE CONTROL BAR

Opens the Main Menu

View 1, 4, 6 or 8 screens simultaneously

Note: Channels will display “Video Loss” until cameras are connected

Enable/disable the automatic cycling between channels

See Section 4.2 in the User’s Guide on the CD included with your package

Adjust hue, saturation, color balance and more

Available in single screen display mode. This allows you to zoom in on details

Click-hold and drag to move within the screen view

Adjust volume. This is only available if you have attached an optional microphone

Control optional Pan-Tilt-Zoom cameras

Captures a still image from all channels

Begin manual recording on all channels

Switches to Playback mode and brings up the Playback Control Bar (See step 12)

Show the control bar by right-clicking with mouse

Power and Camera Set Up

STEP 9

1 Read the instructions included with the

Power Distribution Panel before continuing.

2 Find a suitable location to mount the Power

Distribution Panel. It should be located near to

where the DVR will be located.

3 Use the included template to properly position

the mounting screws.

4 Mount box.

5 Be certain that the power switch is set to OFF

before attaching the power cord.

6 Lock the front panel to prevent unauthorized access.

3Plug the remaining power

connector into one of the

DC power jacks on the

side of the Power

Distribution Panel.

3Plug the remaining power

connector into one of the

DC power jacks on the

side of the Power

Distribution Panel.

Plug in Power Distribution Panel and turn on.Plug in Power Distribution Panel and turn on.

STEP 10 Connecting the Cameras

STEP 11 Powering Up

1 Connect the BNC and power connectors on one end of the 60-foot cable to the

matching connectors leading from the camera.

NOTE: The male power end ﬁts into the matching power cable on the camera.

2Connect the BNC

connector on the other

end of the cable to any of

the Video In ports on the

back of the DVR.

4Repeat for each camera included with this package to ensure

proper connection and function.

Mount Power

Distribution Panel

You should now see

a live video image

from your camera.

You may now mount your cameras.

Operation

Time Search Event Search File Management Search

1/25

StartTime

12/21/2010 12:09:09

End TIme

12/21/2010 12:09:09

Type

Motion

2010

Motion Sensor All

Play/

Pause

Rewind Screen Display

Mode

Volume

Hide

Tool Bar

ExitFrame

Advance

Record

Play/

Pause

Stop Fast

Forward

Rewind Screen Display

Mode

Volume

Hide

Tool Bar

ExitFrame

Advance

Record

Playback

Progress Bar

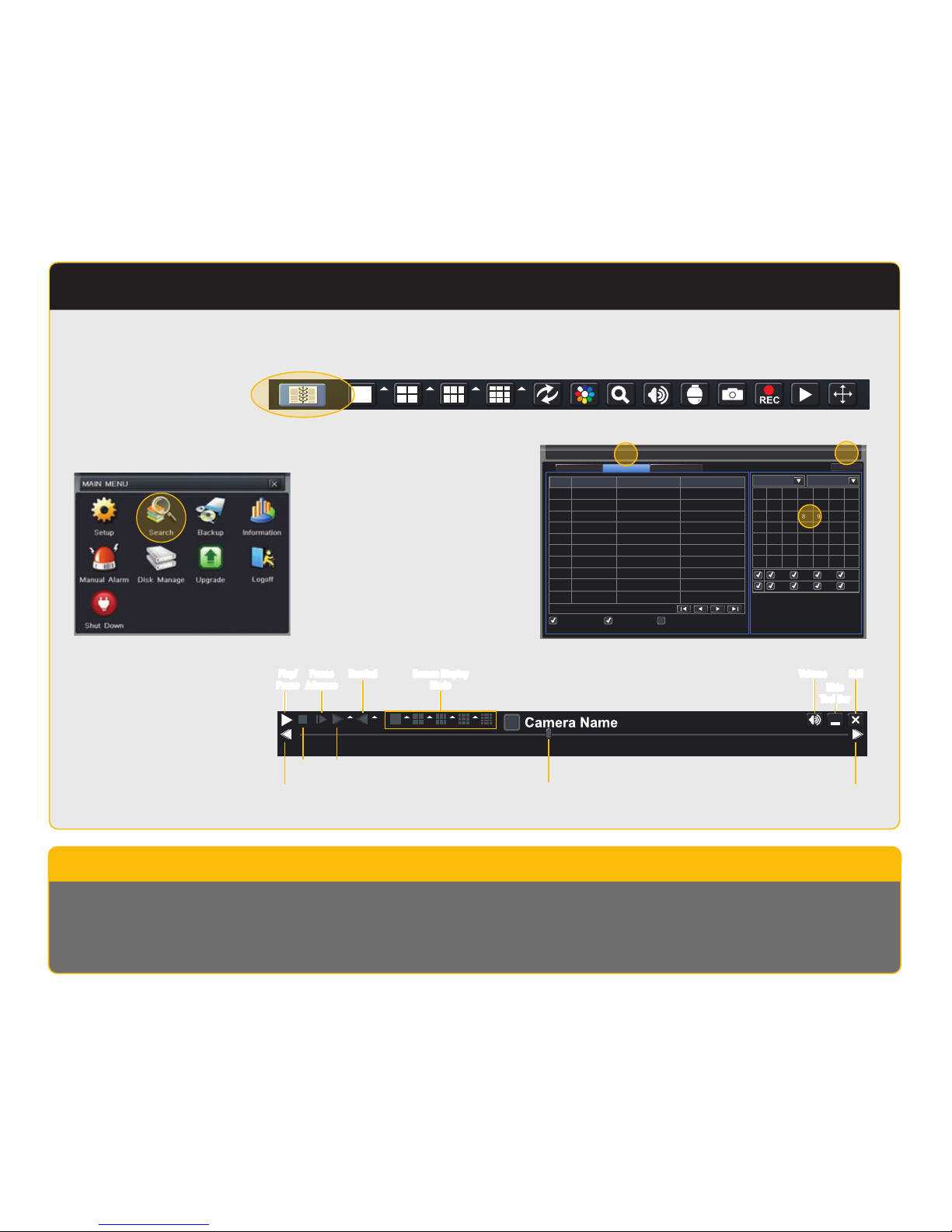

STEP 12 Playback and Search

Note

1Open the main menu by

selecting the MAIN MENU

icon in the Control Bar.

For information on how to congure your system for remote monitoring, please refer to the Remote Monitoring and Smartphone

Guide included with this package.

The QT528 features many advanced features which you can customize to your specifc situation. More information and instructions

are available on the manual on the CD included with this package, or you may download it from our website at www.Q-See.com

3This DVR is default congured

to record on motion detection.

• To view these recordings:

a. Select the EVENT SEARCH tab.

b. Enter the date you wish

to search.

c. Click the SEARCH button.

• You will then be presented

with a list of events.

4 Double-click on the event

you wish to review and it

will begin playing. The

Playback Control Bar will

appear below the video

allowing you to control the

video playback. It operates

like a standard video player.

2Click on the SEARCH Icon. a
