Pyle Chopper Series PLATVB84A Manuel utilisateur

www.pyleaudio.com

OWNER’S MANUAL

800 Watts Motorcycle/ATV/Snowmobile Mount

with Dual Handle-bar Mount Chromed

Plastic Weatherproof 3-Inch Speakers

In-Line Control For iPhone, iPad,

iPad Mini,Cell Phone Etc.

PLATVB84A

800 Watts Motorcycle/ATV/Snowmobile Mount with Dual

Handle-bar Mount Chromed Plastic Weatherproof 3-Inch

Speakers W/Amplifier Built-In W/Bluetooth In-Line Control

For iPhone, iPad, iPad Mini,Cell Phone Etc.

Congratulations on your purchase of this

Technical Support.

Dealer or

is not covered in this manual,please contact your

motorcycle speaker system, which

products,this motorcycle system

has been thoroughly tested to ensure consisten,reliable performance

under some rigorous conditions.Our systems were designed to with stand

water,moisture,heat,and direct sun exposure.We pride ourselves in customer

satisfaction.If you should have any questions regarding the installation and /or

operation of your

amplified speaker system.Like all

 Chrome stainless universal handlebar audio mount

 Easy Chrome Stainless Mounting Brackets and Accessories included

 Environment resistance and water proof Bluetooth and in line volume

control console with 3.5mm Stereo Input Jack, Easy Connection to the

Output of Other Audio Devices

 Works with iPhone/Smartphones, iPod/MP3 Players, Cell Phones, etc.



 Bluetooth 3.0 technology

 Bluetooth auto connected while power on

 Bluetooth auto disconnected while Aux-in (3.5mm connector)

 Easy and quick installed handle-bar mount bracket is included

 Speaker Dimension: 4.21''(W) x 4.21''(H) x

 Bluetooth console Dimension: 2.09''(W) x 0.83''(H) x 3.15''(L)

4.61''(L)

 3” Chromed Plastic Bullet Speaker with Supreme High Temperature Voice Coil

Strontium Magnet Structure



with Wire harness



premier

What is included?

Upon un-packing your new Series audio system,

Please check to ensure you have all the included parts.

(1) Universal 12 Volt Wire Harness Connection

(1) 12 Volt Direct Plug, for Compatible Motorcycles

(6) Black Wire Ti

(1) Bluetooth Controller

400 Watts X 2 channel micro amplifier built in the speaker enclosure

with Wire harness

(1) ”Z” shape bracket Handle bar

for Bluetooth Control Box

Part#

with Image PLATVB84A

(1) ”P” shape clampHandlebar

for Bluetooth Control Box

e Lockable Straps

(1) Screw,Washer

(2) Chrome stainless handle bar mounting

clamps for speakers

and Nut

for Bluetooth Control Box

(2) Screw, Washer for Speaker Bracket

(1) EVA PAD

(1) RUBBER PAD

Connections

Loudspeaker Mounting Diagram

Black

( )

Black/white

( )

Aux IN Power

Cable Adaptor

Left Speaker Right Speaker

Installation

Wiring

1. Screw the brackets to the bottom of the speakers.

2. Find a safe, ideal mounting location and fit the brackets

over the chosen mounting bars.

3. Fasten the mounting screws after you review the safety of

the mounting location

1. Be sure to run the wiring securely and far away from any

moving components.

2. Connecting the power cable to the power source:you will

need to connect the 12V red wire to a (fused 5A) switched

power source

3. Use the 3.5mm stereo jack to connect to you entertainment

source (MP3 player,etc)

4. Use your player device and wired remote bluetooth control

box to control your level of loudness.

Bluetooth Pairing and Connection:

1. Connect Bluetooth controller box to your device

2. Press and Hold >|| for three seconds until power indicator

lights (red)

3. The system will automatically go into pairing mode

The power indicator will turn red for about 7 seconds and then

alternating red and blue (Bluetooth blue Power red)

Please be sure that Bluetooth is turned on your device Select Pyle

Audio on your device to connect Bluetooth controller (if the

4. When the device is out of Bluetooth range, Bluetooth will be

disconnected automatically and automatically reconnect when

detected in range again. (If not please just repeat steps 1 and 2)

5. When Bluetooth is disconnected or the 3.5mm AUX Input is

plugged in, the power indicator will glow red.

Playing Music:

1. Press >|| to start or pause the music

2. Press >>+ shortly for next track, Press and hold for Volume up

3. Press -<< shortly for previous track, Press and hold for Volume down

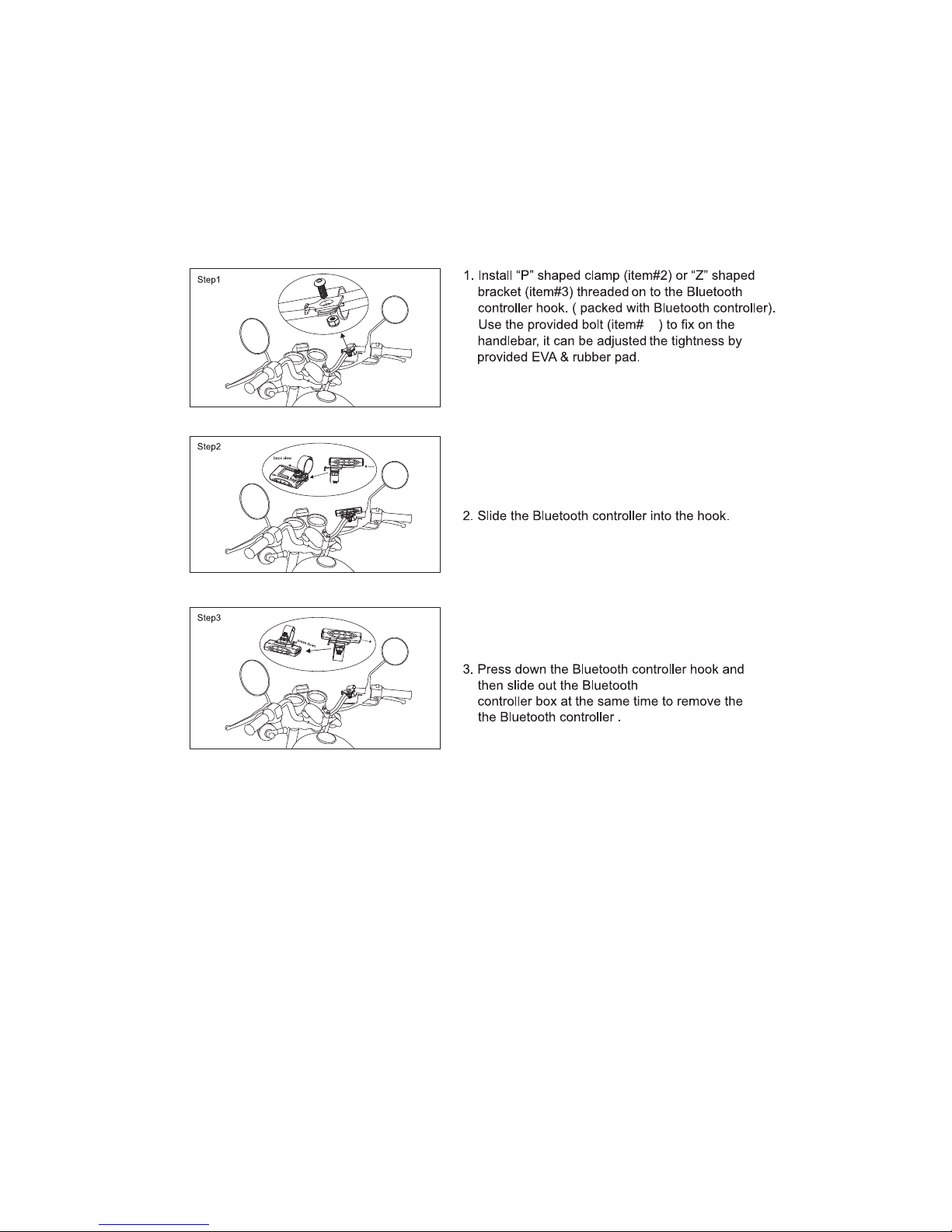

BLUETOOTH INSTALLATION

(item#7)

www.pyleaudio.com
