Pyle PT684BT Manuel utilisateur

HDMI Description

HDMI version 1.4 (2input 1 output)

work with the Blue-ray DVD player

Support MP4,MP3,DVD, VCD Video Decoding

Support HDMI 1.4 HDCP

Support 480P,579P,720P,1080I,1080P Video Format

Support LPCM-2CH,Analog 5.1ch Audio decoding

Support LPCM-2CH,Digital Audio

Support 32Kz,44.1Kz,48KHz,88.2KHz,96KHz,176.4KHz,

192KHz,768KHz Bit-Rate Digital Audio

Bluetooth Function

The receiver connects to your compatible Bluetooth-enabled device,

allowing the system to receive your wireless Bluetooth signal and

stream audio to any connected speaker systems.

Press the ‘Input’ button on the remote control or on the control panel of

the receiver system, until you enter ‘Bluetooth’ mode – as indicated on

the display screen.

Ensure Bluetooth ability is activated on your device and search for the

Bluetooth Network Named: ‘PT684BT’ and connect.

No password is required for connecting.

Bluetooth Home Theater Amplifier Receiver

Model: PT684BT

-1-

For MAINS powered apparatus and for apparatus producing internal

voltages greater than 35V(peak)a.c.or d.c.,having no protection

against splashing water according to annex A,the instructions for use

shall state that the apparatus shall not be exposed to dripping or

splashing and that no obiects filled with liquids,such as vases,shall be

placed on the apparatus

Avoid opening the cover or back .

Do not open the cover, re-fix or touch the inner parts.

No user-serviceable parts inside, refer servicing

to qualified service personnel.

Protect voltage line

Avoid high pressure and stamp on,

do not pull, push excessively.

Please put on this unit in the windy place

Avoid direct sunshine and nearing heater.

Do not operate in a sealed box and be sure to

have enough room for heat exchange.

Avoid covering vents

Block up the vents will make the temperature in

the unit become higher and will damage the unit.

Avoid metals dropping in the unit

Avoid metals dropping in, like needle, hairpin, coin,

otherwise the unit will get short and out of work.

Be sure to set the line voltage AC110V/60Hz

If you are not sure of the type of power supply.

Consult your appliance dealer or local power company.

Safety Precautions

Disposal Of Used Electrical And Electronical Equipment

The meaning of the symbol on the material,It’s accessory or

packaging indicates that this product shall not be treated as

household waste.

Please dispose of this equipment at your applicable

collecting point for the recycling of electrical and electronic

equipment waste.

In the European Union and Other European countries which

there are separate collection systems for used electrical and

electronic product.

By ensuring the correct disposal of this product.You will help

prevent potentially hazardous to the environment and to

human health.Which could otherwise be caused by

unsuitable waste handling of this product.The recycling of

materials will help conserve natural resources.Please do

not therefore dispose of your old electrical and electronic

equipment with your household waste.

For more detailed information about recycling of this

product,Please contact your local city office,your household

waste disposal service or the ship where you purchased the

product.

Important Safeguards

1.Read Instructions-All the safety and operating instructions should be read before the

appli ance is operated.

2.Read Instructions-All the safety and operating instructions should be retained for future

reference.

3.Follow Instructions-All operating instructions should be followed.

4.Heed Warning-All warnings on the appliance and in the operating instructions should be

adhered to.

5.Power Source-The appliance should be connected to a power supply only of the type

specified in the operating instruction or as marked on the appliance.

6.Power Cord Protection-Power supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,Pay particular attention to

cords at plugs, convenience receptacles and the point where they exit from the appliance.

7.Water and Moisture-The appliance should not be used near water(for example, near a

bathtub,washbowl, kitchen sink,laundry tub,in a wet basement, or near a swimming

poll,etc.)

8.Ventilation-The appliance should be situated so that its location or position does not

interfere with its proper ventilation.Do not use the appliance on a bed,sofa,rug or similar

surface that may block the ventilation openings.

Important Safeguards

9.Heat-Keep the appliance away from heat sources such as radiators, heat

registers,stoves,or other appliances (including amplifiers) that produce heat.

10.Non-use Periods-The power cord of the appliance should be unplugged from the outlet

when left unused for a long period of time.

11.Damage Requiring Service-The appliance should serviced by qualified service personnel

when:

12.Servicing-The user should not attempt to service the appliance beyond that specified in

operating instruction.All other servicing should be referred to qualified service personnel.

13.Clean only with dry cloth.

14.Unplug this apparatus during lighting storms or unused for a long periods of time.

a. The power-supply cord or plug has been damaged.

b. Objects have fallen or liquid has been spilled into the appliance.

c. The appliance has been exposed to rain.

d.The appliance does not appear to operate normally or exhibits a marked

change in performance.

e. The appliance has been dropped , or the enclosure damaged.

Speaker Arrangement

HOME CINEMA

FRONT LEFT SPEAKER

CENTER SPEAKER

PASSIVE SUBWOOFER

FRONT RIGHT SPEAKER

SURROUND LEFT SPEAKER

SURROUND RIGHT SPEAKER

HI-FI SYSTEM

FRONT LEFT SPEAKER

FRONT RIGHT SPEAKER

-11- -4-

Technical Specifications Front Panel

1.VFD display

2.Power Button

3.Signal Input Select Key

(Alternative:HDMI 1/HDMI 2/

AUX/AC-3/Bluetooth/USB/Tuner

4.Main menu

5.Cen/Surround/Sub VOL Key

6.LOUD

7.MIC menu

8.Channel Mode

9.Radio auto search

10.Manually Adjust the Radio Frequency-

11.Manually Adjust the Radio Frequency+

(USB Play/Pause )

12.Mp3, Next/Radio, channel-

13.Mp3, Prev /Radio, channel+

14.USB socket

15.MIC 1 Jack

16.MIC 2 Jack

17.Master Volume control

Features:

5.1 Channel Amplifier Receiver

Hi-Fi AV (Audio + Video) System

Full HD 1080p Support, HDMI 1.4

3D HDTV & Blu-Ray Video Pass-Through Support

Bluetooth Wireless Streaming Ability

2.4Ghz Antenna for Extended Range

AM/FM Radio with 12 Station Memory

(2) 1/4'' Microphone Inputs

Rear Panel Outputs: HDMI, Subwoofer (RCA)

Rear Panel Inputs: (2) HDMI, RCA (L/R) Audio

Speaker Terminal Binding Posts (FL, FR, CEN, SL, SR, SW)

Mic Echo, Bass, Treble & Independent Volume Controls

Front Panel Control Center

VFD Digital Display Panel

Independent Input Source Selectors

Built-in Cooling Fan

Over Current, Short Circuit, and Over Voltage Protection

Includes Wireless Remote Control

Bluetooth Connectivity:

System Receives Bluetooth Wireless Audio Signal

Instantly Stream Music from Your Favorite Devices

(Smartphones, Tablets, MP3 Players, Computers, Laptops, etc.)

Bluetooth Version: 4.0

Wireless Range: 30'+ Feet

Technical Specs:

System Channel Impedance: 4-8 Ohm

Frequency Response: 20-20kHz

S/N Ratio: >80dB

T.H.D.: <0.5%

Treble/Bass Adjustment: +/- 14dB

Remote Control Battery Operated, Requires (2) x 'AAA'

Power: 110V

Dimensions (W x D x H): 16.9'' x 14.0'' x 5.1''

Trouble Shooting

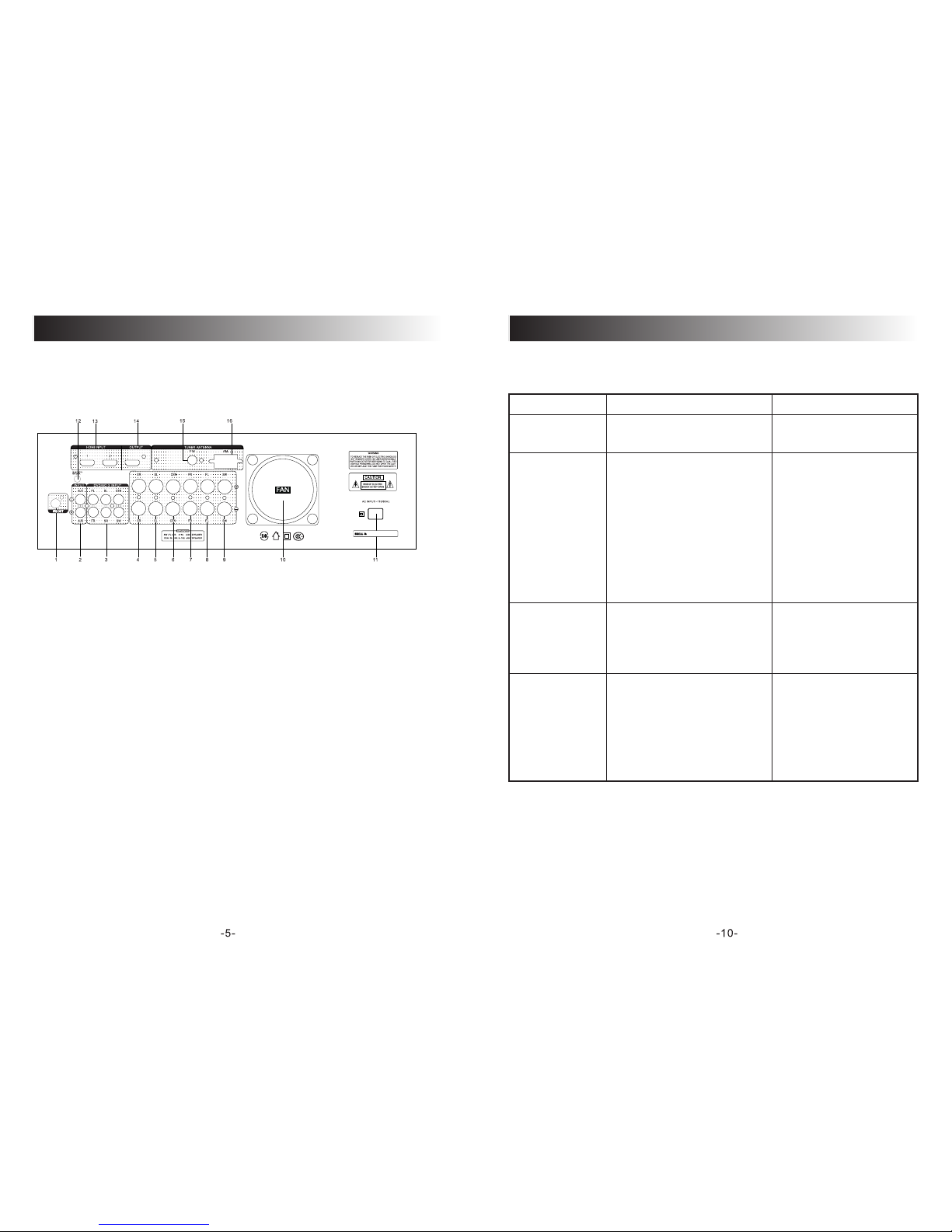

Rear Panel

1.Active Sub Output

2.AUX Audio Input Jack

3.AC-3(L&R)Signal Input Jack

4.Surround right Speaker Jack

5.Surround left Speaker Jack

6.Center Speaker Jack

7.Front Right Speaker Jack

8.Front Left Speaker Jack

9.Passive Subwoofer Jack

10.Smart Cooling Fan

11.AC 110V/60Hz Power Input

12. Bluetooth Antenna

13.HDMI Input(HDMI1/HDMI 2)

14.HDMI Output

15.FM Antenna Input Terminal Blocks

16.AM Antenna Input Terminal Blocks

Trouble Shooting

Problems

Screen displays

disorder or malfunction

Cause Modified methods

●Influenced by the outside

element.Computer has problem.

●Turn off the set, pull out the wire,

reinsert it then start the set again

No sound

●The speaker terminal connects improper

●The sound frequency in terminal

wrong connects or improper

●The power plus connects with the

socket improper

●The volume is too low

●Press the MUTE key on the panel

●The speaker terminal is short-circuited

●Connect tightly

●Check and connect the sound

frequency in terminal properly

●Connect the power correctly

●Turn the volume to the suitable position

●Press down MUTE key

●Cut off the power and connect

the speaker well. then start

the power again.

Sound distortion

●The amplifier input terminal

wrong connects

●The volume is too loud

●Connect properly

●Properly adjust the volume

of the corresponding channel

The Sound doesn't

continue and replays

has “Di-DA” noise

●Using the speaker with the

●impedance less then 8Ω

●The Volume is too loud

●The speaker terminal is short-circuited

●or connected improperly

●Adjust the volume to the

suitable position

●Cut off the power and connect

the speaker correctly ,

●Then turn on the power

●Using the speaker with the

impedance 8Ω

Remote Control

Input Signal Select

Power On/Off

SL VOL +/-

SR VOL +/-

Cen VOL +/-

SUB VOL +/-

USB Play/Pause

Master Vol +/-

Treble Vol +/-

MIC Bass Adjustment

MIC Vol +/-

The radio auto search

AM/FM switch

Radio Frequency Adjustment

Restore Factory Defaults

Frequency Spectrum Display Mode

Sound field Mode

Channel Mode

Echo on/off

USB Next/Prev

USB Pause

L/R channel balance adjustment

Bass +/-

MIC Treble Adjustment

Echo Adjustment

MIC delay Adjustment

Stereo/Mono switch

Radio Store

Radio CH +/-

System Connection 2

Passive Subwoofer

Front Left Speaker Front Right Speaker

Center Speaker Surround

Right Speaker

Surround

Left Speaker

-8--7-

Remote Control Operations System Connection 1

1. Remote distance should be within 7 meters,

and the angles between the central line

should not wider than 30°.

2. No large obstacles between the remote

control and product.

3. It may be out of control when the sensor

directly shines by strong light, especially

fluorescent lamp, please remove the unit

beyond the light.

4. when the remote control sensitivity

decreases, must replace the battery.

Note: If do not use the remote control for a

long time, please take out the battery to

avoid battery liquid spill and damage the

remote control.

Table des matières

Autres manuels Pyle Récepteur

Pyle

Pyle PLMR90UW Manuel utilisateur

Pyle

Pyle PT696BT Manuel utilisateur

Pyle

Pyle PT6000CH Manuel utilisateur

Pyle

Pyle PSLSW4 Manuel utilisateur

Pyle

Pyle PT592A Manuel utilisateur

Pyle

Pyle PLCDUSB79MP3 Manuel utilisateur

Pyle

Pyle PT694BT Manuel utilisateur

Pyle

Pyle PLR32MPB Manuel utilisateur

Pyle

Pyle PBMSPG2BK Manuel utilisateur

Pyle

Pyle PWPBT67 Manuel utilisateur

Pyle

Pyle PD1000BA Manuel utilisateur

Pyle

Pyle PLR31MP Manuel utilisateur

Pyle

Pyle PT798SBA Manuel utilisateur

Pyle

Pyle PT684BT Manuel utilisateur

Pyle

Pyle PT570AU Manuel utilisateur

Pyle

Pyle PT980AUH Manuel utilisateur

Pyle

Pyle PBMSPRG3 Manuel utilisateur

Pyle

Pyle PLRVST400 Manuel utilisateur

Pyle

Pyle PWA25WIFIBT Manuel utilisateur

Pyle

Pyle PLRVST400 Manuel utilisateur

Pyle

Pyle Power Sports PLMRBT19 Manuel utilisateur

Pyle

Pyle PDWMG46 Manuel utilisateur

Pyle

Pyle PPRE70BT Manuel utilisateur

Pyle

Pyle PLMRM4BTA Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
