Safety Instructions
CAUTION: To reduce the risk of electric shock, DO NOT ATTEMPT TO OPEN
THE AMPLIFIER OR REMOVE THE COVER. There are no user serviceable
parts inside-please use a qualied technician for all servicing.
WARNING: To prevent electrical shock or re hazard ,this amplier should
not be exposed to rain or moisture. Do not place objects lled with liquid,
such as vases, on the amplier.
WHEN USING ELECTRICAL PRODUCTS, CAUTION SHOULD ALWAYS BE
USED. PLEASE READ AND KEEP THESE SAFETY INSTRUCTIONS.
Precaution
1. Power Source
The unit should be connected to a power supply AC-120V/60Hz,
AC-240V/50Hz.
2. Ventilation
The unit should be situated so that its location or position does not
interfere with its proper ventilation. Place the unit at least 10cm away from
the walls.
3. Water and Moisture
The unit should not be used near water - for example, near a swimming
pool in a wet basement, etc.
4. Electric Shock
If a metal object, such as hair pin or needle comes into contact inside this
unit, a dangerous electric shock may result. For families with children,
never permit children to put anything, especially metal, inside this unit.
Intended to alert the user to the presence of uninsulated“
dangerous voltage” within the product’s enclosure that may be
strong enough to create a risk electric shock to a person.
Intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
www.PyleUSA.com
3
5. Enclosure Removal
Never remove the enclosure. If the internal parts are touched accidentally,
a serious electric shock might occur.
6. Abnormal Smell
If an abnormal smell or smoke is detected, immediately turn the power
OFF and pull out the power cord. Contact your dealer or nearest service
station.

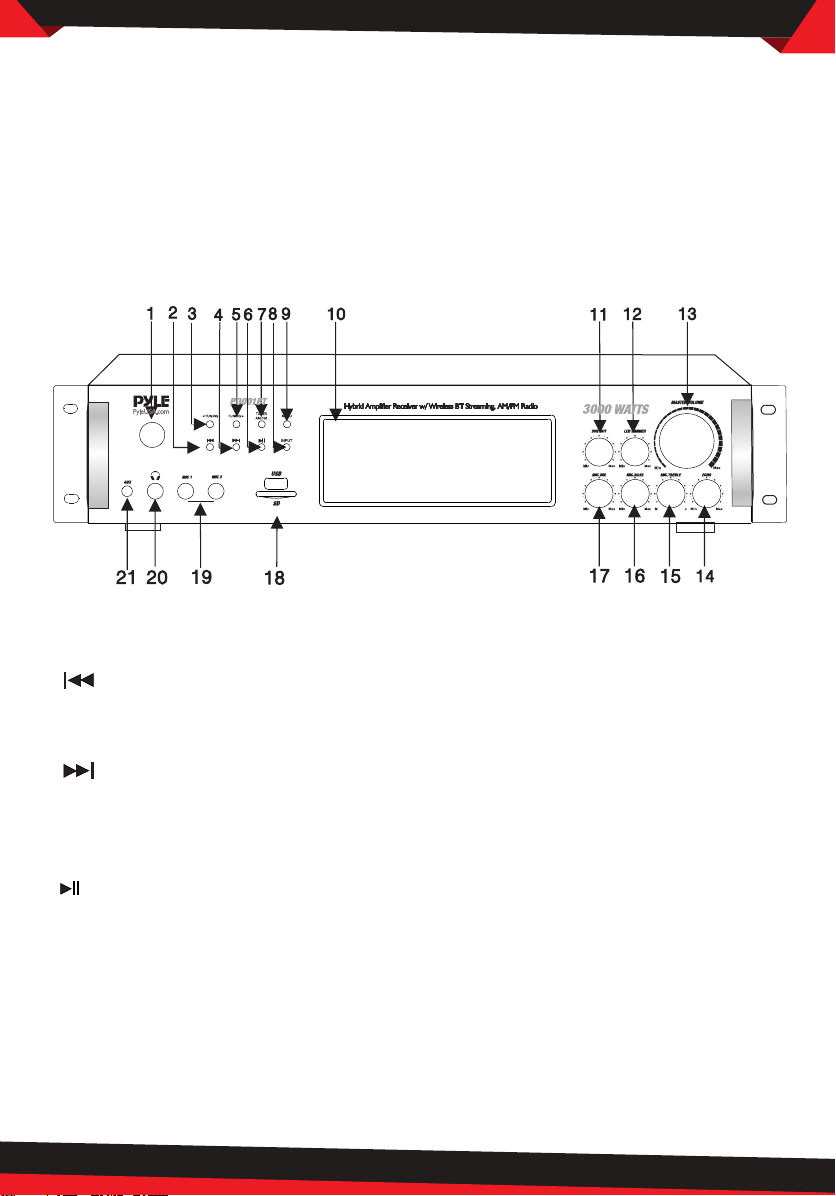

1. POWER SWITCH: Press to switch the power unit ON or OFF.
2. : This knob is used to select the preview station which has been kept in
system.
3. TUNING - : Radio tuning button. Decrements the radio frequency.
4. : This knob is used to selectthe next station which has been kept in
system.
5. TUNING +: Radio tuning button. Increments the radio frequency.
6. AM/FM SELECTOR
7. : USB/SD-card play/pause song button
8. MENU CONTROL: This is used to increment and decrement level for the
selected function of Master Volume, Bass, Treble, Balance, Auto station
seek.
9. INPUT: This is used to select the input sources: DVD/CD, TUNER, IPOD/MP3
AUX
10. FUNCTION DISPLAYED FLUORESCENT WINDOW
www.PyleUSA.com
4
11. SUB. OUT VOLUME CONTROL
12. LED DIMMER
13. MASTER VOLUME CONTROL: Adjusts the blue lights and blue rings.
Adjusts the volume level. Turn the knob clockwise to increase the volume.
14. ECHO CONTROL: Turn the knob to adjust the MIC echo level.
15. MIC TREBLE: Adjusts the treble of MIC.
16. MIC BASS: Adjusts the bass of MIC.
17. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to
increase the MIC volume .
18. USB/SD: Card input
19. MIC INPUT JACKS 1&2 KARAOKE MIC: Connect to these jacks.
20. HEADPHONE JACK: Headphone connect to this jack.
21. IPOD/MP3 JACK: Connect to this jack
1. TUNER ANT: Connect for AM and FM antennas.
2. AUDIO INPUT JACKS:
Connect the audio output jacks of CDNCD/DVD, AUX to these jacks.
3. REC. LINE OUTPUT JACKS:
Connect the RECORD input jacks to these jacks.
4. PRE OUTPUT JACKS:
Connect the pre professional input jacks to these jacks.
5. SUB-WOOFER OUTPUT JACKS 1 & 2
6. A SPEAKER OUTPUT TERMINALS:
Connect your speaker system to these terminals.
www.PyleUSA.com
5
7. B SPEAKER OUTPUT TERMINALS: Connect you re the 11outer speaker
system(s) to these terminals
8. COOLING FAN
9. 120/240 SWITCH: According to power voltage, push this button to the
station of the 120V or 240V.
10. POWER CORD: Connect to AC 120V/60Hz & 240V/50Hz outlet.
www.PyleUSA.com
6
1. MUTE: Mute Selector
2. INPUT TUNER /Mp3/AUX,IPOD/DVD,CD:
Signal input selector.
3. AUTO SCAN AM/FM: Auto scan selector,
scan and store stations auto matically.
Can store 50 stations.
4. FM/AM: Fm/am Signal input selector. TUNER
5. MENU: This is used to increment and
decrement level for the selected function of
master Volume, Bass, Treble, Balance, Auto
station seek.
6\8. VOL- VOL+: Master volume down and up.
7\14. PREV NEXT: Station preview and next
selector
9. STOP: USB/SD stop
10/11 TUNING- TUNING+: The two keys are
used to adjust to the best signal of the
12. REPEAT: USB/SD playing the song again
13. EQ: So many dierent Space choice
listening the sounds.
15. PLAY/PAUSE: USB prev select key
16. ST/MO: Stereo and mono selector
17. MEMORY: After a station has been found,
you can store the stationby pressing the
MEMORY button, and the screen will
display SAVE.
18. DIGITAL: Tuning AM/FM button
19. RESET: The entries are reset to the default
values
www.PyleUSA.com
7
Remote Control
1. Remote control should be operated within 6 meters with a scope of 30°
in front of the receiver.
2. Make sure that there is no large obstacle between the remote control and
the machine.
3. Remote sensor should be far away from the light, high amounts of light
can aect its performance.
SAFETY INSTRUCTIONS
1. Make sure that all connections are properly connected and the main
volume is set to minimum level before turning ON the unit.
2. When more than one pair of speakers are used, (specially the main
speaker output) make sure that the speakers used are of the same wattage
and impedance, otherwise the unit maybe damaged under high power or
long term operation.
3. To avoid humming sounds and unwanted noise,make sure that all the
wires are properly inserted
4. For speaker cords, strip o the vinyl coating and twist the wire tip.
Push down the pink jack or loosen the screw terminal, before inserting the
wire tip, then fasten it and tighten the screw. Be careful not to let the wires
stick out ofthe terminal otherwise this may cause a short circuit when
wires of dierent terminal contact each other.
5. After the unit is turned ON, adjust the main volume to the desired level
same with the bass and treble volume, etc.
www.PyleUSA.com
8
PWMA1003BT
Wireless BT Streaming Home Amplier Receiver
and Microphone System
Hybrid Pre-Amplier with (2) Wireless Microphones,
MP3/USB/SD/AUX/AM/FM Radio (1000 Watt)
Features
• Home Theater Audio Receiver System
• High-Powered Hybrid Pre-Amplier
• Includes (2) VHF Wireless Mics for Karaoke-Style Audio
• Built-in BT for Wireless Music Streaming
• Digital VFD Display with AM/FM Radio
• Connect & Stream Audio from External Devices
• MP3 Audio File Playback Support
• USB Flash & SD Memory Card Readers
• Front Panel Button & Rotary Controls
• LED Backlight Illumination with Dimmer Control
• Digital Fluorescent Audio Level Output Display Meter
• RCA (L/R) Audio Input/Output Jacks
• Dual Mono RCA Jacks Dedicated for Subwoofer Output
• Screw-Type Speaker Terminal Binding Posts
• Headphone Jack, 1/4’’
• Aux (3.5mm) Input Jack
• (2) 1/4’’ Microphone Inputs
• Microphone Volume/Tone/Echo Control
• Independent Source Subwoofer Audio Control
• Built-in Cooling Fan
• Universal Rack Mount Design
www.PyleUSA.com
9
Bluetooth Connectivity:
• Receives Wireless Signal for Audio Streaming
• Works with All of Your Favorite Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• BT Version: 2.1
• Wireless Range: 35’+ ft.
What’s in the Box:
• Amplier Receiver
• (2) Wireless Microphones
• Remote Control
• AM/FM Antennas
• Rack-Mount Brackets
• Power Cable
Technical Specs:
• Power Output: 1000 Watt MAX
• 450 Watt @ 2 Ohm
• 360 Watt @ 4 Ohm
• 200 Watt @ 8 Ohm
• Frequency Response: 40Hz-15kHz, +/-2dB
• S/N Ratio: >76dB
• T.H.D.: <1%
• Radio Station Memory Presets: 30
• Tuner: Quartz Synthesized Radio
• Wireless Microphone Transmission: VHF Signal
• Digital Media File Playback Support: MP3/ WMA /WAV/ FLAC
• Battery Operated Remote Control:
Requires (2) x ‘AAA’ Batteries, Not Included
• Battery Operated Microphones:
Require (2) x ‘AA’ Batteries (Each), Not Included
• Power Cord Length: 4.9’ ft.
• Power: 120/240V, Switchable
• Unit Dimensions (L x W x H): 17''×11.8''×3.1''
