Pyle view PLVWR1752 Manuel utilisateur

HTTP://WWW.PYLEAUDIO.COM

Instruction Manual

1 x instruction manual1 x remote control

2 x connection wire

1. When connect the electric power wires, you should make clear about the

positive and negative electrode ( the red one is positive and the black

is negative). If you wrongly connected the fuse in the filter box will be

broken protectively. Please replace the fuse in same parameter.

2. Because the LCD screen is the main component It should be paid

attention to be damp-proof.

3. The device must be installed firmly to prevent falling of device that will

possibly cause injury and device-broken.

4. The connecting-point of direct current (12V) should connect on the Main

line of storage battery as possible as it can , for keeping this device in

normal operation and be away from the large voltage drop influence.

5. There is high voltage cluster in this machine, if you are the professional

person, should never to take part the machine if malfunction and

contact the dealer in time.

Attentions:

Accessories

PLVWR1752

17" High Resolution Widescreen TFT-LCD Flip-Down

Roof Mount Monitor w/IR Transmitter

V1V2MENU

All manuals and user guides at all-guides.com

all-guides.com

Thank you for purchasing the TFT LCD color monitor. To enjoy the features

of this device and to ensure years of trouble-free operation, please read

this manual carefully and follow the instructions.

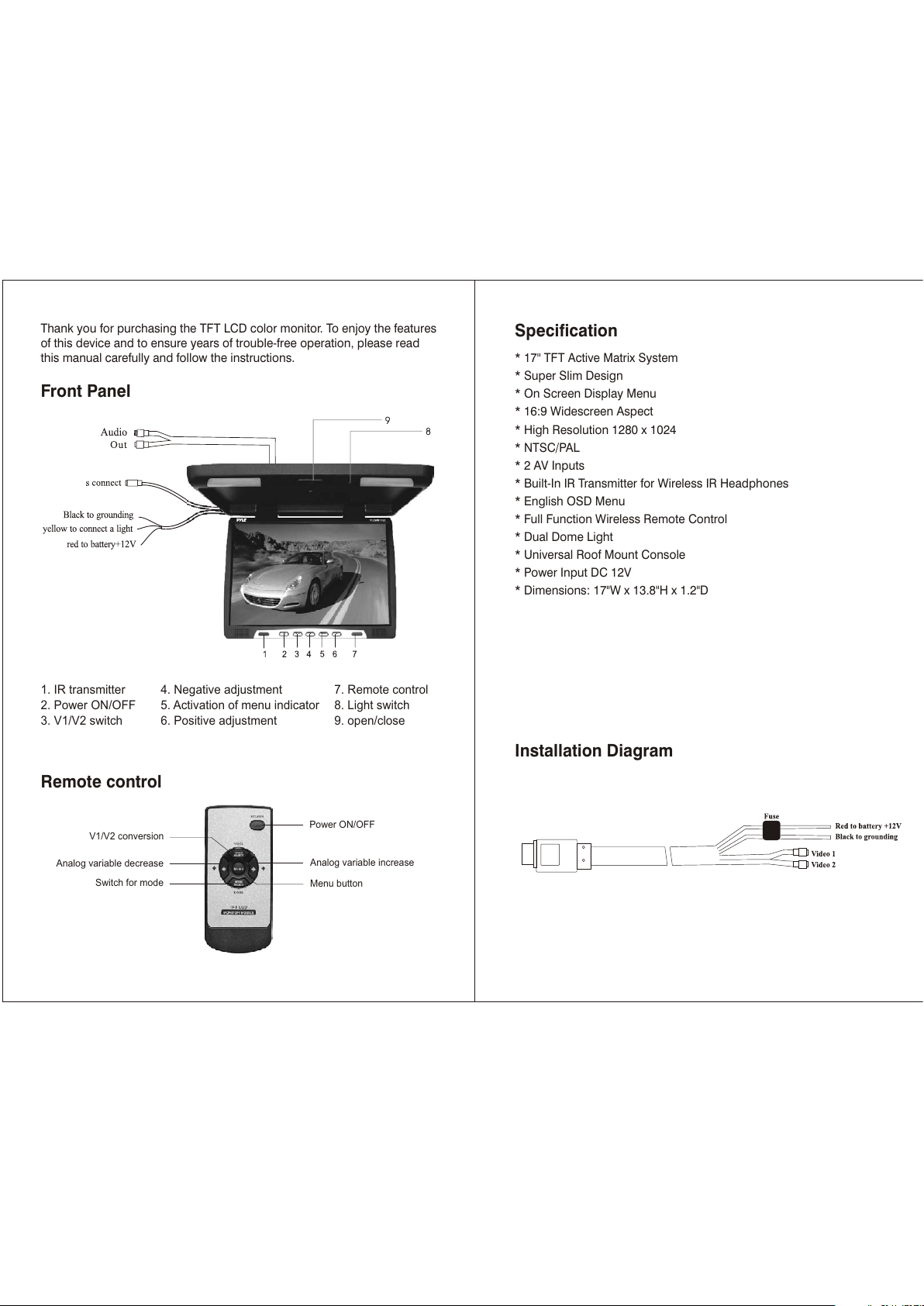

Front Panel

Remote control

Analog variable increase

Menu button

V1/V2 conversion

Analog variable decrease

Switch for mode

Specification

Installation Diagram

Power ON/OFF

1. IR transmitter

2. Power ON/OFF

3. V1/V2 switch

4. Negative adjustment

5. Activation of menu indicator

6. Positive adjustment

7. Remote control

8. Light switch

9. open/close

V1V2MENU

* 17'' TFT Active Matrix System

* Super Slim Design

* On Screen Display Menu

* 16:9 Widescreen Aspect

* High Resolution 1280 x 1024

* NTSC/PAL

* 2 AV Inputs

* Built-In IR Transmitter for Wireless IR Headphones

* English OSD Menu

* Full Function Wireless Remote Control

* Dual Dome Light

* Universal Roof Mount Console

* Power Input DC 12V

* Dimensions: 17"W x 13.8"H x 1.2"D

All manuals and user guides at all-guides.com
