Pyle view PLVW20T Manuel utilisateur
20" CEILING MOUNT TFT-LCD MONITOR
WITH TV TUNER SYSTEM & IR HEADPHONE
PLVW20T
1
1. Table of Contents------------------------------------------------------1
2. Warning ----------------------------------------------------------------1
3. Usage Notice---------------------------------------------------------- 2
4. Package ----------------------------------------------------------------3
5. Function Descriptions-------------------------------------------------4
6. -------------------------------------------------4
7. ----------------------------------------- 5
8. --------------------------------------------- 6
9. ----------------------------------------------7
10. Closing Monitor-------------------------------------------------------7
11. OSDMenus inA/V Source --------------------------------------------8
12. Remote Control--------------------------------------------------------9
13. Appendix--------------- ------------------------------------------------9
14. Specifications ------------------------------------------------------- 10
15. TV TUNER BOX -----------------------------------------------------11
16. Remote ControlFunction --------------------------------------------11
17. TunerIntstallation and ElectricalConnections --------------------12
18. Installation -----------------------------------------------------------12
19. Specifications --------------------------------------------------------16
Start Your Installation
Setting Up The Dome Lamps
Installation Your Monitor
Operating the Monitor---
Table of Contents
WARNING
This unit is not intended for installation in the front Driver / Passenger Compartment
where it may be seen by the Driver. Installation of this unit in any portion of the vehicle
which could impair or distract the Driver is improper and dangerous and
assumes No liability whatso ever for failure to follow the proper installation of this
product.
To reduce the risk of electric shock, please do not expose this unit to rain, moisture or
open the unit. Dangerous high voltages are present inside the unit.
Our warranty could be voided if you make changes or modifications not expressly
approved by
Usage Notice
Follow all warnings, precautions and maintenance as
recommended in this user's manual to maximize the life of
your LCD monitor
To avoid the damage of the LCD monitor and risk of
electronic shock, do not allow the LCD monitor to get wet.
If the monitor gets wet, turn off the power, unplug the
power cord and send the LCD monitor to your local dealer
or our service cen-ter as soon as possible.
Use a regular power specification of DC 12V . Do not use
any other power supply with different voltage.
Do not place objects on or suspend them with the power
cord.
This will damage the power cord.
Do not tangle or twist the power cord . And do not expose it
to any heated object.
Do not try to repair the power cord when it is damaged or
broken, change a new one immediately.
Avoid dropping any metal objects or inflammable liquids
into the LCD monitor from ventilation slots.
Do not attempt to open or disassemble the LCD monitor
yourself as this may cause electronic shock.
When there is smoke or peculiar smell in use, unplug the
power cord immediately and send it to your local dealer or
our service center.
When there is damage to the LCD monitor casing, send it to
your local dealer or our service center.
Do not use this LCD monitor in areas susceptible to
excessive dust, dirt, and humid.
Do not install the LCD monitor in areas that are exposed to
direct sunlight, extreme heat, and extreme cold
environment.
Do not expose the LCD monitor to rain or moisture.
2
3
Package
This LCD monitor comes with all the items below. Check to make
sure your unit complete. Contact your dealer immediately if
anything is missing.
* 20" High RES TFT-LCD Wide Screen Monitor
* Overhead Console Mounting Bracket
* Credit Card Size Remote Control with Batteries
* Interface Cable with RCA jacks for Audio / Video
Connection and 12V DC
* User's Manual
* Warranty Card
* Infrared Wireless Headphone
User Control Overview
*Panel Control
UP
MENU
POWER
DOWN
Start Your Installation

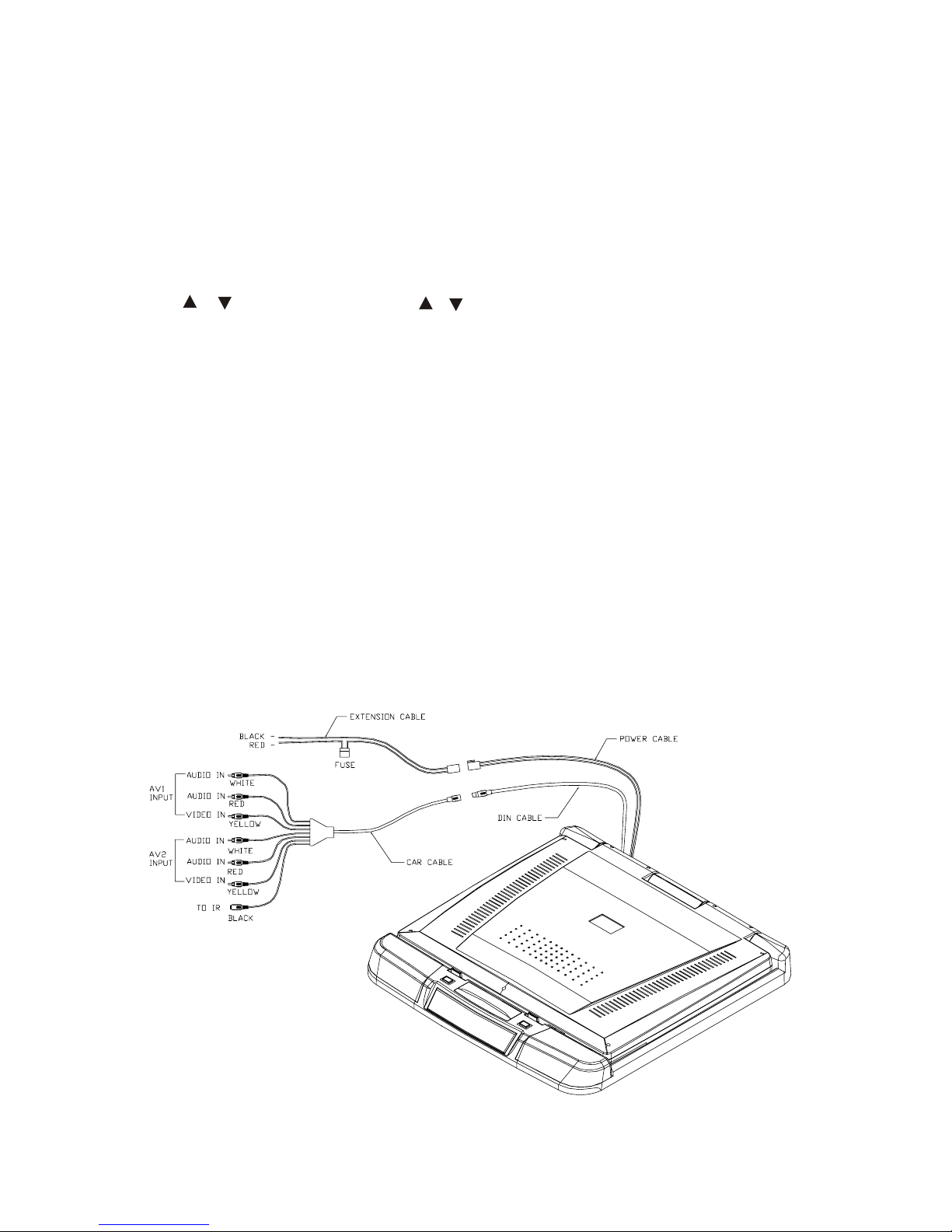

* Monitor connection
4
Function Descriptions
* Menu: Press the "MENU" button to pop up the OSD menus.
* / Keys: 1. Press the " / " key to increase or decrease volume.
2. Make item selection in OSD menus to increase or
decrease parameters as well.
* Mute: Press the "Mute" button from the remote control
to turn off the sound of the LCD monitor.
* Power: You may also turn the monitor on and off with the
"Power" button.
Setting Up The Dome Lamps
*Operating the dome Lamps
1. There are three function buttons for the Dome lamps operation: OFF,
DOOR, and ON. (Refer to the following figure)
A. OFF: To turn off the lamps.
B. DOOR: To make the lamps turn on
only when car doors are
opened.
C. ON: To turn on the lamps.
5
* The electric circuit figure
Point Power Cord Color Connection
R
W
B
Red
White
Black
Connecting With Power Supply
Connecting With Sensor of Car Doors
For Ground Connection
* Remarks:
W
B
OFF
DOOR
ON
LAMPS R
BATTERY +
DOOR
ON OFF
ON OFF DOOR
1. There is no wiring connection necessary at"B" point as
"B" has been connected when the metal bracket is
screwed in.
2. Only use 12 volt DC power.
Installation your Monitor
Take care to select a suitable installation location and secur method
fastening for the monitor:
*The unit should not distractor obstruct the driver.
*The installation should not inhibit the entry to, or the exit from the
vehicle.
*The unit should not interfere with other vehicle components e.g.,
(sliding sunroof).
*Make sure the unit is installed to a secure, mounting location
and cannot become dislodged in the event of an emergency stop.
*Do not support the unit using only the vehicle interior fabric roof
lining.
*If driving screws is required, take care not to penetrate through the
other sheet metalof the vehicle.
*Avoid prolonged use of the monitor when the engine is not running
to prevent draining the vehicle battery.
*Place the mounting metal plate with the nuts facing upward, then,
mount the monitor using the screws included.
6
Closing Monitor
1. Return the monitor to the central viewing position.
(Refer to the following figure)
2. Push the monitor back into the monitor base unit until
the screen engages with the release button.
Operating the Monitor
* Powering up the monitor
The monitor will be automatically turned on when releasing the
monitor from the base unit and "OFF" when it is closed.
Operating Instructions
Opening the Monitor
1. Press the monitor release button to lower the LCD screen.
2. Lower the monitor until is at the proper viewing angle.
(Refer to the following figure.)
7
8
* OSD Menus in A/V Source
MAIN MENU
CUBS.1 = NTSC
H. SYNC = +15.7K Hz
V. SYNC = +60.0Hz
BRIGHTNESS
CONTRAST
COLOR
HUE
SOURCE
AUDIO
RECALL
EXIT
1
2
SOURCE
AUTO DETECT
VIDEO 1
VIDEO 2
RETURN
AUDIO
MUTE
VOLUME
RECALL
RETURN
A. Source Selection Menu
B. Audio Input Selection Menu
VOLUME
* Quick Adjustment OSD Menus
1. By pressing "MENU" button, you may open the MAIN MENU, using " " or " "
buttons to pick out OSD functions.
2. In order to select desire options, it is necessary to press "MENU" again to
enter each mode, than using " "/ " " toincrease or decrease parameters as well.
3. Press " " or " " button directlyto adjust speakervolume.
4. Press the " EXIT" mode to store your selected parameter and
leave the OSD Menus.
9
Appendix

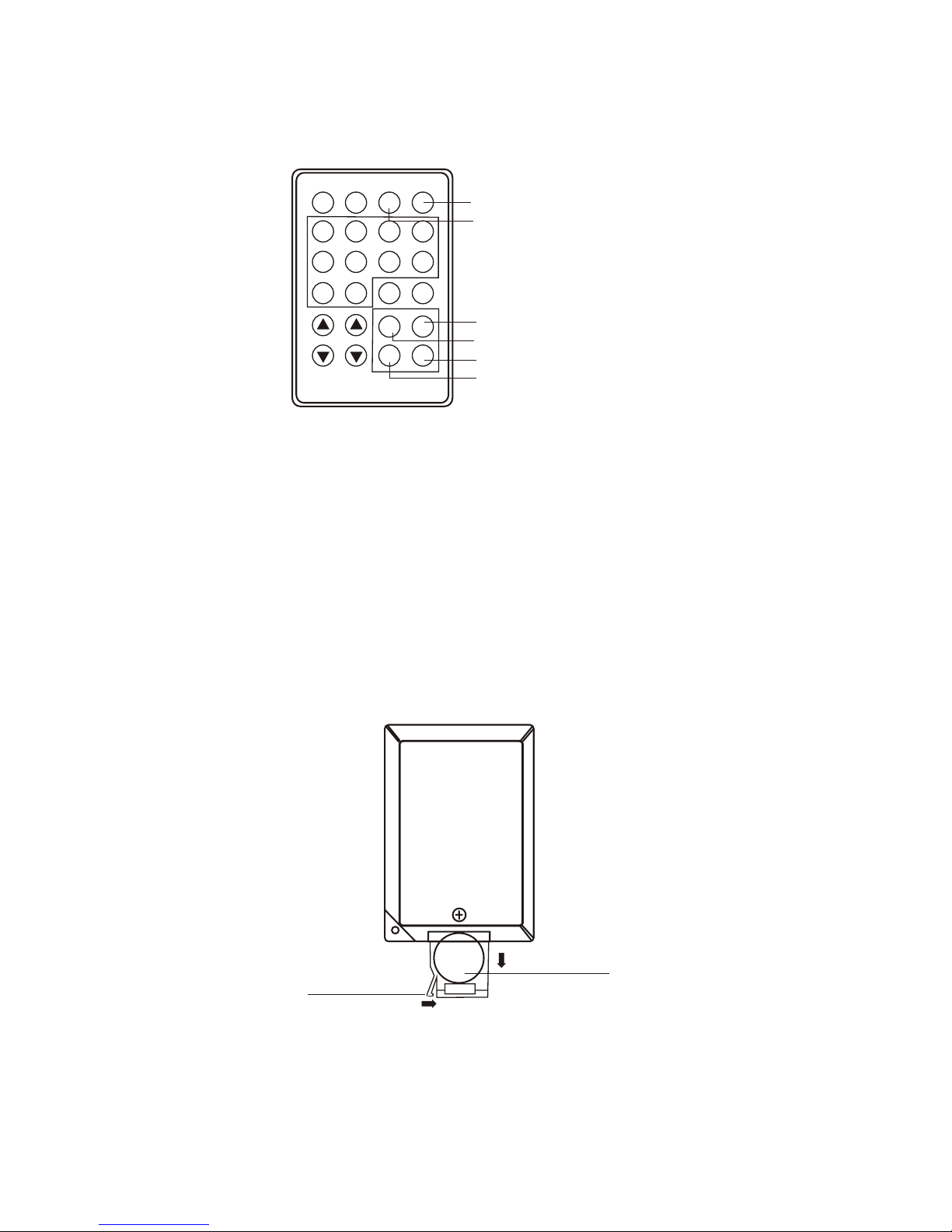

Changing the New Battery in Remote Control
1. Push the battery case button to wards the right. (As shown # 1 in
below figure)
2. Pull the battery case away from the remote control. As shown
# 2 in below figure) Change a new battery.
Cassette Button
1
2Battery
Remote Control
1234
5678
90
POWER
MUTE
TV/AV
TV/CATV
SETUP
FM/AM
Monitor
FUNC
UP
+
MODE
DN
-
CHVOL
Power
MUTE
FUNCTION / OSDMENU
MODE VIDEO 1/ VIDEO 2
UP
DOWN
