PUSR AC1000 Manuel utilisateur
AC1000 User Manual
pusr.com
1
- 2 -
Content
1. Introduction ...............................................................................................................................................- 4 -
1.1. Overview...........................................................................................................................................- 4 -
1.2. Features............................................................................................................................................- 4 -
1.3. Specification .....................................................................................................................................- 5 -
1.4. Button & Indicator .............................................................................................................................- 6 -
1.5. Dimension ........................................................................................................................................- 6 -
2. Get Started.................................................................................................................................................- 7 -
2.1. Login setting webpage......................................................................................................................- 7 -
2.2. Briefs introduce of the webpage........................................................................................................- 8 -
3. Configuration and parameter details ..........................................................................................................- 9 -
3.1. System status....................................................................................................................................- 9 -
3.2. AC management .............................................................................................................................- 10 -
3.2.1. AP list ....................................................................................................................................- 10 -
3.2.2. AP settings.............................................................................................................................- 11 -
3.2.3. AP information.......................................................................................................................- 12 -
3.3. AC management via PUSR cloud...................................................................................................... - 13 -
3.3.1. AP import...............................................................................................................................- 13 -
3.3.2. AP list ....................................................................................................................................- 14 -
3.3.3. AP settings.............................................................................................................................- 15 -
3.3.4. AP information.......................................................................................................................- 15 -
3.4. Internet accessing settings ..............................................................................................................- 16 -
3.4.1. Mode selecting.......................................................................................................................- 16 -
3.4.2. Ethernet port setting ..............................................................................................................- 17 -
3.4.3. WAN settings .........................................................................................................................- 17 -
3.4.4. IP mapping ............................................................................................................................- 17 -
3.4.5. Port mapping.........................................................................................................................- 19 -
3.5. LAN network settings.......................................................................................................................- 21 -
3.6. Login settings .................................................................................................................................- 22 -
3.7. Client list.........................................................................................................................................- 22 -
3.8. Software upgrading ........................................................................................................................ - 23 -
3.8.1. Firmware upgrading ..............................................................................................................- 23 -
AC1000 User Manual
pusr.com
1
- 3 -
3.8.2. Backup ..................................................................................................................................- 25 -
3.8.3. Time & Date ...........................................................................................................................- 25 -
3.8.4. Reboot...................................................................................................................................- 26 -
3.8.5. Reset to factory setting...........................................................................................................- 26 -
3.9. System log......................................................................................................................................- 26 -
4. Warranty..................................................................................................................................................- 27 -
5. Contact Us................................................................................................................................................- 27 -
6. Disclaimer................................................................................................................................................ - 27 -
7. Revision History........................................................................................................................................- 28 -
AC1000 User Manual
pusr.com
1
- 4 -
1. Introduction
1.1. Overview
The AC1000 series features a controller with localized small to medium-sized LAN centralized configuration,
management, and status monitoring capabilities, along with integrated unified management functionality for
wired devices. It supports both AC functions, such as wireless AP management, wireless internet control, wireless
authentication management, and wireless security management, as well as centralized network control
functions, including intelligent network initialization, comprehensive network management, automatic device
discovery, and network operations and maintenance.
The product's WAN and LAN ports are designed with Gigabit Ethernet ports. Compared to traditional 100
Mbps ports, the wired transmission rate is increased by ten times, making it suitable for broadband access of 100
Mbps and above, especially for mainstream fiber optic broadband access.
The design of the product aims to provide home and small business users with a wireless coverage
experience comparable to professional commercial-grade solutions. The product's hardware and software
design balances，the professionalism of commercial WiFi network solutions with the convenience required for
small-scale applications. By streamlining the device installation and configuration steps, it is made to easily
serve home and small to medium-sized enterprise applications.
1.2. Features
⚫MTKT7621AT MIPS1004Kc (880 MHz) dual-core CPU, adopting high-performance processor can provide
more stable network and faster transmission rate.
⚫Supported standard: IEEE802.3, IEEE802.3u, IEEE802.3ab.
⚫Equipped with 1*10/100/1000M WAN, 4*10/100/1000M LAN (PoE output), auto MDI/MDIX.
⚫Metal shell can provide heat dissipation and effectively shields electromagnetic interference.
⚫Support multiple installations: Desktop, DIN rail mounting, wall mounting, 1U Rack Mount: Standard 19-
inch cabinet type(only for AC1000).
⚫Rich hardware interface: 1*USB2.0, 1*USB3.0, 1*console, 1*reload button.
⚫Manages up to 200 wireless access points, and 100 users as gateway.
⚫Support router mode and AP mode.
⚫Support DHCP, PPPoE, static IP in router mode.
⚫Support WAN/LAN switching, and multi-WAN settings.
⚫Supports multiple services: HTTP, NAT, QOS, etc.
⚫Can be centrally managed through the PUSR cloud.
⚫Can monitor each access point and connection status of network devices.
⚫Support reset to factory settings via reload button.
AC1000 User Manual
pusr.com
1
- 5 -
⚫Support OpenWrt system customization.
1.3. Specification
Table 1. Parameters table
Model
AC200
AC1000
Processor
MTK MT7621AT
DDR
DDR3 2Gbit
FLASH
Nor Flash 64Mbit
POE
RTL8234B
None
EEPROM
BL24C64A
Power
Power
Power adapter
Input: 100 –240 V AC, 50/60 Hz
Output: 53.5VDC/1.22A
100~240V 50/60Hz AC
Power
consumption
≤5W
≤12W
Hardware
WAN
1*RJ45, 10/100/1000M, auto MDI/MDIX
LAN
4*RJ45, 10/100/1000M, auto
MDI/MDIX
48V PoE out, IEEE 802.3af, IEEE 802.3at
standard
4*RJ45, 10/100/1000M, auto MDI/MDIX
Console port
1* Micro USB
1*RJ45
USB
/
1*USB2.0+1*USB3.0
Reload
Reset to factory settings
Indicators
Power, work, Ethernet port
indicator
Power, work, USB, Ethernet port
indicator
EMC Protection
IEC 61000-4-2, level2, ESD
IEC 61000-4-4, level2, EFT
IEC 61000-4-5, level2, surge
Software
Work Mode
Router mode, AP mode
Management
HTTP Web based GUI
Local or online Firmware upgrade
Configuration Backup / Restore
Centrally managed through the PUSR cloud
AP Management
Manage up to 200 access points
Manage up to100 end users
Centrally and remotely to manage/configure wireless AP
View user’s status
AC1000 User Manual
pusr.com
1
- 6 -
Others
IP binding
Port mapping
WAN/LAN switching, and multi-WAN settings
Multiple services: HTTP, NAT, QOS, etc
OpenWrt system customization
Physical Parameters
Dimension
110*95*25mm
440*250*44.5mm
Installation
Desktop, wall mounting, DIN rail
mounting
Desktop/1U Rack Mount
Operating
Temperature
0℃~ 45℃
Storage Temperature
-40℃~ 75℃
Operating Humidity
5 ~ 95 %(non-condensing)
1.4. Button & Indicator
Table 2. Button & Indicator
Item
Description
Power Indicator
On: Power on,
Off: Power off.
Reset Button
Holding for 5s to reset to factory settings
ETH link/data indicator
Link: there is ETH device connected.
Data: Transmitting/receiving data.
Internet
Green: accessing to internet successfully.
USB
Green: there is USB device connected.
1.5. Dimension
Unit：mm
AC1000 User Manual
pusr.com
1
- 7 -

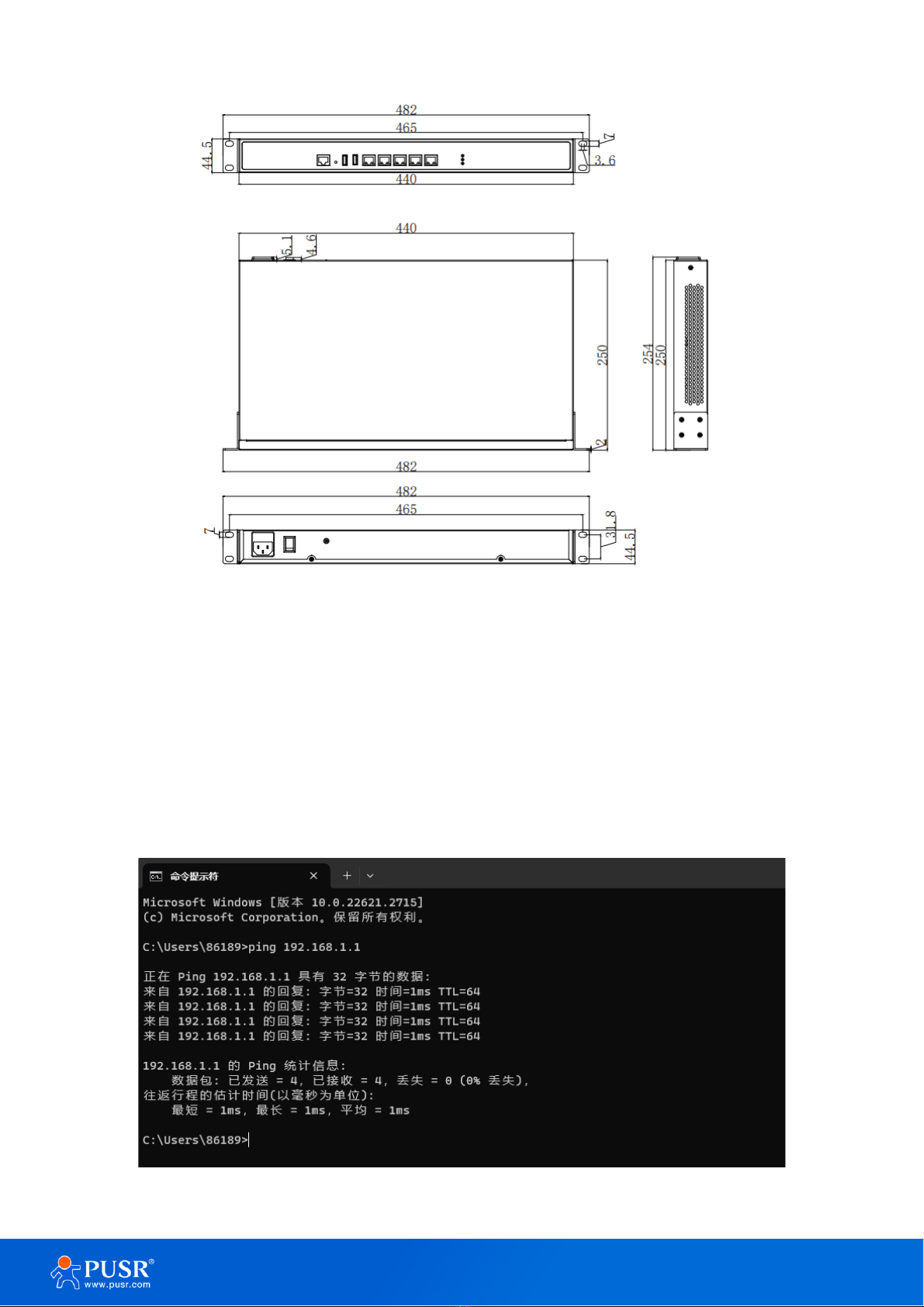

Figure 1. Dimension of AC1000
2. Get Started
2.1. Login setting webpage
Connect PC to the LAN port of the AP controller, and set the IP to static IP, such as 192.168.1.101. The IP
should be on the same network segment as the AP device.
You can test whether the network is connected by ping 192.168.1.1.
Figure 2. Ping command
AC1000 User Manual
pusr.com
1
- 8 -
Enter the default IP address of the AP 192.168.1.1 in the browser, and the browser will navigate to login page.
The username and password are both admin.
Figure 3. Login page
2.2. Briefs introduce of the webpage
The left column is divided into 9 menu pages: System status, mobile network, Internet accessing settings,
WLAN settings, LAN settings, Login settings, client list, upgrade and system log.
There are three auxiliary options in the upper right corner: PUSR cloud, Luci, language, as shown in the
following figure.
AC1000 User Manual
pusr.com
1
- 9 -
Figure 4. Function page
3. Configuration and parameter details
3.1. System status
This interface displays the basic information of the router, including 5 major blocks: system information,
WAN port information, LAN port information, AP information and cloud AP information (Details will be introduced
later). The specific information is shown in the figure below.
AC1000 User Manual
pusr.com
1
- 10 -
Figure 5. System information（AP）
3.2. AC management
This function is used to manage AP devices connected to the same LAN. The interface contains three sub-
menu bars: AP List, AP Settings, and AP Details.
3.2.1. AP list
This interface is used to display the information of AP devices that connected within the LAN. The detailed
information is shown in the following figure.
