Operating Instructions

ULOW-E2V

Vertical Low-Temperature Radiator

Ulow E2V • 2022-04-01

TOUCHPAD CONTROL

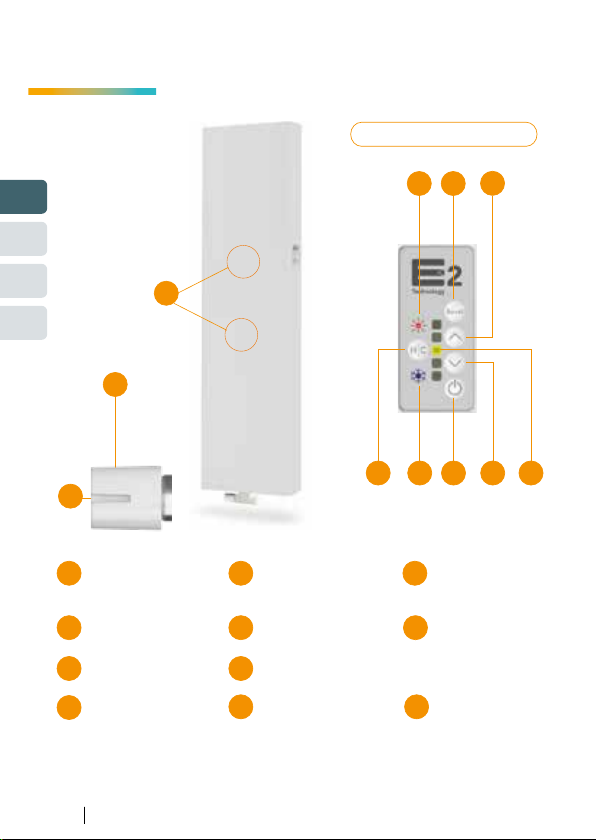

Function and Control Elements

Electronic actuator with

connecting cable

UP key

DOWN key

Heating/Cooling/

recirculating

air key

Main switch ON/OFF

LED on actuator*

Ventilators

Heating symbol, RED Temperature scale

TOUCHPAD

Cooling symbol, BLUE Boost key

* The LED on the actuator indicates the position of the step motor.

Red: Motor closed • Green: Motor open • Flashing green: Middle position

1 5 9

6 10

8 11

4 9 6

537 810



Ulow E2V • 2022-04-01

You‘ve made a Good Choice.

Operating Conditions

The low-temperature radiator with E2 technology is a high-

quality product made for you. It meets the latest standards in

terms of energy-efficient low-temperature radiator technology.

In order to avoid malfunctions or damage, it is important to read

and follow these operating instructions carefully. If you have

any questions, please contact your specialised local dealer or

the manufacturer directly.

Enjoy your new low-temperature radiator.

6 bar max.

max. 60°

230VAC

50Hz

Ulow E2V • 2022-04-01

Important Notes

The device may only be mounted by a qualified

expert.

The device must not be mounted directly

in front of a socket outlet.

The electrical installation must comply with the

local or national wiring regulations. In bathrooms or shower

rooms, the device must be installed in a way that switches

and other control elements cannot be touched by any person

using the bathtub or shower.

If the connecting pipe or the electrical supply cord of

the device is damaged, it may only be replaced by the

manufacturer or service agent.

Caution! In order to prevent overheating,

the radiator must not be covered

completely for technical safety

reasons.

After mounting the device, the socket must remain

accessible.

For ULOW E2, a fused (3A) electrical spur with a

switch having 3 mm separation on all poles must

be provided in an easily accessible position

adjacent to the unit.

Type: ULOW E2

max. 15 W ~230 V

ÖVE



Ulow E2V • 2022-04-01

Important Notes

Caution! Some parts of the product may get

very hot and cause burns! Special caution is advised, if children

and persons in need of protection are present.

Children below the age of 3 must be kept away from the

product, unless they are constantly supervised.

Children from the age of 3 and below 8 may only

switch the device on/off if supervised or

instructed on the safe use of the device and if

they are aware of the resulting danger, given

that the device is placed and installed in its

normal position of use.

Children from the age of 3 and below 8 must not

put the plug into the socket, control the device,

clean the device and/or perform any maintenance

work.

This device may be used by children from the

age of 8 and persons with reduced physical,

sensory or mental capabilities or lack of

experience and knowledge, if supervised or instructed

and fully aware of the safe use of the

device and the resulting risks. Children must not

play with the device. Cleaning and maintenance

work must not be performed by children without

supervision.

Ulow E2V • 2022-04-01

Number of ventilators:

Length 450 mm = 2x3 = 6 ventilators

Length 600 mm = 2x4 = 8 ventilators

Length 750 mm = 2x6 = 12 ventilators

Do not use any scouring detergents or paint thinning!

To ensure the efficiency of the device, regular maintenance

of the ventilators and the radiator by the specialist trade is

recommended.

The following standards must be observed when installing

radiators:

- DIN 55900: Spray area in wet rooms.

- VDI 2035: Avoiding damage in hot water heating systems

- DIN 18017 Part 3: Ventilation of bathrooms and toilets

without windows

- EN 14336: Heating systems in buildings, installation and

acceptance of hot water heating systems

- VDE, ÖVE

The electric actuator must be mounted on the LEFT side of

the valve body, which is centrally located on the lower edge

of the radiator:

1. Mounting the electric actuator

2. Connecting the ribbon cable of the power box to the ribbon

cable of the touchpad

3. Connecting the Ulow E2 V to the mains supply

Important Notes



Ulow E2V • 2022-04-01

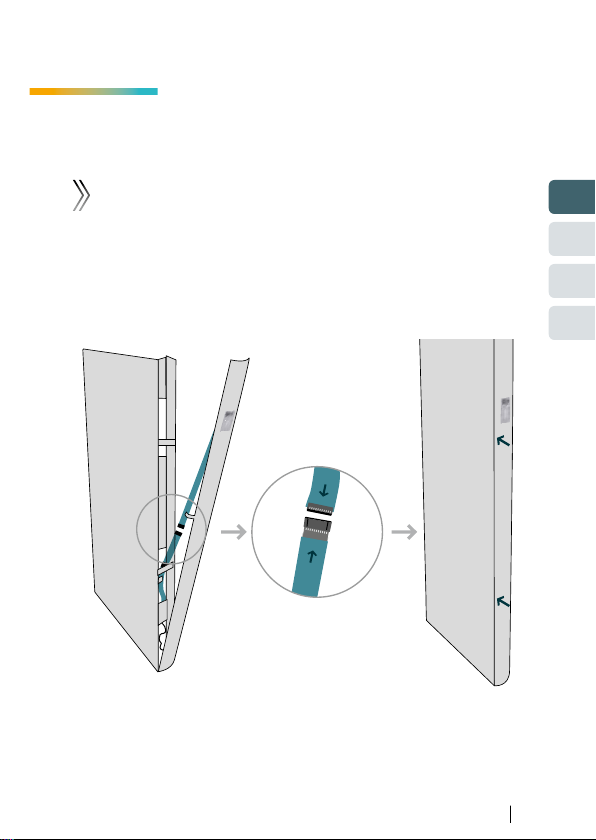

Connecting the Flat Cable

1. Connect the ribbon cable from the right side panel with the

touchpad to the ribbon cable coming out of the radiator on

the right. Be VERY CAREFUL when doing this!

2. Then click the side panel into the radiator.

Ulow E2V • 2022-04-01

Mounting the Electric Actuator

The electric actuator must

be mounted on the LEFT side

of the valve body, which is

centrally located on the lower

edge of the radiator. First

connect the cable and then

mount the electric actuator

on the valve body.

Make sure that the cable

always is located BEHIND

the pipe.

Then connect the cable to the

electric actuator.

Then turn the union nut (M

30 x 1.5 mm) onto the valve

by hand.

Attention: The flat side of the

electric actuator must face

backwards or upwards. If you

turn the flat side downwards,

the cable will come loose.



Ulow E2V • 2022-04-01

Connecting to the Power Network

Example:

Classic power

connection with plug

connection.

Example:

Direct power

connection

with or

without

on/off

switch.

Then connect the E2 to the

mains with a Euro plug or ...

... direct power connection with

open cable ends.

 Ulow E2V • 2022-04-01

Turning on the Radiator Control

The radiator control of the E2 low-temperature radiator is

turned on by pressing the ON/OFF key.

Important in case of first start-up:

During the first start-up, please note that the

radiator control will be in heating mode with a

pre-set target room temperature of 22°C.

Changes in heating operation:

The red heating symbol is lighted. The desired room

temperature can be set from 18°C to 26°C in steps of

0.5°C. Use the UP

and DOWN

key.

Boost Mode:

In this operating mode, the yellow temperature symbol flashes

In order to achieve the required room temperature as quickly as

possible, activate the boost mode by pressing the

Boost

key. This will

activate the maximum heating output for a maximum of 120 min. As

soon as the desired room temperature has been achieved, comfort

mode will automatically be re-activated. Boost mode can be

stopped any time by pressing the

Boost

key.

Boost
