Pure Acoustics PX/240 Manuel utilisateur

Owner’s Manual

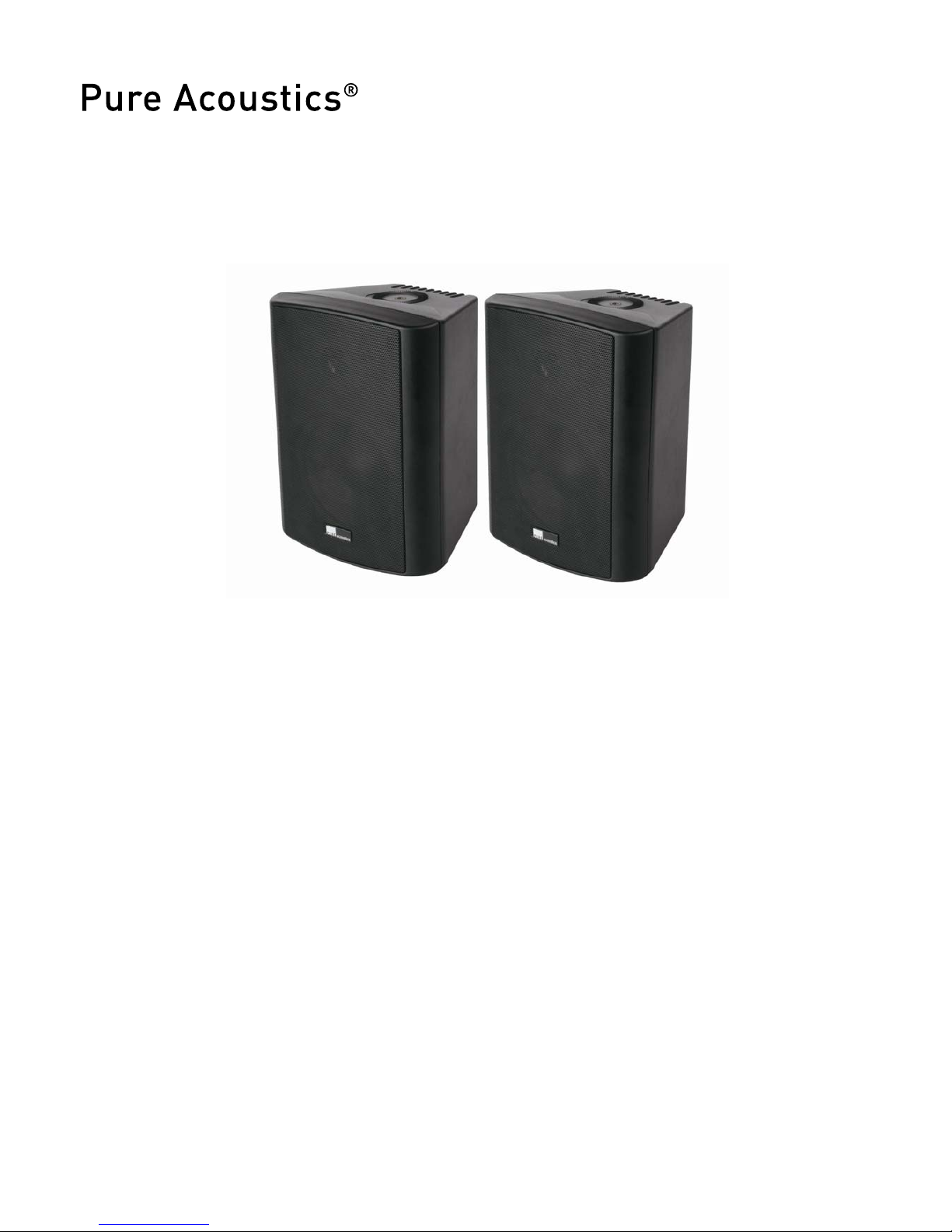

PX/240

2-WAY INDOOR/OUTDOOR SPEAKER SYSTEM

Congratulations on your purchase.

We trust that you will enjoy the value and quality of your Pure Acoustics PX/240 Indoor/Outdoor speaker

system. Please take a few moments to read this manual before you get started. Also, be sure to retain this

document should you need to refer to it in the future.

SPEAKER PLACEMENT

The PX/240 speakers are manufactured to

resist a variety of weather conditions. However,

they are not waterproof, so if you decide to place

your speakers outdoors, position them so they

are not exposed to the elements. The undersides

of most eaves and overhangs provide the best

protection for indoor/outdoor loudspeakers.

Like all speakers, the PX/240’s sound best

when placed no more than seven feet apart, ear

level to the listener. If the speakers are farther

apart than seven feet, toe them in toward the

center of the room. Do not place them within

two feet of a television or computer screen, as

these speakers are not video shielded.

A FEW WORDS ABOUT COMPACT SPEAKERS

The PX/240 speakers are designed to accurately

reproduce high fidelity music in a variety of

applications, including home theater. Not only are

these loudspeakers weather resistant for outdoor use,

they also include color matched brackets for mounting

in most any environment.

PX/240 SPECIFICATIONS

Frequency Response:………...…45Hz-20K Hz Woofer:…………………...........5-1/4"polypropylene

Power capacity:…………….....…….125 Watts Tweeter:……….………………. 3/4"polypropylene

Impedance:…………..……………….8 Ohms Sensitivity: ………..……………………………90 dB

Pure Acoustics, Inc.

18 Fuller Place, Brooklyn, NY 11215, USA

Tel 718 788 4411

www.pure-acoustics.com

SPEAKER MOUNTING

If your application requires the PX/240 speakers to

be mounted, please follow these directions.

Using the hardware supplied, mount the bracket

first. Attach the speakers to the brackets using the large

plastic knobs supplied. Never mount a speaker on a

wall made of unreinforced drywall or plasterboard. If

you are unsure, consult a professional contractor.

Please note that if the PX/240 speakers are to be

placed on a bookshelf, speaker stand or equivalent, we

have also provided self-adhesive foot pads to protect

and immobilize them on most surfaces.

HOOKING IT UP

The binding post speaker terminals on the

PX/240 speakers will accommodate up to

12-gauge wire.

When connecting the speakers, it is very

important to observe the correct polarity. This

means that the wire attached to the (+), red, or

positive terminal on one component must be

attached to the (+), red, or positive terminal on

the corresponding component’s speaker output

terminals. Similarly, the (-), black, negative, or

ground terminals must connect to the

respective (-), black, negative, or ground

terminals. This is easy to do by locating the

color, stripes, or ribbing that appears on most

wire.
