Pulsar AWO610 Manuel utilisateur

General purpose metal enclosures, with DIN rails Pulsar ®

AWO610 v.1.0

Enclosure DIN1

CODE:

NAME:

Intended use:

Due to its design, the AWO610 enclosure can be used as an integrating part of installation systems, such

as: CCTV, KD, SSWiN, etc. The enclosure is to be used for mounting (depending on configuration):

·system KD controller and additional modules or other devices adjusted for mounting on a TH35

(35mm) DIN rail

·transformer, series: TRP, TRZ, TOR

·enclosed power supply units, series: PS, PSB

355

345 80

8

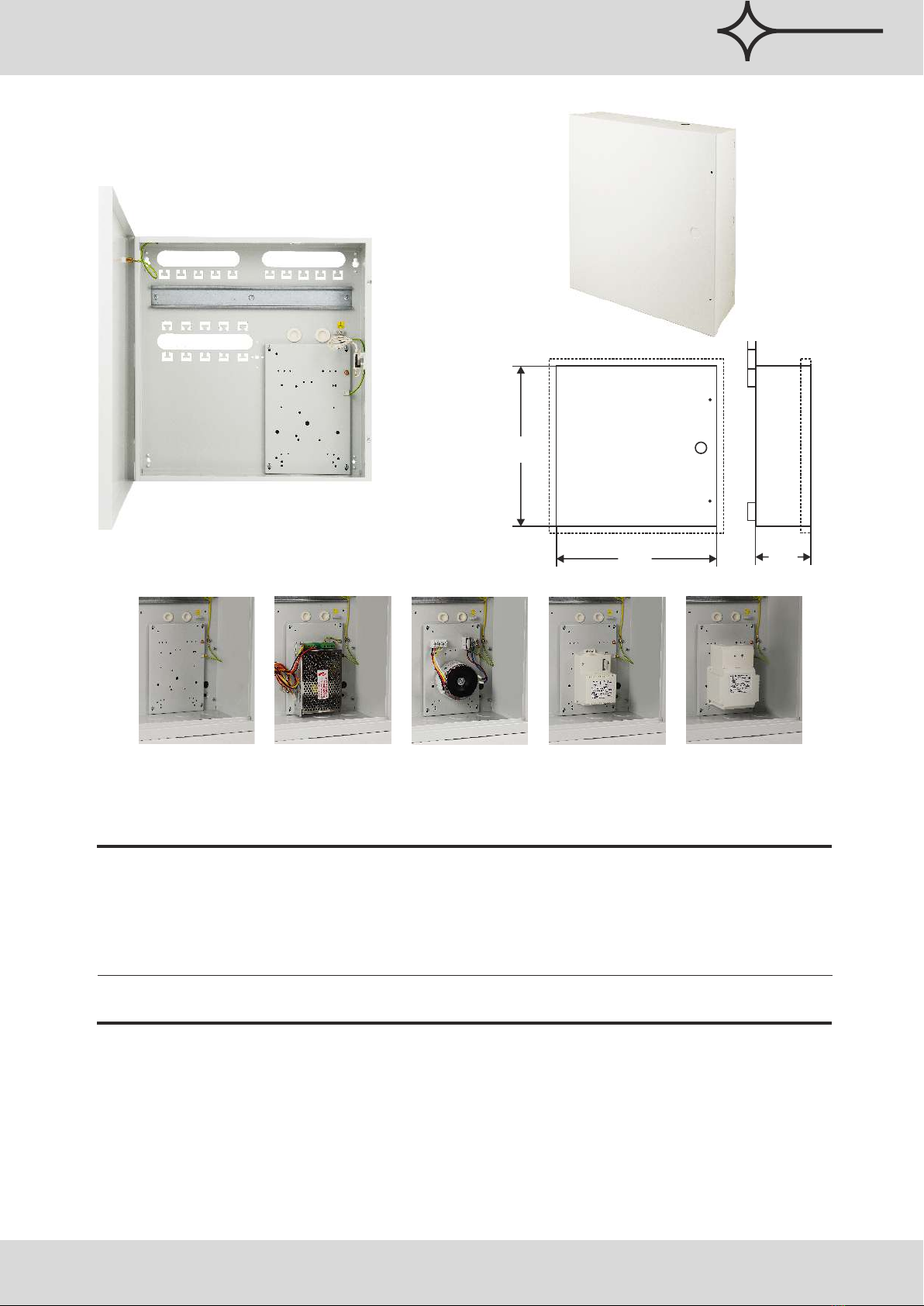

Product description:

The enclosure includes a 315mm-long Din rail mounted to the bottom.

It is equipped with a mounting plate, which is to mount transformers or power supply units.

The enclosure accommodates a 17Ah/12V battery. Anti-tampering system indicates an unauthorized

opening of the enclosure. There is also a possibility to mount an additional anti-tampering system, which

would prevent the device from being ripped off the wall (PKAZ005). In a basic version, the enclosure is

bolted in the faceplate with 2 screws. The faceplate is embossed so that a lock assembly can be fitted. The

lock can have the same code: MR027, or a different one: Mr008.There is an 8mm space between the

enclosure and the wall for the cables of the device accommodated by the enclosure.

Enclosed PSU

series: PS..., PSB...

Can be used for mounting transformers or power supply units:

Transformers

series: TOR...

Transformers

series: TRP...

Empty

mounting plate

Transformers

series: TRZ...

Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]

General purpose metal enclosures, with DIN rails Pulsar ®

SPECIFICATIONS:

Dimensions:

Weight net/gross: 3,80kg / 4,10kg [+/-0,1kg]

Fitting battery: 17Ah/12V sealded lead-acid (SLA), dry

Transformer: optional, series: TRP20, TRP40, TRZ20, TRZ40, TRZ50, TRZ80,TOR50, TOR80.

Power supply unit: optional, series: PS, PSB.

Materials: s thick, r

Use: inside, surface-mounted

Anti-tampering protection: 1 x microswitch: enclosure opening, 0,5A@50V/DC max. NC- normally-closed contacts

Closing: bolted, 2x screws, frontplate

Other features: - 8mm space from the wall

- embossed sidewalls, for grommets Ø22

-DIN rail, 315mm long

- removable door

- embossment for lock aasembly

- mounting plate for a transformer or a PSU

Optional accessories: - MR008 lub MR027- lock assembly: different code/same code.

- ML145 - insulationg gland, M20 x 1,5

- PKAZ005 - ant-tamper protection set,16mm, enclosed (against ripping off the wall)

Certificates, declarations: RoHS

internal: W=345, H=355, D=80 external: W1=360, H1=365, D1=100 [mm, +/-2]

n, cheet metal DC01, 1,0mm ust protectio olour: RAL 7035 grey, texture finish

Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]
