EC1309V2
User Guide 1 EC1309V2
1
1 EC1309V2

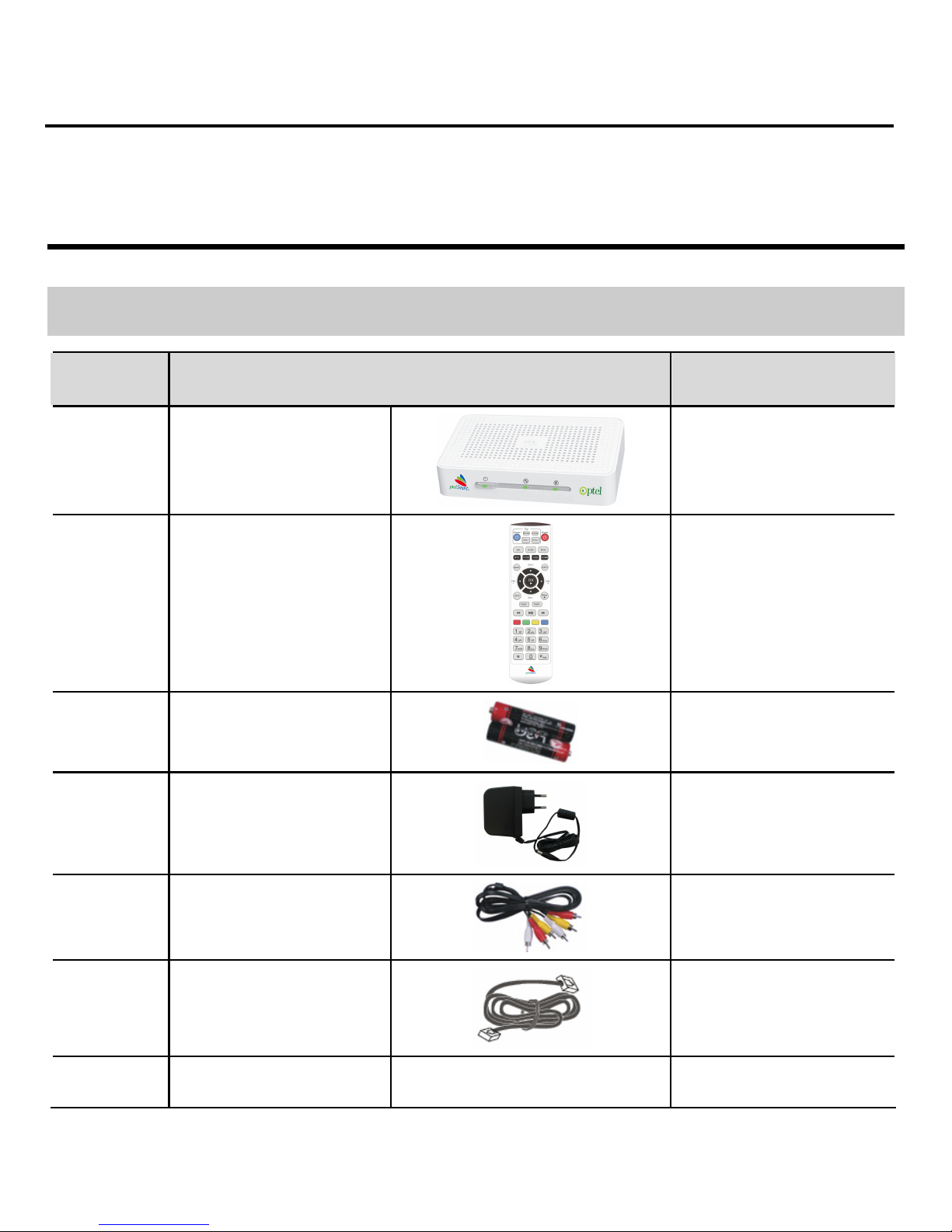

Items in the Packaging Box
No. Item Quantity
1 STB
1
2 Remote
control
1
3 Battery 2
4 Power adapter
1
5 Audio/video
cable 1
6 RJ45 cable
1
7 User Guide - 1
EC1309V2
User Guide 1 EC1309V2
2
Appearance

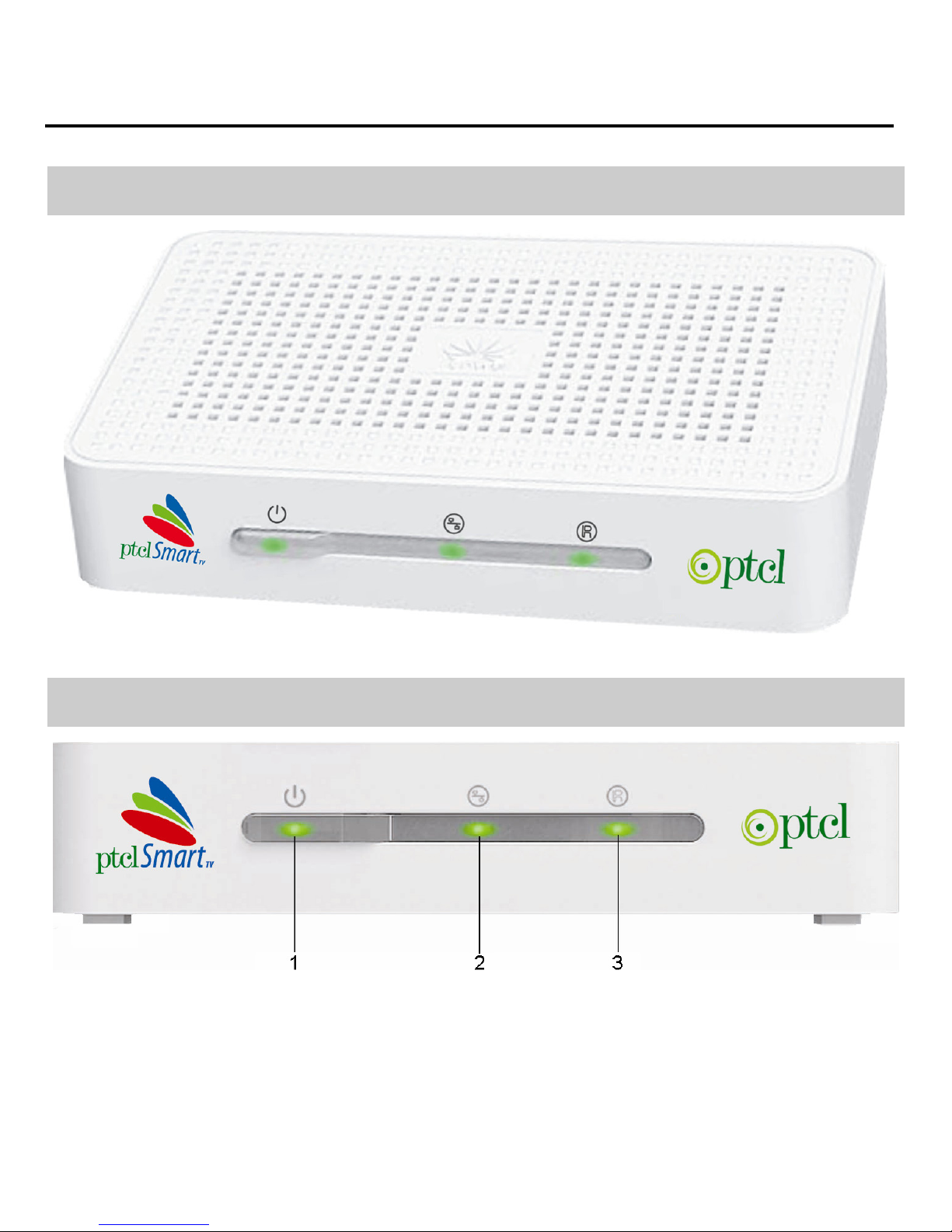

Front Panel
EC1309V2
User Guide 1 EC1309V2
3
1
Power indicator.
zIf the indicator is in green, it indicates that the
STB is in active mode.
zIf the indicator is in red, it indicates that the STB is
in standby mode.
2
Link indicator.
zIf the indicator is in green, it indicates that the
STB is connected to the network.
zIf the indicator is in red, it indicates that the STB is
disconnected from the network.
3
Infrared indicator.
If the indicator blinks, it indicates that the STB is
receiving signals from the remote control.
Rear Panel
No. Name Description
1
USB 2.0 port, allow optional features as
requested by operator.
EC1309V2
User Guide 1 EC1309V2
4
No. Name Description
2
Port for connecting to S-Video input port of a
TV.
3
Port for connecting to Composite video input
port of a TV.
4
Port for connecting to left audio channel input
port of a TV.
5
Port for connecting to right audio channel
input port of a TV.
6
10/100M Base-T port for connecting to service
provider’s Ethernet port on wall or on xDSL
modem.
7
DC input port (DC 12V 1A).
8
Power switch.
EC1309V2
User Guide 2 Remote Control
5

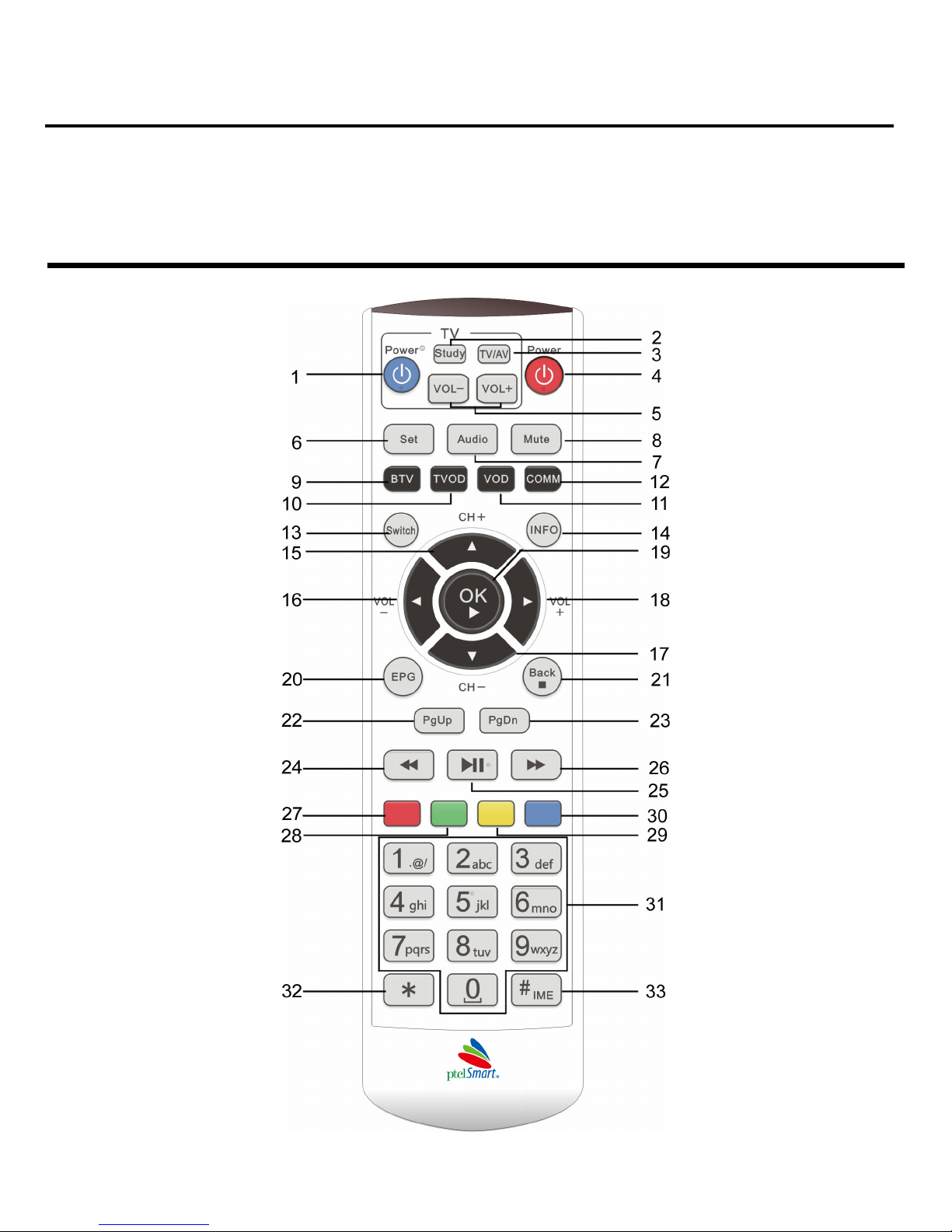

2 Remote Control
EC1309V2
User Guide 2 Remote Control
6
No. Key Description
1
Switch the status of TV Set between
working and standby.
2
Study the functions of a TV remote
control. For details, see Instructions for
Studying Key Functions.
3
Switch the video output of a TV
between AV and TV.
4
Switch the status of STB between
working and standby.
5 Adjust the volume of a TV.
6 Access the setting page.
7 Switch between audio channels.
8 Mute or unmute audio.
9 Shortcut to Live TV channel list.
10 Reserved key (defined by EPG).
11 Access the VOD main page.
12 Reserved key (defined by EPG).
EC1309V2
User Guide 2 Remote Control
7
No. Key Description
13 Switch key (defined by EPG).
14
Display the information about the
current program.
15/17
zChange channels.
zMove the cursor upward and
downward on the EPG.
16/18
zControl sound volume.
zMove the cursor leftward and
rightward on the EPG.
19 Confirm an operation.
20 Access the EPG homepage.
21 Access the previous page.
22/23 Switch to the previous/next page.
24 Fast rewind a program.
25 Play or pause a program.
26 Fast forward a program.
EC1309V2
User Guide 2 Remote Control
8
No. Key Description
27 Reserved key (defined by EPG).
28 Reserved key (defined by EPG).
29 Reserved key (defined by EPG).
30 Reserved key (defined by EPG).
31 Enter digits, letters, and characters.
32 Reserved key (defined by EPG).
33 Switch between text input methods.
Instructions for Studying Key Functions
Overview
Your Set Top Box (STB) remote control is able to study the
functions of keys on your TV remote control. This allows
you to control both your STB and TV by using your STB
remote control.
