PSB CW50R Manuel utilisateur
Be He ard, Not Seen
P S B C u s t o m S o u n d I n - W a l l S p e a k e r S y s t e m
The CW50R is a 2-way coaxial in-wall system. The CW50R has been
carefully optimized for a neutral and well balanced sound quality.
The 5.25-inch woofer with a fi berglass textured polypropylene cone
has high power handling, smooth response and extended bandwidth.
The 3/4” tweeter has a 2 piece diaphragm and suspension for low
resonance and low distortion. The tweeter has a pivoting mount to
allow it to be aimed towards the listener’s location for most extended
response.
“Dog leg” style mounting clips ensure quick and easy mounting.
In-wall loudspeakers must deal with limited space within the confi nes
behind the wall. Wall cavities are not built to any standard volume
so open back in-wall speakers must work within a wide range of wall
cavity volumes. PSB accomplishes this by giving the woofers higher
mass and stiffness than with conventional “in room” enclosures.
Extensive simulations and testing have shown that our designs
deliver high-performance sound quality with a broad range of wall
cavity volumes. The CW50R can be used with the CWS8 subwoofer/
CWA-1 subamplifi er combination.
Full 2nd order high-pass and low-pass crossover fi ltering is used
to enhance system power handling and give enough control in the
design process to achieve a smooth and very well balanced sound. It
is a perfect match to any other PSB product.
CW50R - 5.25” Coaxial Speaker System
• 5-1/4” woofer with stiff fi berglass textured polypropylene
cone, higher cone mass and enhanced motor strength to
optimize it to a restricted enclosure volume
• Low resonance 3/4 inch pivoting tweeter
• High power drivers and crossover for long term reliability
• Performance Enclosure and new construction bracket
available
Frequency Range (-6dB): 65-20,000Hz
Recommended Power: 20-60 Watts
Impedance (Nominal): 8 Ohms
Sensitivity (2.83V @1m) 86dB SPL
Drivers: 5-1/4” Woofer
3/4” Dome Tweeter
Overall Dimensions (Diameter x D): 7-13/16 diameter x 2-15/16”
Cut-out Dimensions (Diameter): 6-1/2”
CW50R - 5.25” Coaxial Speaker System
w w w. p s b s p e a k e r s . c o m
1 888 772 0000
• Optimal spacing between speakers should
approximately equal the distance from the
listening area to the wall.
• Make a small exploratory hole and check
for obstructions in wall cavity before cutting
mounting hole.
• Use the mounting template provided to cut
the right sized mounting hole.
• Lightly fi ll wall cavity with fi berglass 2 feet on
either side of the system. Use standard 4”
fi berglass split to half thickness. Use 1” thick
fi berglass behind system. stem.
• Adjust electric screwdrivers to appropriate
torque. Tighten mounting screws fi rmly but
do not over tighten!
• Angle the tweeter inward towards the
listening area.
• See manual for more installation hints.
Installation Notes
PSB Speakers reserves the right to change specifications or features without notice.
© 2006 PSB Speakers, a division of Lenbrook Industries Limited.
PSB is a registered trademark of Lenbrook Industries Limited. Printed in Canada 08/06. All rights reserved.
No part of this publication may be reproduced, stored or transmitted in any form whatsoever without the written permission of PSB Speakers
823 CW50R data.
To Reach US Customer Service dial 1 888 772 0000 ext 4445 or 4342
6-1/2"
165mm
2-15/16"
75mm
7-13/16"
198mm
Table des matières
Autres manuels PSB Système de haut-parleurs
PSB
PSB CustomSound CW383 Manuel utilisateur
PSB
PSB CustomSound CW180R Manuel utilisateur
PSB
PSB CW260 Manuel utilisateur
PSB
PSB CustomSound CW180R Manuel utilisateur
PSB

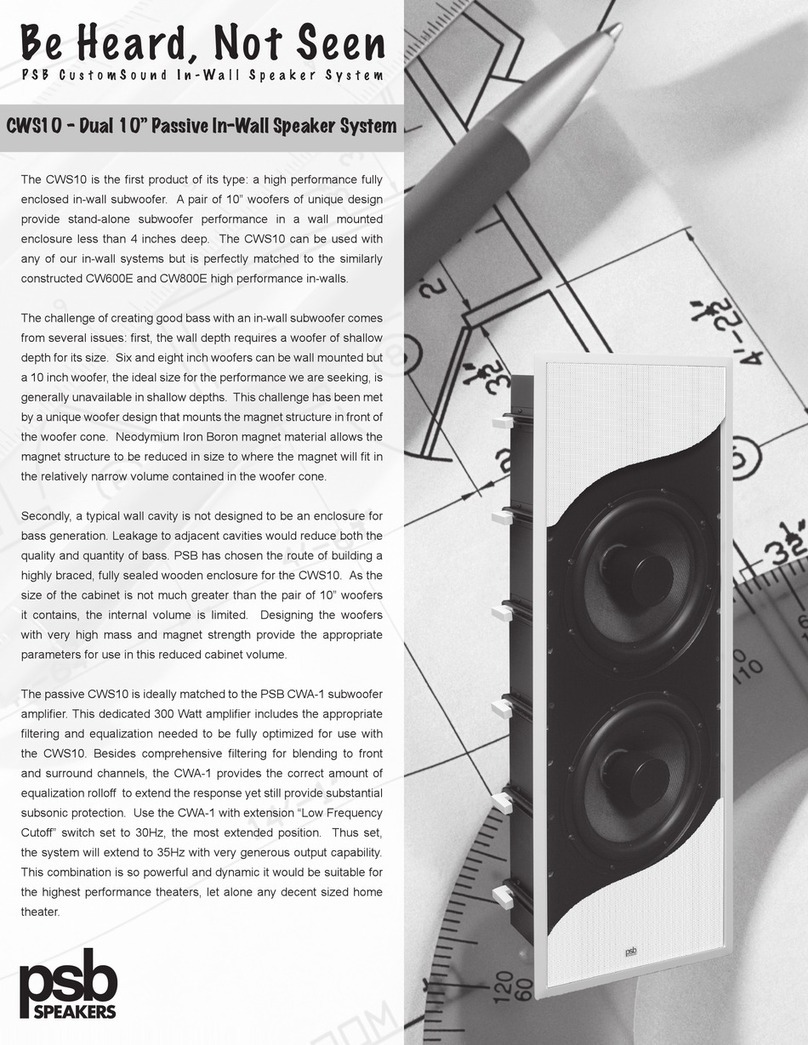

PSB CustomSound CWS10 Manuel utilisateur
