Protected Home HomeSitter HS-700 Manuel utilisateur

HomeSitter

HS-700

Installation and Operations Manual

Protected Home

A Division of Control Products, Inc.

1724 Lake Drive West

Chanhassen, MN 55317

Document No. 42420062A

Table of contents

Cautions and warnings.............................. 4

Description.................................................. 5

Physical description.................................. 5

General description.................................. 6

LEDs......................................................... 6

Audible alarm ........................................... 7

What conditions activate the audible

alarm? .................................................. 7

Operation..................................................... 7

HS-700 normal operation......................... 7

How the HS-700 receives power.............. 7

Alarm operation........................................ 7

How the HS-700 handles an alarm

condition............................................... 8

DIP switch functions and settings............. 9

Initial setup.................................................. 10

Connections ............................................. 11

Connecting to AC power ...................... 10

Power up sequence.............................. 10

Battery Life, Installing Batteries............ 10

Connecting the water sensor................ 11

Connecting to a phone line................... 12

Connecting the HS-700 and another

device to the same phone jack............. 13

Phone services and your HS-700............. 14

DSL and other digital phone services... 14

Calls using a calling card or pager

phone number

..................................... 14

Creating pauses................................... 14

Call to long distance phone numbers... 14

Programming (entering phone numbers) 15

Before you start entering phone numbers 15

Entering phone numbers...................... 15

Deleting phone numbers...................... 16

Changing phone numbers.................... 16

Installation considerations........................ 16

HS-700 assembled................................... 17

Phone test ................................................ 18

Testing your HS-700 ............................ 18

Testing for a specific alarm condition... 18

Ring count timer....................................18

Calling the HS-700 during an alarm

event .................................................19

An in-phone line answering machine/voice

mail with the HS-700.............................19

How this works..................................19

Calling the HS-700 during an alarm

event .................................................19

How to cancel an alarm call out sequence

..............................................................20

Canceling an alarm call out sequence

while listening to an alarm message.20

Canceling an alarm call out sequence

by calling the HS-700........................20

Canceling an alarm call out sequence

with an answer machine/voice mail

device in the phone line with the HS-

700....................................................21

Remote status check ............................21

Troubleshooting

....................................22

Technical information

...........................23

Technical specification..........................23

FCC statement

...................................23

Plug and jack use..............................23

Ring equivalence number (REN) ......23

Telephone network interferences......24

Technical support..................................24

Warranty...................................................25

Warrantor: Dealer, Distributor, Retailer,

Manufacturer.........................................25

Warranty and remedy .......................25

Causes for termination of this warranty

..........................................................25

Warrantors’ liability............................25

Procedures for obtaining performance

for warranty.......................................26

To return a product to Protected Home

..........................................................26

How to request an RGA number.......26

Trademark

All trademarks and registered trademarks are the property of their respective owners.

The

HS-700 HomeSitter is a trademark of Protected Home. TouchTone® isaregistered

trademark of AT&T.

in any form or by any means—graphic, electronic, or mechanical—without written

permission from Protected Home.

Purchase date, date code and serial number

For easy future reference during technical support and service, it is recommended that you

write your purchase date, date code, and serial number of the device in the spaces below. The

“date code” can be found on the label affixed to the bottom of the HS-700.

PURCHASE DATE:

DATE CODE:

SERIAL NUMBER:

Every effort has been made to ensure the information in this Installation and Operations

manual is complete, accurate, and up-to-date. Protected Home and its vendors assume no

responsibility for the result of errors in this manual, nor can it guarantee that changes in

equipment and components made by other manufacturers, in reference to this manual, will

not affect the operation or intended use of the HS-700.

Cautions and warnings

Cautions indicate the possibility of poor equipment performance or potential damage to the

equipment. Warnings indicate the possibility of injury to persons. The symbols shown below

identify Cautions and Warnings:

Cautions and warnings appear here and may appear throughout this manual where

appropriate. Failure to read and understand the information identified by these symbols could

result in poor equipment performance, equipment damage, or injury to persons.

Do not install the HS-700 in a confined space, such as a bookcase or in a cabinet, in direct

sunlight, or where it might get exposed to water. Failure to observe this caution could

result in poor performance or damage to the HS-700.

Any changes or modifications to this equipment not expressed in this manual could cause

poor performance or damage to the HS-700 and will void warranty.

The use of any accessory not recommended for use with the HS-700 could lead to poor

performance or damage to the HS-700.

Use ONLY the AC power adapter sent with the HS-700. Use of other AC power adapters

could result in damage to the HS-700.

Do not install the HS-700 in high dust and debris areas. Failure to observe this caution

could result in damage to the HS-700.

Do not install the HS-700 in an area with chemical fumes or corrosive vapors. Failure to

observe this caution could result in damage to the HS-700.

Do not touch the barrel connector end of the AC power adapter with wet hands when

plugged into AC power. Failure to observe this warning could result in an electrical shock.

Do not throw batteries into a fire. Failure to observe this warning could result in an

explosion.

Do not install or connect the HS-700 to power or phone line during a lightning storm.

Failure to observe this warning could result in an electrical shock.

Caution

Description

Physical description

Figure 1 identifies the parts of the HS-700.

Figure 1: HS-700 Parts List

Table 1: HS-700 Parts and Purpose

Part Purpose

1. Key Pad Used to enter the call-to phone numbers, activate a phone test,

and cancel an alarm.

2. LEDs (3) Power, Program, and Alarm present operational status of the

HS-700. LEDs do not function when operating on backup

battery power.

3. Battery Compartment Accommodates two AA batteries for backup power during an

AC power failure.

4. DIP Switches These switches dictate how the HS-700 will respond to alarm

conditions.

5. Water Sensor Connector Three-position terminal block used to connect the water sensor

to the HS-700 for detecting water.

6. Phone Jack RJ-11 phone jack is used to connect the HS-700 to a standard

hone line.

7. Power Jack Connects to the barrel connector of the AC power adapter to

provide 6 volts DC power to operate the HS-700.

8. AC Power Adapter Converts AC power to 6 volts DC power to operate the HS-

700.

9. Phone Cord Connects the HS-700 to the wall phone jack, length 7ft (2.1m).

10. Water Sensor Normally open dry contact relay closes when water is

detected, cable length 3ft (0.91m).

General description

The HS-700 monitors your home for a variety of alarm conditions. When an alarm event

occurs, the HS-700 calls the three entered phone numbers for the following alarms:

Temperature drops below 45ºF (7ºC) or temperature rises above 85ºF (34ºC) DIP switch

(selectable)

AC power outages for more than 15 or 60 minutes (DIP switch selectable)

HS-700 low battery condition (backup AA batteries)

Water leaks (water sensor included)

When a problem occurs at the monitored location, the HS-700 will start calling the call-list

phone numbers sequentially, over a standard phone line and describe (in English) the current

alarm(s). The HS-700 will continue calling until the alarm call out is canceled.

LEDs

The HS-700 has three LEDs: Power, Program, and Alarm located on its front panel. These

LEDs present operating status of the HS-700. Table 2 explains the operational states of the

three LEDs.

Table 2: LED Operational States

LEDs O

erational States

Power ON green when the HS-700 is plugged into the AC power adapter

OFF when operating in battery mode to preserve power

Program FLASHES red with a press of the PROGRAM key

ON red (not flashing) while programming phone numbers (press of

key 1, 2, or 3)

OFF in normal operation mode

OFF when AC power fails to preserve back-up battery power

Alarm ON red when in alarm mode

OFF when in normal operation mode

OFF when AC power fails to preserve back-up battery power

Audible alarm

The HS-700 produces a 40 db beep during an alarm event. You can turn the audible alarm

(beep) OFF for alarm conditions ONLY by setting DIP switch “6” to the DOWN position.

What conditions activate the audible alarm?

The HS-700 will beep during the following alarm events:

Temperature alarm (beeps once every 15 seconds)

Low battery alarm (beeps once every 15 seconds)

Power failure (beeps once every 10 seconds)

Water detection alarm (beeps once every 15 seconds)

Operation

HS-700 normal operation

In normal operations mode, the HS-700:

Monitors the ambient temperature thru an on-board temperature sensor.

Monitors for a power outage based on power through the AC power adapter (6 volts DC).

Monitors the AA backup batteries for low power.

Monitors the attached water sensor for the detection of water.

How the HS-700 receives power

The HS-700 receives power from a 6-volt AC power adapter, which comes with the HS-700.

Two AA batteries (not included) supply back-up power to the HS-700 during an AC power

failure.

Alarm operation

The HS-700 will monitor and send a factory-recorded voice message to the entered phone

numbers for the following alarms:

If the temperature falls below 45ºF (7ºC) or rises above 85ºF (34ºC) (DIP switch

selectable)

If power is out for either 15 or 60 minutes (DIP switch selectable)

If the unit encounters a low battery condition

If the HS-700 detects water from the water sensor

How the HS-700 handles an alarm condition

Sta

e Descri

tion

A. When an alarm occurs, the alarm LED lights up (if not an AC power failure),

and the HS-700 emits a beep every so many seconds depending on the alarm

type.

B. The HS-700 starts calling the call-list phone numbers in sequence, attempting

to deliver an in progress alarm voice message. If the HS-700 receives a busy

signal or no answer after 10 rings,it will immediately hang up and start

calling the next phone number in sequence.

C. The HS-700 will continue calling the call-list phone numbers, in sequence,

every 15 or 60 minutes (DIP switch selectable) until a called party answers.

D. When the called party answers (person or answering machine), the HS-700

will deliver its factory pre-recorded alarm message, identifying the specific

alarm condition(s).

E. The HS-700 will continue its calling sequence until the following action is

taken:

Locally, press the CANCEL key on the key pad.

Remotely, over the phone, press the number “1” key and then the “#” key

on the key pad anytime during the alarm message.

F. Once the alarm call-out sequence is canceled, the HS-700 will do one of two

things:

If the alarm is still active, the HS-700 allows you to call to hear the current

alarm condition.

If the alarm condition has been corrected, the HS-700 will not respond to

the incoming call.

G. When you cancel an alarm call out sequence, and correct the cause of the

alarm, the HS-700 will stop beeping, the alarm LED will go out, and the unit

will reset to normal operation automatically.

Note: During an AC power failure alarm, the Alarm and Power LEDs do not

turn ON to preserve battery power—but the unit will still beep every

so many seconds.

DIP switch functions and settings

The HS-700 has a 7-position DIP switch. The switch settings determine how the HS-700 will

respond to specific alarm conditions. Figure 2 shows the DIP switch and Table 3 explains the

functions of each switch. Turn the HS-700 upside down as shown in Figure 2 for proper DIP

switch orientation.

Figure 2: DIP Switches

Note: Use a ballpoint pen or similar small object to set the DIP switches.

Table 3: DIP switch settings and functions

Switch Function (switch in UP position is the default)

1 Temperature low or high:

UP, when the monitored environment temp falls below 45ºF (7.2ºC) an

alarm message is sent.

DOWN, when the monitored environment temp rises above 85ºF (29.4ºC)

an alarm message is sent.

2 Pick-up ring count when calling your HS-700 to cancel an alarm:

UP, “5” rings before the HS-700 will answer.

DOWN, “10” rings before the HS-700 will answer.

If pick-up ring count is similar to an answering machine pick up, or how

many rings you must wait before the machine responds.

3 Monitors call out frequency:

UP,call sequence happens every 15 minutes.

DOWN, call sequence happens every 60 minutes.

When the monitor goes into alarm mode, it begins calling the three call-list

phone numbers. If the alarm condition is not canceled, the calling cycle will

start again every 15 or 60 minutes until the alarm is canceled.

4 Power out alarm timer:

UP, if AC power is OFF for 60 minutes, an alarm message is sent.

DOWN, if AC power is OFF for 15 minutes, an alarm message is sent.

5 Auxiliary alarm message:

UP, if the water sensor detects water, an alarm message is sent.

DOWN, if an auxiliary event is sensed, an alarm message is sent.

An auxiliary event may be some other device that is plugged into this unit

that uses a dry contact. No other devices come included with this product.

6 Audible alarm:

UP, HS-700 will beep upon detecting an alarm condition.

DOWN, HS-700 will NOT beep upon detecting an alarm condition.

The alarm will beep during certain key pressing during set up or when

entering test mode regardless of the switch position setting.

7 Not used.

Initial setup

Connecting to AC power

Do not touch the barrel connector end of the AC power adapter with wet hands when

plugged into AC power. Failure to observe this warning could result in an electrical shock.

Do not install or connect the HS-700 to power or phone lines during a lightning storm.

Failure to observe this warning could result in an electrical shock.

Power up sequence

Upon power up, the HS-700 LEDs will do the following:

The Power, Program, and Alarm LEDs will light for a few seconds, then the Program and

Alarm LEDs will turn OFF

The Power LED will remain ON

Note: A surge protector is recommended, but not provided. You can purchase a surge

protector from Protected Home or from a local computer or hardware store.

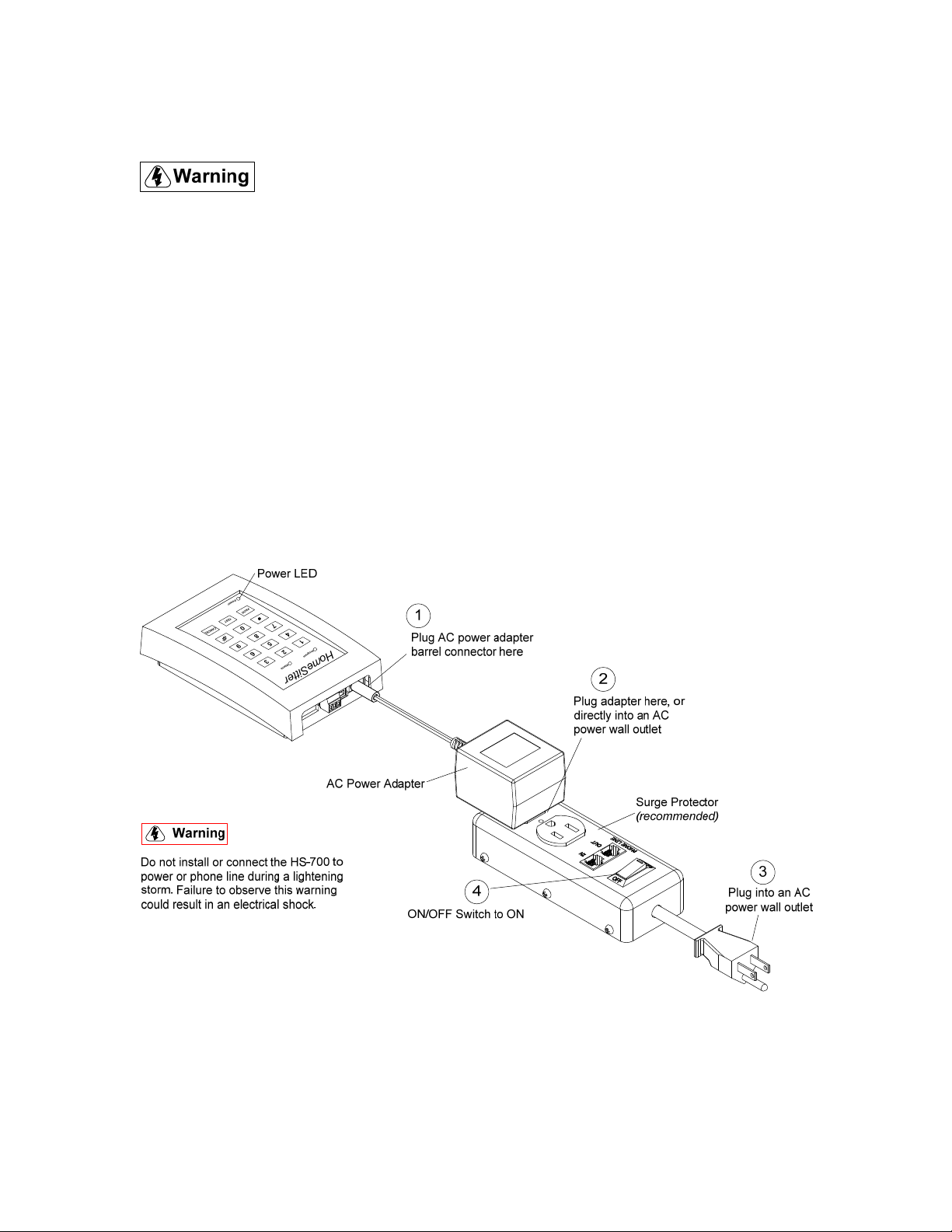

To connect AC power to the HS-700 through the AC power adapter, follow the number

sequence shown in Figure 3.

Figure 3: Connecting the AC Power Adapter

Table des matières

Autres manuels Protected Home Système de sécurité

Protected Home

Protected Home WA-5000 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
