GE1350 User Manual
70-0013A-D
Prosilica Inc.
2
Specifications
Sensor Type Sony ICX205AL CCD (ICX205AK for color)
Sensor Shutter Type Progressive Interline
Image Resolution 1360 x 1024 pixels
Pixel Size 4.65µm x 4.65µm
Optical Format 1/2 inch
Lens Mount C-mount with adjustable back focus
Color Sensor Filter Pattern
†
Bayer
Full Resolution Frame Rate 20.1 fps
Frame Rate (640 x 480 ROI) 35 fps
I/O 1 isolated TTL compatible input, 3 isolated TTL
compatible outputs, RS-232 input/output
Power Requirements Less than 3.2W
††
. 12V nominal.
Digitization 12 Bits
Trigger latency* 3.6us
Trigger Jitter* ±30ns
Tpd* 90ns
Operating Temperature 0 to 50 Celsius***
Operating Humidity 20 to 80% non-condensing

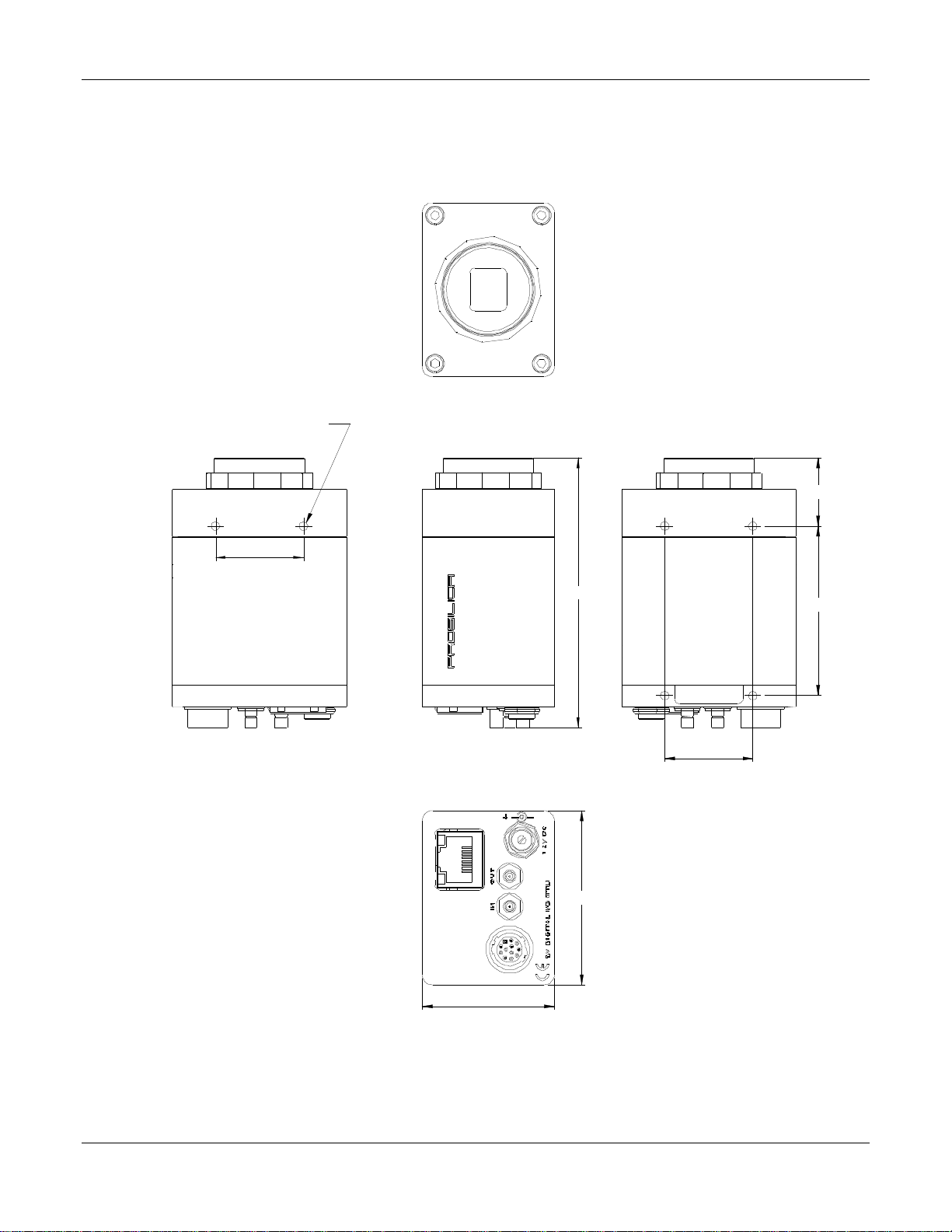

Size 39mm (height) x 51mm (width) x 80mm (length)
Weight 173g
Hardware Interface Standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software Interface Standard GigE Vision Standard 1.0
Regulatory Conforms to CE, FCC
† Applies to GE1350C only.
†† Power consumption will increase with reduced ROI imaging. Add 2.3W for Version A cameras.
††† Nominal operating voltage is 12V. Cameras have been tested at 12V.
* See Notes on Triggering in the Addendum.
***DUE TO THE SMALL PACKAGING AND HIGH SPEED OF THE GE CAMERAS, SPECIAL
CARE IS REQUIRED TO MAINTAIN A REASONABLE OPERATING TEMPERATURE. IF THE
CAMERA IS TO BE OPERATED IN A WARM ENVIRONMENT, IT IS SUGGESTED THAT THE
CAMERA BE MOUNTED ON A HEAT SINK SUCH AS A METAL BRACKET AND THAT
THERE IS SUFFICIENT AIR FLOW.
