ProRacing VP Manuel utilisateur
ProRacing® Chip Box Digital VP
Certicate IPC: 7711/21, IEC: 61340-4-1
Table of Contents.
2
1. ProRacing® Chip Box Digital VP. ..................................................................... 3
2. Set contains. ..................................................................................................... 3
3. Principle of operation. ....................................................................................... 4
4. Pro Power Increase – The Power Boost. ......................................................... 4
5. Pro Driving Safety – For your and others’ safety. ............................................. 4
6. Pro Eco Driving – Fuel Economy. ..................................................................... 5
7. Usability of the product. .................................................................................... 5
8. Typical location of the plug. .............................................................................. 6
9. Installation. ....................................................................................................... 8
10. Installation in Volkswagen T4. ........................................................................ 10
11. Marking of the VAG engines with a VP37 pump. ........................................... 11
12. Types of plugs. ............................................................................................... 12
13. FAQ. .............................................................................................................. 13
14. Regulation of the device. ............................................................................... 14
15. We meet the global IPC standards. ................................................................ 15
16. ProRacing® in the world. ................................................................................ 15
17. Customer Service. .......................................................................................... 16
1. ProRacing® Chip Box Digital VP.
2. Set contains.
ProRacing Chip Box Digital VP is a digital device connected in the engine
compartment. The device is programmed for use with diesel engines equip-
ped with rotary pump VP37 - cars from Volkswagen Group (VAG). Equipped
with an additional self-regulation system - rotary potentiometer. The set
includes dedicated wires with Plug & Play plugs.
Get ready for:
• The power increase up to 25%
• The torque increase up to 25%
• Reducing fuel consumption up to -15%
• ProRacing® Chip Box Digital VP,
• Cables with dedicated plugins,
• Assembly instructions and an operating manual,
• Warranty.
3
1. Increase in power and a maximum speed of the car.
2. Torque increase, guaranteeing:
• better driving dynamics,
• stable and exible engine operation,
• much better acceleration due to faster response to the gas pedal,
3. Easy starting of the engine even in winter conditions.
4. Reducing turbo lag in turbo-charged cars.
5. Smooth acceleration starting from low engine revs.
3. Principle of operation.
4. Pro Power Increase – The Power Boost.
1. Increased driving dynamics.
2. Easier and safer overtaking manoeuvre.
3. Improved driving comfort.
• The device improves driving comfort. Improved driving dynamics and impro-
ved engine performance mean increased road safety.
• When the device is connected, the torque increases signicantly. The car
becomes more dynamic, better responsive to the gas pedal. Also, for the
cars with the automatic transmission, this increase translates to faster gear
change/reduction, which makes the car gain much better acceleration. This is
very important, for example, when overtaking.
• Thanks to the easy overtaking, we are taking care of our passengers and the-
ir safety. The overtaking manoeuvre will be easier and, above all, safer when
we are sure of the power of the car.
The device is prepared for mounting in the engine compartment, in a suitable
sensor at the fuel pump. As a result, we modify the data transmitted between the
control computer (ECU) and the corresponding sensor, including fuel injection,
fuel charge, turbocharger boost, air feed rate, engine speed, throttle position,
injector opening time.
5. Pro Driving Safety – For your and others’ safety.
4
6. Pro Eco Driving – Fuel Economy.
1. Reduce fuel consumption up to 1.5 l per 100 km
• Among the dened 10 MAPs are also ECO maps - which limit fuel consumption.
We use them mostly for long trips. In a continuous route, without rapid acce-
leration and deceleration, we can expect a reduction of up to 1.5 l per 100 km.
• The increase in power and torque improves the engine performance. Optimi-
zing engine performance reduces fuel consumption. Performance depends on
the car’s output parameters, engine displacement, current fuel consumption,
and driving style.
2. By reducing the combustion, we reduce the number of harmful substances
emitted to the atmosphere, including nitrogen and carbon oxides.
• We can refuel less, save money and protect the environment.
7. Usability of the product.
5
Car warranty protection.
The device can be used on cars with a guarantee, because in the
computer control (ECU) no parameters are permanently changed.
When the device is disconnected, the ECU returns to the serial pa-
rameters, so the modication is undetectable by the service during
the technical review.
Easy Plug & Play installation.
This device is intended for self-installation. Includes detailed instal-
lation instructions and dedicated cables with original manufacturer
plugs.
Durability and reliability.
The device is built in SMD technology; the electronic circuit is enc-
losed in a well-insulated housing made of durable plastic. Heat-in-
sulated cables are provided with waterproof plugs for durability and
reliability.
8. Typical location of the plug.
1
1
2
2
B
1
1
2
2
B
In the example drawings and
photos, the location of the
VP37 rotary pump is marked
with the letter A, plugs for the
controller with the letter B.
6
Fast effect.
The power of the car is increased by the electronics, so there is
no need to interfere with the mechanical parts of the engine or the
components, and the effect is almost immediate.
Engine protection function.
Ensures the engine operates in a safe range of engine speed. The
power increase is always maintained within the tolerance range of
the engine. This function prevents the engine from overheating at
high loads - very dynamic driving.
Additional self-regulating system
- an adjustment screw.
Allows you to make software modications - it makes it easy to
adjust the device to the needs of the engine - reduce or increase
the power of the device.
+
-
A
B
7
9. Installation.
The device is prepared for mounting in the engine compartment, to a suitable
sensor on the rotary pump. As a result, we modify the data transmitted between
the control computer (ECU) and the corresponding sensor, including fuel injection,
fuel charge, turbocharger boost, air feed rate, engine speed, throttle position,
injector opening time.
1

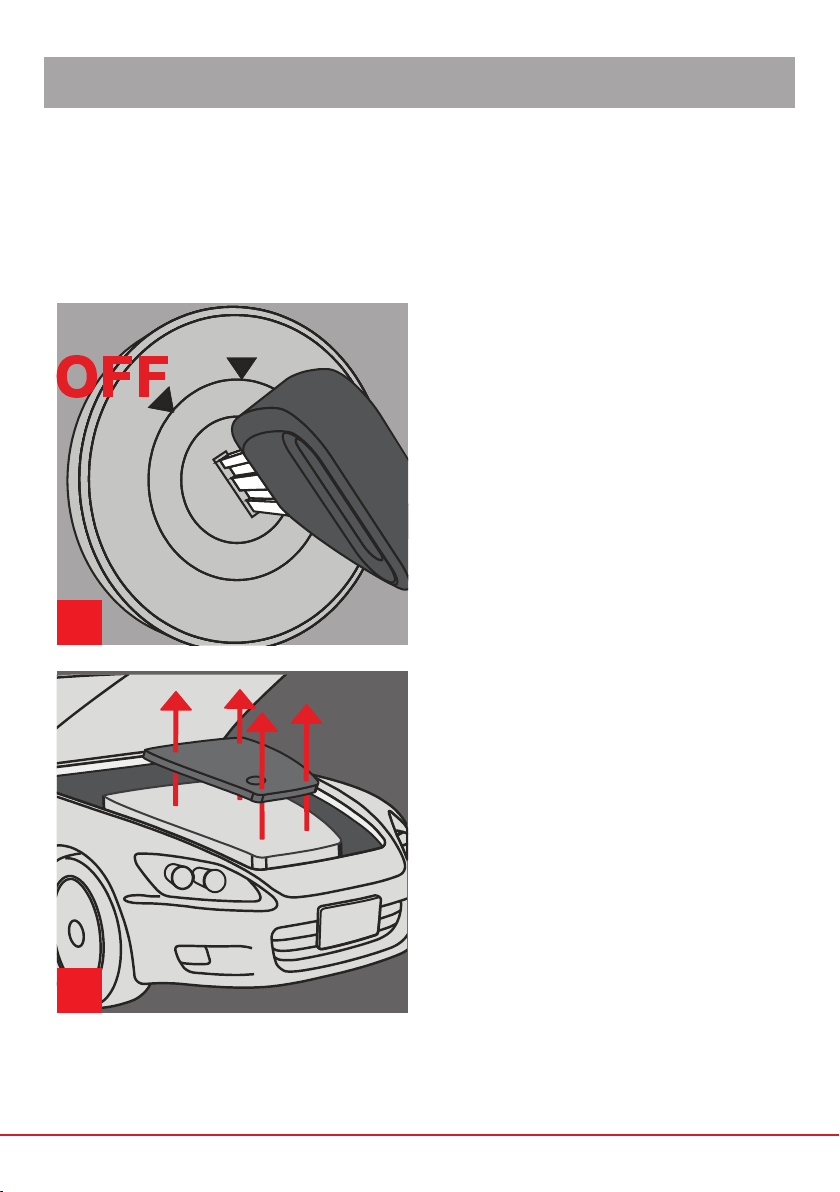

Step 1.
Make sure the car’s engine is not
working and all electric elements are
in an OFF position. The key in the
ignition ought to be in an OFF position,
no devices such as navigation, car
radio, air- conditioning, internal lighting
etc. ought to be working. If a car is not
started with a key, the power ought to
be cut off with a START/STOP button
or by removing a card.
2
Step 2.
After removing the engine
compartment cover locate the VP37
injection pump. Near the pump there
are plugs running out of the controller
[See section 8 - „Typical plug location”].
Note! The location of plugs may be
different in different car models.
8
4

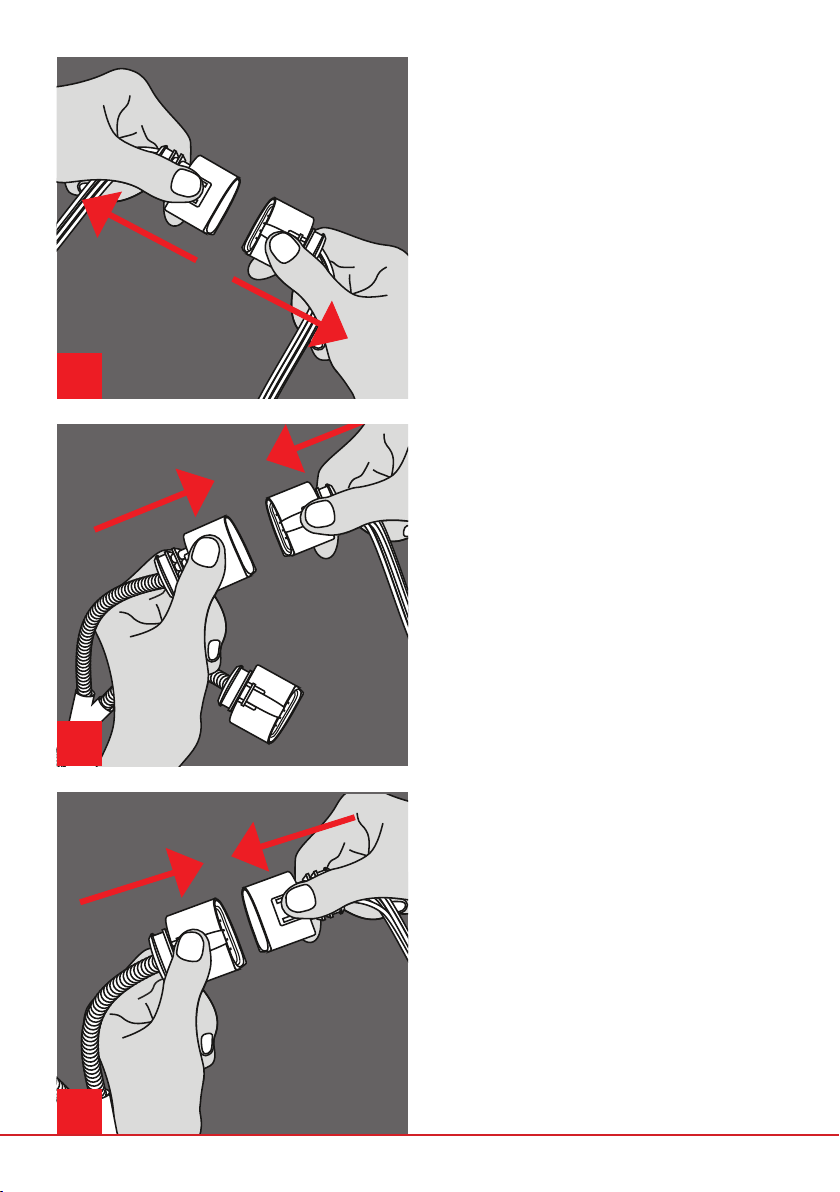

Step 4.
Connect the male plug to the
unplugged female plug.
It should be noted that during the
insertion a characteristic click of the
fastened snap / clasp is created. This
will guarantee us the certainty of the
connection.
Step 5.
Connect the female plug with the
previously unplugged male plug,
then connect the cable to the VP
Chip Box. Attach the Chip Box in a
safe place, away from the hot engine.
After correct installation, you can start
the engine and start driving.
3
Step 3.
Unplug the plug from the socket.
To unplug the connector, press the
clasps and then pull. Always pull the
plug not wires!
Remember! Attempting to pull out
the plug without rst unclipping the
clasps can cause it to tighten even
more tightly. Before unplugging the
plug, it is good to push it into the
socket to loosen the clasps.
5
9
10. Installation in Volkswagen T4.
10
The installation is different in
Volkswagen Transporter T4. The VP37
pump driver plug is located underneath
the engine. To mount the ProRacing®
Chip Box Vp-10 Map you must rst
remove the motor cover.
Warning! The cover is mounted on
a series of screws. Take particular
care when loosening the screws! A
falling cover can cause harm!
After uncovering the bottom of the
engine, we should get direct access
to the plugs coming from the VP37
rotary pump. The assembly takes place
in the same way as described earlier
(begining from step 3 at page 11).
If you want to see a video
of installation of the device
in Volkswagen T4, please
visit our YouTube channel:
https://www.youtube.com/c/
ProRacingMorepower
Scan the QR code and watch the
assembly video on YouTube.
