PRODUCT OVERVIEW

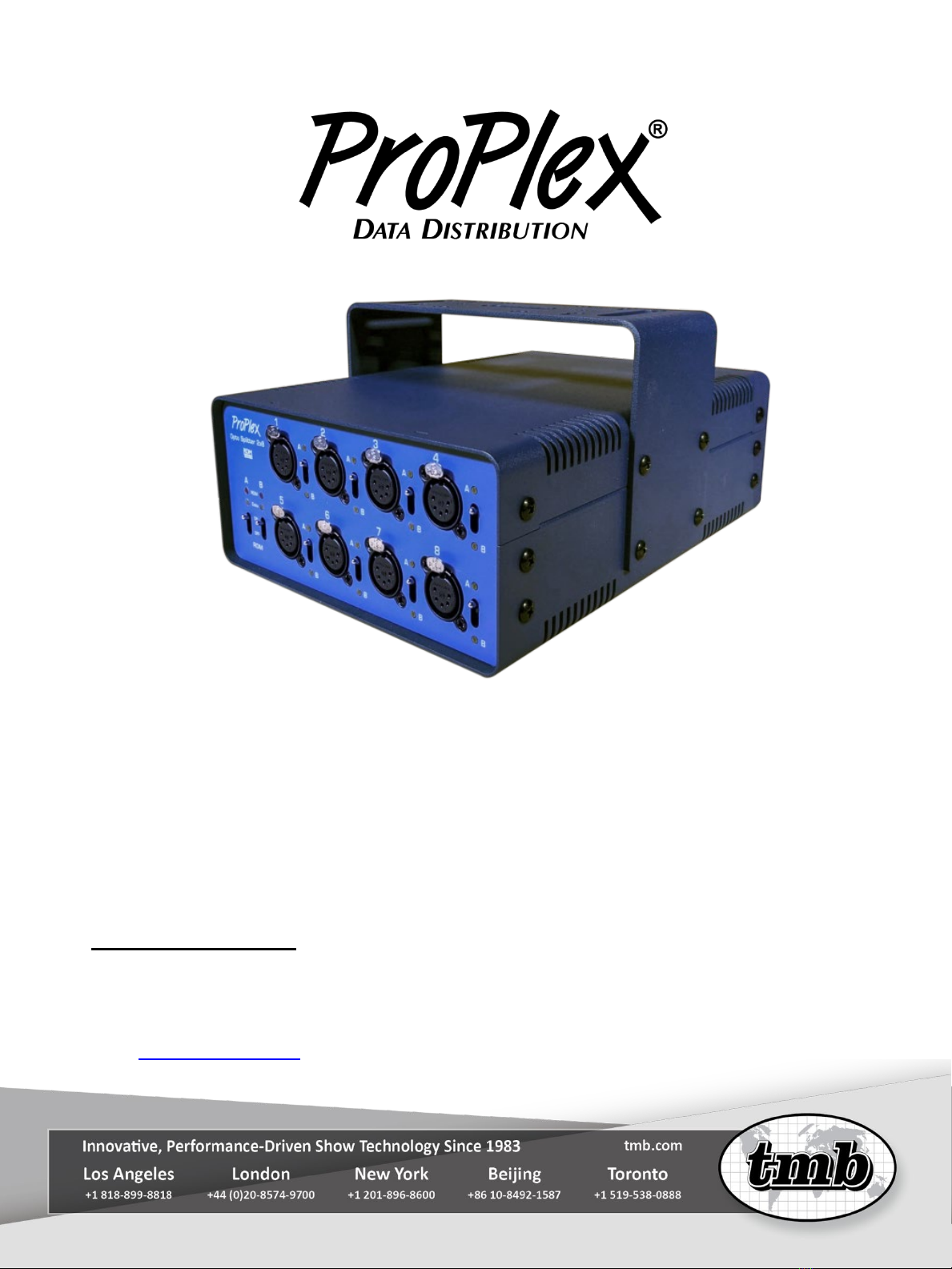

The ProPlex Opto-Splitter PortableMount is designed for standard DMX-512A signal amplification, regeneration,
and splitting to multiple outputs. Just a few features include:
•
Full RDM functionality. RDM defeat switch on each input.
•
Shock-mounted circuitry. Designed for extreme conditions and temperatures.
•
Neutrik™connectors: Locking PowerCon mains and XLR
•
Automatic bit clocking DMX regeneration with less than 1ms lag
•
Outputs switchable between two inputs with LED indicators.
UNPACKING INSTRUCTIONS
Upon receipt of the unit, carefully unpack the carton and check the contents to ensure that all parts are
present and in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear to be damaged from shipping or if the carton itself shows signs of mishandling. Save the
carton and all packing materials. In the event that a unit must be returned to the factory, it is important that it
be returned in the original factory box and packing.
POWER REQUIREMENTS
Before powering the unit, make sure the line voltage is within the range of accepted voltages. This unit
accommodates 100-240VAC, 50/60Hz. All units must be powered directly from a switched circuit and cannot
be operated with a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is
used solely for a 0-100% switch.
SAFETY INSTRUCTIONS
•
Keep this User Guide for future reference. If unit is sold to another user, make sure they also receive this
instruction booklet.
•
Ensure the unit is connected to proper voltage, and that line voltage is not higher than that stated on the
device.
•
Make sure there are no flammable materials close to the unit while operating.
•
Always disconnect from the power source before servicing or fuse replacement. Always use thefuse
specified in this manual.
•
Always use a safety cable when hanging unit overhead.
•
Maximum ambient temperature (Ta) is 40°C (104°F). Do not operate unit at temperatures above this
rating.
•
In the event of a serious operating problem, stop using the unit immediately. Repairs must be carried out
by trained, authorized personnel. Contact the nearest authorized technical assistance center. Only OEM
spare parts should be used.
•
Do not connect the device to a dimmer pack.
•
Make sure power cord is never crimped or damaged.
Please read these instructions carefully. This user guide
contains important information about the installation, usage
and maintenance of this product.
