General Instructions for product handling
F:\producto\438\proyectos\954838 MALA IA DI CONNECTOR 1000A\A EMBLY IN TRUCTION .doc
Página 2 de 11
PRODUCT DE CRPTION
PRODUCT DE CRPTIONPRODUCT DE CRPTION
PRODUCT DE CRPTION

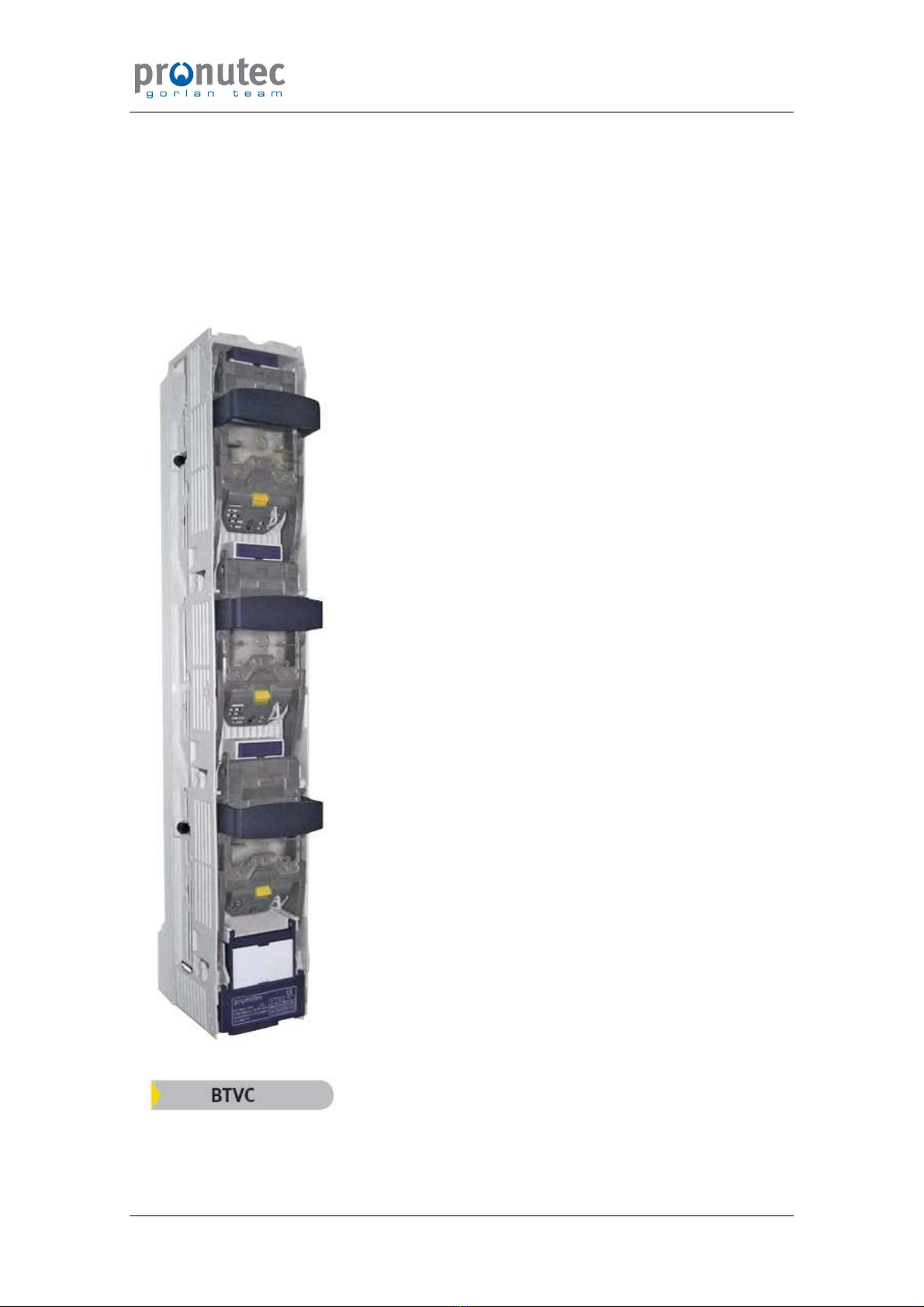

Closed vertical triple pole fuse switches, BTVC, are fuse holding
assemblies, which are mounted on three phase busbars and house
three fuse links, one between both fuse holder contacts.
Top contacts are linked through link bars to the above-mentioned
busbars and bottom contacts are linked through link bars to the
outgoing line cables.
Bases are also provided with a mobile element that holds the fuse
cartridge for its operation by an authorised operator, with a
particular using category (see technical data table).
BTVC is a "manual dependent" handling device, as defined by 2.13
of EN60947-3.
PRODUCT DEFINITION
PRODUCT DEFINITIONPRODUCT DEFINITION
PRODUCT DEFINITION
TRIVER BTVC: The switch element that is installed in the base is a
FU E and the base corresponds to the product definition: "fuse-
switch-disconnector" as defined by IEC 60947-3
TRIVER BTVC- : The switch element that is installed in the base is
a OLID LINK and the base corresponds to the product definition:
“disconnector “ as defined by IEC 60947-3.
The 438 TRIVER family products
Are in accordance with the
requirements of the Low Voltage Directive 2006/95/EC
And with the Electromagnetic Compatibility Directive 2004/108/CE.
According to the UNE - EN 60947-3 harmonised standard.
PECIFICATION
PECIFICATIONPECIFICATION
PECIFICATION
The 438 TRIVER family products
don’t contain any Hazardous substances according to Ro
2002/95/CE
APPROVAL
APPROVAL APPROVAL
APPROVAL
Confirmation of approvals, test certificates, and characteristics can be
obtained by contacting to Pronutec.
