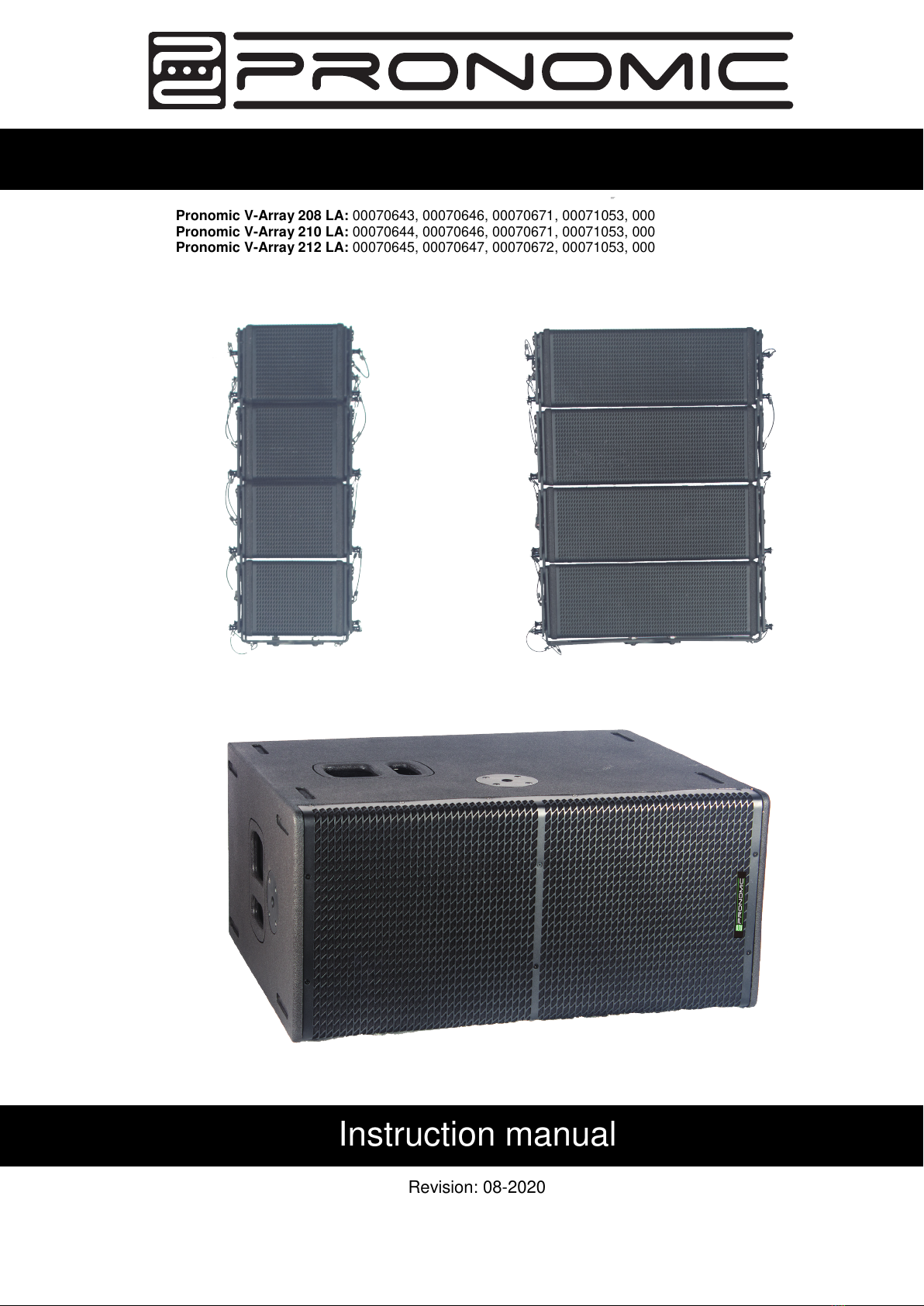

Pronomic V-Array Series Manuel utilisateur

Pronomic V-Array

Instruction manual

Pronomic V-Array 208 LA: 00070643, 00070646, 00070671, 00071053, 00071054, 00071052

Pronomic V-Array 210 LA: 00070644, 00070646, 00070671, 00071053, 00071054, 00071052

Pronomic V-Array 212 LA: 00070645, 00070647, 00070672, 00071053, 00071054, 00071052

Revision: 08-2020

V-Array

This manual is protected by copyright. Reproduction of these operating instructions,

even in part, is only permitted with the permission of Musikhaus Kirstein GmbH. The

same applies to the reproduction or copying of images, even in modified form.

Content

Rear panel of the subwoofer ................................................................................. 3

Product description (Subwoofer) ......................................................................... 4

Product description (satellites) ............................................................................ 5

Wiring of the satellites ........................................................................................... 6

Connections ........................................................................................................... 7

DSP Presets Diagram ............................................................................................ 8

Subwoofer specifications ..................................................................................... 9

Specifications of the satellites ............................................................................ 10

Angling and plug-in connections of the satellites ............................................. 11

Bluetooth connection .......................................................................................... 12

Intended use ........................................................................................................ 12

Important safety instructions............................................................................... 12

Installation and operation ................................................................................... 12

Optional accessories ........................................................................................... 12

SIMPLIFIED EU DECLARATION OF CONFORMITY ........................................... 13

WEEE-Erklärung (Waste of Electrical and Electronic Equipment) ................... 13

V-Array

Thank you for choosing this product.

To ensure that you are fully satisfied with this product, please read this manual

carefully before using our product. Keep this manual in a safe place. The manual

must be passed on to all subsequent users.

Observe operating instructions!

The signal word WARNUNG indicates dangers which can lead to

serious injury if no precautionary measures are taken.

The signal word HINWEIS indicates general precautions to be

taken when handling the product.

Images and screen displays in this manual may differ slightly from

the appearance of the actual product, as long as this does not

have a negative effect on the technical properties and safety of

the product.

All personal formulations in these operating instructions are to be

considered gender-neutral.

These operating instructions apply to persons who have been supervised or

instructed in the operation of the device by a person responsible for their safety and

who have demonstrated that they are capable of handling the device.

Children should be supervised to ensure that they do not play

with the appliance.

Do not leave children unattended.

All information in this manual has been checked to the best of our knowledge and belief.

However, neither the author nor the publisher can be held liable for any damages in

connection with the use of this manual.

Other product, brand and company names mentioned in this document may be the

trademarks of their respective owners. The user of this document is responsible for

compliance with all applicable copyright laws.

WARNUNG

HINWEIS

V-Array

Rear panel of the subwoofer

1 2

4 4

10 10 11

V-Array

Product description (Subwoofer)

1. volume control knob for satellites

With this control you can adjust the volume of the tops compared to the subwoofer

2. volume control knob for subwoofer

With this control you can adjust the volume of the subwoofer in comparison to the

satellites

3. DSP LEDs

These LEDs indicate which DSP preset is selected

4. line input

Use these combo jacks (XLR or 6.3mm jack) to connect sound sources to the

system such as a mixing console or other stereo sources

5. link output

With these XLR sockets you can continue to loop the input signal unamplified. This

allows you to use e.g. another system or another mixing console, etc.

6. DSP Knob

With this control you can choose between the different DSP presets (see also item

DSP Presets Diagram). The following presets are available

Flat: LowCut

Live1: LowCut, HighCut

Live2: LowCut, HighCut, centre cut

DJ1: LowCut, HighCut, mid cut, bass boost

DJ2: LowCut, HighCut, mid cut, bass boost

7. bluetooth power button

With this button you can activate (press button - on) or deactivate (not pressed

button - off) the Bluetooth connection

8. stereo/mono button

Stereo (button not pressed): Input L routes the input signal to Output L, Input R

routes the input signal to Output R

Mono (button pressed): The mono sum of input L and R is routed to both outputs

9. voltage selector switch

Here the power supply can be adjusted for countries with 115V mains voltage.

If the wrong voltage is selected, the system can be seriously damaged!

10. outputs for tops

Use these Speaker Twist sockets to connect your subwoofer with the satellites

11. on/off switch

This is the switch for power the product on and off

WARNUNG

V-Array

12. power plug & fuse

Use the mains cable supplied to connect the unit to a mains socket and thus supply

the unit with power

Only use the same fuse that is installed from the factory (250 Volt)

Product description (satellites)

1. Input

Input from subwoofer or previous element

2. Parallel output

Output for a parallel connection

3. Serial output

Output for serial connection

4. Serial output switch

Parallel or serial connection of the next element

Set the switch to the OFF position to connect the next element in parallel.

Set the switch to ON to connect the next element in series. The slide switch of the

last element must be set to OFF

Only wire the satellites as described on the following pages

WARNUNG

V-Array

Wiring of the satellites

INPUT

ALLY

SERIES

INPUT

V-Array

Security

Before installing or removing the product, make sure that the

power cord is not connected to the mains.

Make sure that the product is set up so that no one can trip

over the power cord.

x The repair and installation of this unit must be carried out by qualified

personnel in compliance with the approved safety standards.

x Do not place objects that are heat sources on the product.

x Do not expose the appliance to water. Penetration of liquid can cause a short

circuit;

x If you are placing several units on top of each other, check that they cannot

fall down. Falls can destroy the units and cause serious physical injury.

Connections

Before using the product, make sure that your mains voltage matches the voltage

indicated on the product.

WARNUNG

INPUTINPUT

V-Array

DSP Presets Diagram

V-Array

   

       

   

   

      

      

   

    

      

   

   

   

   

      

     

   

   

                               

      

                  

     

   

   

   

   

   

   



  

Subwoofer specifications
